Legend LSD2 User Manual

USER MANUAL

LSD2 – LEGEND STANDARD DEFINITION SET TOP BOX

www.legenddigital.com

www.legenddigital.com

v1.2

CONTENTS

Safety Instruction 3
Packing List
Front Panel

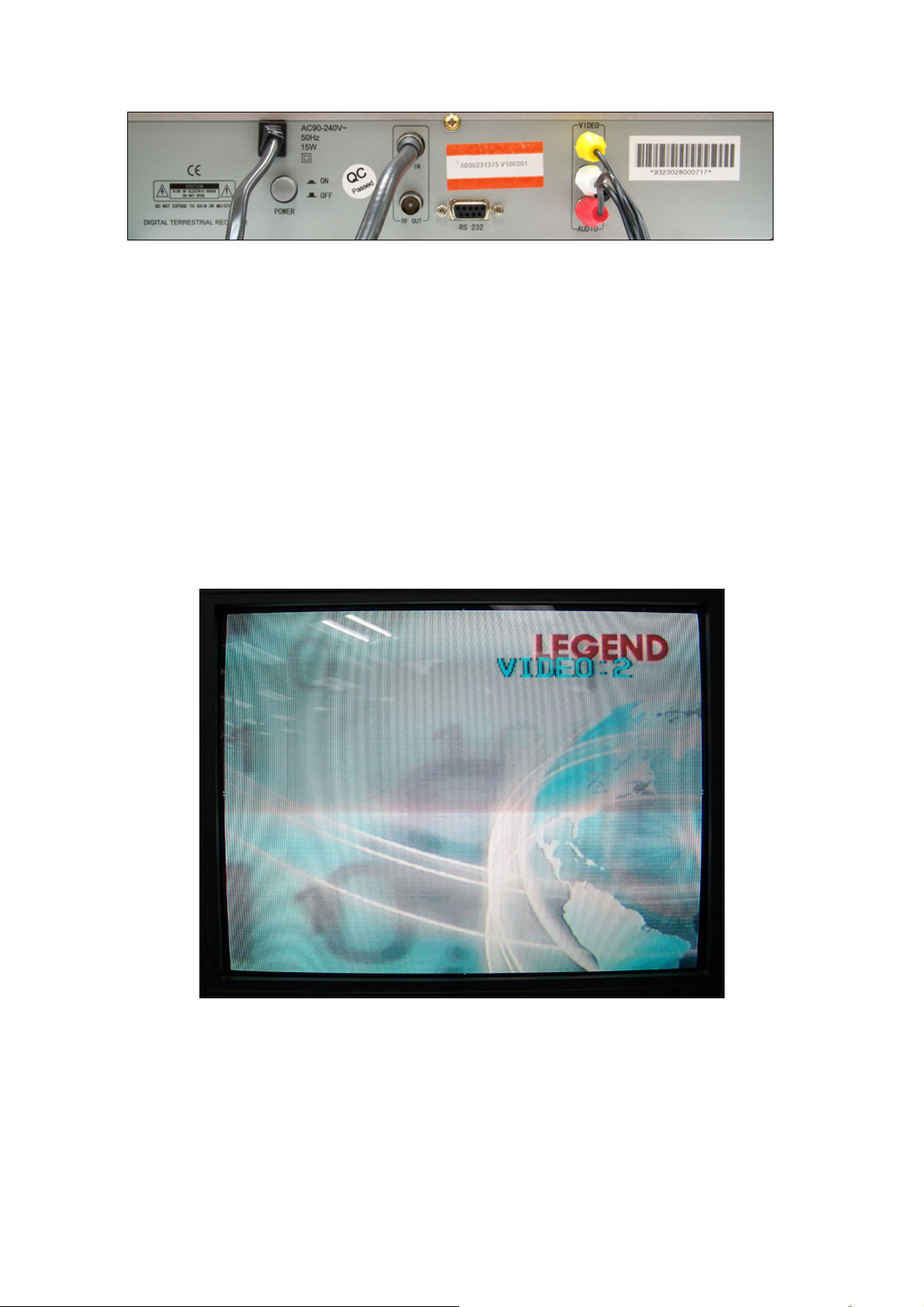

Rear Panel
Remote Controller

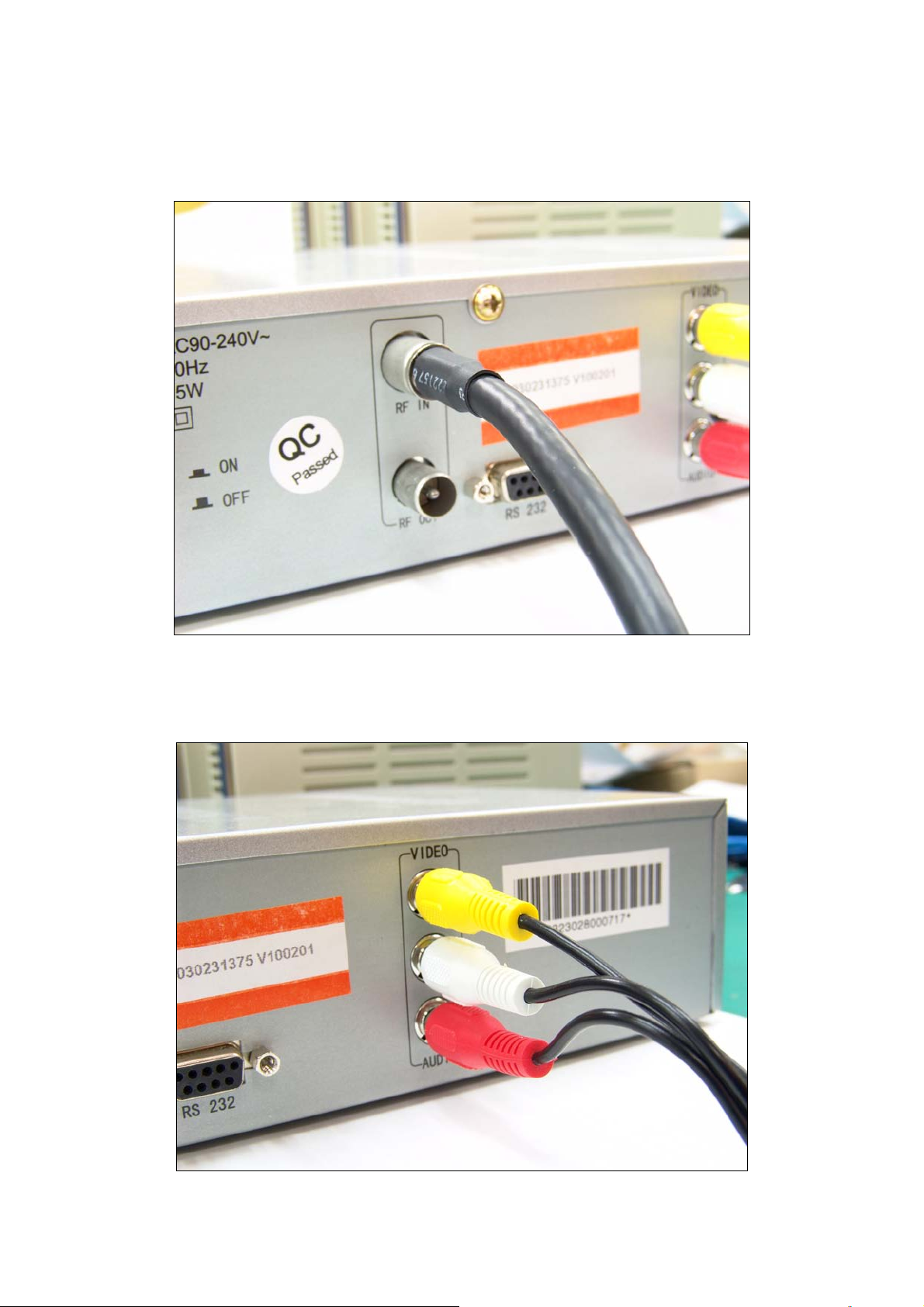

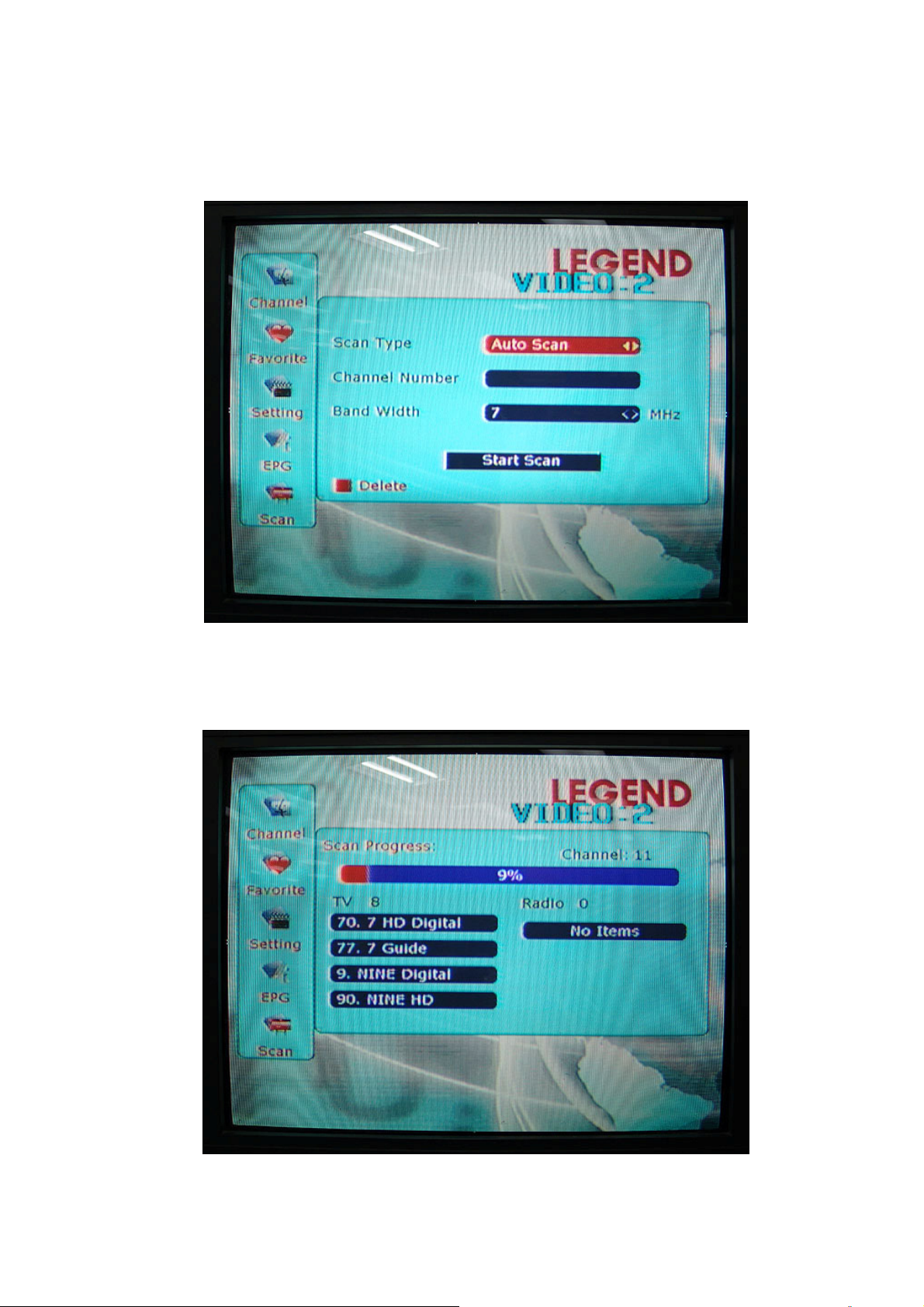

Installation Guide
EPG
Feature
Specification

4
5
5
6
7-11
12
12
13

2

SAFETY INSTRUCTIONS

Please read the following instruction carefully:

Do not overload power outlets, extension cords or integral convenience receptacle s as this can
result in a risk of fire or electrical shock

Never allow liquids, spray or other materials to come into contact with the inside of the Set Top
Box (STB).

Unplug the STB from the power outlet before cleaning.

Use a soft cloth and a mild solution of washing-up liquid to clean the exterior of the STB.

Allow a clear space around the STB for sufficient ventilation.

Do not use the STB where it is exposed to direct sunlight or heat.

Never stack other electronic equipment on top of the STB.

Locate the STB in an indoor place to prevent exposing from lightening, rain and direct sunlight.

Do not use any attachments as these may cause hazards or damage the equipment.

Do not connect or modify the power cable attached to the STB.

Do not cover or place the STB on a unit that emits heat.

This symbol indicates
“dangerous voltage” inside
the product that present a
risk of electric shock or
personal injury.

TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

This symbol indicates
important instructions
accompanying the
product.

3

PACKING LIST

ITEMS Qty. REMARK

DIGITAL TERRESTRIAL RECEIVER 1

INSTRUCTION MANUAL 1

REMOTE CONTROL 1 Batteries inc

AV CABLE 1

NOTE:

explanation of the discrepancy.

Any changes will not be noticed in advance. Our company reserves the rights for the
