Legend LE3933 User Manual
1

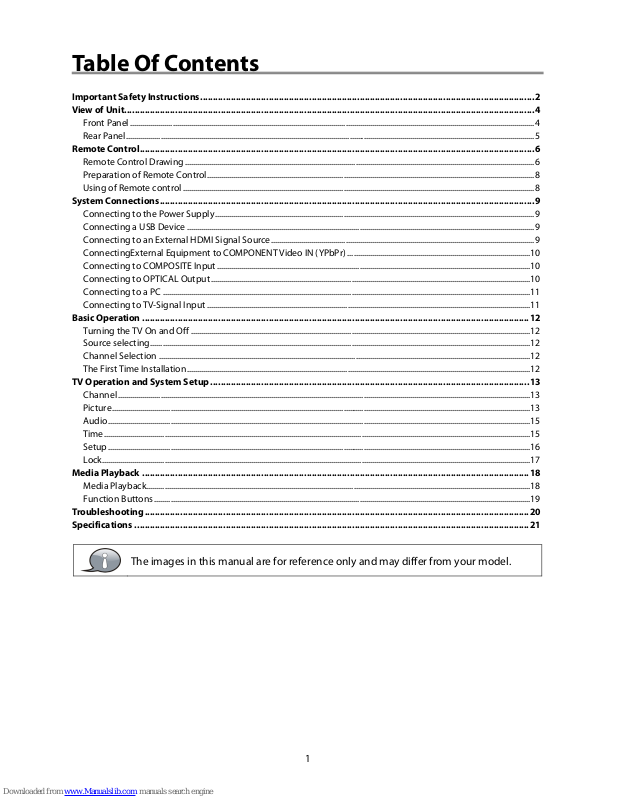

Table Of Contents
Important Safety Instructions....................................................................................................................................2
View of Unit..................................................................................................................................................................4
Front Panel .........................................................................................................................................................................................................4
Rear Panel...........................................................................................................................................................................................................5
Remote Control............................................................................................................................................................6
Remote Control Drawing..............................................................................................................................................................................6
Preparation of Remote Control...................................................................................................................................................................8
Using of Remote control ...............................................................................................................................................................................8
System Connections.................................................................................................................................................... 9
Connecting to the Power Supply...............................................................................................................................................................9
Connecting a USB Device .............................................................................................................................................................................9
Connecting to an External HDMI Signal Source...................................................................................................................................9
ConnectingExternal Equipment to COMPONENT Video IN (YPbPr) ...........................................................................................10
Connecting to COMPOSITE Input............................................................................................................................................................10
Connecting to OPTICAL Output...............................................................................................................................................................10
Connecting to a PC .......................................................................................................................................................................................11
Connecting to TV-Signal Input .................................................................................................................................................................11
Basic Operation .........................................................................................................................................................12
Turning the TV On and Off .........................................................................................................................................................................12
Source selecting.............................................................................................................................................................................................12
Channel Selection .........................................................................................................................................................................................12
The First Time Installation...........................................................................................................................................................................12
TV Operation and System Setup ..............................................................................................................................13
Channel .............................................................................................................................................................................................................13
Picture................................................................................................................................................................................................................13
Audio..................................................................................................................................................................................................................15
Time....................................................................................................................................................................................................................15
Setup ..................................................................................................................................................................................................................16
Lock.....................................................................................................................................................................................................................17
Media Playback .........................................................................................................................................................18
Media Playback...............................................................................................................................................................................................18
Function Buttons ...........................................................................................................................................................................................19
Troubleshooting........................................................................................................................................................20
Specifications ............................................................................................................................................................21
The images in this manual are for reference only and may differ from your model.
2
Important Safety Instructions
Thank you for choosing our product. Please read this manual carefully and observe all safety and
operating instructions. Store the manual in a safe place for later reference.
Caution
1. The product contains a low-power device. In order to ensure the safety of the laser device, do
not remove any cover and attempt to repair the unit. If any service is needed, please contact the
distributor or its authorised service centre.
2. To reduce the risk of electric shock, do not remove the cover (back). No user-serviceable parts
inside. Refer servicing to qualified service personnel. Unplug the product from the power source
before servicing or when it is unused for a long period of time.
3. The manufacturer will not be held responsible for the damage caused by any substitutions and
modification of the product without authorisation from the manufacturer’s or authorised
service agent.
WAR NING
The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids,
such as vases, shall be placed on the apparatus.
The information symbol in the documentation indicates useful information and tips
for using and maintaining the device.
The information symbol in the documentation indicates cautions for operators to
avoid potential damages. Please note and remember.
This symbol indicates that dangerous voltage instituting a risk of electric shock is
present within this unit.
This symbol indicates that there are important operation and maintenance
instructions in the literature accompanying the appliance.
3
Important Safety Instructions
NOTES:
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Maintain well ventilated conditions around the product.
Do not put product on a bed, sofa or anything that blocks ventilation. Install according to the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus
(including amplifiers) that produce heat.
9. Read, heed and follow all instructions to ensure correct and safe installation and
interconnection of the apparatus;
10. The apparatus shall not be exposed to dripping or splashing and that no objects filled with
liquids, such as vases, shall be placed on the apparatus.
11. The mains socket-outlet shall be installed near the apparatus and the mains plug shall remain
readily operable.
12. Protect the power cord from being walked on or pinched particularly at plugs, power sockets,
and the point where they exit from the apparatus.
13. Only use attachments/accessories specified by the manufacturer.
14. Use only with the stand, tripod, bracket, or table specified by the manufacturer, or sold with the
apparatus.
15. Unplug the apparatus during lightning storms or when unused for long periods of time.
16. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
17. The apparatus shall be connected to a mains socket outlet with a protective earthing
connection.
Do not touch the color LED screen directly by hand.
4
View of Unit
Front Panel
1. Color TFT screen
Presents high resolution picture.
2. Power Indicator
In active mode, it is green; in standby mode, it turns red.
3. Remote Sensor
Remote sensor window for the remote control.
4.
POWER button
Press to switch on or off the device (enter or exit the standby mode).
5. VOL ◄► buttons
Press to decrease or increase the volume.
When in setup menu, this button also serves the ◄► direction button.
6. CH ▲▼ buttons
Press to page up or down through programs in TV mode.
When in setup menu, this button also serves the ▲▼ direction button.
7. MENU button
Press to enter or exit system setup menu.
8. INPUT button
Press to display a menu of all of the available input sources.
When in setup menu, this button also serves the ENTER button.
5
View of Unit
Rear Panel
1. USB Port
Connect the USB device.
2. AUDIO OUT Jack
Connect to audio receiver.
3. COMPOSITE IN Jacks
Connecting for AV signal input in AV mode.
4. COMPONENT IN Jacks
Connecting for the Y/P
B/PR
input in
COMPONENT mode.
Y/P
b /Pr
share the same audio jack with
COMPOSITE.
5. RF INPUT Jack
Connect an antenna or cable connection
for television reception.
6. VGA AUDIO IN Jack
Connecting for VGA audio signal input.
7. VGA IN Jack
Connected to the VGA output jack on a
personal computer.
8. HDMI1/HDMI2/HDMI3 Input Jacks
Connecting for HDMI signal.
9. OPTICAL Jack
Connect an optional coaxial digital cable
(not included) through a compatible amp
/ receiver to enjoy superior audio sound.
10. Earphone Jack
When earphone is inserted, the
loudspeaker is switched off.
6
Remote Control
Remote Control Drawing
1. POWER button
Press to enter or exit standby mode.
2. DISPLAY button
Press to display the reference information
of the current mode.
3.
Play/Pause button
Press to start or pause the playback in USB
mode.
4. /buttons
Press to return to the previous file or skip
to the next one in media player.
5. ■ button
Press to shift the aspect ratio of the screen.
Press to stop playback in USB mode.
6. REP button
Press to repeat playback in USB mode.
7. CH.LIST button
Press to display a list of channels saved in
the TV tuner memory.
8. GUIDE button
Press to review scheduled programming
for the currently viewed channel.
9. FAV button
Press to display a listing of your favorite TV
channels.
10. FREEZE button
Pause and still-frame the current image on
the display. Press again for live TV.
11. PICTURE button
Press repeatedly to select the picture mode:
Standard, Mild, User or Dynamic.
12. TEMP button
Select the Color Temperature COOL >
NORMAL > WARM.
13. Direction buttons (▲▼◄►)
In the setup menu, press the ▲▼ button
to select a desired item and press the ◄►
button to adjust or set.
14. ENTER button
Press to confirm selection in the setup
menu.
15. EXIT button
Press to exit a displayed menu.
16. RETURN button
Press to return to the previous menu.
17. SLEEP button
Press the button repeatedly to select the
desired time to sleep or select Off to close
the function.
18. MENU button
Press to enter setup menu or return to the
previous menu.
7
Remote Control
19. ASPECT button
Select the viewable display aspect options:
Normal, Wide, Zoom, or Cinema. VGA and
DVI mode is Full 100%, Point to Point.
20. VOL+/- button
Press to increase or decrease the volume.
21. LAST buttons
Press to switch between the current
channel and previously viewed channel.
22. MUTE button
Press to turn on or off the speaker output.
23. CH▲/▼ button
Press to select the next or previous
program in TV mode.
24. 0~9/- Number buttons
Select desired TV channel directly. For
example: to select digital channel “8”, press
number key “8”; to select digital channel
“4-1” , press “4”, press “-”, and press “1” =
(4-1).
25. INPUT button
Press to enter the source selecting menu,
press the ▲▼ direction buttons or press
the INPUT button repeatedly to select
desired source and press the ENTER button
to enter the selected source.
26. AUDIO button
Press to select the sound mode: choose
from USER, STANDARD, MUSIC, MOVIE and
SPORTS.
27. MTS button
Press to select a program’s second audio
channel (if available).
28.
CCD button
Press to select closed caption subtitles (if
available) CC Off> CC on > CC on mute.
