Legacy Car Audio LCD89DFX User Manual

REMOTE CONTROL BASICS BATTERY REPLACEMENT:

1.Remove the battery holder as the direction indicated by the arrow.

2.Replace the battery Set a new battery property with (+)side up.

3.Insert the battery holder. Push in the holder to the original position.

LEGACY

NOTE ON BATTERIES:

Old batteries must immediately be removed and disposed.

BATTERY INFORMATION:

Designated Battery: CR 2025 3V
Battery Life: 6 months with normal use (in normal room temperatur)

CAUTION:

Improper use of batteries may cause overheating, explosion or ignition. Resulting in
jury or fire .Battery leakage may cause damage to the unit.
Do not disassemble or short the batteries. Do not throw the batteries into the fire.
To avoid the risk of accident, keep the batteries out of reach of children.

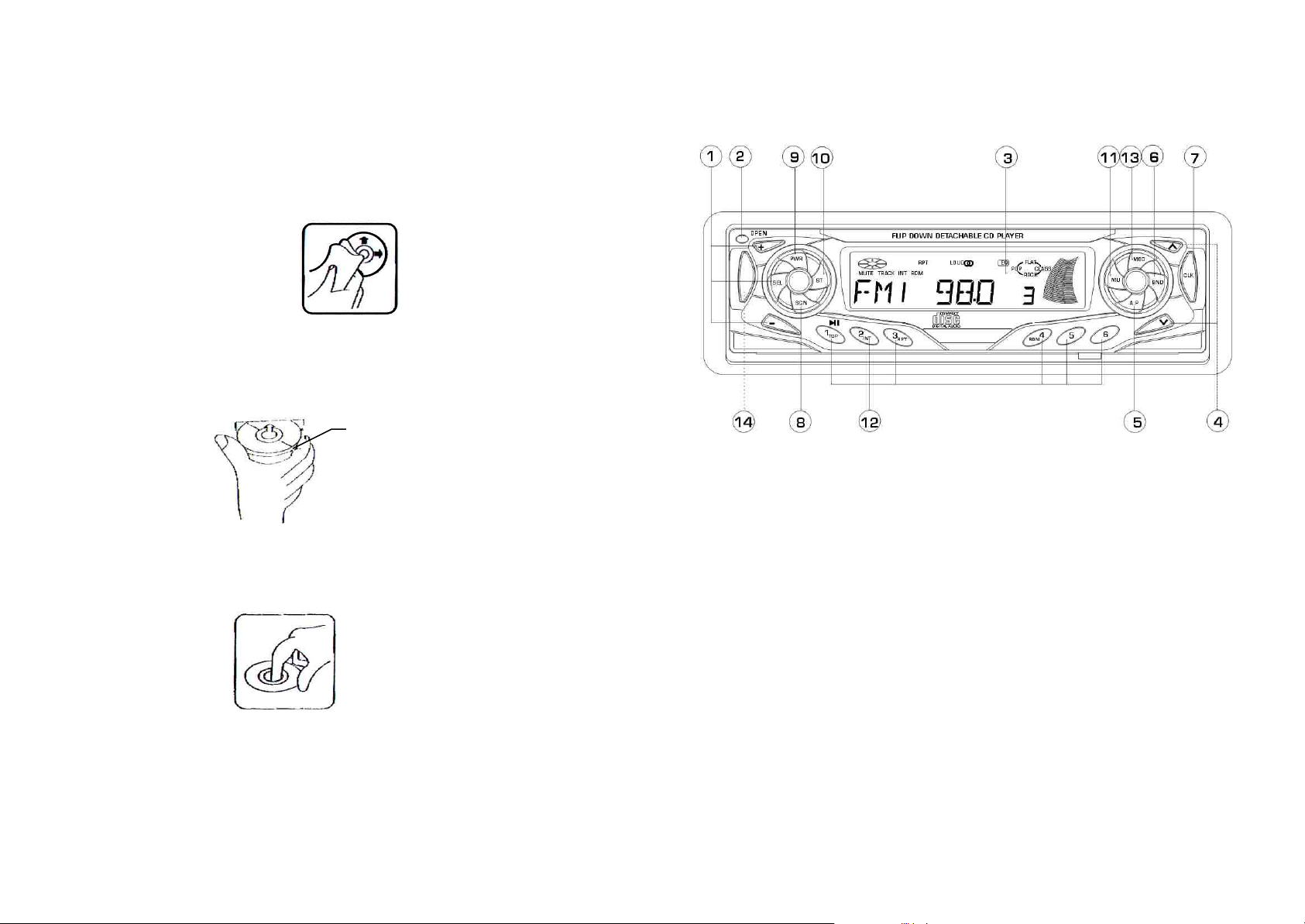

1. LOCAL/DISTANCE BUTTON
If you find the receiving signal is weak and there is the
word LOC displayed on LCD when you tune for distance
station, firstly press the button to disappear the word
LOC on LCD, then tune again for the distance station.
If you find the interference to the receiving signal is very
strong and there is not the word LOC displayed on LCD
when you tune for local station, firstly press the button to
display the word LOC on LCD, then tune again for the local
station.

LCD89DFX

INSTRUCTION MANUAL

2. LOUDNESS BUTTON
Press it to enhance the bass sound effect immediately
when the volume level is reduced to below half level.

AUTO-LOADING COMPACT DISC PLAYER
AND AM/FM-STEREO DIGITAL PLL TUNING RADIO

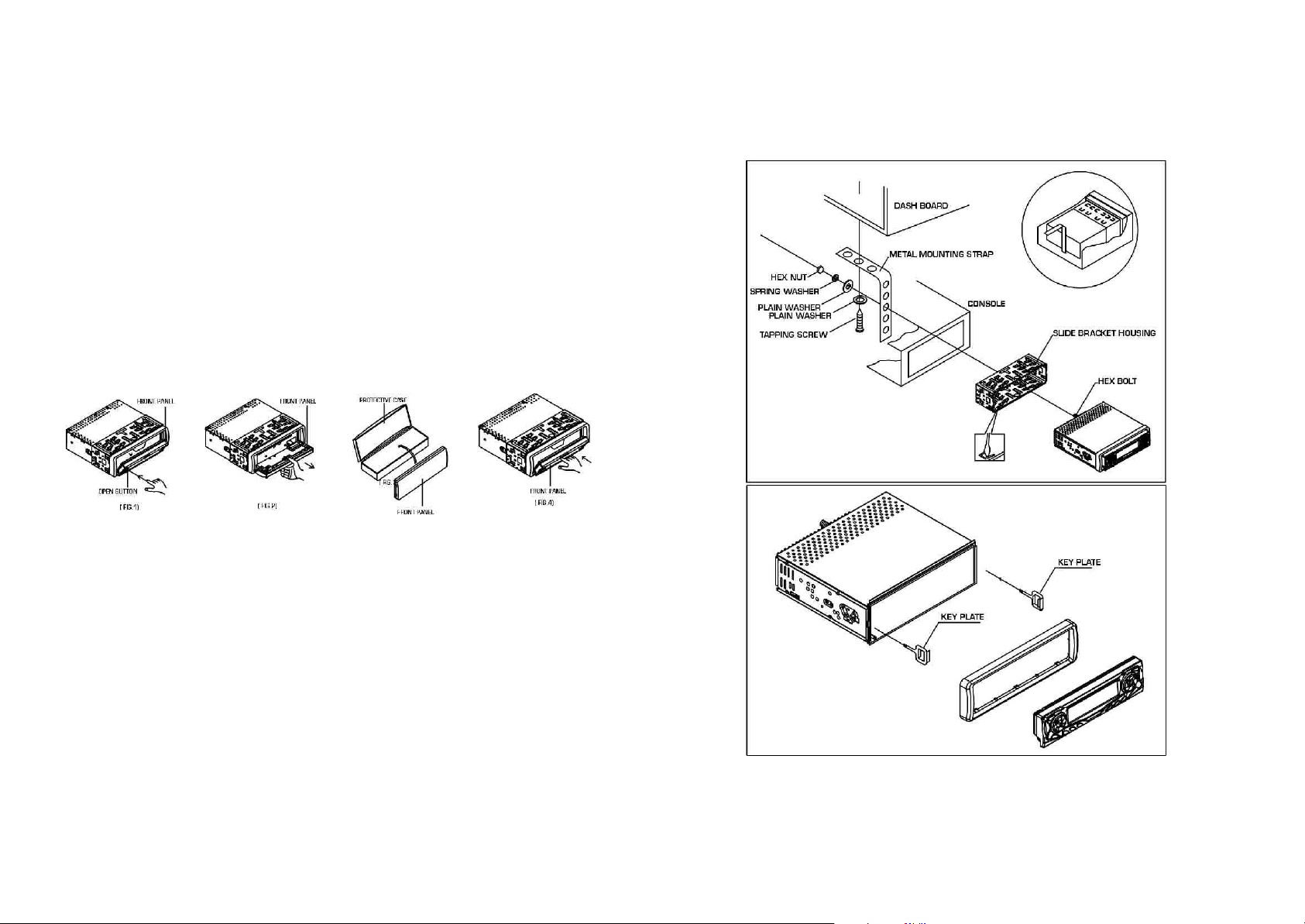

ANTI-THEFT FLIP DOWN DETACHABLE FRONT PANEL
WITH INFRA-RED REMOTE CONTROLLER

DEAR CUSTOMER

Selecting fine audio equipment such as the unit you have just purchased is only the start
of your musical enjoyment. Now it is time to consider how you can maximize the fun and
excitement your equipment offers.

,

We want you to get the most out of your equipment by playing it at a safe
level. One that lets the sound come through loud and clear without annoying blaring or
distortion - and, most importantly, without affecting your sensitive hearing.
Sound can be deceiving. Over time your hearing " comfort level " adapts to higher volumes
of sound. So what sounds " normal " can actually be loud and harmful to your hearing.
Guard against this by setting your equipment at a safe level BEFORE your hearing adapts.

To establish a safe level:
. Start your volume control at a low setting
. Slowly increase the sound until you can hear it comfortably and clearly, and without
distortion we want you listening for a lifetime.

Once you have established a comfortable sound level:
. Set the dial and leave it there.
Taking a minute to do this now will help to prevent hearing damage or loss in the
future. After all, we want you listening for a lifetime.

ABOUT THIS MANUAL
This product features a number of sophisticated functions ensuring superior reception and
operation. All are designed for the easiest possible use, but many are not self-expanatory.
This operation manual is intended to help you benefit fully from their potential and to
maximize your listening enjoyment.
We recommend that you familiarize yourself with the functions and their operation by reading
through the manual before you begin using this product. It is especially important that you
read and observe the " precaution " on the next page and in other sections.
In this operation manual, the Basic Operation for each sound source is outlined at the
beginning of its explanation, covering simple operation for that source, such as merely playing
music.

,

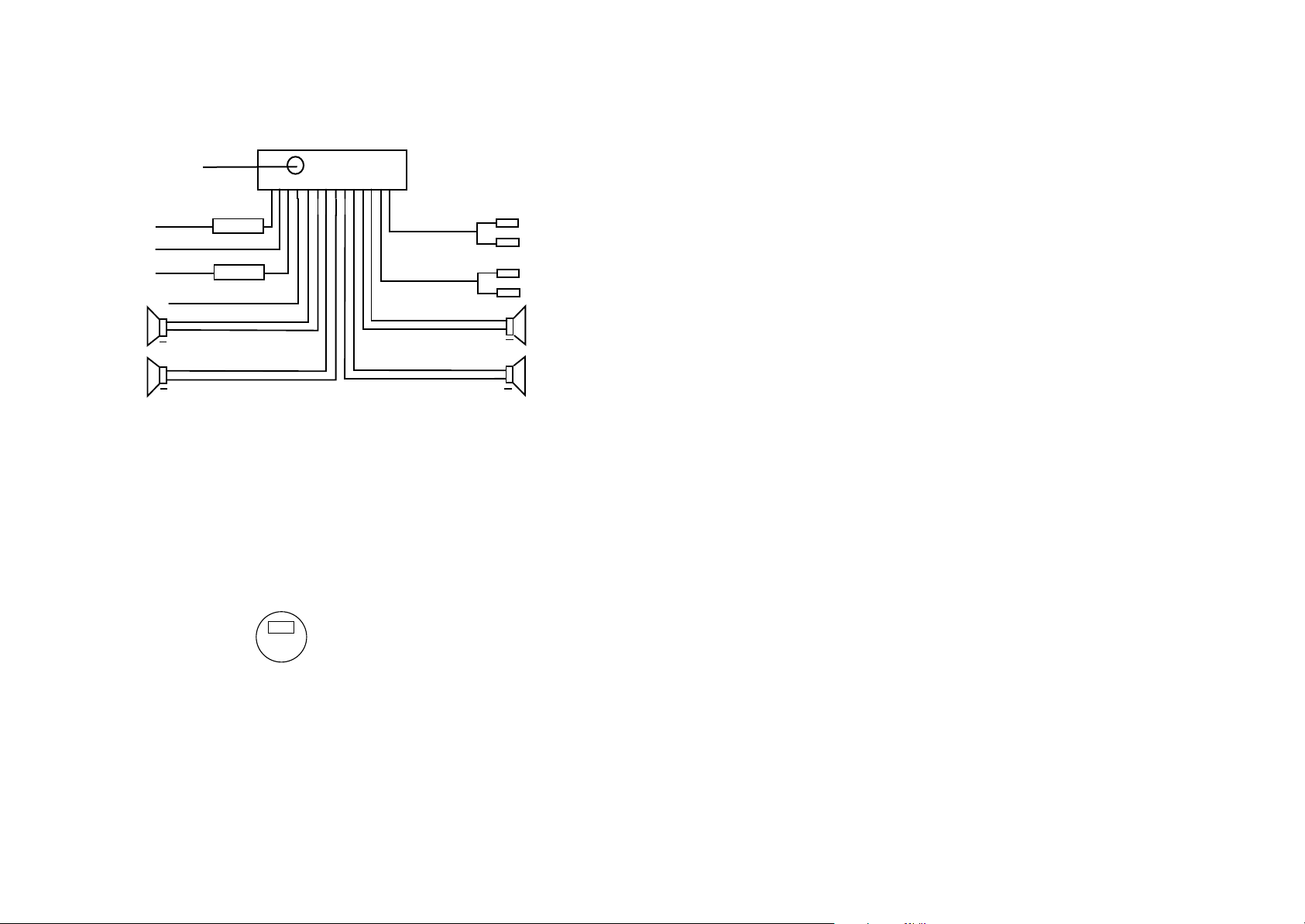

SPECIFICATION

GENERAL

Power requirement.............................................................................................DC 13.8V.

Current consumption............................................................................................7A MAX.

POWER OUTPUT...................................................................................................4 X 7W.

FM SECTION

Frequency range..........................................................................87.5MHz -108.0MHz(EU)

Frequency range..........................................................................87.5MHz -107.9MHz(US)

Usable sensitivity........................................................................................................3uV.

I.F Frequency.....................................................................................................10.7MHz.

AM SECTION

Frequency range.............................................................................522KHz - 1620KHz(EU)

Frequency range.............................................................................530KHz - 1710KHz(US)

I.F Frequency........................................................................................................450KHz

Usable Sensitivity......................................................................................................40dB

LINE - OUT [OPTION]

Output....................................................................................................CD MAX 800mv

CD PLAYER

System........................................................................................compact disc audio system.

Usable disc.........................................................................................CD/CD-R/CD-RW disc

No of quantization bits 1bit.

Signal format.............................................................................sampling frequency 44.1KHz.

Frequency characteristics............................................................................20-100Hz < 5dB

10-20KHz < 5dB.

Signal to noise CD............................................................................................50dB [1KHz]

Number of channels..............................................................................................2 STEREO.

Chassis dimensions.......................................................................178[W] X 50[H] X 165[D].

1 10
