WARRANTY
LEGACY SOUND CORP. warrants this unit to be free from defective material or workmanship and will repair or
replace this unit or any part thereof if it proves defective in normal use or service within two (2) years from
the date of original purchase.
Our obligation under this warranty is limited to repairing or replacing, at our discretion, the defective instrument
or any part thereof when it is returned, transportation prepaid to the Legacy Service Center at the address
below. This warranty will be considered void if the unit has been tampered with, improperly serviced, subjected
to abuse or misuse or if installed in a commercial vehicle. This warranty does not cover accidental damage.
When returning this unit for service, please include $15.00 for return postage and handling. Send your unit to:
LEGACY SERVICE CENTER
1600 63rd Street
Brooklyn, NY 11204
IMPORTANT: Pack carefully in original carton if possible. We are not
responsible for damage incurred in returning items for repair. A letter
stating your exact street address, daytime phone number, and the
problem you are experiencing should be included. You must also enclose
a copy of the original receipt as proof of date of purchase.
FOR YOUR PROTECTION
Completely and immediately mail the Product Registration Card
so that we may contact you directly in the event a safety
notification is issued in accordance with the 1972 Consumer
Product Safety Act, or for other reasons Legacy may deem
necessary.
TECHNICAL SUPPORT HOTLINE
Our technical department will gladly answer any questions
you may have about our products. They cannot, however
tell you the status of a repair, or handle other customer
service situations.
1-800-934-2277
Monday through Thursday, 9AM to 5PM
Friday 9AM to 2PM Eastern.
MANUFACTURER’S LIMITED TWO YEAR
WWW.legacycaraudio.com
Page 2
specs
Features and Specifications
Congratulations
• Soft turn on/off circuit
• Variable gain control
• Remote turn on/off
• Hi/low level inputs
• Power on LED indicator
• LED protection indicator
• Fully adjustable electronic crossover network
• Remote control Bass boost ( 0 – +18dB @ 60Hz )
• 2 ohm stereo stable
• Bridgeable into 4 ohms
• MOSFET PWM power supplies
table of contents
USER MANUAL
SPECIFICATIONS
LA-468/568/768/968/1468/1868/2068/2268
FEATURES & CONTROLS
LA-668/868/1068 FEATURES & CONTROLS
LA-2228 FEATURES & CONTROLS
ELECTRICAL WIRING, INSTALLATION & SETUP

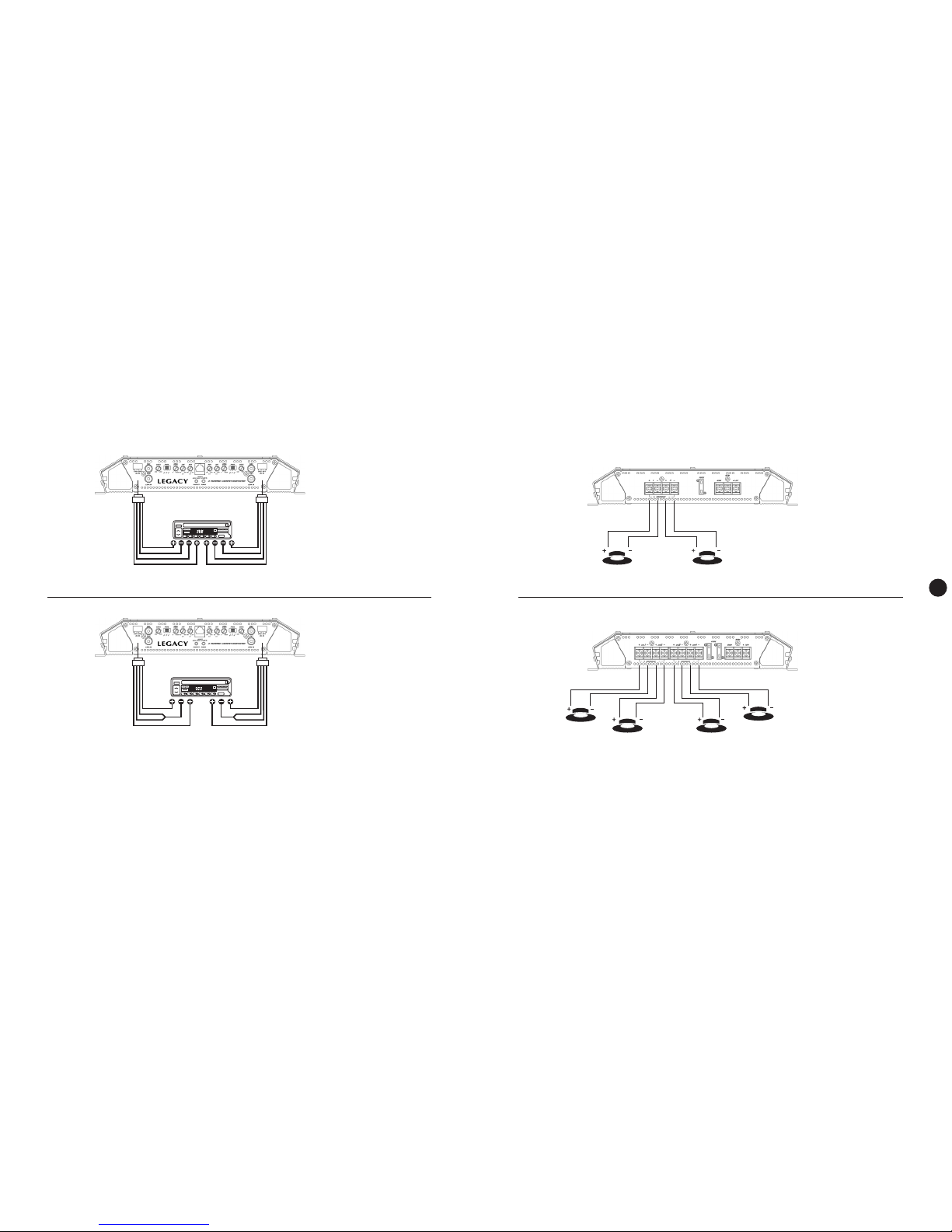

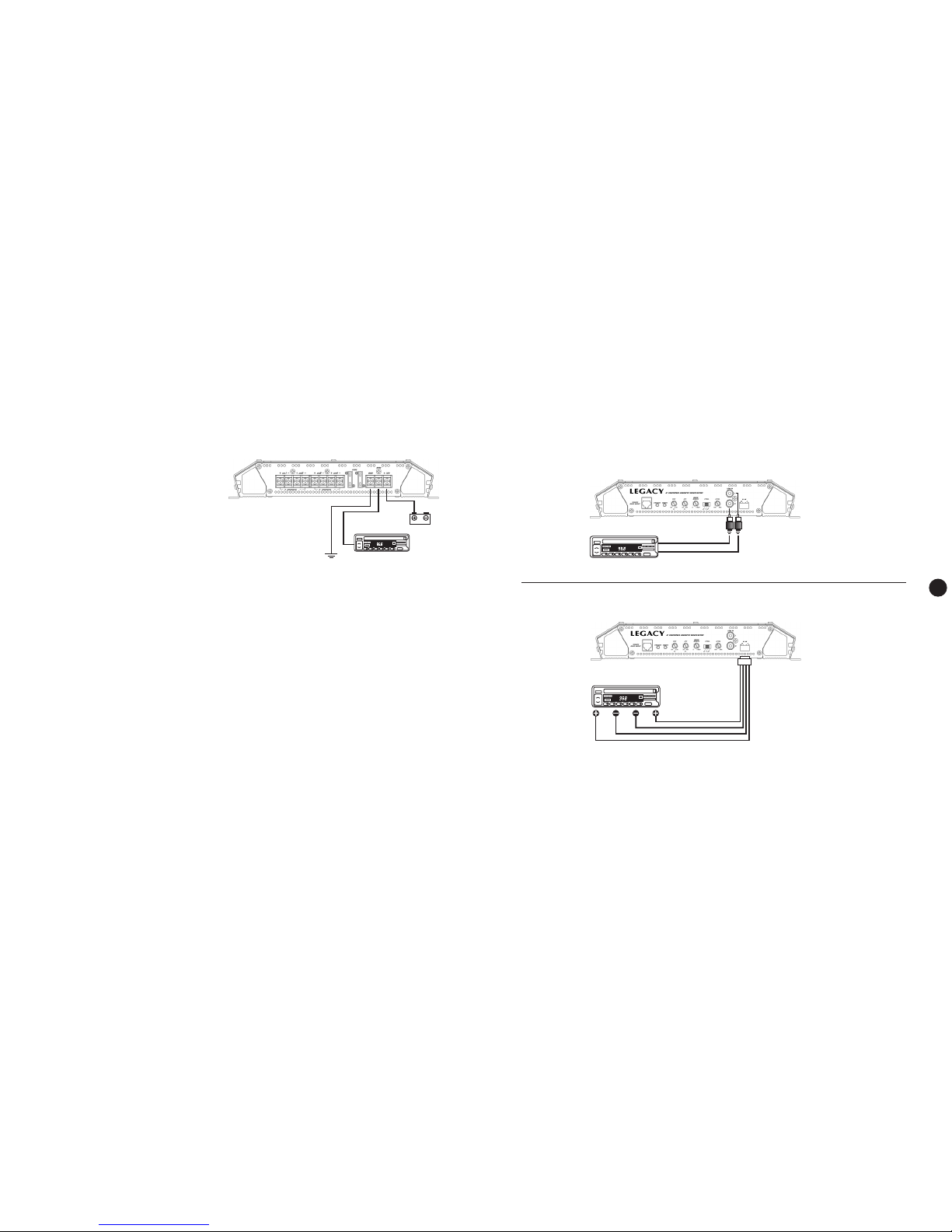

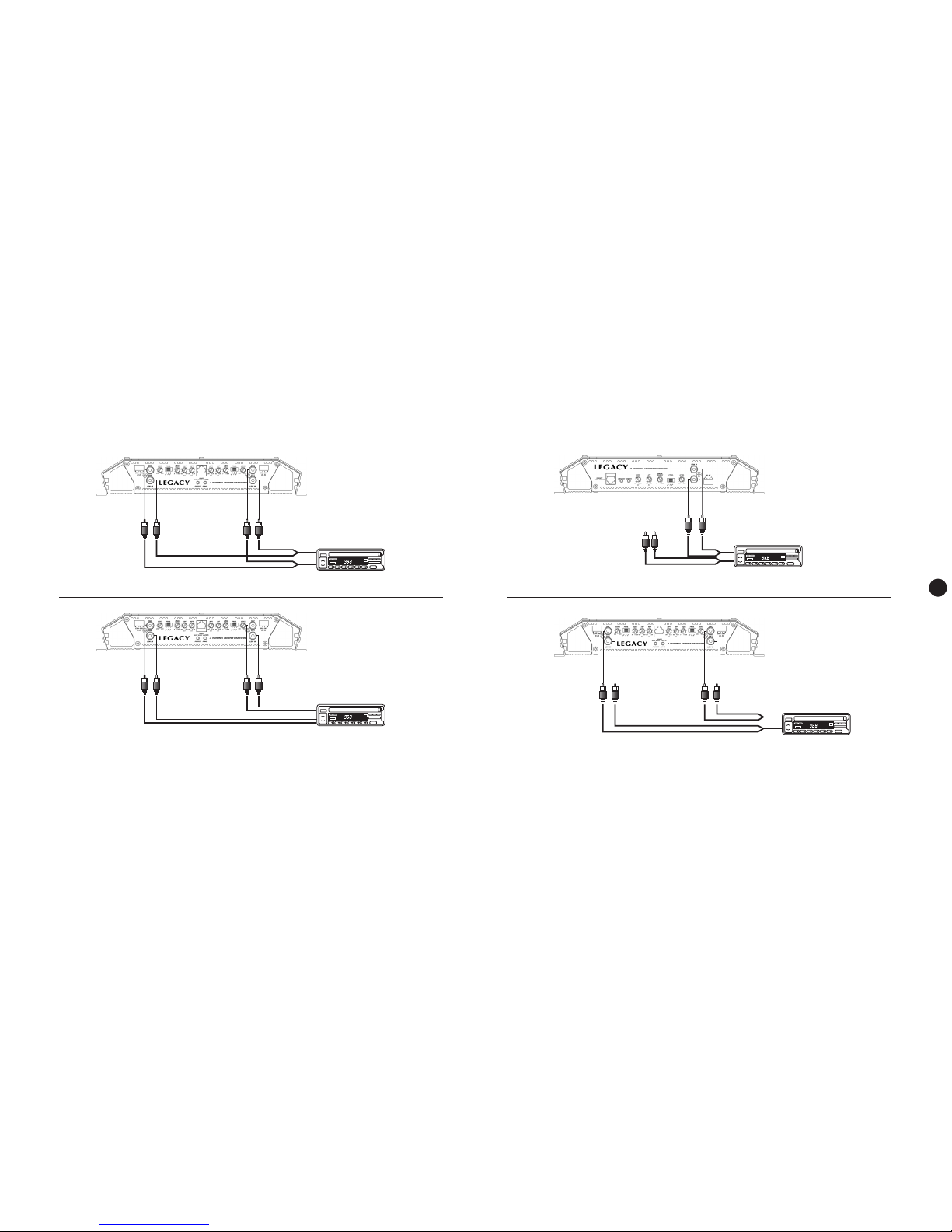

2 CH STEREO INPUT CONNECTIONS
4 CH STEREO INPUT CONNECTIONS
BRIDGED INPUT CONNECTIONS

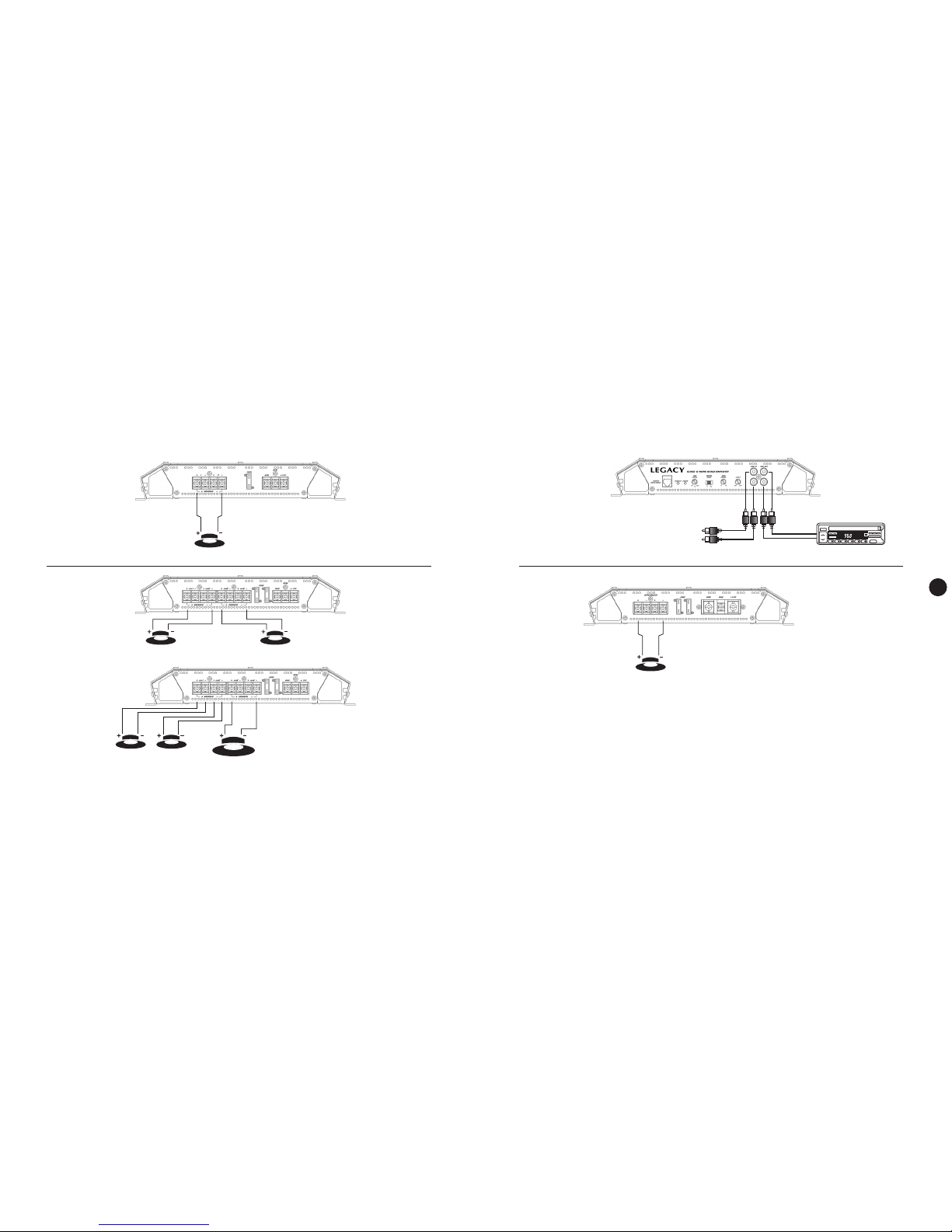

BASIC STEREO SPEAKER CONNECTIONS
MONO-BRIDGED SPEAKER CONNECTIONS
MONO BLOCK INPUT & SPEAKER CONNECTIONS
TROUBLESHOOTING
1~2
3
4
5
6
7
8
9
11
12
13
14
Legacy amps are some of the most advanced car amplification products
available. These quality audio products are designed and engineered to afford
you years of uncompromised musical service. Legacy has utilized the latest
electronic technologies in order to deliver a superb listening experience.
This innovative system has been designed utilizing a 12 V DC Negative Ground
power supply. The LEGACY PREDATOR Series amps incorporate two to
eight MOSFETS in the different models.
This design produces enough available voltage to supply the main amplifier
sections, and still have a huge amount of reserve voltage for peak “high
demand” situations.
The Legacy line has been designed to ensure adequate headroom for even
the most demanding peaks and dynamic ranges found on today’s CD’s and
recordings. Used properly, these amplifiers will provide you with years of
listening pleasure.
Specifications
OUTPUT POWER
RMS @ 4 OHMS
RMS @ 2 OHMS
MAX OUTPUT
BRIDGE MODE
FREQUENCY RESPONSE
INPUT IMPEDANCE
LOW LEVEL INPUTS
HIGH LEVEL INPUTS
INPUT SENSITIVITY
LOW LEVEL INPUTS
HIGH LEVEL INPUTS
POWER SUPPLY VOLTAGE
MATCHING SPEAKER IMPEDANCE
STEREO MODE
BRIDGED MODE
MAXIMUM CURRENT DRAW
DIMENSIONS, W x H x L, inches
(mm)
NET WEIGHT, LBS (KG)
LA-468/568/668/768/868/968/1068
1468/1868/2068/2268 also feature:
LA
-
468
2CH amplifier
LA
-
568
2CH amplifier
2 X 40W
2 X 60W
2 X 300W
1 X 600W
10Hz-30 kHz
10 k-Ohms
100 Ohms
250 mV
2.5V
14.4 VDC/NEG GD (10.5-16V)
2-4 OHMS
4-8 OHMS
15 A
11.42 X 1.97 X 8.25
(290 X 50 X 209)
5.48(2.49)
LA
-
668
4CH amplifier
4 X 35W
4 X 55W
4 X 250W
2 X 250W+500W
OR 2 X 500W
2-4 OHMS
4-8 OHMS
20 A
11.42 X 1.97 X
12
(
290 X 50
X 305)
7.39(3.36)
LA
-
768
2CH amplifier
2 X 75W
2 X 125W
2 X 500W
1 X 1000W
2-4 OHMS
4-8 OHMS
20 A
11.42 X 1.97 X
12
(
290 X 50
X 305)
6.86(3.12)
LA
-
868
4CH amplifier
4 X 50W
4 X 75W
4 X 400W
2 X 400W+800W
OR 2 X 800W
2-4 OHMS
4-8 OHMS
30 A
11.42 X 1.97 X
15
(
290 X 50
X 381)
8.8(4)
Legacy Predator Amplifier Features
2 X 50W
2 X 75W
2 X 400W
1 X 800W
2-4 OHMS
4-8 OHMS
15 A
11.42 X 1.97 X 9.25
(
290 X 50
X 235)
5.76(2.62)
on your purchase of a new
Legacy Predator amplifier !
LA
-
968
2CH amplifier
2 X 100W
2 X 150W
2 X 600W
1 X 1200W
2-4 OHMS
4-8 OHMS
30 A
11.42 X 1.97 X
13.5
(
290 X 50
X 343)
7.83(3.56)
1
Page 3
3
LA
-
1068
4CH amplifier
4 X 75W
4 X 115W
4 X 500W
2 X 500W+1000W
OR
2 X 1000W
2-4 OHMS
4-8 OHMS
40 A
11.42 X 1.97 X
17
(
290 X 50
X 432)
9.64 (4.38)
LA
-
1468
2CH amplifier
2 X 125W
2 X 200W
2 X 800W
1 X 1600W
2-4 OHMS
4-8 OHMS
30 A
11.42 X 1.97 X
15
(
290 X 50
X 381)
8.54 (3.88)
LA
-
1868
2CH amplifier
2 X 150W
2 X 225W
2 X 1000W
1 X 2000W
2-4 OHMS
4-8 OHMS
40 A
11.42 X 1.97 X
17
(
290 X 50
X 432)
9.72 (4.42)
LA
-
2068
2CH amplifier
2 X 200W
2 X 300W
2 X 1200W
1 X 2400W
2-4 OHMS
4-8 OHMS
50 A
11.42 X 1.97 X
19
(
290 X 50
X 482)
10.78 (4.9)
Specifications
OUTPUT POWER
RMS @ 4 OHMS
RMS @ 2 OHMS
MAX OUTPUT
BRIDGE MODE
FREQUENCY RESPONSE
INPUT IMPEDANCE
LOW LEVEL INPUTS
HIGH LEVEL INPUTS
INPUT SENSITIVITY
LOW LEVEL INPUTS
HIGH LEVEL INPUTS
POWER SUPPLY VOLTAGE
MATCHING SPEAKER IMPEDANCE
STEREO MODE
BRIDGED MODE
MAXIMUM CURRENT DRAW
DIMENSIONS, W x H x L, inches
(mm)
NET WEIGHT, LBS (KG)
10Hz-30 kHz
10 k-Ohms
100 Ohms
250 mV
2.5V
14.4 VDC/NEG GD (10.5-16V)
· Phase Control 0-180 degree
· Remote Bass Control
· Input Impedance : 10K Ohms
· Soft Turn On/Off
· Advanced Protection Circuitry
· S/N Ratio:>90dB
LA
-
2268
2CH amplifier
2 X 300W
2 X 450
W
2 X 200
0W
1 X 4000W
2-4 OHMS
4-8 OHMS
60 A
11.42 X 1.97 X
21
(
290 X 50
X 532)
11.99 (5.45)
LA
-
2228
Mono channel amplifier
200W mono
335W mono
2000W mono
20-250Hz( 3dB)
10 k-Ohms
100 Ohms
250 mV
4V
14.4 VDC/NEG GD
(10.5-16V)

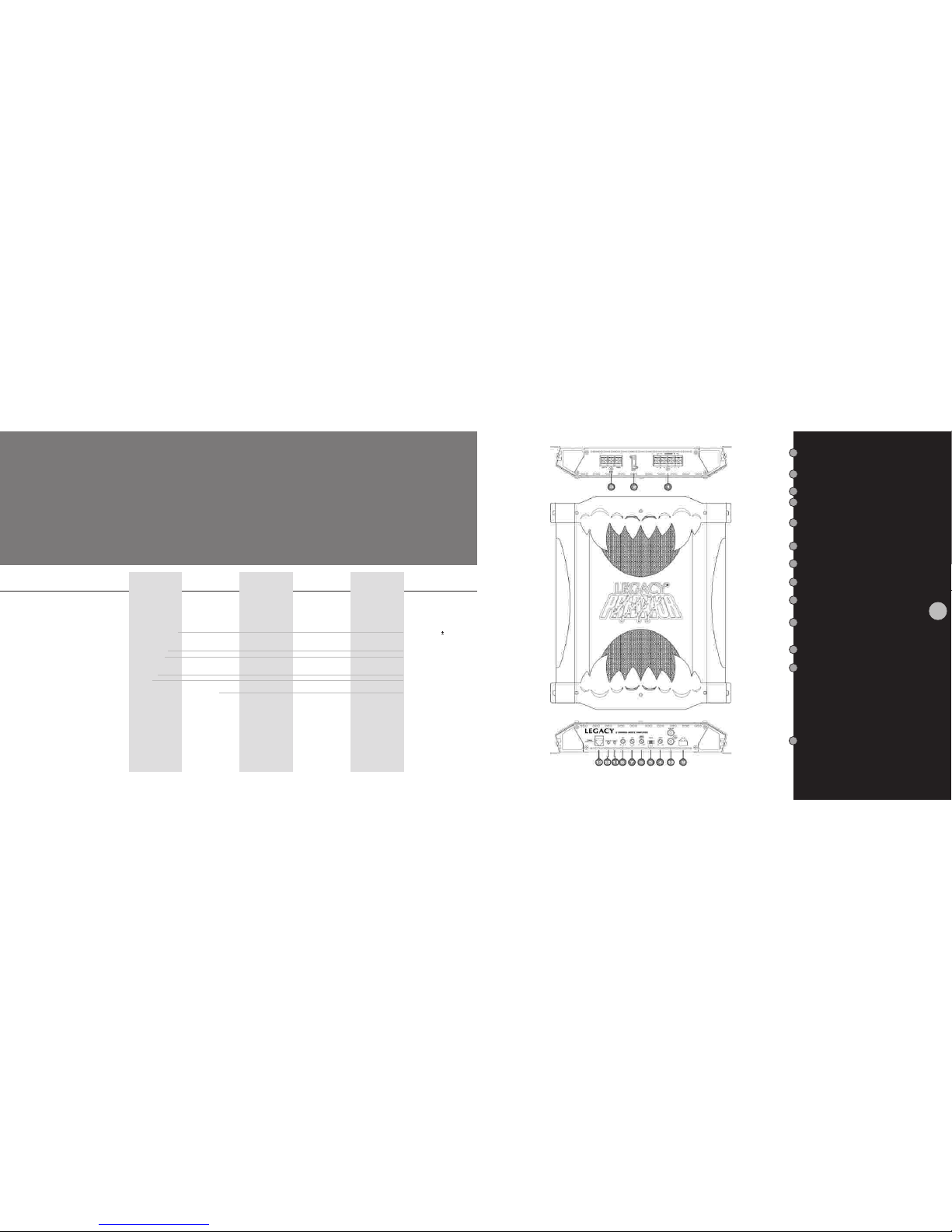

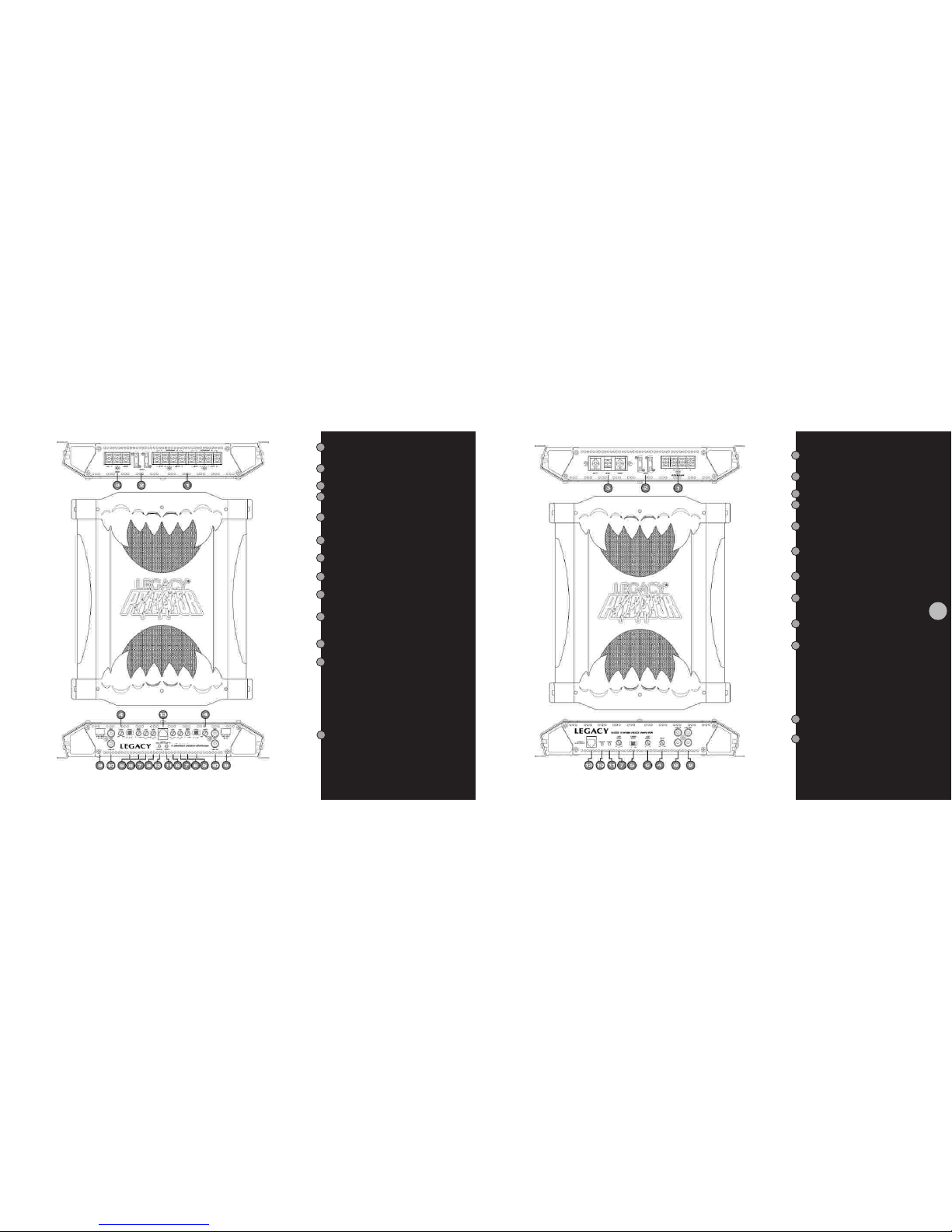

LA-468/568/768/968/1468/1868/2068/2268
Features and Controls
LA-2228 also feature:
1 OHMS
4 OHMS
40 A
11.42 X 1.97 X
12
(
290 X 50
X 305)
7.77 (3.53)
Legacy Predator Amplifier Features
Protection LED Indicator
The protection circuitry in the amp will disable it
if it senses an input overload, speaker short circuit,
or thermal overload conditions. Should this occur,
the PROTECT LED will be illuminated. At that time,
it is important that you check to determine what
has caused the protection circuitry to become
activated.
If the amp shut off because of a thermal overload,
allow it to cool down before attempting to restart.
If the shutdown occured because of an input
overload, or speaker short circuit, be sure to
correct these conditions before attempting to
restart the amp.
To reset the amp, turn the REMOTE power off and
on again.
Power LED Indicator
This LED is illuminated when the REMOTE ON
system is turned on.
11
This unit is provided with gold-plated RCA input
jacks. Using RCA-RCA type patch cords,
connect these inputs to the RCA outputs from
your head unit.
Low Level Input (High Impedance)
10
High Level Input (Low Impedance)
Use these if your car stereo does not have
RCA output jacks: connect the speaker output
from the head unit to these inputs
9
Permits you to adjust the crossover frequency
from 80 Hz to 2.5 kHz to suit the tweeters
High Pass Control
8
Permits you to adjust the crossover frequency
from 35 Hz to 400 Hz to suit the subwoofers
Low Pass Control
7
Allows you to increase the bass signal level sent
to the speakers
Bass Boost Control
6
In a full range system, set this to FULL. If the amp
is being used to power a crossover system, set to
either HPF or LPF as needed.
Crossover Mode Switch
5
Input Level Control
Use this control to match the output of the head
unit to the amplifier. If distortion is present, reduce
the setting of this control.
4
Power Supply Terminals
3
Protects the amplifier as well as the automobile
electrical system from short circuit conditions.
Fuse
2
These terminals are 14K Gold plated for high
conductivity and minimum impedance loss. The
terminals face upwards for easy wiring in tight
situations.
Speaker Terminals1
12
Plug in the Remote Bass Boost Control wire in here.
13
Remote Bass Boost
specs
Features and Specifications
· Mono Block Subwoofer Amplifier
· 1 Ohm Stable
· MOSFET Power Supply
· PWM (Pulse-Width-Modulation) System
· Glass Epoxy PCB
· Gold Plated RCA Inputs for Line Input & Bypass Output.
· Gold Plated Terminals for Speaker Output and Power Input.
· Thermal, Overload and Short Protection
· Variable Sub-sonic Filter (15Hz~40Hz, 24dB/Octave)
· Variable Low-pass Filter (20Hz~250Hz, 24dB/Octave)
Page 4
5
Adjustable from 20Hz to 250Hz with a slope of 24dB per
octave.This allows for the adjustment of the upper point
of the frequency bandwidth and the respective subwoofer.
Remote Dash-mount Gain Control
LA-2228
Features and Controls
11
10
9
8
7
6
5
4
3
2
1
1212
Power LED Indicator
This LED is illuminated when the REMOTE ON
system is turned on.
Crossover Low Pass Filter
Adjustable from 15Hz to 40Hz with a slope of 24dB per
octave.This allows for the attenuation of frequencies that
are mostly inaudible and cause unnecessary strain on the
amplifier.
High Pass Subsonic Filter
Phase Shift Switch
Input Level Control
Use this control to match the output of the head unit
to the amplifier. If distortion is present, reduce the
setting of this control.
Power Supply Terminals
Protects the amplifier as well as the automobile electrical
system from short circuit conditions.
Fuse
These terminals are 14K Gold plated for high conductivity
and minimum impedance loss. The terminals face
upwards for easy wiring in tight situations.
Speaker Terminals
This unit is provided with gold-plated RCA input
jacks. Using RCA-RCA type patch cords, connect
these inputs to the RCA outputs from your head
unit.
Low Level Input (High Impedance)
This unit is provided with gold-plated RCA Output jacks.
Using RCA-RCA type patch cords, connect these Outputs
to the RCA Inputs for your anyther amplifier.
Low Level Output (High Impedance)
Protection LED Indicator
The protection circuitry in the amp will disable it if it
senses an input overload, speaker short circuit, or
thermal overload conditions. Should this occur, the
PROTECT LED will be illuminated. At that time, it is
important that you check to determine what has caused
the protection circuitry to become activated.
If the amp shut off because of a thermal overload,
allow it to cool down before attempting to restart.
If the shutdown occured because of an input overload,
or speaker short circuit, be sure to correct these
conditions before attempting to restart the amp.
To reset the amp, turn the REMOTE power off and on
again.
This amplifier come complete with a compact remote
GAIN CONTROLLER which can be conveniently mounted
on or under the dashboard of your car.
Allows you to change the phase of your subwoofer
from 0 degree to 180 degrees to help compensate from
timing difference between drivers.
11
10
9
8
7
6
5
4
3
2
1
12
Protection LED Indicator
The protection circuitry in the amp will disable it
if it senses an input overload, speaker short circuit,
or thermal overload conditions. Should this occur,
the PROTECT LED will be illuminated. At that time,
it is important that you check to determine what
has caused the protection circuitry to become
activated.
If the amp shut off because of a thermal overload,
allow it to cool down before attempting to restart.
If the shutdown occured because of an input
overload, or speaker short circuit, be sure to
correct these conditions before attempting to
restart the amp.
To reset the amp, turn the REMOTE power off and
on again.
Power LED Indicator
This LED is illuminated when the REMOTE ON
system is turned on.
This unit is provided with gold-plated RCA input
jacks. Using RCA-RCA type patch cords,
connect these inputs to the RCA outputs from
your head unit.
Low Level Input (High Impedance)
High Level Input (Low Impedance)
Use these if your car stereo does not have
RCA output jacks: connect the speaker output
from the head unit to these inputs
Permits you to adjust the crossover frequency
from 80 Hz to 2.5 kHz to suit the tweeters
High Pass Control
Permits you to adjust the crossover frequency
from 35 Hz to 400 Hz to suit the subwoofers
Low Pass Control
Allows you to increase the bass signal level sent
to the speakers
Bass Boost Control
In a full range system, set this to FULL. If the amp
is being used to power a crossover system, set to
either HPF or LPF as needed.
Crossover Mode Switch
Input Level Control
Use this control to match the output of the head
unit to the amplifier. If distortion is present, reduce
the setting of this control.
Power Supply Terminals
Protects the amplifier as well as the automobile
electrical system from short circuit conditions.
Fuse
These terminals are 14K Gold plated for high
conductivity and minimum impedance loss. The
terminals face upwards for easy wiring in tight
situations.
Speaker Terminals
Remote Bass Boost
Plug in the Remote Bass Boost Control wire in here.
13
LA-668/868/1068
Features and Controls
Page 5
2CH AMPS
LA-
468
LA-
568
LA-
768
LA-
968
LA-
1468
LA-
1868
LA-
2068
LA-
2268
7
inputs
Input Connections
Low Level Stereo Input Connection
L/R audio outputs
head unit
High Level Stereo Input Connection
PLEASE NOTE! If using high
level inputs, do not use the
low level RCA inputs at the
same time!
wiring harness
L RL R
from speaker terminals
head unit
orange
black
black
orange
Electrical Wiring and Installation
Making Power Connections
1. Connect the +12V terminal directly to the car battery (+) terminal.
2. Connect the GROUND terminal directly to the car battery (-)
terminal OR to a good clean, paint-free chassis ground point.
3. To ensure a good ground, and to prevent “motor-boating” noise
in the system, make an additional connection from the car battery
(-) terminal to the chassis of the stereo unit, using 12 gauge
minimum wire.
4. Connect the REMOTE terminal to an external switch for positive
12V turnon-off. This may be connected to the head unit power
antenna lead.
Installation Precautions
This amplifier comes complete with all mounting harware required. Please remember that this is a high-power unit, which generates considerable
electrical energy and heat. Therefore, be sure to install the unit in a place with sufficient airflow, a minimum of dust, and no moisture. Allow enough
space around the cooling fins to permit reasonable airflow and cooling.
• Before you drill or cut any holes, investigate your car’s layout very carefully. Take care when you work near the gas tank, fuel lines, hydraulic line
and electrical wiring.
• Do not operate the amplifier when it is unmounted. Attach all audio system components securely within the automobile to prevent damage, especially
in an accident.
• Do not mount this amplifier so that the wire connections are unprotected or in a pinched condition, or likely to be damaged by nearby objects. Be
sure to select a location inside your vehicle which has adequate ventilation.
• Before making or breaking power connections in your system, disconnect the vehicle battery. Confirm that your head unit or other equipment is
turned off while connecting the input jacks and speaker terminals.
• If you need to replace the power fuse, only replace it with a fuse identical to that supplied with the system. Using a fuse of a different type or
rating may result in damage to your system which isn’t covered by the manufacturer’s warranty.
Setting Up and Turning On Your New Amplifier
After all electrical connections have been made, and physical installation is complete, turn on your stereo and listen for the amplifier to turn on. If
there are any unusual noises from the speakers, turn the stereo off and recheck ALL wiring.
Assuming the amplifier turn on normally, you may have to adjust the LEVEL control(s) to match the output levels from your head unit. Follow these
steps:
1. Set the volume control on your head unit to about the 2/3 position.
2. Adjust the amplifier LEVEL control(s) to an average listening position.
3. Turn the head unit volume all the way down, and listen for background noise.
4. Start your vehicle, and again, listen for background noise.
5. By fine tuning the LEVEL control(s), you can reduce background and engine noise, if present.
These adjustments should only be made once. After that, use the head unit volume control to adjust the system volume, not the LEVEL control(s).
CAUTION: Never turn the LEVEL control(s) up any higher than you need to get clear sound at 2/3 volume on the head unit.
Electrical Connections
(all models)
to remote
turn-on
+12V
head unit
12V battery
Page 6
LA-
668
LA-
868
LA-
1068
4CH AMPS
2CH AMPS
LA-
468
LA-
568
LA-
768
LA-
968
LA-
1468
LA-
1868
LA-
2068
LA-
2268
4CH AMPS
LA-
668
LA-
868
LA-
1068
9
inputs
Input Connections
Low Level 4 CH Stereo Input
from 2 CH Audio Source
Low Level 4 CH Stereo Input
from 4 CH Audio Source
Left Output
Right Output
L + R Front Outputs
L + R Rear Outputs
inputs
Input Connections
Bridged Input Connection
4 CH Bridged Input
from 2 CH Audio Source
CH1+2 = Left Channel
CH3+4 = Right Channel
Left Output
Right Output
head unit
Y adaptors
to a second
amplifier
Y adaptors
head unit
head unit
head unit
Y adaptors
Page 7
2CH AMPS
LA-
468
LA-
568
LA-
768
LA-
968
LA-
1468
LA-
1868
LA-
2068
LA-
2268
4CH AMPS
LA-
668
LA-
868
LA-
1068
LA-
668
LA-
868
LA-
1068
4CH AMPS
Speakers
Speaker Connections
inputs
Input Connections
11
Basic Stereo Output
Basic 4CH Output
FRONT
speakers
REAR
speakers
L
R
R L
LEFT speaker RIGHT speaker
High Level 4 CH Stereo Input
from 4CH Audio Source
floating ground connection
wiring harness
L R
REAR FRONT
L R
orange
black
black
orange
orange
black
black
orange
head unit
High Level 4 CH Stereo Input
from 4CH Audio Source
common ground connection
head unit
RL R L
REAR FRONT
orange
black
black
orange
orange
black
black
orange
Page 8
2CH AMPS
LA-
468
LA-
568
LA-
768
LA-
968
LA-
1468
LA-
1868
LA-
2068
LA-
2268
4CH AMPS
LA-
668
LA-
868
LA-
1068
Speakers
Speaker Connections
13
inputs/Speaker
Low Level Stereo Input Connection
Input Connections/Speaker Connection
2 CH Mono-Bridged Output
speakers
L R
MINIMUM
SPEAKER
IMPEDANCE
4 OHMS!
MONO CHANNEL
AMPS
LA-
2268
2 CH Stereo plus
Mono-Bridged
Subwoofer Output
speakers
L
Mono
Subwoofer
MINIMUM
SPEAKER
IMPEDANCE
4 OHMS!
R
Bridged Mono Output
speaker
MINIMUM
SPEAKER
IMPEDANCE
4 OHMS!
Speaker Output Connection
TO SATELLITE AMPLIFIER
LINE INPUT
L/R Audio
Outputs
head unit
subwoofer
MINIMUM
SPEAKER
IMPEDANCE
1.3~4 OHMS!
Page 9
troubleshooting
Troubleshooting
15
Amplifier will not power up.
• Check for good ground connection.
• Check that remote DC terminal has at least +12v DC.
• Check that there is battery power on the + terminal.
• Check all fuses.
• Check that Protection LED is not lit. If it is lit, shut off amplifier
briefly and then repower it.
High hiss or engine noise (alternator whine) in
speakers.
• Disconnect all RCA inputs to the amplifier(s) – if hiss/noise
disappears, then plug in the component driving the amplifier
and unplug its inputs. If hiss/noise disappears, go on until the
faulty/noisy component is found.
• It is best to set the amplifier's input level as insensitive as
possible. The best subjective S/N ratio is obtainable this way.
Try to drive as high a signal level from the head unit as possible.
Protection LED comes on when the amplifier is
powered up.
• Check for shorts on speaker leads.
• Check that the volume control on the head unit is turned
down low.
• Remove speaker leads, and reset the amplifier. If the
Protection LED still comes on, then the amplifier is faulty.
High squeal noise from speakers.
• This is almost always caused by a poorly-grounded RCA
patch cord.
Amplifier(s) gets very hot.
• Check that the minimum speaker impedance for that model
is correct.
• Check for speaker shorts.
• Check that there is good airflow around the amplifier. In
some applications, an external cooling fan may be required.
Distorted sound
• Check that the Level control(s) is set to match the signal
level of the head unit.
• Check that all crossover frequencies are properly set.
• Check for shorts on the speaker leads.
Loading...
