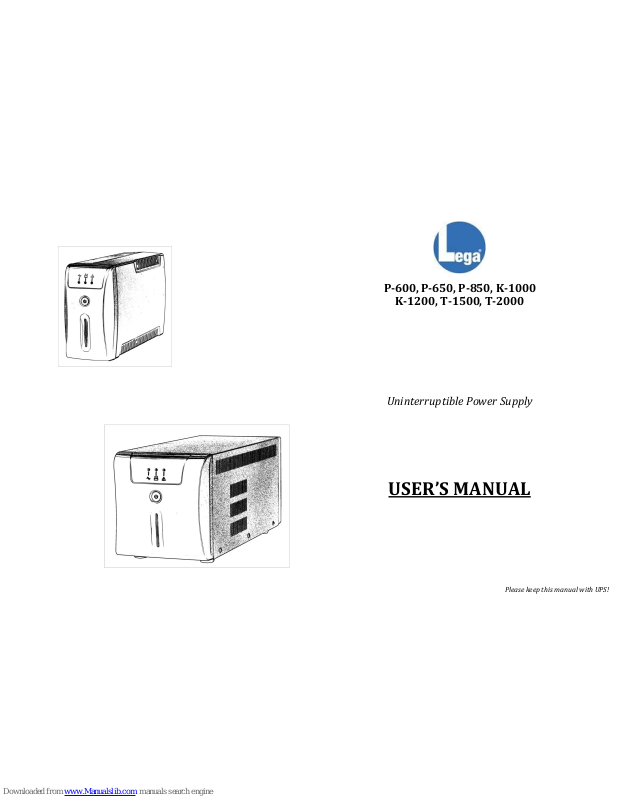

P-600, P-650, P-850, K-1000
K-1200, T-1500, T-2000
Uninterruptible Power Supply
USER’S MANUAL
Please keep this manual with UPS!
Please read and understand this instructions manual!
This manual provides safety, installation and operation instructions which will
guide you to the best performance of your equipment.
Please keep this manual!
It includes important instructions fort he safe usage of the equipment and to
obtain manufacturer’s Support in case of need.
Please keep or recycle the packaging materials!
Packaging materials used in our products are designed to provide protection
from transportation.
These materials are necessary in case that the equipment needs to be shipped
back for service. Damage that may ocur during the shipment is not covered by
the product’s warranty.
INTRODUCTION
1-1 System Description
This product is line interactive UPS with LED indicators, newest technology
and powerful functions.
The Line Interactive UPS is designed with 2-Steps Boost and 1-Step Buck AVR
to stabilize input voltage. Input voltage range is -%30, +%25, but output
regulation is ±10%.
The Line Interactive UPS provides you with the ability of perfect protection for
your critical devices.
1-2 Features
Line Interactive design
Mikroprocessor control guarantees high reliability
Frequency 50Hz/60Hz auto-sensing
Equipped with 2-Steps Boost and 1-Step Buck AVR to stabilize input
voltage
Built-in DC start function anable UPS to be started up without AC power
supply
UPS Green Mode (Energy Saving Function)
Off-mode Charging
Modem/Phone line surge protection
Over/Low Voltage, Short-Circuit, and Lightning/Surge (Optional)
protection
Built-in CCCV ( Constant Current, Constant Voltage) battery charger
CAUTION
The UPS contains voltage that is potentially hazardous. Qualified
or certified technician should proceed all repairs and
maintenance.
The UPS has its own internal energy source (battery). The output
receptacles may be active even when the UPS is not connected to
an AC supply.
The UPS is suitable for computers and electronic equipment with
substantial rectifier or capacitive loads, not suitable for
electronic equipment with significant inductive loads, such as
motors & fluorescent lamps.
Be sure to operate within the power rating of the UPS. Below ½
or 1/3 of the rated power is recommended for longer backup
time & longer battery life.
Do not place the UPS near excessive humidity, under sunshine or
close to heat emitting sources.
If the UPS is out of order, detach the power cord and consult your
dealer right away. Do not remove cover; there is no serviceable
part inside.
The unit should be supplied by a grounded Source. Do not
operate the unit without a ground source.
The socket should be installed near the equipment and be easily
accessible.
Do not plug the UPS’s power cord into itself. That will result in a
safety hazard.
A qualified technician or electrician in accordance with local
electrical code should perform installation.
INSTALLATION
The UPS must be installed in a protected environment away from heat-emitting
appliances such as a radiator or heater. Do not install this product where
excessive moisture is present.
Caution: Never connect a laser printer or plotter to the UPS. A laser printer or
plotter periodically draws significantly more power than its idle status and
may overload the UPS.
OVERVIEW
Front Panel
1. Main Power Switch: ON/OFF or Silence Button
2. On-Line LED: AC normal
3. Akü LED: Battery in backup
4. Uyarı LED: Overload or Fault
Rear Panel
1. AC Input: Connect to input power cord
2. AC Fuse / Circuit Breaker
3. Outlets
4. RJ-11 (optional)
5. Communication Interface: RS232 or USB port (optional)
OPERATION
When UPS is connected to city utility, but UPS is not powered on, UPS
will charge battery automatically and Green LED will flash every 2
seconds. Please press main switch on front panel for 1 second to turn
on UPS.
To turn off UPS when UPS is under AC mode, please press main switch
on front panel for 4 seconds. To turn off UPS when UPS is under battery
mode, please press main switch and then UPS will shut down
completely in 10 seconds.
This UPS designed with “Off-mode charging”, so UPS will charge battery
continuously when UPS is under AC normal. İf users intend to power off
UPS completely, users have to plug out power cord from city utility.
Press on main switch for 4 seconds when city utility is black out, UPS
will be turned on and then g oto backup mode. To turn off UPS, please
press main switch for 4 seconds again. İf users want to turn on UPS
again, please wait for 10 seconds to press main switch for 4 seconds
again.
When UPS is under battery mode and battery voltage is too high or low,
buzzer will beep.
Buzzer will beep twice every 8 seconds when city utility is black out. To
silence alarm, please simply press main switch. To re-start alarm,
please press main switch again.
STORAGE
To ensure battery life, please kindly read and also follow below
instruction completely.
This unit is shipped from the factory with its internal battery fully charged,
however, some charge maybe lost during shipment and the battery should
be recharged prior to use. Plug the unit into an appropriate power supply
and allow the UPS to charge fully by leaving it plugged in for at least 10
hours.
Extended Storage:
Storage Temperature
Recharge Frequency
Charging Duration
-15°C to 30°C
Every 6 Months
10 Hours
30°C to 45°C
Every Month
10 Hours
BASIC INDICATION TABLE
BACKUP MODE
Status
Yellow LED
Green LED
Red LED
Buzzer
Battery normal,
Load normal
2 flashes every 4
seconds
Off
Off
2 beeps every
8 seconds
No Load
(For Green Mode
Function only)
One flash every 4
seconds
Off
Off
One beeps
every 8
seconds
Over Load (will
shut down at
120% load)
2 flashes every 4
seconds
Off
On
Continuous
beep
Over Temperature
32 flashes every
other 2 seconds
Off
Off
Depending on
load situation
O/P short circuit
32 flashes every
other 2 seconds
Off
Off
32 beeps
every other 2
seconds
Low battery
4 flashes every
second
Off
Off
4 beeps every
second
Over battery
voltage (for
external battery)
8 flashes every
second
Off
Off
8 beeps every
second
In phase lock (AC
good PLL working)
Off
4 flashes every
second
Off
Off
AC NORMAL MODE
Status
Yellow
LED
Green LED
Red LED
Buzzer
Battery full
Off
Continuous On
Off
Off
Battery charge
70%-90%
Off
One blink every
8 seconds
Off
Off
Battery charge
50%-70%
Off
One blink every
4 seconds
Off
Off
Battery charge
30%-50%
Off
One blink every
2 seconds
Off
Off
Battery charge
0%-30%
Off
One blink every
second
Off
Off
Over Load (shut off
at 120% of full
load)
Off
On
On
Continuous
Beep
OFF MODE
Status
Yellow LED
Green LED
Red LED
Buzzer
AC I/P disconnected
(UPS OFF completely)
Off
Off
Off
Off
AC I/P normal
(Batt. In charge)
Off
One flash every
2 seconds
Off
Off
UPS timer is set
(Through RS232)
One flash
every 2
seconds
One flash every
2 seconds
Off
Off
TROUBLESHOOTING
Upon UPS failure, please kindly check UPS by following steps. İf there is no
problem with below points, please kindly send UPS for service.
Is main power switch turned on
Is the UPS plugged into a working Wall outlet?
Is the line voltage within the rating specified?
Is the fuse blowned (at rear panel)?
Is the UPS over-loaded?
Is battery not fully charged?
Please provide the following information when call for service.
1. Model & serial number
2. Date of the problem occured, date of purchase.
3. Full description of the problem including load, LED and alarm status,
installation condition, working environment, etc...
UPS can not turn on, LED not light:
Possible Cause: ON/OFF/SILENCE button not pushed or push-time too
short.
Action to Take: Press ON/OFF/SILENCE button more than 1 second.
Possible Cause: Battery voltage less than 10 V.
Action to Take: Recharge the battery.
Possible Cause: PCB failure.
Action to Take: Call for service.
Possible Cause: Load less then 25W at battery mode.
Action to Take: Normal condition. “No load shutdown function” is active.
UPS always at battery mode:
Possible Cause: Power cord lose.
Action to Take: Plug in the power cord.
Possible Cause: AC fuse burn out.
Action to Take: Replace the AC fuse.
Possible Cause: PCB failure.
Action to Take: Call for service.
Backup time too short:
Possible Cause: Battery not fully charged.
Action to Take: Recharge the UPS at least 5 hours.
Possible Cause: Battery defective.
Action to Take: Replace the battery, call for service.
Buzzer continuous beeping:
Possible Cause: Overload
Action to Take: Remove some loads.
This uninterruptible power supply that you bought has a CE mark and
comply with the international standards.
NOTES
TECHNICAL SPECIFICATIONS
MODEL
P - 600
P - 650
P - 850
K - 1000
K - 1200
T - 1500
T - 2000
CAPACITY
600VA
650VA
850VA
1000VA
1200VA
1500VA
2000VA
360W
390W
510W
600W
720W
900W
1200W
INPUT
VOLTAGE
220VAC / 230VAC / 240VAC
VOLTAGE RANGE
-30% +25%
FREQUENCY
50Hz / 60Hz Auto-sensing
OUTPUT
VOLTAGE REGULATION
+/- 10% (battery mode)
FREQUENCY
50Hz / 60Hz +/-1Hz
WAVEFORM
Simulated Sinewave
TRANSFER TIMEİ
<6ms (typical)
BATTERY
DC VOLTAGE
12 VDC
24 VDC
RECHARGE TIME
5 Hours to 90% after complete discharge
BATTERY PROTECTION
Over Discharge Protection
ADVANCED BATTERY
MANAGEMENT
Yes
FUNCTIONS
DISPLAY
LED status indicators for AC normal (Green), Back-up (Yellow), UPS cut
off (Red)
ALARM
Buzzer on for Back-up mode, battery low, overload
SHORT CIRCUIT
PROTECTION
AC fuse and Electronic circuit (line mode):
Electronic circuit (Back-up mode)
VOLTAGE REGULATION
2-Steps Boost and 1-Step Buck AVR
DC START FUNCTION
Yes (cold start)
ENVIRONMENT
OPERATING TEMP.
0 C° 40 C°
RELATIVE HUMIDITY
0- Non-condensing
AUDIBLE NOISE
<40dB at 1 meter
DIMENSIONS (DxWxH)
305x98x170mm
385x98x170mm
360x150x160mm
*LEGA has rights to change specifications without prior notice.
