Leetac Electronics Technology LEETACE696B User Manual

MODEL: ITVS-750B(E-696B)

WOODEN MUSIC CENTER
WITH RECORDABLE CD PLAYER

IMPORTANT SAFETY INSTRUCTIONS ....................................................................................................... 2

PRODUCT OVERVIEW ................ .. .. .. .. .......................... .. .. ........................... .. .. ........................................... 3

SETUP / BASIC OPERATION ....................................................................................................................... 7

REMOTE CONTROL ........................................ .. .. .. .......................... .. .. ........................... .. .. ......................... 7

LISTENING TO A VINYL RECORD ........ ................................................................................. ...................... 8

LISTENING TO A CD .................................................................................................................................... 9

LISTENING T O T HE RADI O ............................................ .... .... ...... .... .... .... ..... .... .... .... ...... .... .... .................. 11

LISTENING TO AN EXTERNAL AUDIO DEVICE (AUX MODE) ................................................................. 1 1

LISTENING T O A CASS ETTE TAPE................................ .... .... ...... .... .... ... ...... .... .... .... ...... .... .... ...... ............ 12

RECORDING TO A CD-R / CD-RW ............................................................................................................ 12

MAINTENANCE / PROPER HANDLING.................... .. .. .... .. .. .. .. .. .. .. .. .. .... .. .. . .. .. .. .. .. .. ... ... .. .. .. .. .. .. .. .. .. .. .... .... 16

SPECIFICATIONS....................................................................................................................................... 18

TROUBLESHOOTING GUIDE .................................................................................................................... 19

1

CAUTION: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
WARNING: To prevent electric shock, do not use this (polarized) plug with an extension cord, receptacle

or other outlet unless the blades can be fully inserted to prevent blade exposure

WARNING: Invisible laser radiation when open and interlock failed or defeated. Avoid direct
exposure to laser beam.
PRODUCT COMPLIES WITH DHHS RULE 21 CFR SUBCHAPTER J IN EFFECT AT DATE
OF MANUFACTURE

Important Safety Instructions

1. Read these instructions – All the safety and operating instructions should be read before this product

is operated.

2. Keep these instructions- The safety and operating instructions should be retained for future reference.

3. Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered

to.

4. Follow all instructions – All operating and use instructions should be followed.

5. Do not use this apparatus near water – The appliance should not be used near water or moisture – for

example, in a wet basement or near a swimming pool, and the like.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiations, heat registers, stoves, or other apparatus

(including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding plug. A polarized plug has two blades
with one wider than the other. A grounding plug has two blades and a third grounding prong. The wide
blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at the plugs, convenience
receptacles, and at the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the

manufacturer, or sold with the apparatus. When a cart or rack is used, use
caution when moving the cart/apparatus combination to avoid injury from
tip-over.

13. Unplug the ap paratus during l ighting storms or when unused for long
periods of time.

14. Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged
in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have
fallen into the apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.

15.

2

-This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the

presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock.

-Warning: To reduce the risk of electric shock, do not remove cover (or back) as there are no

user-serviceable parts inside. Refer servicing to qualified personnel.

-The exclamation point within and equilateral triangle is intended to alert the user to the presence of

important operating and maintenance instructions in the literature accompanying the appliance.

16.

This equipment is a Class Ⅱ or double insulated electrical appliance. It has been designed in such a way
that it does not require a safety connection to electrical earth.

17. The mains plug is used as disconnect device, the disconnect device shall remain readily operable.

18. To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The

apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as
vases, shall not be placed on apparatus.

19. The use of the equipment in moderate climate.

20. The battery shall not be exposed to excessive heat such as sunshine, fire or the like.

ACCESSORIES INCLUDED

• REMOTE CONTROL

• 3.5MM TO 3.5MM AUX CABLE

• RCA TO 3.5MM AUX CABLE

• INSTRUCTION MANUAL

• WARRANTY (BACK OF MANUAL)

• 45 RPM ADAPTER

Product Overview

Front View

3

4

1. “POWER ON/OFF” Switch to turn the unit

on or off.

2. “PHONO” Press to play a vinyl record.

3. “AUX”, “BT” & AUX IN Jack Press

“AUX/BT” to listen to an external source
connected to the AUX IN jack or Bluetooth.

4. “AM/FM” Press to listen to the radio. Press

again to switch between AM and FM mode.

5. “CD” Press to play a CD.

6. “TAPE” Press to play a cassette.

7. REMOTE SENSOR. When using the

remote control, point it towards this sensor.

8. RADIO TUNER DISPLAY

9. “TRACK INCREMENT” During recording,

press to separate tracks.

10. “RECORD” Press to enter record pause

mode.

11. LCD DISPLAY

12. “TUNED ST” INDICATOR. Illuminates

when a station is correctly tuned in.

13. STEREO SPEAKERS

14. STOP Press to sto p playback or

recording.

15/16. PLAY/PAUSE Press to start

playback, recording, finalizing or erasing.
During playback, press again to pause.

17. OPEN/CLOSE In CD, PHONO or AUX
mode, use to open and close the disc tray.

(Note: This button will not work in AM/FM

mode.)

18. “VOLUME” KNOB Turn to adjust volume.
(Note: volume ranges from 00 to 32.)

19. DISC TRAY

20. NEXT/ PREVIO US TRACK

& FF/REWIND

In CD Mode, press once to skip to the

next/previous track. Press and hold to fast
forward/rewind.

21. “REC LEVEL” KNOB In record pause
mode, turn to adjust the recording level.

22. “FINALIZE” Press to finalize a
CD-R/CD-RW disc.

23. “ERASE” Press to erase or unfinalize a
CD-RW disc.

24. RADIO TUNER KNOB In AM/FM mode,
turn to tune in a station.

25. EARPHONE JACK

Accepts headphone/earphone plugs.

26. AUTO /MANUAL Press to select mode of

track number assignment for reco rding.

Left side View

27. CASSETTE FF&EJECT Press halfway to fast forward, press all the way to end and eject the

tape.

Rear View

5

A. FM wire antenna

While tuned to a station in FM mode, extend the wire and reposition to adjust for best reception.

B. AUX IN jacks

For audio sources with RCA jacks, use plug on end of the RCA cable into these jacks and the
other into the audio source. Be sure to connect the white plug to the white jack (Left) and the red
plug to the red jack (Right).

C. AC Power Cord

Plugs into a wall outlet.

Parts of the Tur ntable

A. Turntable.
B. Safety Screw (for transport) Before using the unit, turn the screw

clockwise using a coin or screwdriver.

Important: When you transport the unit, turn the screw counterclockwise to secure the turntable.

The silver screw on the back of the turntable is a balancer for both the turntable as well as for
the tone arm.
Please turn this screw with a coin to either left or right and test by moving your tone arm to the
middle of the spindle. Please note that this screw is a balancer and will have to be adjusted until
the tone arm moves freely to the end of the record (middle of the spindle) without any resistance
before using the turntable phonograph.

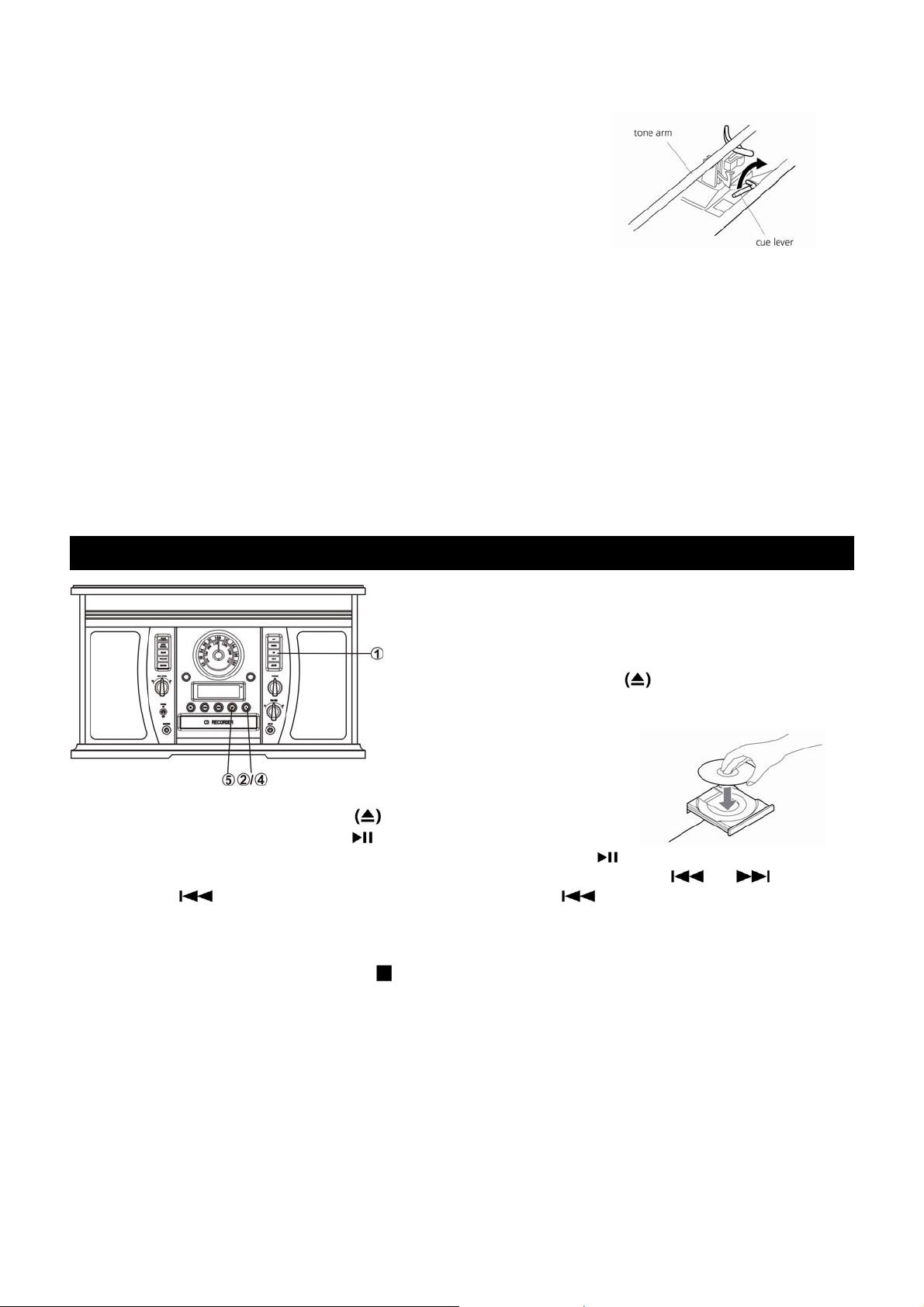

C. Cue-lever. Use this lever to lift the tone arm.
D. Speed Selector.
E. Tone Arm holder.
F. Tone Arm.

arm.

G. 45 RPM adaptor.

Before use, completely loosen the fixed rope on the tone arm and uplift tone

6

Setup / Basic Operation

Setup

1. Remove white protective needle cover by gently pulling towards front of unit.

2. Remove any packaging materials from the unit.

3. Connect the AC power cord
to a wall outlet.

Note: To prevent interference, avoid bundling audio signal cables together with the AC power cord.

Basic Operation

1. Switch the POWER toggle switch (1) to turn the unit on.

2. Select the source by pressing the corresponding mode

3. Rotate the VOLUME knob (3) to adjust to the

Listening through Ea rphones/Headphones (not included)

For private listening, first reduce the volume level to minimum.
Insert your headphones’ plug into the PHONES jack, then
adjust the volume up by turning the VOLUME knob.

Note: The speakers will automatically be deactivated while
headphones are plugged in.

CONDENSATION WARNING:
When the unit is moved from a cold or warm place, or is used following a sudden temperature change, there is the
danger that water vapor in the air may condense on the unit, preventing proper operation. In such cases, leave
the unit for 1-2 hours after plugging it into an AC outlet to allow it to stabilize at the temperature of its surroundings.

button (AUX / BT / PHONO / AM/FM / CD / TAPE) (2).

desired sound level.

Remote Control

When using the remote control, point it towards the remote sensor on the front panel of the unit.

Notes:

- Even if the remote control is operated within the effective range, remote control operation may be
impossible if there are any obstacles between the unit and the remote control.

- If the remote control unit is operated near other devices which generate infrared rays, it may not
function properly. Conversely, the other devices may not function incorrectly.

Battery Installation

1. Remove the battery compartment cover.

2. Insert 2x “AAA” batteries.
Note: Make sure that they are oriented so their polarity
markings, “+” and “-” match the remote’s markings.

3. Replace the battery compartment cover.

7
