PRODUCT INFORMATION PACKET
Model No: LM34058
Catalog No: LM34058
2 HP General Purpose Motor, 3 phase, 1800 RPM, 230/460 V, 56HC Frame, ODP
Three Phase ODP Motors
Regal and Leeson are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2020 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 6
Product Information Packet: Model No: LM34058, Catalog No:LM34058 2 HP General Purpose Motor, 3 phase, 1800 RPM, 230/460 V, 56HC Frame,
ODP
Nameplate Specifications
Output HP 2 Hp Output KW 1.5 kW
Frequency 60 Hz Voltage 230/460 V
Current 6.0/3.0 A Speed 1725 rpm
Service Factor 1.15 Phase 3
Efficiency 86.5 % Power Factor 74.5
Duty Continuous Insulation Class B
Design Code A KVA Code N
Frame 56HC Enclosure Drip Proof
Thermal Protection No Ambient Temperature 40 °C
Drive End Bearing Size 6205 Opp Drive End Bearing Size 6203
UL Recognized CSA Y
CE Y IP Code 22
Technical Specifications
Electrical Type Squirrel Cage Inverter Rated Starting Method Line Or Inverter
Poles 4 Rotation Reversible
Resistance Main 6.4 Ohms Mounting Rigid base
Motor Orientation Horizontal Drive End Bearing Ball
Opp Drive End Bearing Ball Frame Material Rolled Steel
Shaft Type NEMA 56 Overall Length 13.44 in
Frame Length 9.56 in Shaft Diameter 0.625 in
Shaft Extension 1.88 in Assembly/Box Mounting F1 ONLY

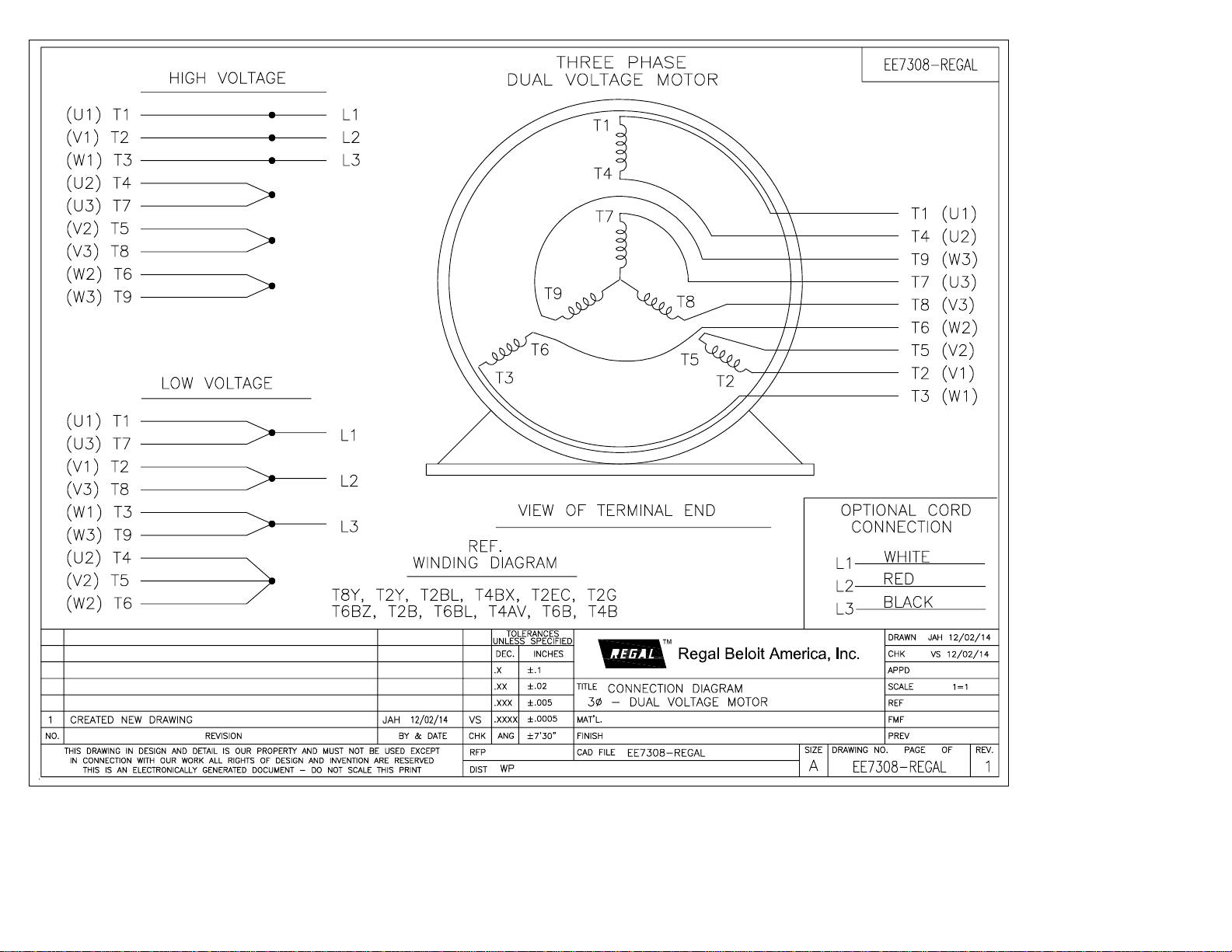

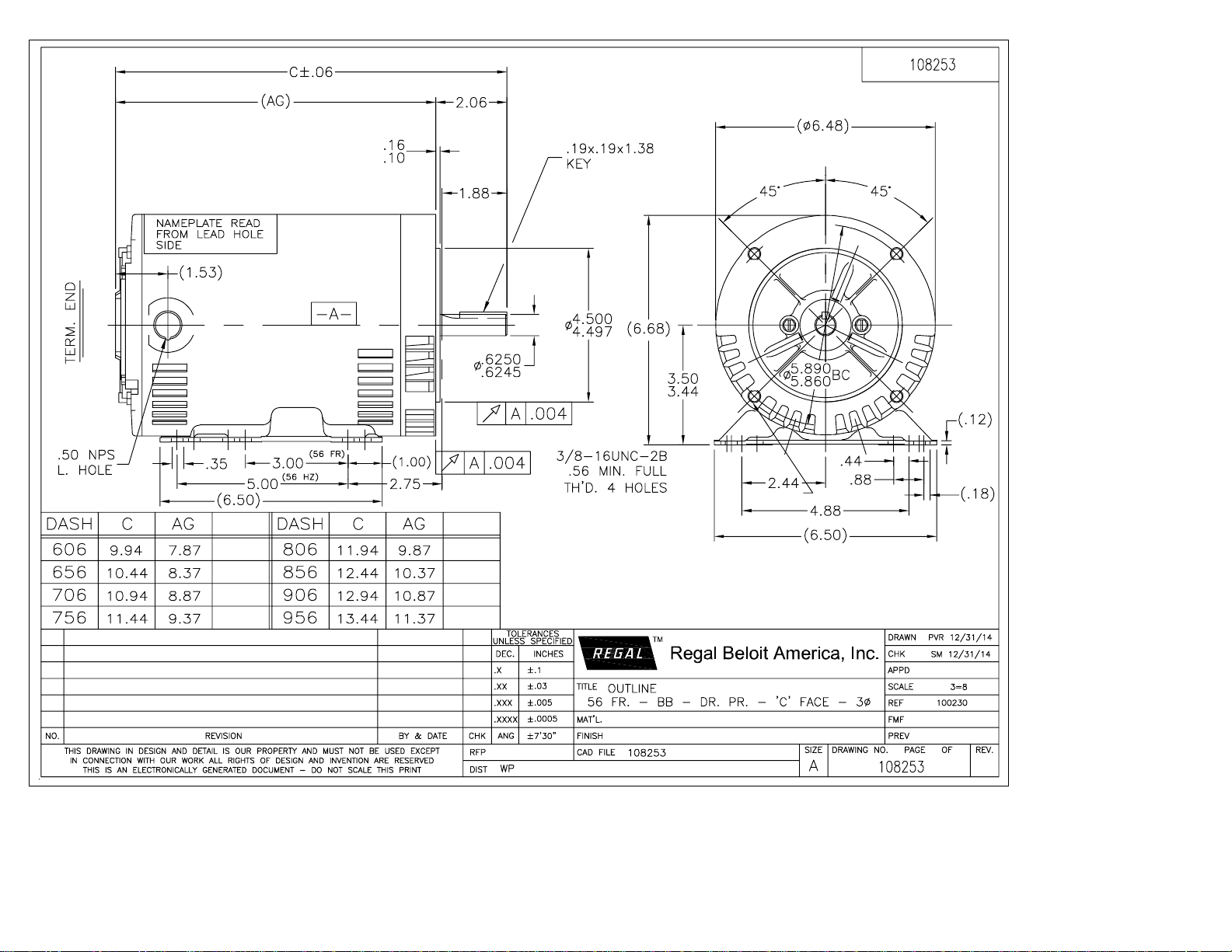

Connection Drawing EE7308-REGAL Outline Drawing 108253-956
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created:14/10/2020
2 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 6
Uncontrolled Copy
3 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 6
Uncontrolled Copy
4 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 6
Uncontrolled Copy
5 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 6
Date:
Speed (RPM)
Data Sheet
Current (Amps)
P
E
-200 0 200 400 600 8 00 1000 1200 1400 1600 1800 2000
TORQU
30.0
40.0
50.0
0% 20% 40% 60 % 80% 100% 120% 140%
F
60.0
70.0
EFF
80.0
100.0
90.0
Torque (ft-lb)
P.F. (%)
Load 0% 25% 50% 75% 100% 115% 125% LR
Current (Amps)
Torque (ft-lb)
RPM
Efficiency (%)
10.0
15.0
20.0
25.0
30.0
0.0
5.0
35.0
Efficiency (%) P.F. (%) Current (Amps)
1800 1789 1778 1765 1750 1,745 1740 0
1.75 1.85 2.10 2.50 3.0 3.2 3.4 28.4
28.4 25.5 17.6 3.0 1.75 2.0
24.1 22.0 30.7 6.0 0.00 1800
LR Pull-Up BD Rated Idle
0 125 1220 1750 1800
0.00 1.50 2.95 4.5 6.0 7.0 7.6 24.1
7.9 33.9 53.8 65.3 74.5 78.4 79.7 71.5
1/24/2018 LM34058
Motor Speed Data
LOAD
Torque Amps
76.2 82.8 85.8 86.5 86.8 87.0
Uncontrolled Copy
Speed -Torque Curve
Motor Load Data
RPM
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
A
M
P
S
Additional Specifications:
0
0
4.1180 3.2660 6.2480 5.6800 163.3000
R1 R2 X1 X2 Xm
EQUIV CKT (OHMS / PHASE)
VFD Rating
Outline Dwg A-108253-956
Conn. Diag A-EE7308-REGAL
CONSTANT 2:1
Rotor/Shaft wk²
Duty
Ambient
Elevation
Ref Wdg
Sound Pressure @ 1M
ZT4260 NONE
CONT
1,000
0.09
56 dBA
40
Design
LR Code letter
Service Factor
Temp Rise @ FL
1.15
38
N
A
Construction
Voltage
Frequency
HP
Sync. RPM
Frame
Enclosure
Information Block
230/460#190/380
TDR
DP
60
56
Data @
feet
Lb-Ft²
0.0
5.0
10.0
15.0
S
20.0
25.0
30.0
AMP
°
°
C
C
Hz
V
460
v
