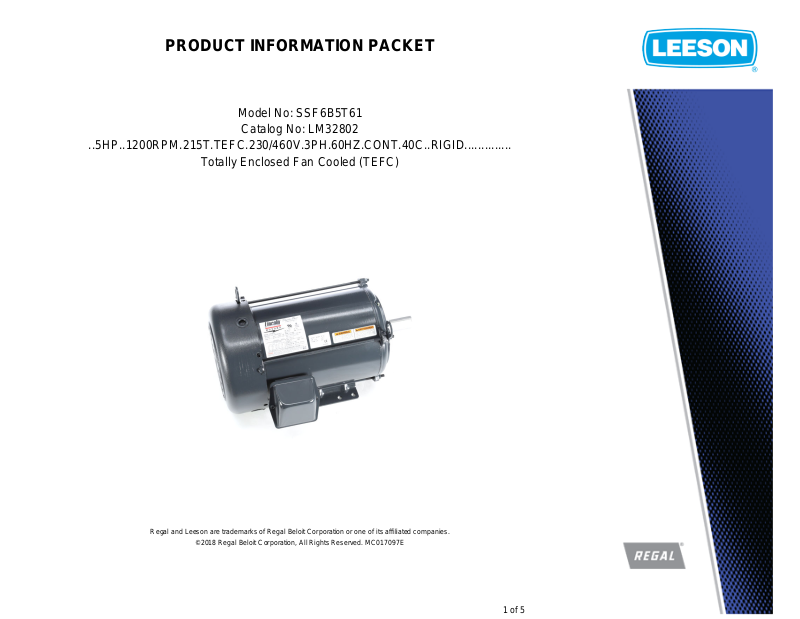

PRODUCT INFORMATION PACKET
Model No: SSF6B5T61
Catalog No: LM32802
..5HP..1200RPM.215T.TEFC.230/460V.3PH.60HZ.CONT.40C..RIGID..............
Totally Enclosed Fan Cooled (TEFC)
Regal and Leeson are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 5
Product Information Packet: Model No: SSF6B5T61, Catalog No:LM32802
..5HP..1200RPM.215T.TEFC.230/460V.3PH.60HZ.CONT.40C..RIGID..............
Nameplate Specifications
Output HP
Frequency 60 Hz Voltage 230/460 V
Current
Service Factor
Efficiency 90.2 % Duty Continuous
Insulation Class
KVA Code J Frame 215T
Enclosure Totally Enclosed Fan Cooled Overload Protector No
Ambient Temperature
Opp Drive End Bearing Size 206 UL Recognized
CSA
IP Code
5 Hp
14.0/7.0 A
1.25
F
40 °C
Y
43
Output KW
Speed
Phase
Design Code
Drive End Bearing Size
CE
3.7 kW
1170 rpm
3
B
307
Y
Technical Specifications
Electrical Type
Poles 6 Rotation Reversible
Squirrel Cage Induction Run
Starting Method
Across The Line
Mounting
Drive End Bearing BALL Opp Drive End Bearing BALL
Frame Material Rolled Steel Shaft Type T
Overall Length
Shaft Diameter 1.375 in Shaft Extension 3.38 in
Assembly/Box Mounting
Outline Drawing
Rigid base
20.23 in
F1/F2 CAPABLE
A-SS86560LN-1115
Motor Orientation
Frame Length
Connection Diagram
HORIZONTAL
11.15 in
A-EE7308-LN
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 10/15/2018
2 of 5
7/26/2007 2:56:47 PM -
3 of 5
7/19/2007 9:20:15 AM -
4 of 5
Date:
Speed (RPM)
Data Sheet
Current (Amps)
E
10.0
20.0
30.0
0.0
0 200 400 600 800 1000 1200 1400
40.0
TORQU
50.0
60.0
70.0
80.0
90.0
30.0
40.0
50.0
60.0
70.0
80.0
0% 20% 40% 60 % 80% 100% 120% 140%
F
100.0
90.0
E
F
F
P
Torque (ft-lb)
Efficiency (%) P.F. (%) Current (Amps)
46.0 40.0 30.0 7.0 3.7 5.0
47.0 40.0 79.0 22.5 0.00 1200
0 400 1000 1170 1200
P.F. (%)
1200 1192 1185 1175 1170 1,165 1160 0
0.00 5.5 11.0 16.8 22.5 26.0 28.5 47.0
5.0 35.0 55.0 67.0 75.0 76.5 78.0 41.0
LR Pull-Up BD Rated Idle
3.7 4.0 4.7 5.8 7.0 7.7 8.4 46.0
1/29/2018 LM32802
Load 0% 25% 50% 75% 100% 115% 125% LR
Current (Amps)
Torque (ft-lb)
RPM
Efficiency (%)
Motor Speed Data
LOAD
Torque Amps
84.0 89.5 90.2 90.2 89.5 88.5
Uncontrolled Copy
Speed -Torque Curve
Motor Load Data
RPM
0.0
1.0
2.0
3.0
4.0
5.0
6.0
7.0
8.0
9.0
A
M
P
S
0
0
1.1360 1.1930 4.4930 4.6860 67.7060
R1 R2 X1 X2 Xm
EQUIV CKT (OHMS / PHASE)
Outline Dwg A-SS86560LN-1115
Conn. Diag A-EE7308-LN
Additional Specifications:
Ref Wdg
Sound Pressure @ 1M
VFD Rating
NONE
Rotor/Shaft wk²
Ambient
Elevation
K2156166 NONE
1,000
1.00
55 dBA
40
LR Code letter
Service Factor
Temp Rise @ FL
Duty
CONT
1.15
45
J
Voltage
Frequency
Design
Construction
HP
Sync. RPM
Frame
Enclosure
Information Block
230/460#190/380
TEFC
TFW
60
B
215
Data @
feet
Lb-Ft²
0.0
5.0
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
A
M
P
S
°
°
C
C
Hz
V
460
v
5 of 5
