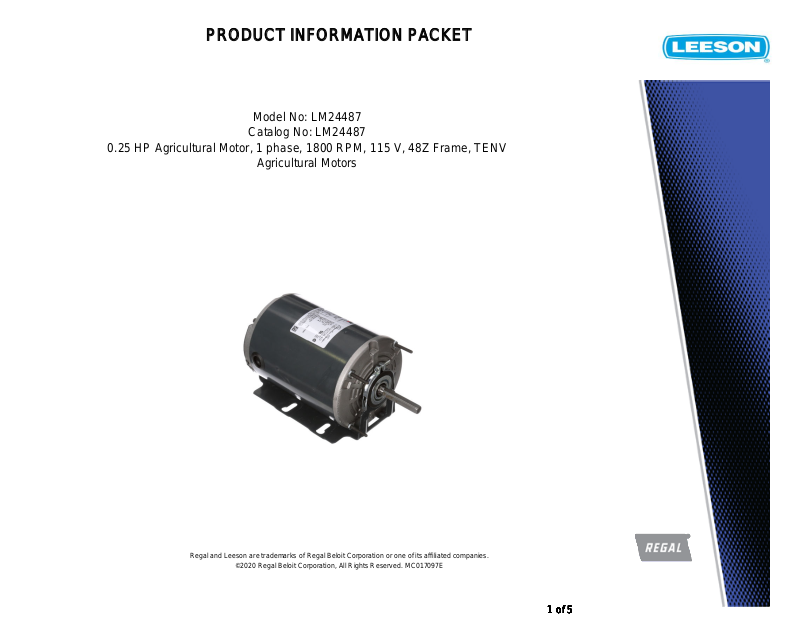

PRODUCT INFORMATION PACKET
Model No: LM24487
Catalog No: LM24487
0.25 HP Agricultural Motor, 1 phase, 1800 RPM, 115 V, 48Z Frame, TENV
Agricultural Motors
Regal and Leeson are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2020 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 5
Page 2
Product Information Packet: Model No: LM24487, Catalog No:LM24487 0.25 HP Agricultural Motor, 1 phase, 1800 RPM, 115 V, 48Z Frame, TENV
Nameplate Specifications
Output HP 0.25 Hp Output KW 0.19 kW
Frequency 60 Hz Voltage 115 V
Current 3.5 A Speed 1725 rpm
Service Factor 1 Phase 1
Efficiency 66 % Power Factor 70
Duty Continuous Insulation Class B
Design Code NO DESIGN CODE KVA Code N
Frame 48Z Enclosure Totally Enclosed Non Ventilated
Thermal Protection Automatic Lock Rotor Only Ambient Temperature 40 °C
Drive End Bearing Size 6203 Opp Drive End Bearing Size 6203
UL Recognized CSA Y
CE N IP Code 43
Technical Specifications
Electrical Type Split Phase Starting Method Across The Line
Poles 4 Rotation Selective Counterclockwise
Resistance Main 0 Ohms Mounting Rigid base
Motor Orientation Horizontal Drive End Bearing Ball
Opp Drive End Bearing Ball Frame Material Rolled Steel
Shaft Type Single Special Extension Overall Length 17.32 in
Frame Length 6.75 in Shaft Diameter 0.500 in
Shaft Extension 1.5 in Assembly/Box Mounting F1 ONLY
Outline Drawing SS400070-675 Connection Drawing EE7195-LN
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created:14/10/2020
2 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 5
Page 3
Uncontrolled Copy
3 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 5
Page 4
9/4/2007 11:25:07 PM -
4 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 5
Page 5
HZ
3/27/2018
1770
1770
Uncontrolled Copy
LEESON ELECTRIC CORPORATION
TYPICAL PERFORMANCE CURVE for AC MOTOR
Curve at 115 Volts HP 0.26
60 HZ
Model No LM24487 0.25 HP VOLTS 115
1
Catalog No LM24487E
60 70 80 90 100
EFF
60 70 80 90 100
PF
HP
60 RPM 1725
Eff −
−
−−
PF −
−
−−
HP −
−
−−
RPM −
−
−−
KW −
−
−−
Amps −
−
−−
1780 1790 1800 1810
0.3 0.35 0.4 0.45 0.5
RPM
0.3 0.35 0.4 0.45 0.5
KW
1780 1790 1800 18100.3 0.35 0.4 0.45 0.53 3.5 4 4.5 5
60 70 80 90 10060 70 80 90 1000.3 0.35 0.4 0.45 0.5
PF
HP
KW
EFF
RPM
AMPS
0 10 20 30 40 50
0 10 20 30 40 50
0 2 4 6 8 10 12 14
FL TORQUE 12.2 Oz.Ft FL AMPS 3.5
BD TORQUE 22.8 Oz.Ft PU TORQUE 15.8 Oz.Ft
LR TORQUE 17.5 Oz.Ft LR AMPS 24.4
WINDING SE484152-1 Date
0 0.05 0.1 0.15 0.2 0.25
0 2 4 6 8 10 12 14
0 2 4 6 8 10 12 14
0 0.05 0.1 0.15 0.2 0.25
1710 1720 1730 1740 1750 1760
0 2 4 6 8 10 12 14
Torque
0 10 20 30 40 50
0 10 20 30 40 50
0 0.05 0.1 0.15 0.2 0.25
0 0.05 0.1 0.15 0.2 0.25
0 0.5 1 1.5 2 2.5
1710 1720 1730 1740 1750 1760
0 2 4 6 8 10 12 14
0 2 4 6 8 10 12 14
0 2 4 6 8 10 12 14
0 2 4 6 8 10 12 14
0 2 4 6 8 10 12 14
0 2 4 6 8 10 12 14
0 2 4 6 8 10 12 14
Torque
Torque
Torque
Torque
Torque
Torque
Torque
Torque
Torque
Torque
Torque in Oz.Ft
