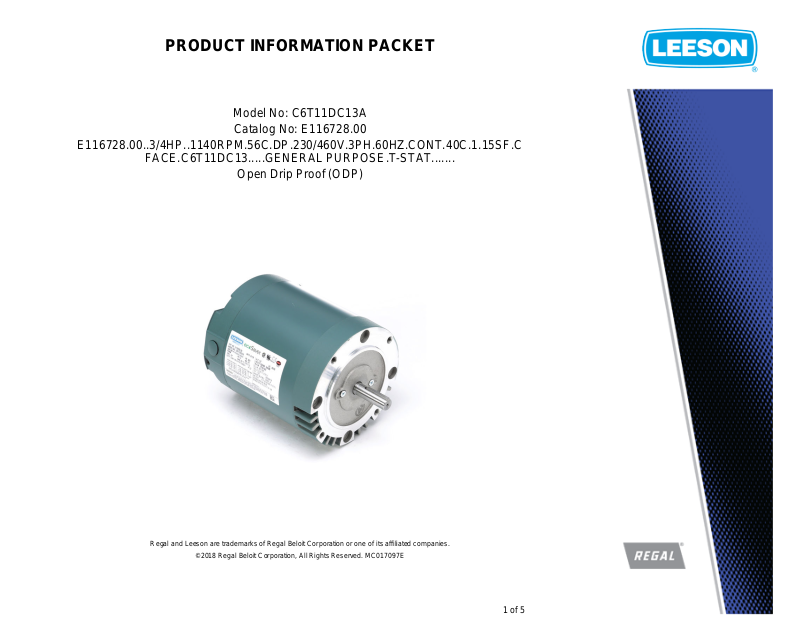

Leeson E116728.00 Product Information Packet
PRODUCT INFORMATION PACKET
Model No: C6T11DC13A
Catalog No: E116728.00
E116728.00..3/4HP..1140RPM.56C.DP.230/460V.3PH.60HZ.CONT.40C.1.15SF.C
FACE.C6T11DC13.....GENERAL PURPOSE.T-STAT.......
Open Drip Proof (ODP)
Regal and Leeson are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 5
Product Information Packet: Model No: C6T11DC13A, Catalog No:E116728.00
E116728.00..3/4HP..1140RPM.56C.DP.230/460V.3PH.60HZ.CONT.40C.1.15SF.C FACE.C6T11DC13.....GENERAL
PURPOSE.T-STAT.......
Nameplate Specifications
Output HP |
0.75 Hp |
Output KW |
0.56 kW |
Frequency |
60 Hz |
Voltage |
230/460 V |
Current |
2.8/1.4 A |
Speed |
1140 rpm |
Service Factor |
1.15 |
Phase |
3 |
Efficiency |
81.7 % |
Duty |
Continuous |
Insulation Class |
F |
Design Code |
B |
KVA Code |
J |
Frame |
56C |
Enclosure |
Drip Proof |
Overload Protector |
No |
Ambient Temperature |
40 °C |
Drive End Bearing Size |
6203 |
Opp Drive End Bearing Size |
6203 |
UL |
Recognized |
CSA |
Y |
CE |
Y |
IP Code |
22 |
|
|
Technical Specifications
Electrical Type |
Squirrel Cage Inverter Rated |
Starting Method |
Line Or Inverter |
Poles |
6 |
Rotation |
Reversible |
Mounting |
Round |
Motor Orientation |
HORIZONTAL |
Drive End Bearing |
BALL |
Opp Drive End Bearing |
BALL |
Frame Material |
Rolled Steel |
Shaft Type |
NEMA 56 |
Overall Length |
11.87 in |
Frame Length |
7.00 in |
Shaft Diameter |
0.625 in |
Shaft Extension |
1.88 in |
Assembly/Box Mounting |
F1 ONLY |
|
|
Outline Drawing |
607-0192-700 |
Connection Diagram |
005010.20 |
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 10/15/2018
