PRODUCT INFORMATION PACKET
Model No: A4P8NR2A
Catalog No: A099836.00
..1/2 HP..800RPM.48YZ.TEAO.115/230V.1PH.60HZ.CONT.40C..RES BASE......FAN MOTOR........
Agricultural
Regal and Leeson are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 5
Product Information Packet: Model No: A4P8NR2A, Catalog No:A099836.00 ..1/2
HP..800RPM.48YZ.TEAO.115/230V.1PH.60HZ.CONT.40C..RES BASE......FAN MOTOR........
Nameplate Specifications
Output HP
Frequency 60 Hz Voltage 115/230 V
Current
Service Factor
Efficiency 64 % Duty Continuous
Insulation Class
KVA Code A Frame 48YZ
Enclosure Totally Enclosed Air Over Overload Protector Automatic Lock Rotor Only
Ambient Temperature
Opp Drive End Bearing Size 6203 UL Recognized
CSA
IP Code
0.50 Hp
6.0/3.0 A
1.15
B
40 °C
Y
43
Output KW
Speed
Phase
Design Code
Drive End Bearing Size
CE
0.37 kW
825 rpm
1
N
6203
N
Technical Specifications
Electrical Type
Poles 8 Rotation Selective Counterclockwise
Permanent Split Capacitor
Starting Method
Across The Line
Mounting
Drive End Bearing BALL Opp Drive End Bearing BALL
Frame Material Rolled Steel Shaft Type Single Special Extension
Overall Length
Shaft Diameter 0.625 in Shaft Extension 2 in
Assembly/Box Mounting

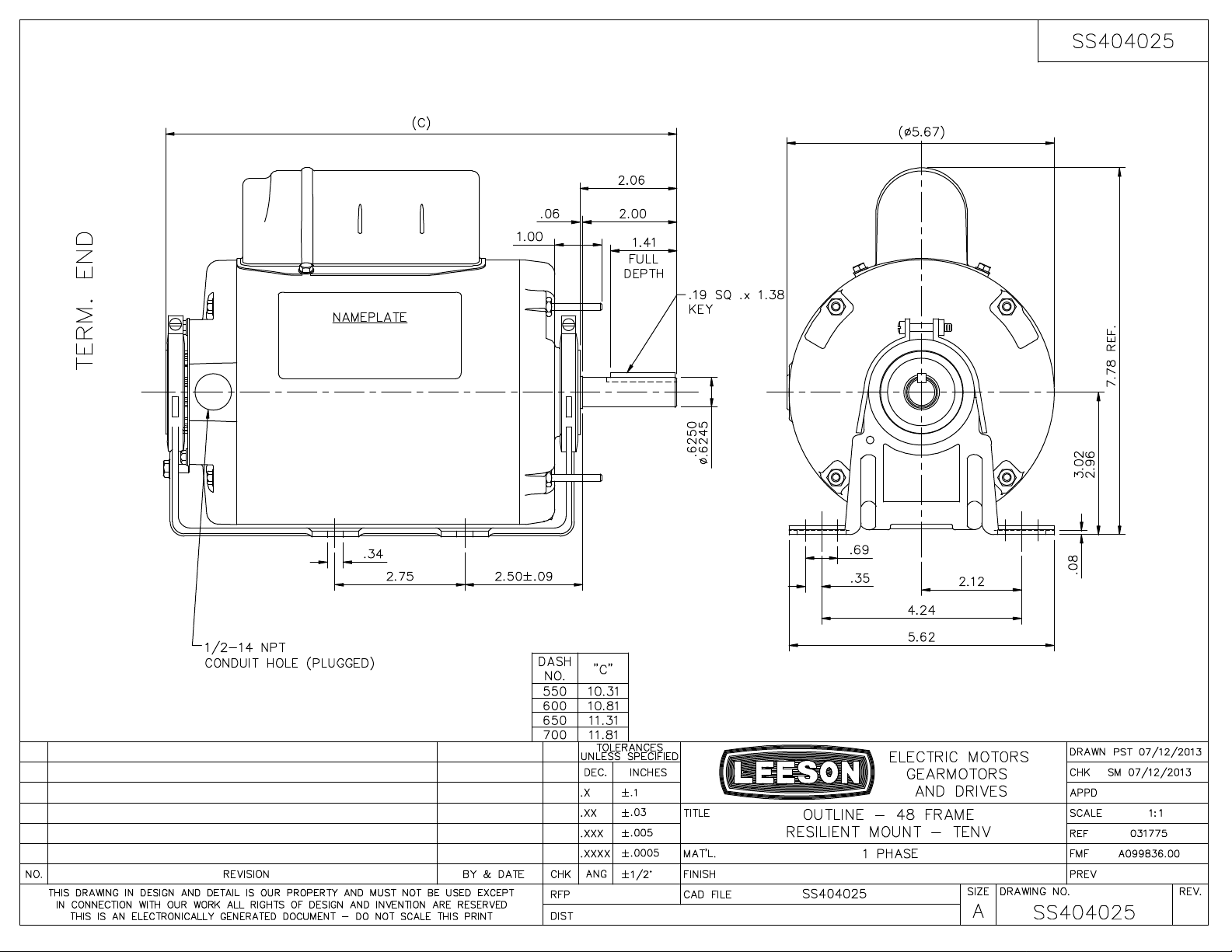

Outline Drawing
Resilient Base
10.81 in
F1 ONLY
A-SS404025-600
Motor Orientation
Frame Length
Connection Diagram
HORIZONTAL
6.00 in
A-005109-15
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 10/15/2018
2 of 5
3 of 5
11/19/2013 4:32:07 AM - Converted by Connexus
9/25/2008 5:20:27 PM
4 of 5
Curve at
Volts
HP
HZ
Model No
HP
VOLTS
Catalog No
A099836.00
HZ 60RPM
825
Torque in Oz.Ft
FL TORQUE
Oz.Ft
FL AMPS
BD TORQUE
Oz.Ft
PU TORQUE
Oz.Ft
LR TORQUE
17.3
Oz.Ft
LR AMPS
6.4
WINDING
PE488252-3
Date
3/21/2018
Uncontrolled Copy
LEESON ELECTRIC CORPORATION
TYPICAL PERFORMANCE CURVE for AC MOTOR
460
60
A099836.00 0.5
0.50
115/230
Eff −
−
−−
PF −
−
−−
HP −
−
−−
RPM −
−
−−
KW −
−
−−
Amps −
1
−
−−
60 70 80 90 100
EFF
0 10 20 30 40 50
60 70 80 90 100
PF
0 10 20 30 40 50
0 10 20 30 40 50 60 70
0.6 0.7 0.8 0.9 1
HP
RPM
0 0.1 0.2 0.3 0.4 0.5
0 10 20 30 40 50 60 70
0 10 20 30 40 50 60 70
49.4
73.0
0.6 0.7 0.8 0.9 1
890 900 910 920 930
KW
0 0.1 0.2 0.3 0.4 0.5
830 840 850 860 870 880
0 10 20 30 40 50 60 70
60 70 80 90 10060 70 80 90 1000.6 0.7 0.8 0.9 1890 900 910 920 9300.6 0.7 0.8 0.9 13 3.5 4 4.5 5
PF
HP
KW
EFF
RPM
AMPS
0 10 20 30 40 50
0 10 20 30 40 50
0 0.1 0.2 0.3 0.4 0.5
0 0.1 0.2 0.3 0.4 0.5
0 0.5 1 1.5 2 2.5
830 840 850 860 870 880
0 10 20 30 40 50 60 70
0 10 20 30 40 50 60 70
0 10 20 30 40 50 60 70
0 10 20 30 40 50 60 70
0 10 20 30 40 50 60 70
0 10 20 30 40 50 60 70
0 10 20 30 40 50 60 70
Torque
Torque
Torque
Torque
Torque
Torque
Torque
Torque
Torque
Torque
Torque
6/3
16.2
5 of 5
