Leeson 194011.00 Product Information Packet

PRODUCT INFORMATION PACKET

Model No: 194011.00

Catalog No: 194011.00

20 HP Washdown, 3 phase, 1800 RPM, 208-230/460 V, 256TC Frame, TEFC

Paint Free IEC Washdown Motors

Regal and Leeson are trademarks of Regal Beloit Corporation or one of its affiliated companies.

©2019 Regal Beloit Corporation, All Rights Reserved. MC017097E

1 of 31 of 31 of 31 of 31 of 31 of 31 of 31 of 31 of 31 of 31 of 31 of 31 of 31 of 31 of 31 of 31 of 31 of 31 of 31 of 31 of 31 of 31 of 31 of 31 of 3

Product Information Packet: Model No: 194011.00, Catalog No:194011.00 20 HP Washdown, 3 phase, 1800 RPM, 208-230/460 V, 256TC Frame, TEFC

Nameplate Specifications

Output HP 20 Hp Output KW 14.9 kW
Frequency 60 Hz Voltage 208-230/460 V
Current 52.0-47.0/23.6 A Speed 1770 rpm
Service Factor 1.15 Phase 3
Efficiency 93 % Power Factor 86
Duty Continuous Insulation Class F
Design Code B KVA Code G
Frame 256TC Enclosure Totally Enclosed Fan Cooled
Thermal Protection No Ambient Temperature 40 °C
Drive End Bearing Size 6309 Opp Drive End Bearing Size 6211
UL Recognized CSA Y
CE N IP Code 55

Technical Specifications

Electrical Type Squirrel Cage Inverter Rated Starting Method Line Or Inverter
Poles 4 Rotation Reversible
Mounting Rigid base Motor Orientation Horizontal
Drive End Bearing Ball Opp Drive End Bearing Ball
Frame Material Stainless Steel Shaft Type T

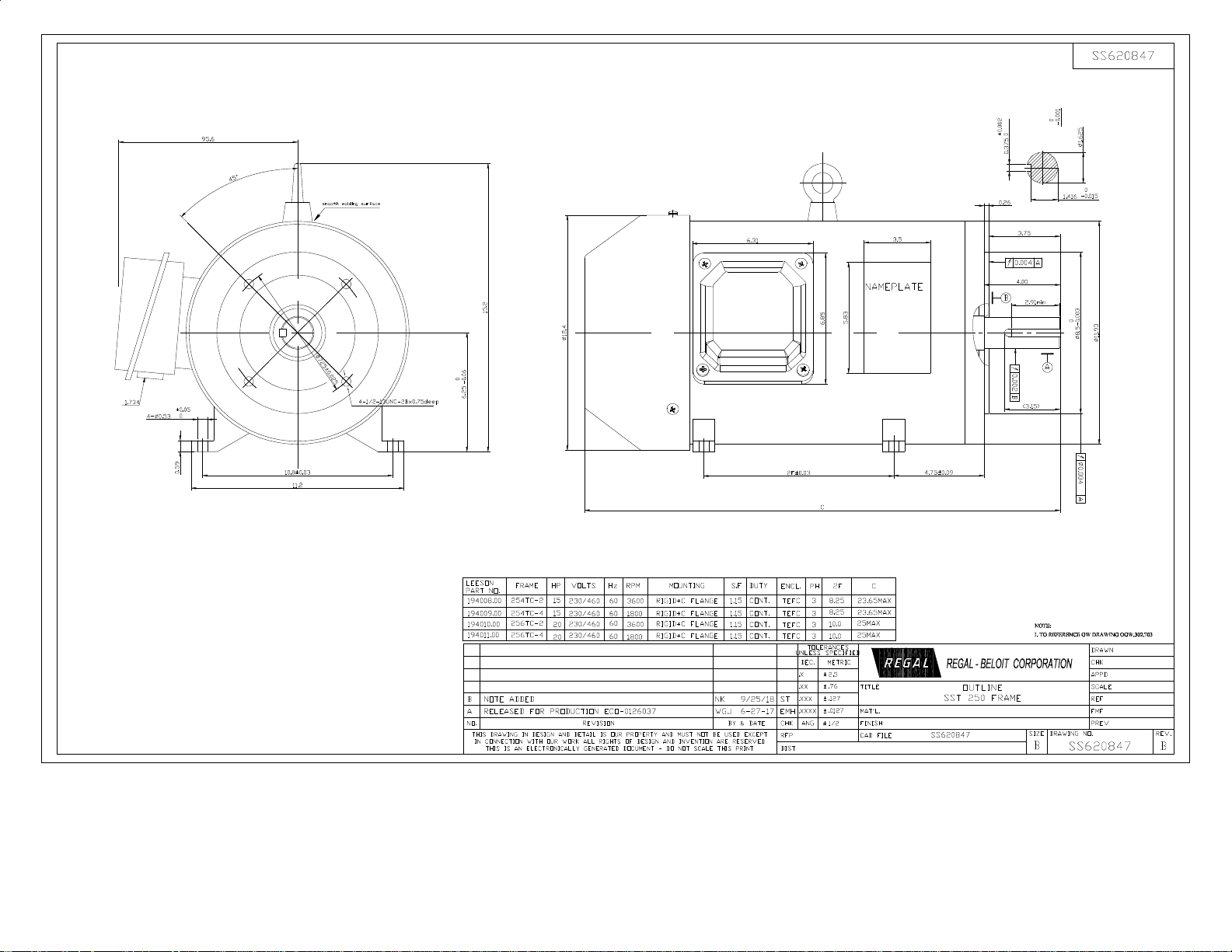

Overall Length 25.00 in Shaft Diameter 1.625 in
Shaft Extension 4 in Assembly/Box Mounting F1/F2 CAPABLE

This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created:01/11/2019
