PRODUCT INFORMATION PACKET
Model No: C447T34FW1AA
Catalog No: 171805.60
..200HP..3600RPM.447TS.TEFC.460V.3PH.60HZ.CONT.40C.1.15SF.RIGID......SEVERE DUTY........
Mill and Chemical
Regal and Leeson are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 5
Product Information Packet: Model No: C447T34FW1AA, Catalog No:171805.60
..200HP..3600RPM.447TS.TEFC.460V.3PH.60HZ.CONT.40C.1.15SF.RIGID......SEVERE DUTY........
Nameplate Specifications
Output HP
Frequency 60 Hz Voltage 460 V
Current
Service Factor
Efficiency 95.4 % Duty Continuous
Insulation Class
KVA Code G Frame 447TS
Enclosure Totally Enclosed Fan Cooled Overload Protector No
Ambient Temperature
Opp Drive End Bearing Size 6314 UL Recognized
CSA
IP Code
200 Hp
216.0 A
1.15
F
40 °C
Y
55
Output KW
Speed
Phase
Design Code
Drive End Bearing Size
CE
149.0 kW
3575 rpm
3
B
6314
Y
Technical Specifications
Electrical Type
Poles 2 Rotation Reversible
Squirrel Cage Inverter Rated
Starting Method
Wye Start Delta Run Or Inverter
Mounting
Drive End Bearing BALL Opp Drive End Bearing BALL
Frame Material Cast Iron Shaft Type TS
Overall Length
Shaft Extension 4.75 in Assembly/Box Mounting F1/F2 CAPABLE
Outline Drawing
Rigid base
44.33 in
SS622204LE
Motor Orientation
Shaft Diameter

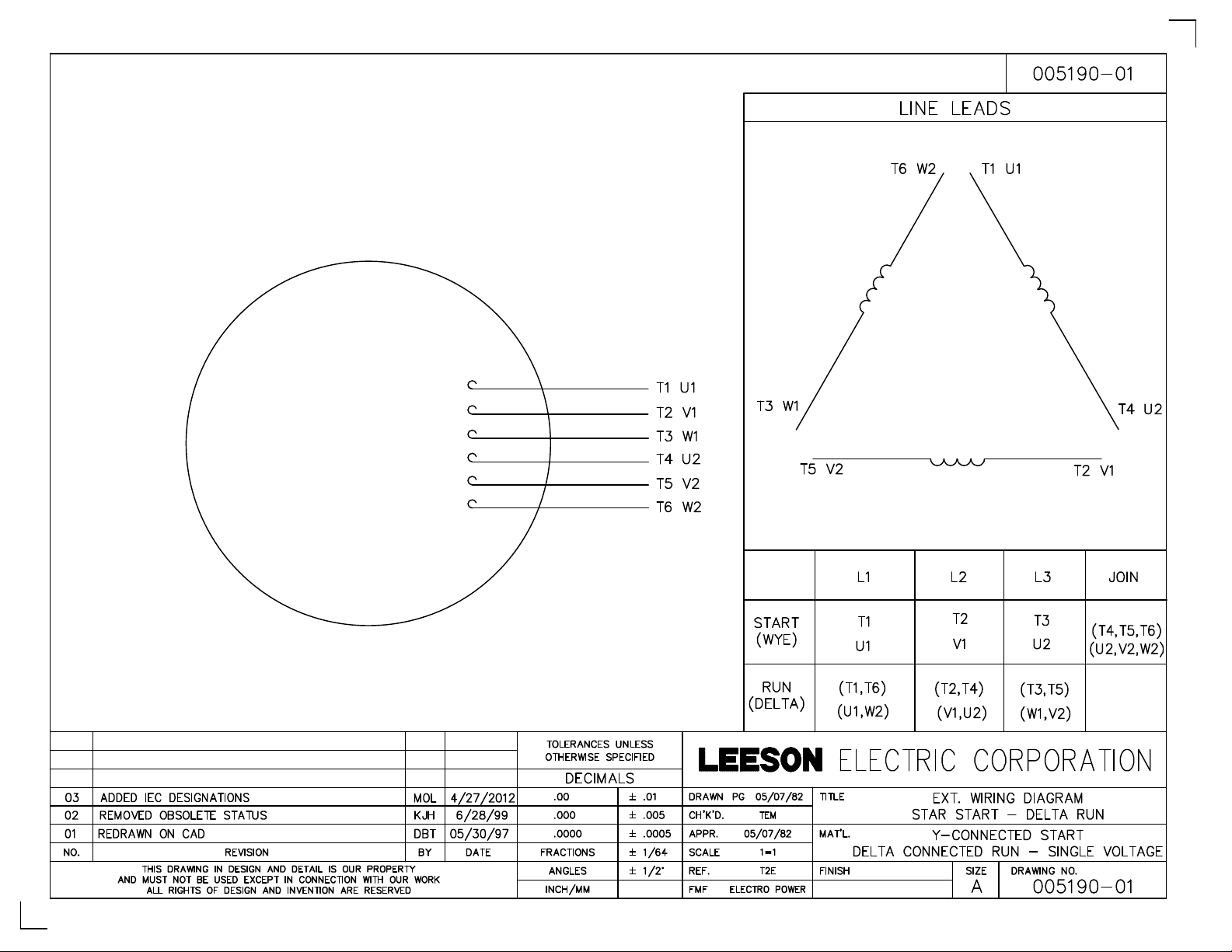

Connection Diagram
HORIZONTAL
2.375 in
00519001
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 10/15/2018
2 of 5
9/11/2007 8:48:04 AM -
3 of 5
4 of 5
4/27/2012 9:19:39 AM - Converted by Connexus
Date:
Speed (RPM)
Data Sheet
Current (Amps)
E
100.0
200.0
0.0
0 500 1000 1500 2000 2500 3000 3500 4000
300.0
TORQU
400.0
500.0
600.0
700.0
800.0
30.0
40.0
50.0
60.0
70.0
80.0
0% 20% 40% 60 % 80% 100% 120% 140%
F
100.0
90.0
E
F
F
P
Torque (ft-lb)
Efficiency (%) P.F. (%) Current (Amps)
P.F. (%)
Load 0% 25% 50% 75% 100% 115% 125% LR
Current (Amps)
Torque (ft-lb)
RPM
Efficiency (%)
1,450 1,385 860 216 37.5 200.0
426 360 729 293 0.00 3600
LR Pull-Up BD Rated Idle
0 1800 3485 3580 3600
3600 3595 3590 3585 3580 3,575 3570 0
37.5 66.5 112 162 216 250 272 1,450
0.00 73.0 147 220 293 338 368 426
11.5 77.5 88.5 90.8 90.5 90.5 89.0 24.0
1/19/2018 171805.60
Motor Speed Data
LOAD
Torque Amps
91.0 94.5 95.4 95.4 95.0 95.0
Uncontrolled Copy
Speed -Torque Curve
Motor Load Data
RPM
0.0
0.0000 0.0000 0.0000 0.0000 0.0000
R1 R2 X1 X2 Xm
EQUIV CKT (OHMS / PHASE)
50.0
Additional Specifications:
0
0
100.0
VFD Rating
Outline Dwg SS622204LE
Conn. Diag 00519001
150.0
Rotor/Shaft wk²
Ref Wdg
Sound Pressure @ 1M
T22802005 NONE
200.0
A
M
P
S
Duty
Ambient
Elevation
250.0
300.0
Construction
Voltage
Frequency
Design
LR Code letter
Service Factor
Temp Rise @ FL
HP
Sync. RPM
Frame
Enclosure
Information Block
0.0
200.0
400.0
600.0
800.0
1000.0
1200.0
1400.0
1600.0
A
M
P
S
VARIABLE 10:1
77 dBA
CONT
1,000
0.00
feet
Lb-Ft²
1.15
75
40
°
C
G
°
C
460#380
TEFC
TFC
60
A
Hz
V
447
Data @
460
v
5 of 5
