PRODUCT INFORMATION PACKET
Model No: C326T34FW1A
Catalog No: 171787.60
..50HP..3600RPM.326TS.TEFC.230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID......SEVERE DUTY........
Mill and Chemical
Regal and Leeson are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 7
Page 2
Product Information Packet: Model No: C326T34FW1A, Catalog No:171787.60
..50HP..3600RPM.326TS.TEFC.230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID......SEVERE DUTY........
Nameplate Specifications
Output HP
Frequency 60 Hz Voltage 208-230/460 V
Current
Service Factor
Efficiency 94.1 % Duty Continuous
Insulation Class
KVA Code G Frame 326TS
Enclosure Totally Enclosed Fan Cooled Overload Protector No
Ambient Temperature
Opp Drive End Bearing Size 6312 UL Recognized
CSA
IP Code
50 Hp
123.0-112.0/56.0 A
1.15
F
40 °C
Y
55
Output KW
Speed
Phase
Design Code
Drive End Bearing Size
CE
37.0 kW
3565 rpm
3
B
6312
Y
Technical Specifications
Electrical Type
Poles 4 Rotation Reversible
Squirrel Cage Inverter Rated
Starting Method
Wye Start Delta Run Or Inverter
Mounting
Drive End Bearing BALL Opp Drive End Bearing BALL
Frame Material Cast Iron Shaft Type TS
Overall Length
Shaft Extension 3.75 in Assembly/Box Mounting F1/F2 CAPABLE
Outline Drawing
Rigid base
31.02 in
16954160LE
Motor Orientation
Shaft Diameter
Connection Diagram
HORIZONTAL
1.875 in
00417203
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 10/15/2018
2 of 7
Page 3
Uncontrolled Copy
3 of 7
Page 4
3/18/2008 11:50:02 AM -
4 of 7
Page 5
STACK:
/CB
-dictionary-
/Pscript_WinNT_Compat
-dictionary-
ERROR: syntaxerror
OFFENDING COMMAND: --nostringval--
5 of 7
Page 6
Uncontrolled Copy
6 of 7
Page 7
Date:

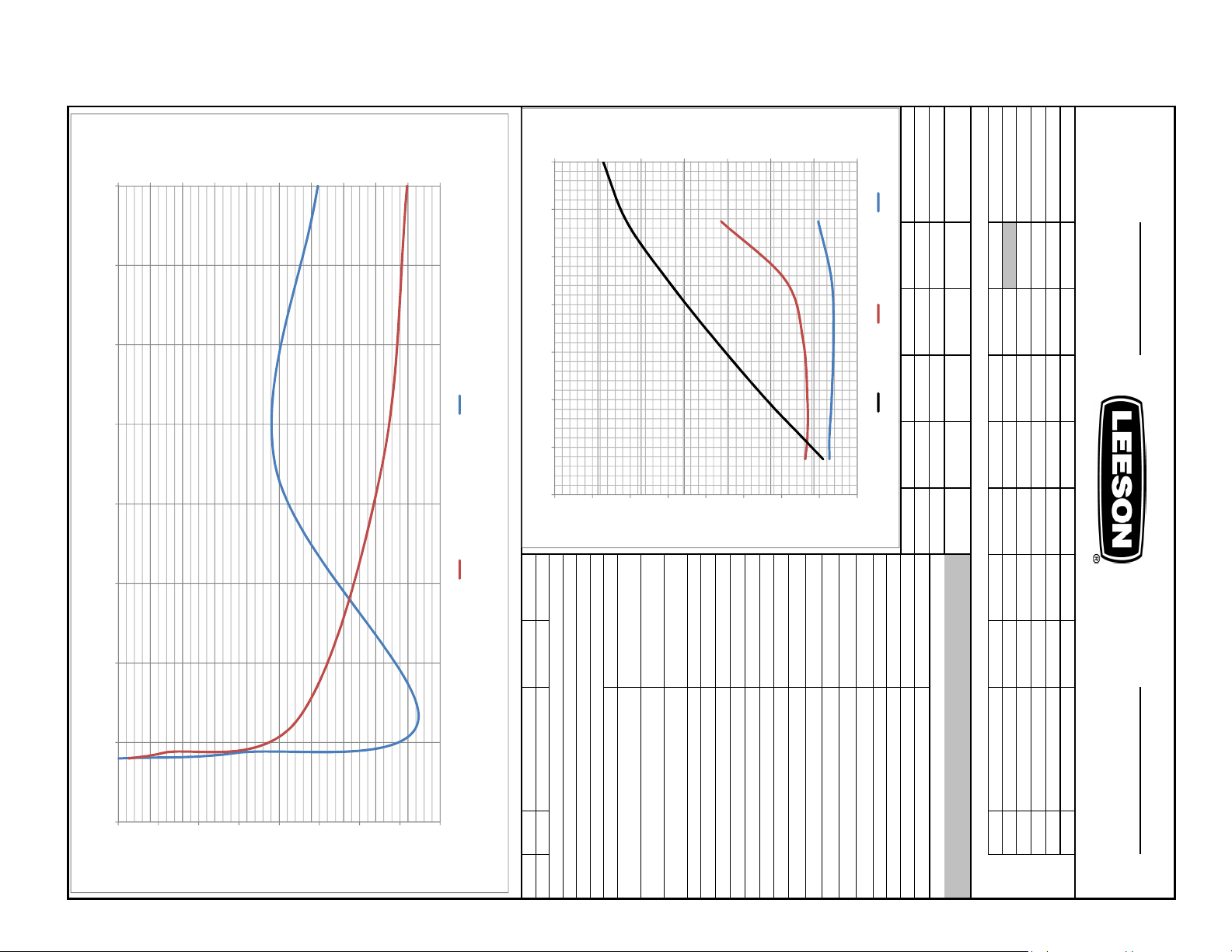

Speed (RPM)
