Leeson 141290.00 Product Information Packet
PRODUCT INFORMATION PACKET
Model No: 141290.00
Catalog No: 141290.00
10 HP Special Voltage Motor, 3 phase, 1800 RPM, 200/400 V, 215T Frame, TEFC 200/400 Volts Motors
Regal and Leeson are trademarks of Regal Beloit Corporation or one of its affiliated companies. ©2019 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 3
Product Information Packet: Model No: 141290.00, Catalog No:141290.00 10 HP Special Voltage Motor, 3 phase, 1800 RPM, 200/400 V, 215T Frame, TEFC
Nameplate Specifications
Output HP |
10 Hp |
Output KW |
7.5 kW |
Frequency |
60 Hz |
Voltage |
200/400 V |
|
|
|
|
Current |
30.5/15.2 A |
Speed |
1760 rpm |
|
|
|
|
Service Factor |
1.15 |
Phase |
3 |
|
|
|
|
Efficiency |
91.7 % |
Power Factor |
77.5 |
|
|
|
|
Duty |
Continuous |
Insulation Class |
F |
|
|
|
|
Design Code |
B |
KVA Code |
H |
|
|
|
|
Frame |
215T |
Enclosure |
Totally Enclosed Fan Cooled |
|
|
|
|
Thermal Protection |
No |
Ambient Temperature |
40 °C |
|
|
|
|
Drive End Bearing Size |
6307 |
Opp Drive End Bearing Size |
6206 |
|
|
|
|
UL |
Recognized |
CSA |
Y |
|
|
|
|
CE |
Y |
IP Code |
43 |
|
|
|
|
Technical Specifications
Electrical Type |
Squirrel Cage Induction Run |
Starting Method |
Across The Line |
Poles |
4 |
Rotation |
Reversible |
|
|
|
|
Resistance Main |
.9 Ohms |
Mounting |
Rigid base |
|
|
|
|
Motor Orientation |
Horizontal |
Drive End Bearing |
Ball |
|
|
|
|
Opp Drive End Bearing |
Ball |
Frame Material |
Rolled Steel |
|
|
|
|
Shaft Type |
T |
Overall Length |
20.23 in |
|
|
|
|
Frame Length |
11.15 in |
Shaft Diameter |
1.375 in |
|
|
|
|
Shaft Extension |
3.38 in |
Assembly/Box Mounting |
F1 Only |
|
|
|
|

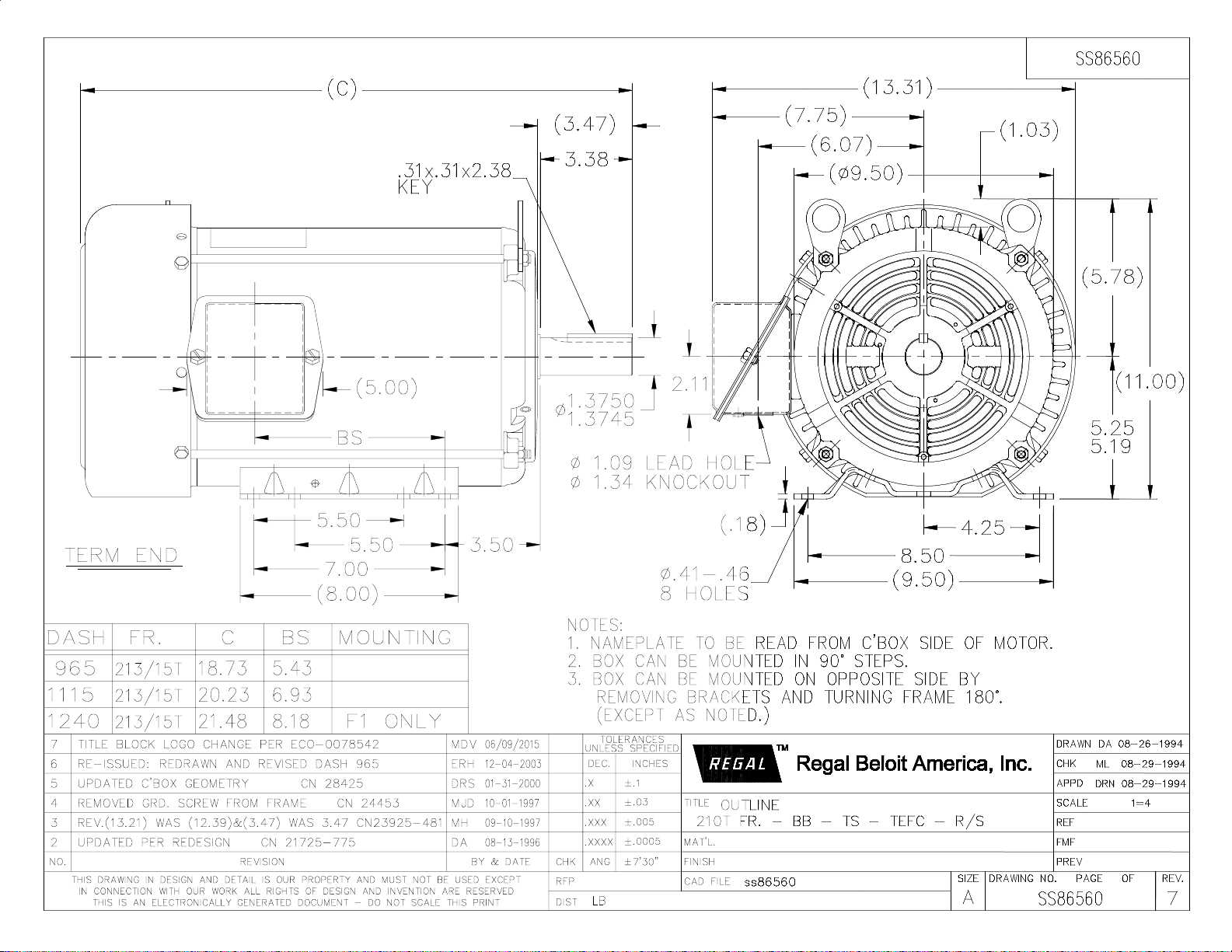

This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created:01/11/2019
2 of 3
