Leeson 132428.00 Product Information Packet
PRODUCT INFORMATION PACKET
Model No: 132428.00
Catalog No: 132428.00
1 HP General Purpose Motor, 3 phase, 900 RPM, 230/460 V, 182T Frame, TEFC Three Phase TEFC Motors
Regal and Leeson are trademarks of Regal Beloit Corporation or one of its affiliated companies. ©2020 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 4
Product Information Packet: Model No: 132428.00, Catalog No:132428.00 1 HP General Purpose Motor, 3 phase, 900 RPM, 230/460 V, 182T Frame, TEFC
Nameplate Specifications
Output HP |
1 Hp |
Output KW |
0.75 kW |
Frequency |
60 Hz |
Voltage |
230/460 V |
|
|
|
|
Current |
4.2/2.1 A |
Speed |
855 rpm |
|
|
|
|
Service Factor |
1.15 |
Phase |
3 |
|
|
|
|
Efficiency |
75.5 % |
Power Factor |
57 |
|
|
|
|
Duty |
Continuous |
Insulation Class |
F |
|
|
|
|
Design Code |
B |
KVA Code |
H |
|
|
|
|
Frame |
182T |
Enclosure |
Totally Enclosed Fan Cooled |
|
|
|
|
Thermal Protection |
No |
Ambient Temperature |
40 °C |
|
|
|
|
Drive End Bearing Size |
6206 |
Opp Drive End Bearing Size |
6205 |
|
|
|
|
UL |
Recognized |
CSA |
Y |
|
|
|
|
CE |
Y |
IP Code |
43 |
|
|
|
|
Technical Specifications
Electrical Type |
Squirrel Cage Induction Run |
Starting Method |
Across The Line |
Poles |
8 |
Rotation |
Reversible |
|
|
|
|
Mounting |
Rigid base |
Motor Orientation |
Horizontal |
|
|
|
|
Drive End Bearing |
Ball |
Opp Drive End Bearing |
Ball |
|
|
|
|
Frame Material |
Rolled Steel |
Shaft Type |
T |
|
|
|
|
Overall Length |
12.97 in |
Frame Length |
7.50 in |
|
|
|
|
Shaft Diameter |
1.125 in |
Shaft Extension |
2.81 in |
|
|
|
|
Assembly/Box Mounting |
F1/F2 CAPABLE |
|
|
|
|
|
|

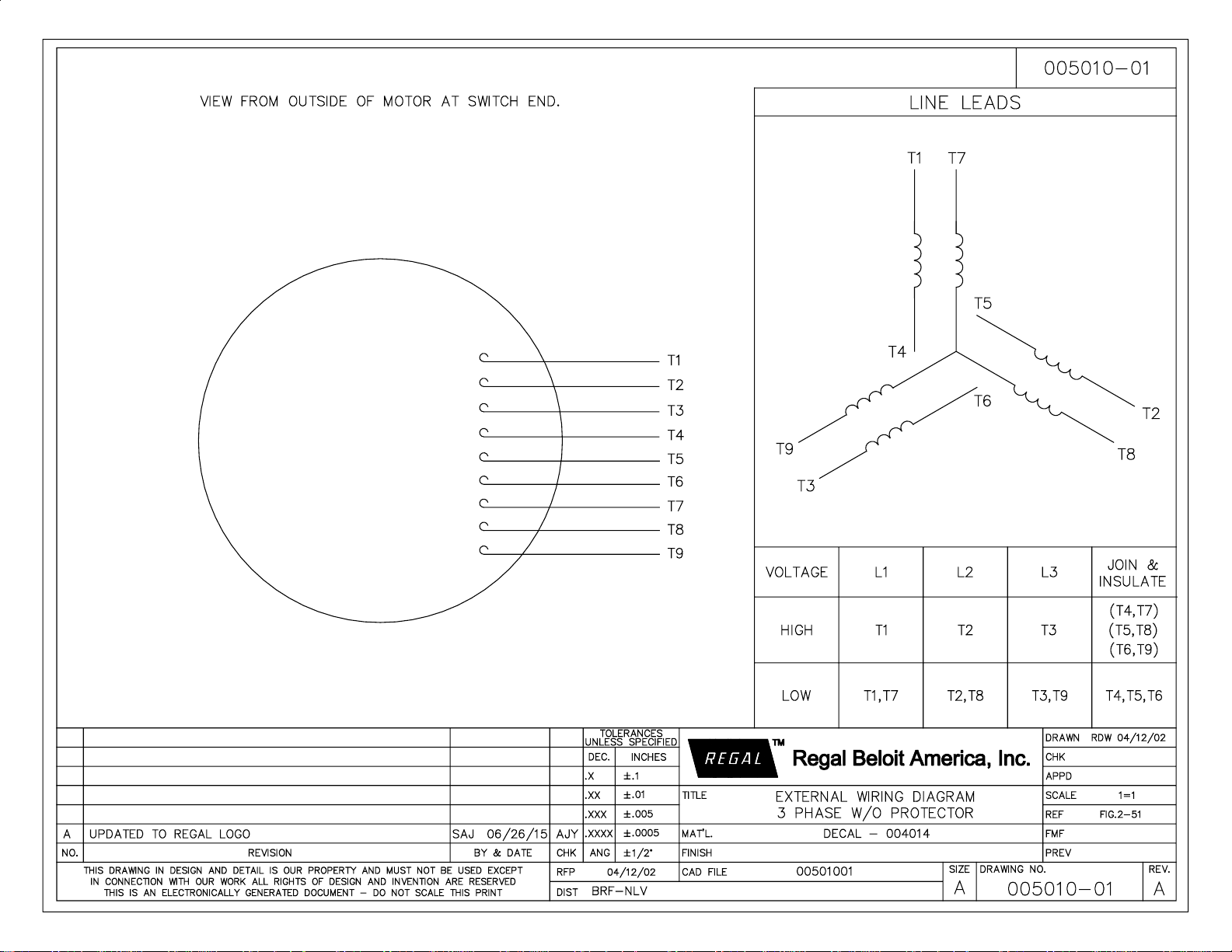

Connection Drawing |
005010.01 |
Outline Drawing |
036087-750 |
|
|
|
|
