Leeson 117928.00 Product Information Packet

PRODUCT INFORMATION PACKET

Model No: C6T17FZ100A

Catalog No: 117928.00

..1/2HP..1725RPM.56YZ.TEFC.208-230/460VAC.3PH.60HZ.CONT.40C.1.15SF.4-BOLT SAE

AA.C6T17FZ100......NONE.......

Hydraulic

Regal and Leeson are trademarks of Regal Beloit Corporation or one of its affiliated companies.

©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E

1 of 5

Product Information Packet: Model No: C6T17FZ100A, Catalog No:117928.00 ..1/2HP..1725RPM.56YZ.TEFC.208-

230/460VAC.3PH.60HZ.CONT.40C.1.15SF.4-BOLT SAE AA.C6T17FZ100......NONE.......

Nameplate Specifications

Output HP
Frequency 60 Hz Voltage 208-230/460 V
Current
Service Factor
Efficiency 74 % Duty Continuous
Insulation Class
KVA Code K Frame 56YZ
Enclosure Totally Enclosed Fan Cooled Overload Protector No
Ambient Temperature
Opp Drive End Bearing Size 6203 UL Recognized
CSA
IP Code

0.50 Hp

1.9-2.0/1.0 A

1.15

F

40 °C

Y
43

Output KW

Speed
Phase

Design Code

Drive End Bearing Size

CE

0.37 kW

1725 rpm
3

B

6205

N

Technical Specifications

Electrical Type
Poles 4 Rotation Reversible

Squirrel Cage Inverter Rated

Starting Method

Line Or Inverter

Mounting
Drive End Bearing BALL Opp Drive End Bearing BALL
Frame Material Rolled Steel Shaft Type Single Special Extension
Overall Length
Shaft Diameter 1.000 in Shaft Extension SAE SPLINE SHAFT in
Assembly/Box Mounting
Outline Drawing

Rigid base

8.67 in

F1 ONLY
607-0157-500

Motor Orientation

Frame Length

Connection Diagram

HORIZONTAL

5.00 in

005010.01

This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 10/15/2018

2 of 5

Uncontrolled Copy

Regal Beloit America, Inc.

TM

COPYRIGHT REGAL BELOIT AMERICA, INC. ALL RIGHTS RESERVED.

PROPRIETARY AND CONFIDENTIAL INFORMATION - THIS DOCUMENT IS THE PROPERTY OF

REGAL BELOIT AMERICA, INC. ("OWNER") AND CONTAINS OWNER'S PROPRIETARY

INFORMATION. ANY PERSON, CORPORATION OR OTHER FIRM RECEIVING IT IS DEEMED,
BY RECEIVING IT, TO AGREE THAT IT, AND/OR ANY PART OF IT, SHALL NOT BE DISCLOSED
TO ANY PERSON, CORPORATION OR OTHER ENTITY, DUPLICATED, AND/OR USED, EXCEPT

AS EXPRESSLY APPROVED IN WRITING IN ADVANCE BY OWNER. THIS DOCUMENT SHALL

BE RETURNED TO OWNER UPON REQUEST. IT MAY BE SUBJECT TO CERTAIN

RESTRICTIONS UNDER APPLICABLE EXPORT CONTROL LAWS AND REGULATIONS.

TOLERANCES UNLESS
OTHERWISE SPECIFIED:

DEC.

INCH

mm

ANGLE

.X

0.1 [ 2.5]

0.5

.XX

0.03 [

0.76]

XXX

0.005 [ 0.127]

.XXXX

0.0005 [ 0.0127]
REMOVE BURRS & BREAK SHARP
EDGES: .003/.015 [.076/.381]
CORNER FILLETS: .02 [.51]
MACHINED SURFACES:

125

3.2

INCH mm
mm SHOWN IN [BRACKETS]

1

2

4

3

A

B

2

4

3

1

A

B

ECO DESCRIPTION

DATE

APPROVED BY

DATE

REVISION BY

ECO

DRAWING REVISION

REFERENCE

MATERIAL

SHEET

DRAWING NUMBER

SIZE

DESCRIPTION

THIRD ANGLE
PROJECTION

DRAWN BY

DATE

DATE

APPROVED BY

PROCESS/FINISH

B

1 OF 1

607-0157

SW

10/21/13

F

MITCH VERBICK

7/7/2014

ECO-0055175

FIX DESCRIPTION IN TITLE BLOCK TO 4-BOLT

OUTLINE

028784

T.E.F.C - RIGID - SAE AA 4-BOLT PUMP

STOCK

.34

8.64

3.00

76.20

3.75

95.25

2.81±.09

71.42±2.29

1.00

25.40

FULL SPLINE

"C"

.06

"AD"

.63

16.00

.75

19.05

.21±.01

5.42±.25

SHAFT HEIGHT

.19

4.83

1.784

1.782

45.314

45.263

6.52

165.70

7.65

194.29

(2)

1.13 [28.70]

KNOCKOUTS

(3)

.88 [22.35]

KNOCKOUTS

INTERNAL INVOULUTE SPLINE
& EXTENSION HARDENED
TO 40-45 ROCKWELL "C"

1.22

30.99

2.44

61.98

4.88

123.95

6.50

165.10

.119

3.023

3.50

3.44

88.90

87.38

4.15

105.51

4.34

110.34

5.41

137.30

1.000

25.400

1.000

25.400

1.000

25.400

1.000

25.400

7.32

186.04

(4) 5/16-18 UNC-2B X .56 [14.22]

SEE SPLINE
DATA TABLE

BASE & MOUNTING TAPS TO BE SQUARE & PARALLEL TO
EACH OTHER

.03 [.76] MAX GASKETS THROUGHOUT

NAMEPLATE

WARNING

DECAL

EFF.

DECAL

DASH NO.

"C"

"AD"

500

8.67 [220.22] 2.13 [54.10]

550

9.17 [232.92] 2.63 [66.80]

600

9.67 [245.62] 3.13 [79.50]

650

10.17 [258.32] 3.63 [92.20]

700 10.67 [271.02] 4.13 [104.90]

EXTERNAL INVOLUTE SPLINE DATA

FLAT ROOT SIDE FIT -- CLASS 5 FIT

NUMBER OF TEETH

9

SPLINE PITCH

20/40

PRESSURE ANGLE

30

BASE DIAMETER

.3898 [9.9009] REF

PITCH DIAMETER

.4500 [11.4300] REF

MAJOR DIAMETER

.519 [13.183] MAX

FORM DIAMETER

.501 [12.725]

MINOR DIAMETER

.405 [10.287] / .406

[10.312]

CIRCULAR SPACE WIDTH

MAX EFFECTIVE

.0785 [1.9939]

MIN ACTUAL

.0825 [2.0955]

MAX MESAUREMENT

BETWEEN PINS

-----

PIN DIAMETER

-----

ANSI B92.1-1996 PROVISIONS APPLY

3 of 5

Uncontrolled Copy

4 of 5

Curve at

Volts

HP

HZ

Model No

HP

VOLTS

Catalog No

117928.00

HZ 60RPM

1725

Torque in Oz.Ft

FL TORQUE

Oz.Ft

FL AMPS

BD TORQUE

Oz.Ft

PU TORQUE

Oz.Ft

LR TORQUE

60

Oz.Ft

LR AMPS

5.1

WINDING

T634199-3

Date

5/22/2018

Uncontrolled Copy

LEESON ELECTRIC CORPORATION

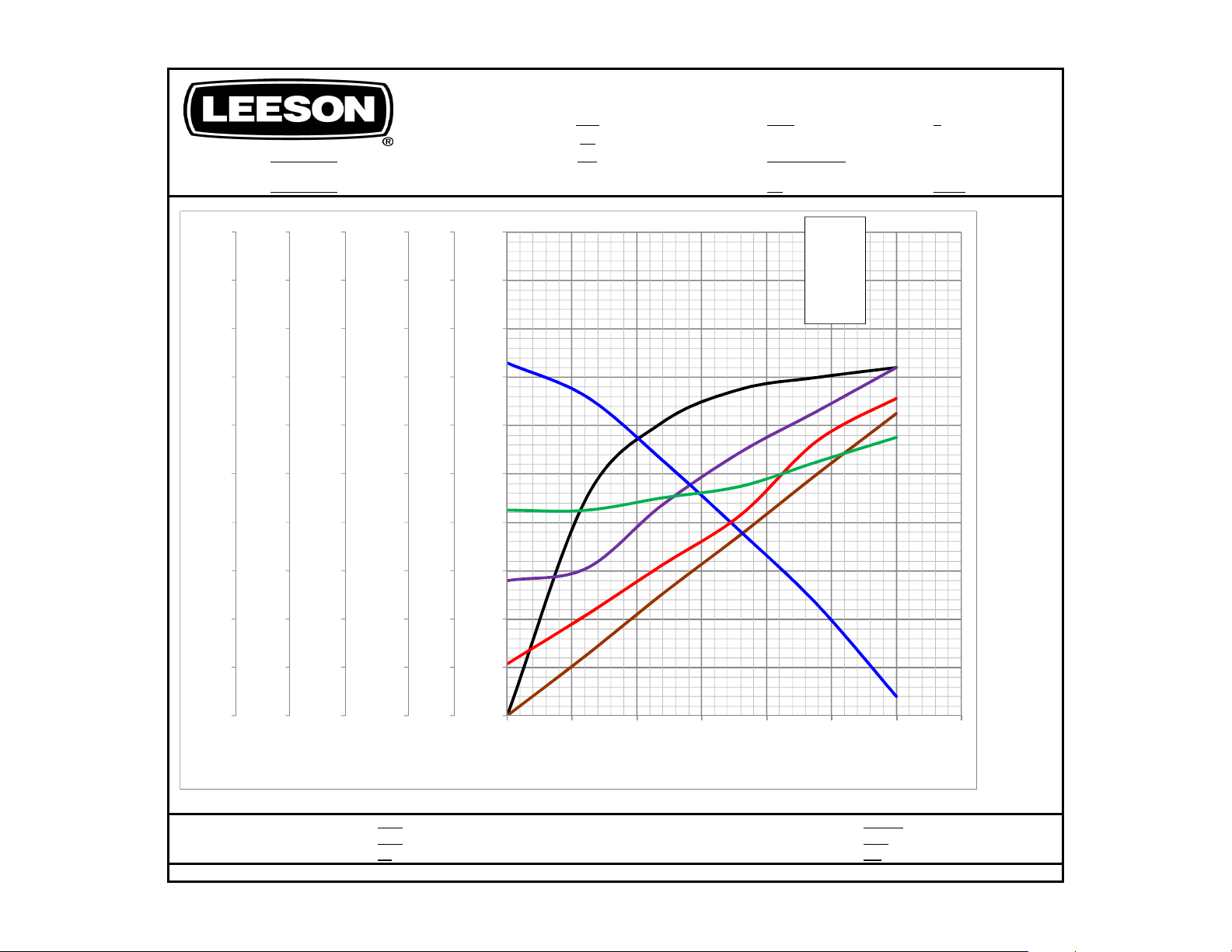

TYPICAL PERFORMANCE CURVE for AC MOTOR

460

60

117928.00 0.5

0.50

208-230/460

Eff −

PF −

−

−−

HP −

RPM −

KW −

Amps −

3

−

−−

−

−−

−

−−

−

−−

−

−−

60 70 80 90 100

EFF

0 10 20 30 40 50

60 70 80 90 100

PF

0 10 20 30 40 50

0 5 10 15 20 25 30 35

0.6 0.7 0.8 0.9 1

HP

RPM

0 0.1 0.2 0.3 0.4 0.5

0 5 10 15 20 25 30 35

0 5 10 15 20 25 30 35

23.9

86.5

0.6 0.7 0.8 0.9 1

1780 1790 1800 1810 1820

KW

0 0.1 0.2 0.3 0.4 0.5

1720 1730 1740 1750 1760 1770

0 5 10 15 20 25 30 35

Torque

60 70 80 90 10060 70 80 90 1000.6 0.7 0.8 0.9 11780 1790 1800 1810 18200.6 0.7 0.8 0.9 11.2 1.4 1.6 1.8 2

PF

HP

KW

EFF

RPM

AMPS

0 10 20 30 40 50

0 10 20 30 40 50

0 0.1 0.2 0.3 0.4 0.5

0 0.1 0.2 0.3 0.4 0.5

0 0.2 0.4 0.6 0.8 1

1720 1730 1740 1750 1760 1770

0 5 10 15 20 25 30 35

0 5 10 15 20 25 30 35

0 5 10 15 20 25 30 35

0 5 10 15 20 25 30 35

0 5 10 15 20 25 30 35

0 5 10 15 20 25 30 35

0 5 10 15 20 25 30 35

Torque

Torque

Torque

Torque

Torque

Torque

Torque

Torque

Torque

Torque

1.9-2/1

59.0

5 of 5
