PRODUCT INFORMATION PACKET
Model No: C6T34FZ50A
Catalog No: 117927.00
117927.00..1/2HP..3600RPM.56Y.TEFC.208-230/460VAC.3PH.60HZ.CONT.40C.1.15SF.2-BOLT SAE
B.......NONE.......
Hydraulic
Regal and Leeson are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 5
Product Information Packet: Model No: C6T34FZ50A, Catalog No:117927.00
117927.00..1/2HP..3600RPM.56Y.TEFC.208-230/460VAC.3PH.60HZ.CONT.40C.1.15SF.2-BOLT SAE
B.......NONE.......
Nameplate Specifications
Output HP
Frequency 60 Hz Voltage 208-230/460 V
Current
Service Factor
Efficiency 72 % Duty Continuous
Insulation Class
KVA Code K Frame 56YZ
Enclosure Totally Enclosed Fan Cooled Overload Protector No
Ambient Temperature
Opp Drive End Bearing Size 6203 UL Recognized
CSA
IP Code
0.50 Hp
2.1-2.0/1.0 A
1.15
F
40 °C
Y
43
Output KW
Speed
Phase
Design Code
Drive End Bearing Size
CE
0.37 kW
3450 rpm
3
B
6207
N
Technical Specifications
Electrical Type
Poles 2 Rotation Reversible
Squirrel Cage Inverter Rated
Starting Method
Line Or Inverter
Mounting
Drive End Bearing BALL Opp Drive End Bearing BALL
Frame Material Rolled Steel Shaft Type Single Special Extension
Overall Length
Shaft Diameter 1.375 in Shaft Extension SAE SPLINE SHAFT in
Assembly/Box Mounting
Outline Drawing
Rigid base
8.93 in
F1 ONLY
607-0160-500
Motor Orientation
Frame Length

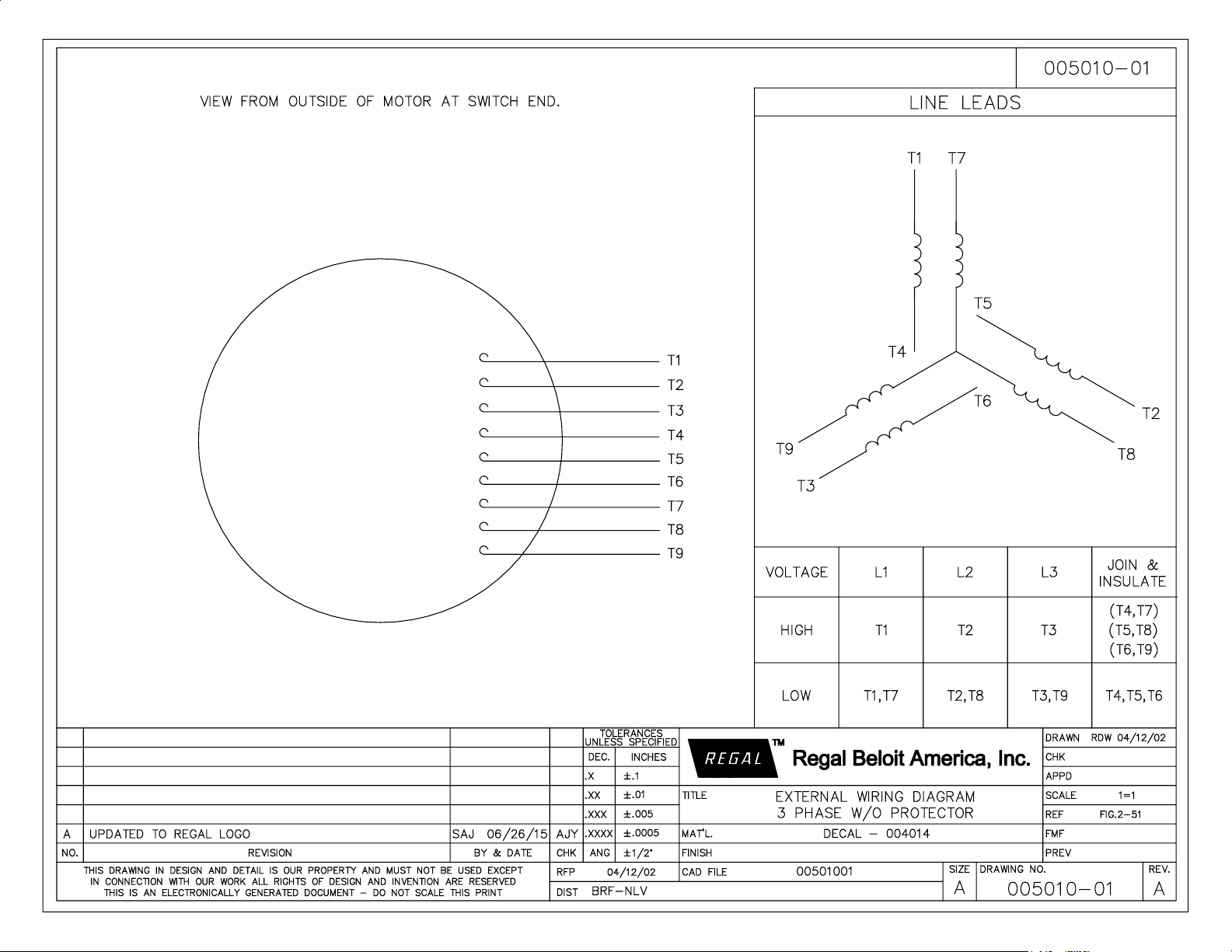

Connection Diagram
HORIZONTAL
5.00 in
005010.01
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 10/15/2018
2 of 5
Uncontrolled Copy
Regal Beloit America, Inc.
TM
COPYRIGHT REGAL BELOIT AMERICA, INC. ALL RIGHTS RESERVED.
PROPRIETARY AND CONFIDENTIAL INFORMATION - THIS DOCUMENT IS THE PROPERTY OF
REGAL BELOIT AMERICA, INC. ("OWNER") AND CONTAINS OWNER'S PROPRIETARY
INFORMATION. ANY PERSON, CORPORATION OR OTHER FIRM RECEIVING IT IS DEEMED,
BY RECEIVING IT, TO AGREE THAT IT, AND/OR ANY PART OF IT, SHALL NOT BE DISCLOSED
TO ANY PERSON, CORPORATION OR OTHER ENTITY, DUPLICATED, AND/OR USED, EXCEPT
AS EXPRESSLY APPROVED IN WRITING IN ADVANCE BY OWNER. THIS DOCUMENT SHALL
BE RETURNED TO OWNER UPON REQUEST. IT MAY BE SUBJECT TO CERTAIN
RESTRICTIONS UNDER APPLICABLE EXPORT CONTROL LAWS AND REGULATIONS.
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
DEC.
INCH
mm
ANGLE
.X
0.1 [ 2.5]
0.5
.XX
0.03 [
0.76]
XXX
0.005 [ 0.127]
.XXXX
0.0005 [ 0.0127]
REMOVE BURRS & BREAK SHARP
EDGES: .003/.015 [.076/.381]
CORNER FILLETS: .02 [.51]
MACHINED SURFACES:
125
3.2
INCH mm
mm SHOWN IN [BRACKETS]
1
2
4
3
A
B
2
4
3
1
A
B
ECO DESCRIPTION
DATE
APPROVED BY
DATE
REVISION BY
ECO
DRAWING REVISION
REFERENCE
MATERIAL
SHEET
DRAWING NUMBER
SIZE
DESCRIPTION
THIRD ANGLE
PROJECTION
DRAWN BY
DATE
DATE
APPROVED BY
PROCESS/FINISH
B
1 OF 1
607-0160
SW
10/23/13
E
MITCH VERBICK
4/29/2014
ECO-0050268
ADDED SHAFT HEIGHT & DASH 700-750
OUTLINE
607-0158
TEFC -- RIGID -- SAE B 2-BOLT PUMP
STOCK
6.52
165.70
"C"
.06
.34
8.64
3.00
76.20
3.75
95.25
3.06±.09
77.72±2.29
.43
10.92
4.003
4.001
101.676
101.625
6.95
176.53
.23±.01
5.78±.25
SHAFT HEIGHT
1.25
31.75
MIN
FULL SPLINE
"AD"
.75
19.05
.63
16.00
7.65
194.29
NAMEPLATE
(3)
.88
KNOCKOUTS
WARNING
DECAL
(2)
1.13
KNOCKOUTS
INTERNAL INVOLUTE SPLINE
& EXTENSION HARDENED
TO 40-45 ROCKWELL "C"
EFF.
DECAL
4.88
123.95
6.50
165.10
.119
3.023
3.50
3.44
88.90
87.38
5.45
138.49
4.20
106.77
4.39
111.60
7.32
186.04
1.22
30.99
2.44
61.98
(4) 1/2-13 UNC-2B x 1.31
ON A
5.75 B.C.
SEE SPLINE
DATA TABLE
BASE & MOUNTING TAPS TO BE SQUARE & PARALLEL TO EACH OTHER
.03 MAX.
GASKETS THROUGHOUT
DASH
NO.
"C"
"AD"
500 8.93 2.13
550 9.43 2.63
600 9.93 3.13
650 10.43 3.63
700 10.93 4.13
750 11.43 4.63
INTERNAL INVOLUTE SPLINE DATA
FLAT ROOT SIDE FIT - CLASS 5
NUMBER OF TEETH
13
SPLINE PITCH
16/32
PRESSURE ANGLE
30
BASE DIAMETER
.7036 REF
PITCH DIAMETER
.8125 REF
MAJOR DIAMETER
.897 MAX
FORM DIAMETER
.879
MINOR DIAMETER
.755/.750
CIRCULAR SPACE WIDTH
MAX ACTUAL
.1008
MIN EFFECTIVE
.0982
SIZE BETWEEN
Ø.108 PINS
BHT .654/.656
AHT .652/.654
ANSI B92.1-1996 PROVISIONS APPLY
3 of 5
Uncontrolled Copy
4 of 5
Date:
Speed (RPM)
Data Sheet
Current (Amps)
E
-500 0 500 1000 1500 2000 2500 3000 3500 4000
30.0
40.0
50.0
60.0
70.0
80.0
0% 20% 40% 60 % 80% 100% 120% 140%
TOR
F
Q
U
100.0
90.0
E
F
F
P
Torque (ft-lb)
P.F. (%)
Load 0% 25% 50% 75% 100% 115% 125% LR
Current (Amps)
Torque (ft-lb)
RPM
Efficiency (%)
100.0
200.0
300.0
400.0
500.0
600.0
700.0
800.0
0.0
900.0
Efficiency (%) P.F. (%) Current (Amps)
3600 3577 3533 3502 3467 3,451 3428 0
0.61 0.62 0.69 0.77 0.88 0.95 1.01 5.4
0.00 20.1 95.8 145 195 3,543 247 561
561 545 770 195 0.00 3600
5.4 5.0 3.2 0.88 0.61 0.5
0 200 2600 3467 3600
27.6 28.5 54.1 65.4 73.0 76.4 79.7 0.0
LR Pull-Up BD Rated Idle
1/18/2018 117927.00
Motor Speed Data
LOAD
Torque Amps
28.2 62.9 69.8 72.6 72.9 73.1
Uncontrolled Copy
Speed -Torque Curve
Motor Load Data
RPM
0.0
0.0000 0.0000 0.0000 0.0000 0.0000
R1 R2 X1 X2 Xm
EQUIV CKT (OHMS / PHASE)
0.2
Additional Specifications:
0
0
0.4
VFD Rating
Outline Dwg 607-0160-500
Conn. Diag 005010.01
0.6
Rotor/Shaft wk²
Ref Wdg
Sound Pressure @ 1M
T632187 FR
0.8
A
M
P
S
Duty
Ambient
Elevation
1.0
1.2
Construction
Voltage
Frequency
Design
LR Code letter
Service Factor
Temp Rise @ FL
HP
Sync. RPM
Frame
Enclosure
Information Block
0.0
1.0
2.0
3.0
S
4.0
5.0
6.0
AMP
CONSTANT 10:1
0 dBA
CONT
1,000
0.02
feet
Lb-Ft²
1.15
50
40
°
C
K
°
C
208-230/460
TEFC
140
NA
60
B
Hz
V
Data @
460
v
5 of 5
