Leeson 117879.00 Product Information Packet

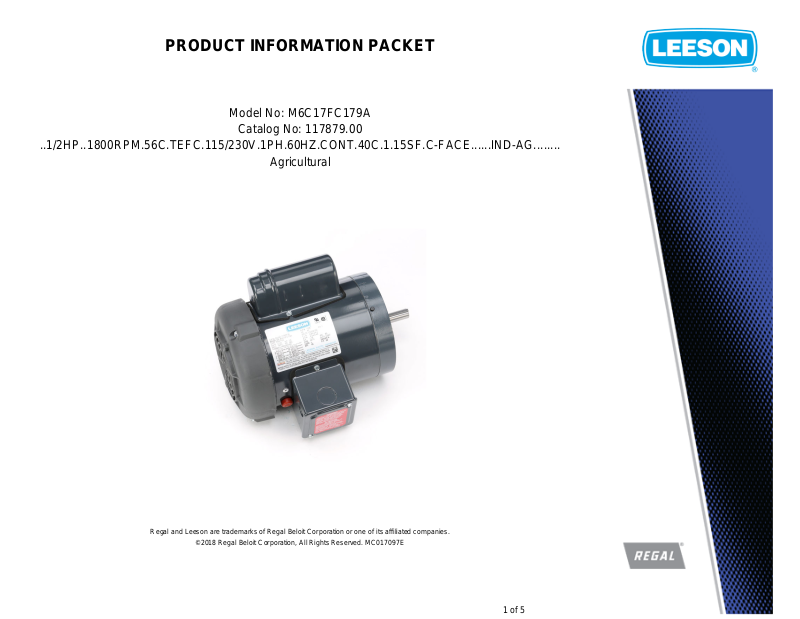

PRODUCT INFORMATION PACKET
Model No: M6C17FC179A
Catalog No: 117879.00
..1/2HP..1800RPM.56C.TEFC.115/230V.1PH.60HZ.CONT.40C.1.15SF.C-FACE......IND-AG........
Agricultural
Regal and Leeson are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 5
Product Information Packet: Model No: M6C17FC179A, Catalog No:117879.00
..1/2HP..1800RPM.56C.TEFC.115/230V.1PH.60HZ.CONT.40C.1.15SF.C-FACE......IND-AG........
Nameplate Specifications
Output HP |
0.50 Hp |
Output KW |
0.37 kW |
Frequency |
60 Hz |
Voltage |
115/208-230 V |
Current |
8.8/4.2-4.4 A |
Speed |
1725 rpm |
Service Factor |
1.15 |
Phase |
1 |
Efficiency |
66 % |
Duty |
Continuous |
Insulation Class |
B |
Design Code |
N |
KVA Code |
L |
Frame |
56C |
Enclosure |
Totally Enclosed Fan Cooled |
Overload Protector |
Manual |
Ambient Temperature |
40 °C |
Drive End Bearing Size |
6203 |
Opp Drive End Bearing Size |
6203 |
UL |
Recognized |
CSA |
Y |
CE |
N |
IP Code |
43 |
|
|
Technical Specifications
Electrical Type |
Capacitor Start Induction Run |
Starting Method |
Across The Line |
Poles |
4 |
Rotation |
Selective Counterclockwise |
Mounting |
Round |
Motor Orientation |
HORIZONTAL |
Drive End Bearing |
BALL |
Opp Drive End Bearing |
BALL |
Frame Material |
Rolled Steel |
Shaft Type |
T |
Overall Length |
11.82 in |
Frame Length |
6.56 in |
Shaft Diameter |
0.625 in |
Shaft Extension |
1.88 in |
Assembly/Box Mounting |
F1/F2 CAPABLE |
|
|
Outline Drawing |
A-100866LE-656 |
Connection Diagram |
A-102005-52-LE |
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 10/15/2018
2 of 5
