PRODUCT INFORMATION PACKET
Model No: 117691.00
Catalog No: 117691.00
0.75 HP Agricultural Motor, 1 phase, 1800 RPM, 115/208-230 V, 56 Frame, TEFC
Agricultural Motors
Regal and Leeson are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2020 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 61 of 6
Product Information Packet: Model No: 117691.00, Catalog No:117691.00 0.75 HP Agricultural Motor, 1 phase, 1800 RPM, 115/208-230 V, 56 Frame,
TEFC
Nameplate Specifications
Output HP 0.75 Hp Output KW 0.56 kW
Frequency 60 Hz Voltage 115/208-230 V
Current 6.4/3.5-3.2 A Speed 1725 rpm
Service Factor 1.15 Phase 1
Efficiency 82 % Power Factor 93
Duty Continuous Insulation Class B
Design Code L KVA Code J
Frame 56 Enclosure Totally Enclosed Fan Cooled
Thermal Protection Manual Ambient Temperature 40 °C
Drive End Bearing Size 6203 Opp Drive End Bearing Size 6203
UL Recognized CSA Y
CE N IP Code 43
Technical Specifications
Electrical Type Capacitor Start Capacitor Run Starting Method Across The Line
Poles 4 Rotation Selective Counterclockwise
Resistance Main 2.88 Ohms Mounting Rigid base
Motor Orientation Horizontal Drive End Bearing Ball
Opp Drive End Bearing Ball Frame Material Rolled Steel
Shaft Type NEMA 56 Overall Length 11.99 in
Frame Length 6.50 in Shaft Diameter 0.625 in
Shaft Extension 1.88 in Assembly/Box Mounting F1 ONLY

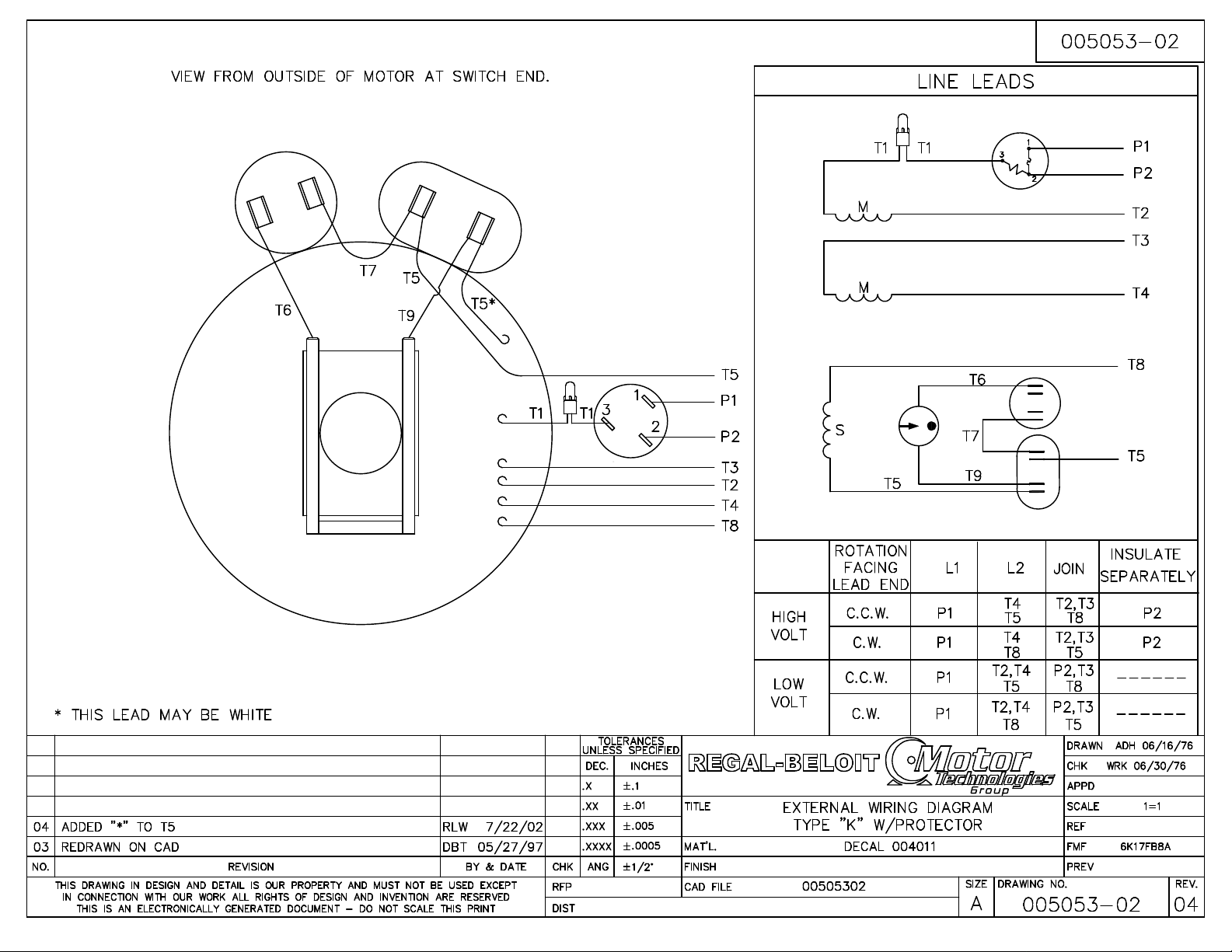

Connection Drawing 005053.02 Outline Drawing 607-0033-650B
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created:14/10/2020
2 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 62 of 6
R BC PROP RIE TAR Y AN D C ONF IDEN TIA L INF ORM ATION
DASH
This docume nt is the prop erty of RE GAL B ELOIT COR POR ATIO N ("R BC ") incl uding
its s ubsidi aries an d divis ions and con tains proprietary inform ation of RB C. This d ocumen t
is loa ned on t he exp ress c onditio n that neither i t nor t he inform ation contain ed therei n shall
be dis closed to ot hers w ithout the ex press writt en cons ent of RBC , and that the inf ormation
shall be used by t he recip ient only as approved expres sly b y RB C. This docum ent sh all be
returned to RB C up on its request . Th is doc ument may b e subje ct to certai n restri ctions
under U .S. export control laws and regul ations.
(1) Ø1.13
KNOCKOUT
.63
"C" .06
"AD".75
.07
1.94
1.875
1.41
FULL
DEPTH
5.39
4.33
4.14
"XO"
(3) Ø.88
KNOCKOUTS
7.65
NAMEPLATE
WARNING
DECAL
.34
3.00
3.75
ECO
AG
DECAL
1.50
6.52
2.75 .09
.6250
.6245
FLINGER
(1) DRAIN HOLE
EACH END
REVISIONNO
THIRD ANGLE
PROJECTION
.19 SQ. x 1.38 KEY
MANUAL PROTECTOR
& PROTECTOR BUTTON
"C" "AD"
NO.
550 10.99 2.63
600 11.49 3.13
650 11.99 3.63
700 12.49 4.13
750 12.99 4.63
800 13.49 5.13
850 13.99 5.63
COVER
CAP
DASH
A 1.15
B 1.60
C 1.82
BY & DATE
"XO"
RFP
NETWORK FILE NAME
UNLESS SPECIFIED
DEC
.X
.XX
.XXX
.XXXX
CHK
ANG
1.22
NOTES:
1) MANUAL OVERLOAD PROTECTOR.
2) FLINGER ON SHAFT.
3) GASKETS THROUGHOUT.
4) DRAIN HOLE IN FRAME (BOTH ENDS).
TOLERANCES
INCHES
±.1
TITLE
±.03
±.005
±.0005
±1/2°
OUTLINE - 56 FRAME
TEFC - RIGID
MAT'L
FINISH
PREV
607-0033
4.88
6.50
2.44
NAMEPLATE
6.76
+.00
3.50
-.06
.119
DRAWN
GWS 2/8/2012
CHK
APPR
SCALE
1:2
REF
028809
FMF
117690
OF
PAGE
B
607-0033
REVSIZE DRAWING NO
2/8/2012 8:29:01 AM - Converted by Connexus
3 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 63 of 6
6/28/2007 5:11:39 PM -
4 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 64 of 6
Uncontrolled Copy
5 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 65 of 6
Curve at
Volts
HP
HZ
Model No
HP
VOLTS
Catalog No
117691.00
HZ 60RPM
1725
Torque in Oz.Ft
FL TORQUE
Oz.Ft
FL AMPS
BD TORQUE
Oz.Ft
PU TORQUE
Oz.Ft
LR TORQUE
101.8
Oz.Ft
LR AMPS
24.3
WINDING
K634342-3
Date
4/23/2018
Uncontrolled Copy
LEESON ELECTRIC CORPORATION

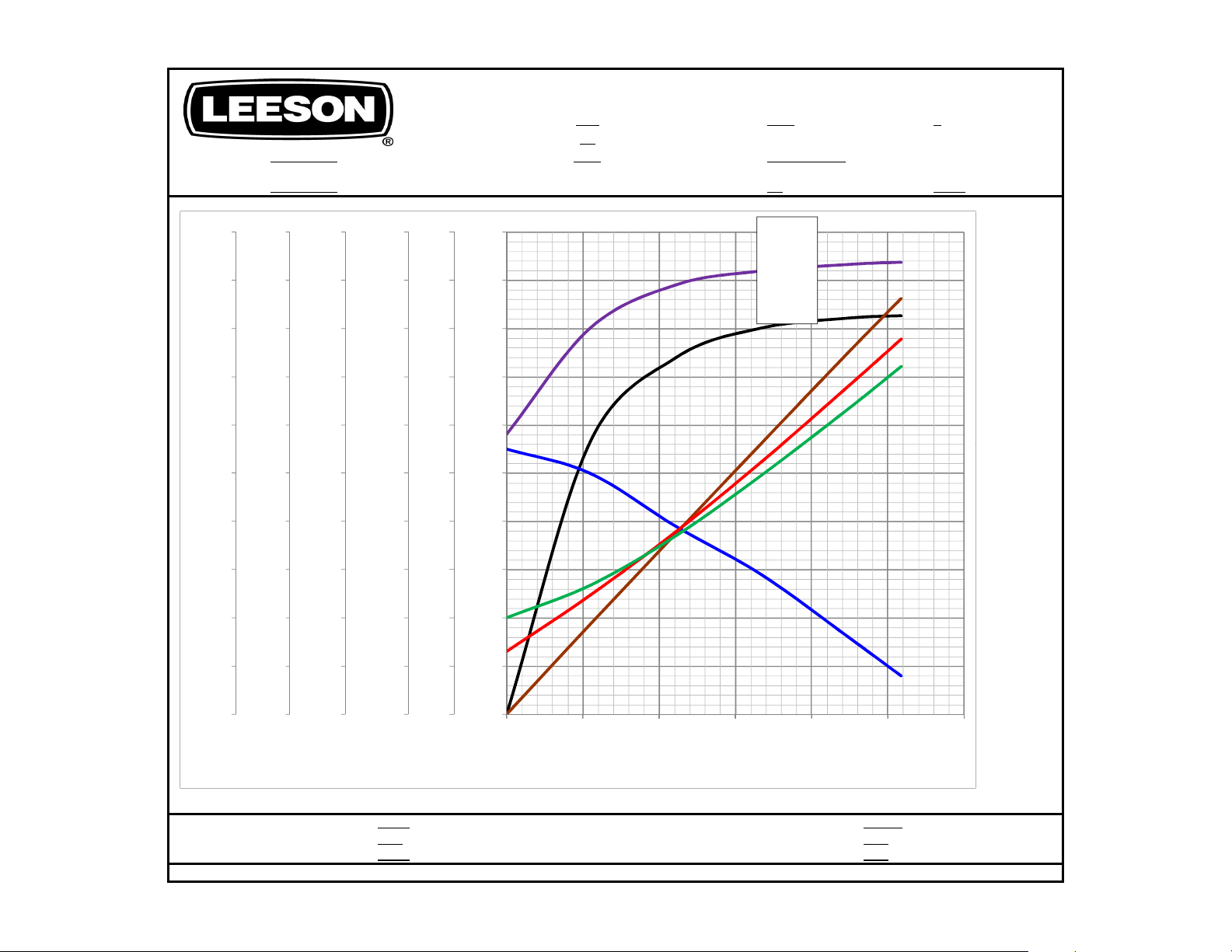

TYPICAL PERFORMANCE CURVE for AC MOTOR
230
60
117691.00 0.75
0.76
115/208-230
Eff −
−
−−
PF −
−
−−
HP −
−
−−
RPM −
−
−−
KW −
−
−−
Amps −
−
−−
1
60 70 80 90 100
EFF
0 10 20 30 40 50
60 70 80 90 100
PF
0 10 20 30 40 50
0 0.5 1 1.5 2 2.5 3
0.6 0.7 0.8 0.9 1
HP
RPM
0 0.1 0.2 0.3 0.4 0.5
0 0.5 1 1.5 2 2.5 3
0 0.5 1 1.5 2 2.5 3
35.84
95.2
0.6 0.7 0.8 0.9 1
1800 1810 1820 1830 1840
KW
0 0.1 0.2 0.3 0.4 0.5
1740 1750 1760 1770 1780 1790
0 0.5 1 1.5 2 2.5 3
Torque
60 70 80 90 10060 70 80 90 1000.6 0.7 0.8 0.9 11800 1810 1820 1830 18400.6 0.7 0.8 0.9 13 3.5 4 4.5 5
PF
HP
KW
EFF
RPM
AMPS
0 10 20 30 40 50
0 10 20 30 40 50
0 0.1 0.2 0.3 0.4 0.5
0 0.1 0.2 0.3 0.4 0.5
0 0.5 1 1.5 2 2.5
1740 1750 1760 1770 1780 1790
0 0.5 1 1.5 2 2.5 3
0 0.5 1 1.5 2 2.5 3
0 0.5 1 1.5 2 2.5 3
0 0.5 1 1.5 2 2.5 3
0 0.5 1 1.5 2 2.5 3
0 0.5 1 1.5 2 2.5 3
0 0.5 1 1.5 2 2.5 3
Torque
Torque
Torque
Torque
Torque
Torque
Torque
Torque
Torque
Torque
6.4/3.2
87.5
