PRODUCT INFORMATION PACKET
Model No: 116466.00
Catalog No: 116466.00
0.33 HP Washdown Motor, 3 phase, 1800 RPM, 208-230/460 V, 56C Frame, TENV
White Epoxy Brake Motors
Regal and Leeson are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2020 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 5
Product Information Packet: Model No: 116466.00, Catalog No:116466.00 0.33 HP Washdown Motor, 3 phase, 1800 RPM, 208-230/460 V, 56C Frame,
TENV
Nameplate Specifications
Output HP 0.33 Hp Output KW 0.25 kW
Frequency 60 Hz Voltage 208-230/460 V
Current 1.4-1.3/0.65 A Speed 1725 rpm
Service Factor 1.15 Phase 3
Efficiency 72 % Power Factor 66
Duty Continuous Insulation Class F
Design Code NO DESIGN CODE KVA Code L
Frame 56C Enclosure Totally Enclosed Non Ventilated
Thermal Protection No Ambient Temperature 40 °C
Drive End Bearing Size 6205 Opp Drive End Bearing Size 6203
UL Recognized CSA Y
CE Y IP Code 55
Technical Specifications
Electrical Type Squirrel Cage Induction Run Starting Method Across The Line
Poles 4 Rotation Reversible
Resistance Main 59.2 Ohms Mounting Rigid base
Motor Orientation Horizontal Drive End Bearing Ball
Opp Drive End Bearing Ball Frame Material Rolled Steel
Shaft Type NEMA 56 Overall Length 14.00 in
Frame Length 5.00 in Shaft Diameter 0.625 in
Shaft Extension 1.88 in Assembly/Box Mounting F1 ONLY

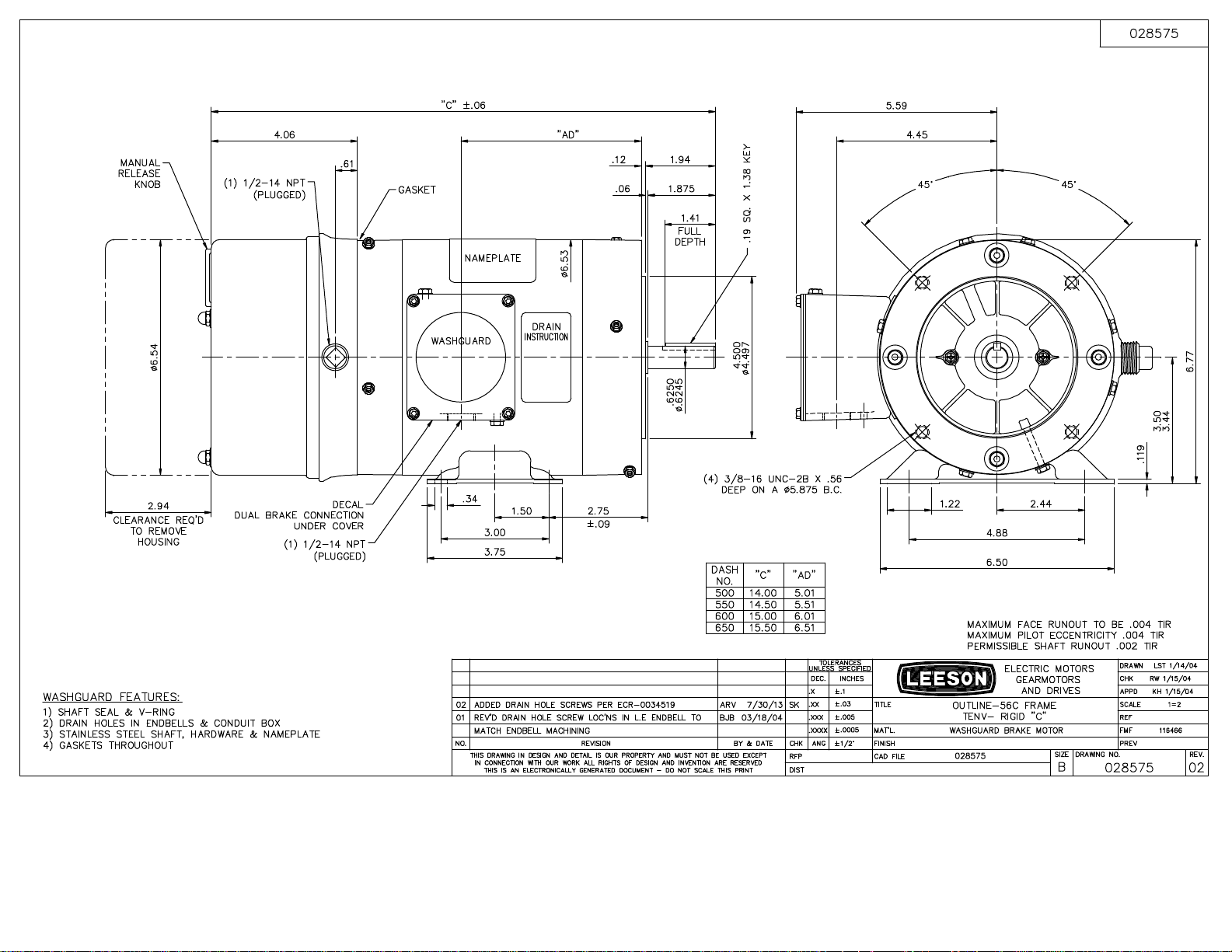

Connection Drawing 005010.15 Outline Drawing 028575-500
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created:14/10/2020
