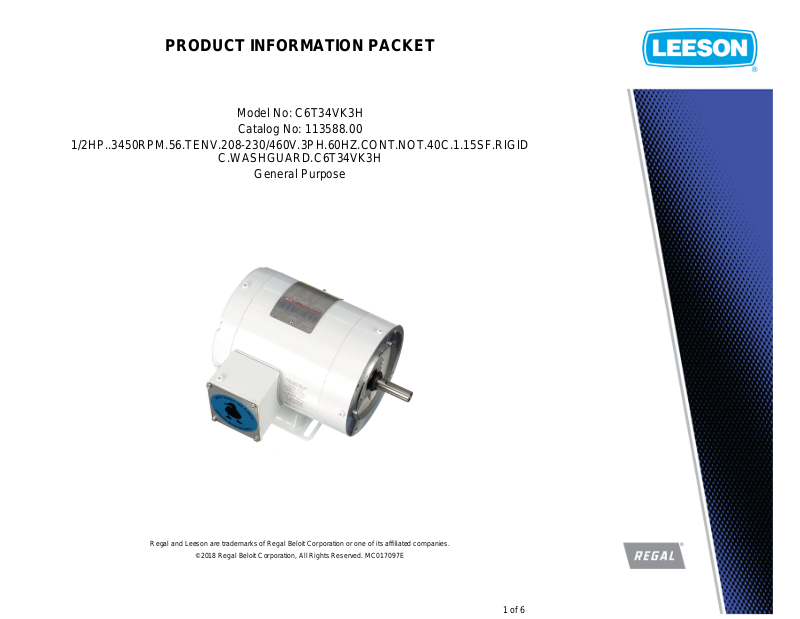

Leeson 113588.00 PRODUCT INFORMATION PACKET

PRODUCT INFORMATION PACKET

Model No: C6T34VK3H

Catalog No: 113588.00

1/2HP..3450RPM.56.TENV.208-230/460V.3PH.60HZ.CONT.NOT.40C.1.15SF.RIGID

C.WASHGUARD.C6T34VK3H

General Purpose

Regal and Leeson are trademarks of Regal Beloit Corporation or one of its affiliated companies.

©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E

1 of 6

Product Information Packet: Model No: C6T34VK3H, Catalog No:113588.00 1/2HP..3450RPM.56.TENV.208­230/460V.3PH.60HZ.CONT.NOT.40C.1.15SF.RIGID C.WASHGUARD.C6T34VK3H

Nameplate Specifications

Output HP
Frequency 60 Hz Voltage 208-230/460 V
Current
Service Factor
Efficiency 82.5 % Duty Continuous
Insulation Class
KVA Code M Frame 56C
Enclosure Totally Enclosed Non Ventilated Overload Protector No
Ambient Temperature
Opp Drive End Bearing Size 6203 UL Recognized
CSA
IP Code

0.50 Hp

1.7-1.6/0.80 A

1.15

F

40 °C

Y
55

Output KW

Speed
Phase

Design Code

Drive End Bearing Size

CE

0.37 kW

3450 rpm
3

B

6205

Y

Technical Specifications

Electrical Type
Poles 2 Rotation Reversible

Squirrel Cage Induction Run

Starting Method

Across The Line

Mounting
Drive End Bearing BALL Opp Drive End Bearing BALL
Frame Material Rolled Steel Shaft Type NEMA 56
Overall Length
Shaft Diameter 0.625 in Shaft Extension 1.88 in
Assembly/Box Mounting
Outline Drawing

Rigid base

10.58 in

F1 ONLY
034907-550

Motor Orientation

Frame Length

Connection Diagram

HORIZONTAL

5.50 in

005010.01

This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 10/15/2018

2 of 6

6/15/2009 7:08:59 AM

3 of 6

Uncontrolled Copy

4 of 6

Uncontrolled Copy

5 of 6

Date:

Speed (RPM)

Data Sheet

Current (Amps)

P

E

0.0

0.5

1.0

1.5

0 500 1000 1500 2000 2500 3000 3500 4000

TORQU

2.0

2.5

3.0

3.5

4.0

30.0

40.0

50.0

0% 20% 40% 60 % 80% 100% 120% 140%

F

60.0

70.0

EFF

80.0

100.0

90.0

Torque (ft-lb)

Efficiency (%) P.F. (%) Current (Amps)

2.53 2.30 3.6 0.75 0.00 3600

7.0 6.4 4.2 0.80 0.43 0.5
0 400 2700 3510 3600

P.F. (%)

3600 3576 3556 3535 3510 3,502 3489 0

0.43 0.46 0.53 0.63 0.80 0.83 0.86 7.0

0.00 0.19 0.37 0.56 0.75 0.85 0.94 2.53

24.5 42.8 61.1 71.9 79.0 81.1 83.2 0.0

LR Pull-Up BD Rated Idle

1/18/2018 113588.00

Load 0% 25% 50% 75% 100% 115% 125% LR

Current (Amps)

Torque (ft-lb)

RPM

Efficiency (%)

Motor Speed Data

LOAD

Torque Amps

61.5 72.4 77.9 82.5 82.1 81.7

Uncontrolled Copy

Speed -Torque Curve

Motor Load Data

RPM

0.0

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

1.0

A

M

P

S

0

0

Additional Specifications:

0.0000 0.0000 0.0000 0.0000 0.0000

R1 R2 X1 X2 Xm

EQUIV CKT (OHMS / PHASE)

VFD Rating

Outline Dwg 034907-550

Conn. Diag 005010.01

NONE

Rotor/Shaft wk²

Duty

Ambient

Elevation

Ref Wdg

Sound Pressure @ 1M

T632165 NR

CONT

1,000

0.04

65 dBA

40

Design

LR Code letter

Service Factor

Temp Rise @ FL

1.15

60

M

B

Construction

Voltage

Frequency

HP

Sync. RPM

Frame

Enclosure

Information Block

208-230/460

TENV

TTW

60

140

Data @

feet

Lb-Ft²

0.0

1.0

2.0

3.0

4.0

5.0

6.0

7.0

8.0

A

M

P

S

°

°

C

C

Hz

V

460

v

6 of 6
