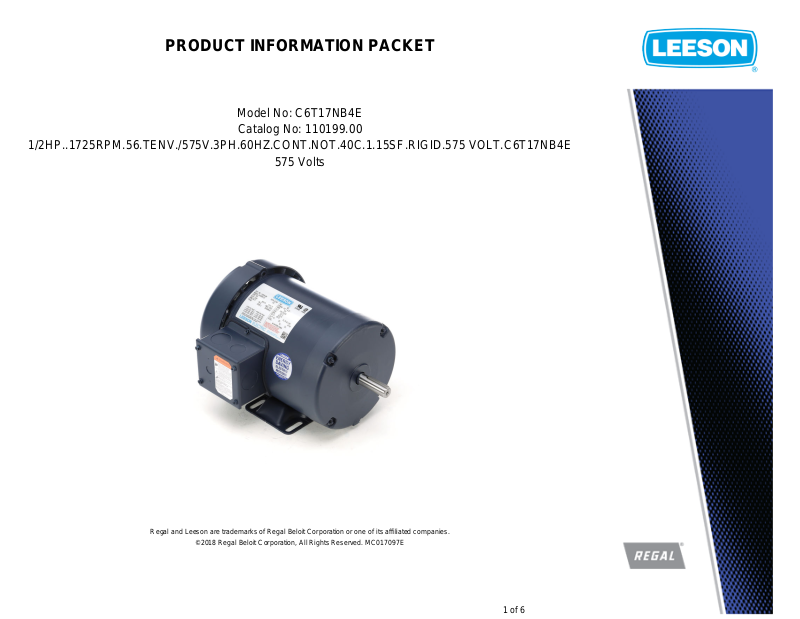

PRODUCT INFORMATION PACKET
Model No: C6T17NB4E
Catalog No: 110199.00
1/2HP..1725RPM.56.TENV./575V.3PH.60HZ.CONT.NOT.40C.1.15SF.RIGID.575 VOLT.C6T17NB4E
575 Volts
Regal and Leeson are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 6
Product Information Packet: Model No: C6T17NB4E, Catalog No:110199.00
1/2HP..1725RPM.56.TENV./575V.3PH.60HZ.CONT.NOT.40C.1.15SF.RIGID.575 VOLT.C6T17NB4E
Nameplate Specifications
Output HP
Frequency 60 Hz Voltage 575 V
Current
Service Factor
Efficiency 78.5 % Duty Continuous
Insulation Class
KVA Code L Frame C56
Enclosure Totally Enclosed Non Ventilated Overload Protector No
Ambient Temperature
Opp Drive End Bearing Size 6203 UL Recognized
CSA
IP Code
0.50 Hp
0.72 A
1.15
F
40 °C
Y
43
Output KW
Speed
Phase
Design Code
Drive End Bearing Size
CE
0.37 kW
1725 rpm
3
B
6203
N
Technical Specifications
Electrical Type
Poles 4 Rotation Reversible
Squirrel Cage Induction Run
Starting Method
Across The Line
Mounting
Drive End Bearing BALL Opp Drive End Bearing BALL
Frame Material Rolled Steel Shaft Type NEMA 56
Overall Length
Shaft Diameter 0.625 in Shaft Extension 1.88 in
Assembly/Box Mounting
Outline Drawing
Rigid base
9.90 in
F1 ONLY
034982-500
Motor Orientation
Frame Length
Connection Diagram
HORIZONTAL
5.00 in
005102.01
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 10/15/2018
2 of 6
9/26/2008 4:35:59 PM
3 of 6
Uncontrolled Copy
4 of 6
Uncontrolled Copy
5 of 6
Date:
Speed (RPM)
Data Sheet
Current (Amps)
E
200.0
400.0
600.0
0.0
0 200 400 600 800 1000 1200 1400 1600 1800 2000
800.0
TORQU
1000.0
1200.0
1400.0
1600.0
1800.0
30.0
40.0
50.0
60.0
70.0
80.0
0% 20% 40% 60 % 80% 100% 120% 140%
F
100.0
90.0
E
F
F
P
Torque (ft-lb)
Efficiency (%) P.F. (%) Current (Amps)
P.F. (%)
Load 0% 25% 50% 75% 100% 115% 125% LR
Current (Amps)
Torque (ft-lb)
RPM
Efficiency (%)
1,153 1,142 1,564 384 0.00 1800
9.8 4.6 3.6 0.72 0.52 0.5
LR Pull-Up BD Rated Idle
0 300 1310 1750 1800
1800 1788 1776 1764 1750 1,740 1735 0
0.52 0.57 0.61 0.67 0.72 0.80 0.84 9.8
0.00 96.0 192 288 384 448 480 1,153
13.1 29.2 44.6 56.0 67.0 69.0 71.7 0.0
1/18/2018 110199.00
Motor Speed Data
LOAD
Torque Amps
57.7 70.1 75.2 78.5 78.0 77.0
Uncontrolled Copy
Speed -Torque Curve
Motor Load Data
RPM
0.0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
A
M
P
S
0
0
Additional Specifications:
0.0000 0.0000 0.0000 0.0000 0.0000
R1 R2 X1 X2 Xm
EQUIV CKT (OHMS / PHASE)
VFD Rating
Outline Dwg 034982-500
Conn. Diag 005102.01
Rotor/Shaft wk²
Duty
Ambient
Elevation
Ref Wdg
Sound Pressure @ 1M
T634208 NR
Design
LR Code letter
Service Factor
Temp Rise @ FL
Construction
Voltage
Frequency
HP
Sync. RPM
Frame
Enclosure
Information Block
0.0
2.0
4.0
6.0
P
S
8.0
A
M
10.0
12.0
0 dBA
NONE
CONT
1,000
0.06
feet
Lb-Ft²
1.15
70
40
°
°
C
C
60
A
L
Hz
6 of 6
TENV
TTR
575
V
140
Data @
575
v
