PRODUCT INFORMATION PACKET
Model No: 110143.00
Catalog No: 110143.00
0.50 HP General Purpose Motor, 3 phase, 3600 RPM, 208-230/460 V, 56 Frame, TENV
Three Phase TENV Motors
Regal and Leeson are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2020 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 5
Product Information Packet: Model No: 110143.00, Catalog No:110143.00 0.50 HP General Purpose Motor, 3 phase, 3600 RPM, 208-230/460 V, 56
Frame, TENV
Nameplate Specifications
Output HP 0.50 Hp Output KW 0.37 kW
Frequency 60 Hz Voltage 208-230/460 V
Current 1.7-1.6/0.80 A Speed 3450 rpm
Service Factor 1.15 Phase 3
Efficiency 82.5 % Power Factor 79
Duty Continuous Insulation Class B
Design Code B KVA Code M
Frame 56 Enclosure Totally Enclosed Non Ventilated
Thermal Protection No Ambient Temperature 40 °C
Drive End Bearing Size 6203 Opp Drive End Bearing Size 6203
UL Recognized CSA Y
CE N IP Code 43
Technical Specifications
Electrical Type Squirrel Cage Induction Run Starting Method Across The Line
Poles 2 Rotation Reversible
Resistance Main 31.2 Ohms Mounting Rigid base
Motor Orientation Horizontal Drive End Bearing Ball
Opp Drive End Bearing Ball Frame Material Rolled Steel
Shaft Type NEMA 56 Overall Length 10.40 in
Frame Length 5.50 in Shaft Diameter 0.625 in
Shaft Extension 1.88 in Assembly/Box Mounting F1 ONLY
Outline Drawing 034982-550 Connection Drawing 005010.01
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created:14/10/2020
2 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 5
9/26/2008 4:35:59 PM
3 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 5
Uncontrolled Copy
4 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 5
Date:
Speed (RPM)

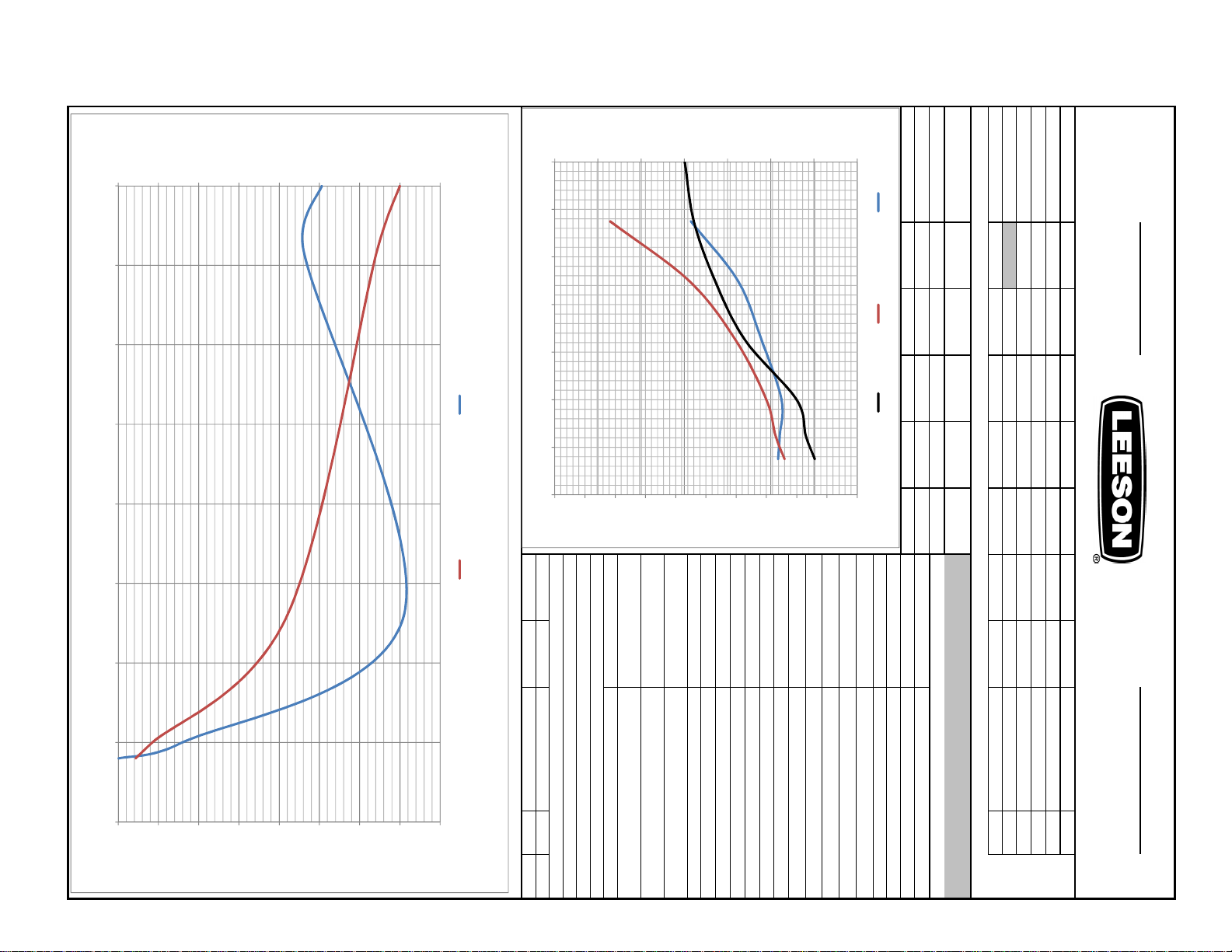

Data Sheet
Current (Amps)
P
E
0.0
0.5
1.0
1.5
0 500 1000 1500 2000 2500 3000 3500 4000
TORQU
2.0
2.5
3.0
3.5
4.0
30.0
40.0
50.0
0% 20% 40% 60 % 80% 100% 120% 140%
F
60.0
70.0
EFF
80.0
100.0
90.0
Torque (ft-lb)
Efficiency (%) P.F. (%) Current (Amps)
2.53 2.30 3.6 0.75 0.00 3600
7.0 6.4 4.2 0.80 0.43 0.5
0 400 2700 3510 3600
P.F. (%)
3600 3576 3556 3535 3510 3,502 3489 0
0.43 0.46 0.53 0.63 0.80 0.83 0.86 7.0
0.00 0.19 0.37 0.56 0.75 0.85 0.94 2.53
24.5 42.8 61.1 71.9 79.0 81.1 83.2 0.0
LR Pull-Up BD Rated Idle
1/30/2018 110143.00
Load 0% 25% 50% 75% 100% 115% 125% LR
Current (Amps)
Torque (ft-lb)
RPM
Efficiency (%)
Motor Speed Data
LOAD
Torque Amps
61.5 72.4 77.9 82.5 82.1 81.7
Uncontrolled Copy
Speed -Torque Curve
Motor Load Data
RPM
0.0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
A
M
P
S
0
0
0.0000 0.0000 0.0000 0.0000 0.0000
R1 R2 X1 X2 Xm
EQUIV CKT (OHMS / PHASE)

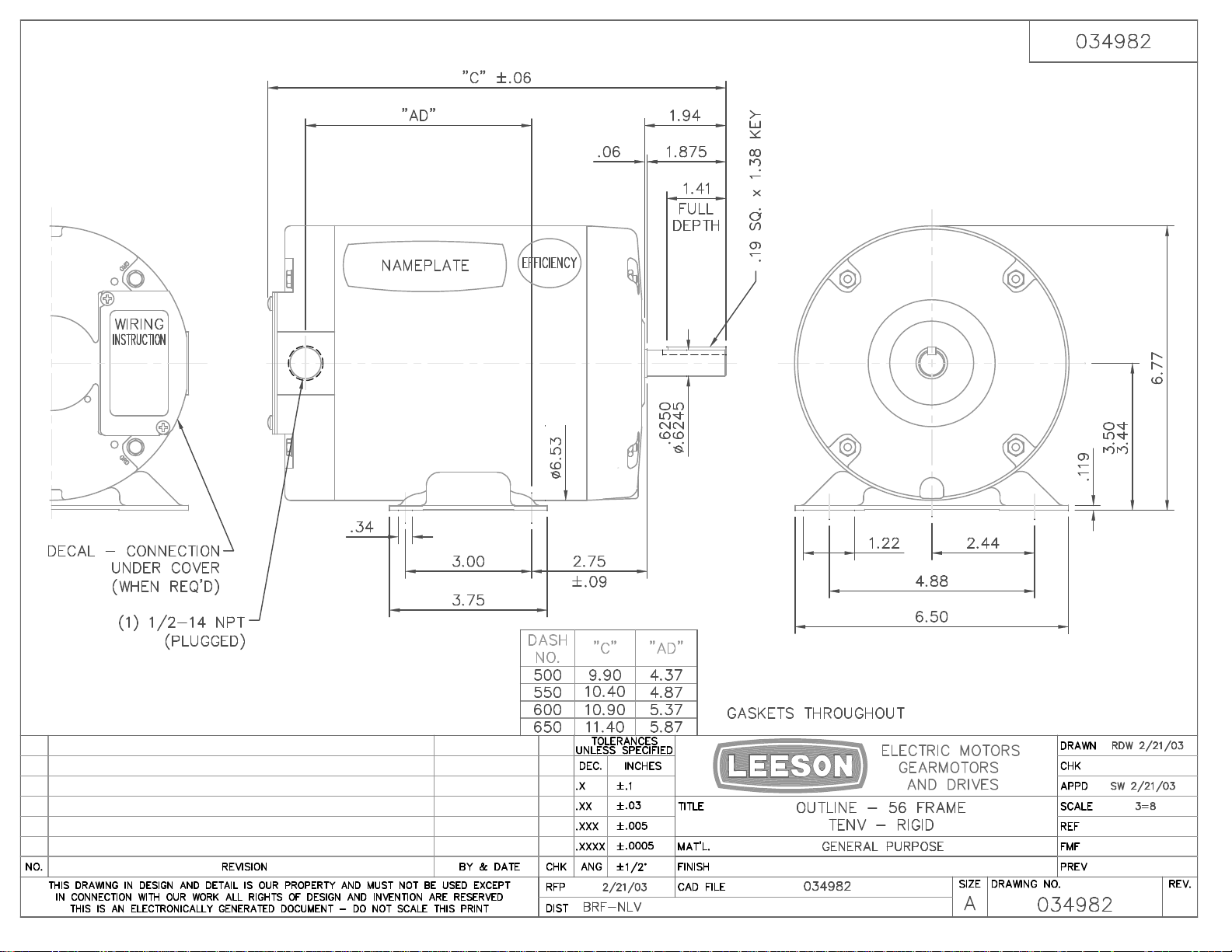

Outline Dwg 034982-550

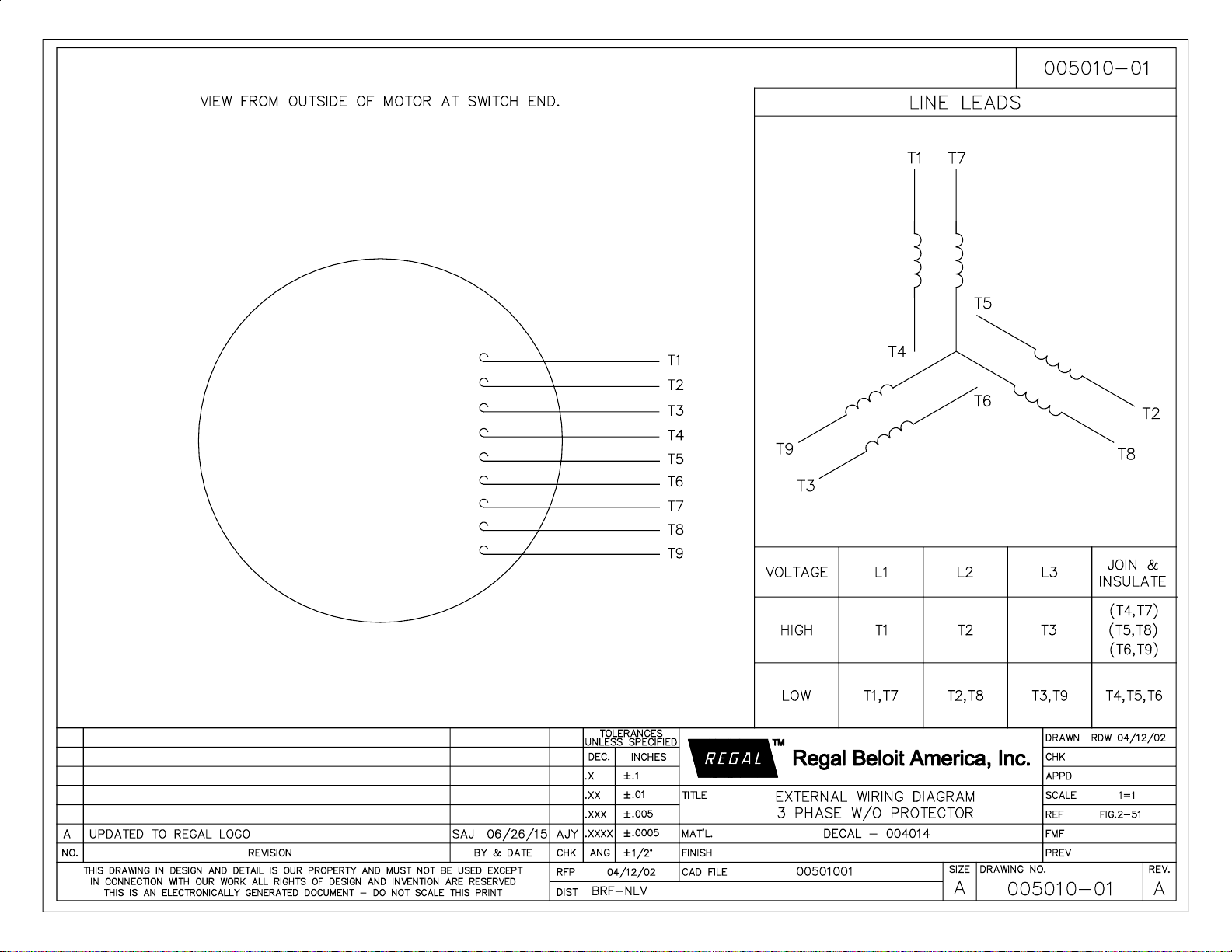

Conn. Diag 005010.01
Additional Specifications:
Ref Wdg
Sound Pressure @ 1M
VFD Rating
NONE
Rotor/Shaft wk²
Ambient
Elevation
T632165 NR
1,000
0.04
65 dBA
40
LR Code letter
Service Factor
Temp Rise @ FL
Duty
CONT
1.15
60
M
Voltage
Frequency
Design
Construction
HP
Sync. RPM
Frame
Enclosure
Information Block
208-230/460
TENV
TTW
60
B
140
Data @
feet
Lb-Ft²
0.0
1.0
2.0
3.0
4.0
5.0
6.0
7.0
8.0
A
M
P
S
°
°
C
C
Hz
V
460
v
