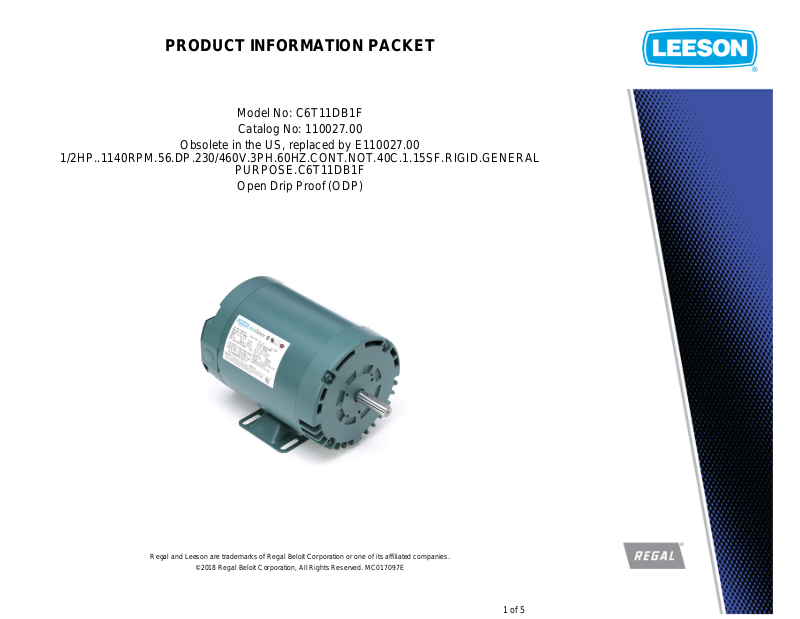

Page 1
PRODUCT INFORMATION PACKET
Model No: C6T11DB1F
Catalog No: 110027.00
Obsolete in the US, replaced by E110027.00
1/2HP..1140RPM.56.DP.230/460V.3PH.60HZ.CONT.NOT.40C.1.15SF.RIGID.GENERAL
PURPOSE.C6T11DB1F
Open Drip Proof (ODP)
Regal and Leeson are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 5
Page 2
Product Information Packet: Model No: C6T11DB1F, Catalog No:110027.00 Obsolete in the US, replaced by
E110027.00 1/2HP..1140RPM.56.DP.230/460V.3PH.60HZ.CONT.NOT.40C.1.15SF.RIGID.GENERAL
PURPOSE.C6T11DB1F
Nameplate Specifications
Output HP
Frequency 60 Hz Voltage 208-230/460 V
Current
Service Factor
Efficiency 66 % Duty Continuous
Insulation Class
KVA Code J Frame 56
Enclosure Drip Proof Overload Protector No
Ambient Temperature
Opp Drive End Bearing Size 6203 UL Recognized
CSA
IP Code
0.50 Hp
2.8/1.4 A
1.15
B
40 °C
Y
22
Output KW
Speed
Phase
Design Code
Drive End Bearing Size
CE
0.37 kW
1140 rpm
3
B
6203
N
Technical Specifications
Electrical Type
Poles 6 Rotation Reversible
Squirrel Cage Induction Run
Starting Method
Across The Line
Mounting
Drive End Bearing BALL Opp Drive End Bearing BALL
Frame Material Rolled Steel Shaft Type NEMA 56
Overall Length
Shaft Diameter 0.625 in Shaft Extension 1.88 in
Assembly/Box Mounting

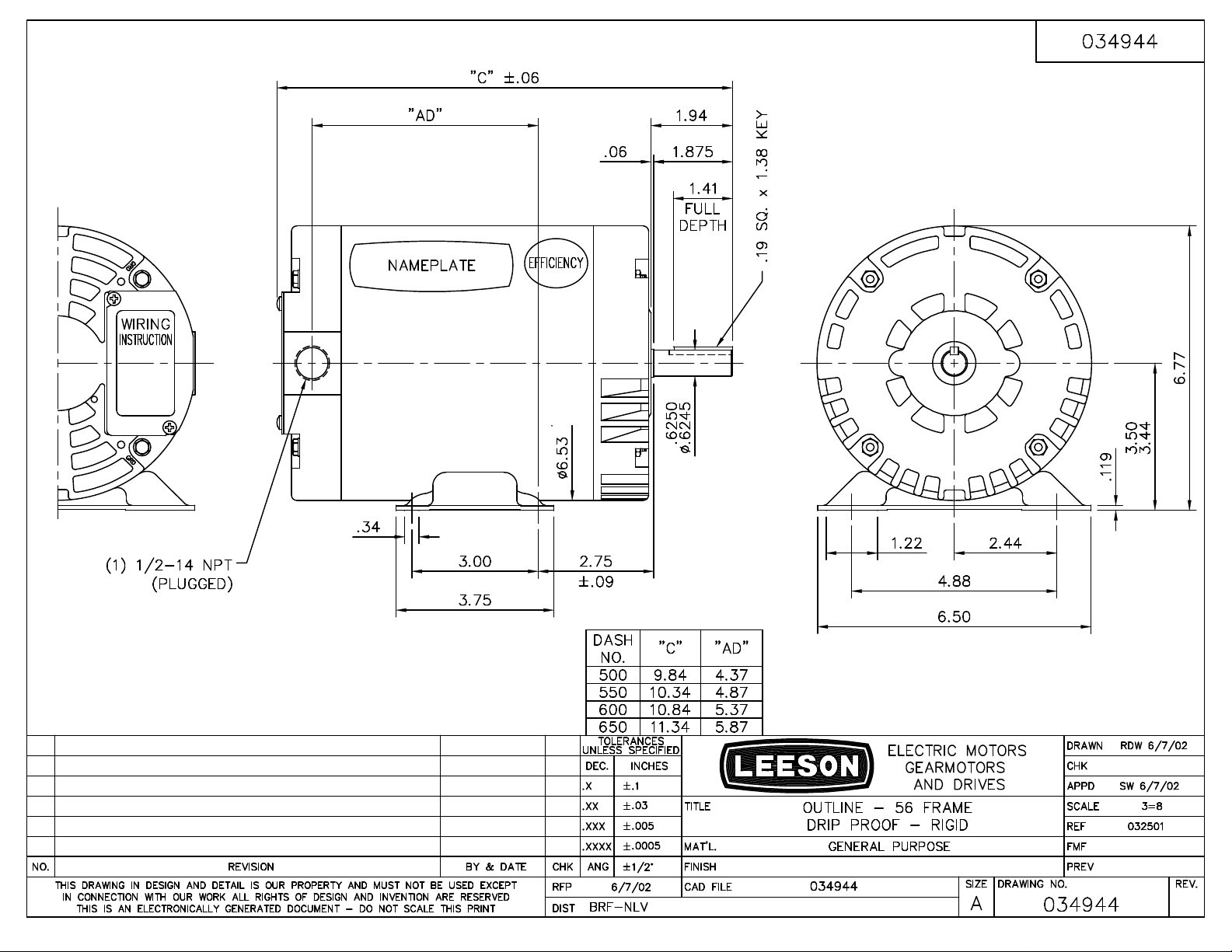

Outline Drawing
Rigid base
10.34 in
F1 ONLY
034944-550
Motor Orientation
Frame Length

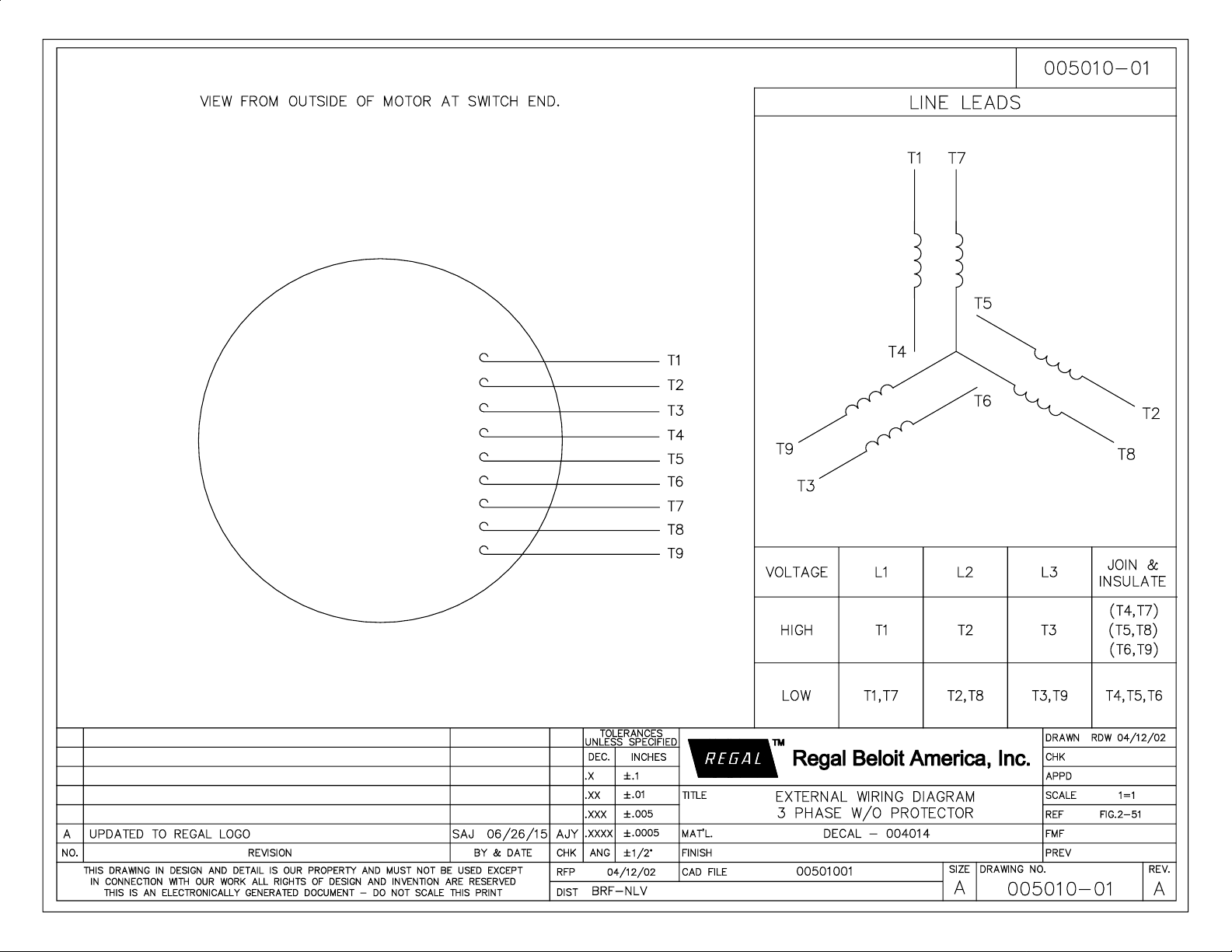

Connection Diagram
HORIZONTAL
5.50 in
005010.01
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 10/15/2018
2 of 5
Page 3
7/3/2007 9:45:27 AM -
3 of 5
Page 4
Uncontrolled Copy
4 of 5
Page 5
Date:
Speed (RPM)
Data Sheet
Current (Amps)
E
200.0
400.0
600.0
0.0
0 200 400 600 800 1000 1200 1400
800.0
TORQU
1000.0
1200.0
1400.0
1600.0
1800.0
30.0
40.0
50.0
60.0
70.0
80.0
0% 20% 40% 60 % 80% 100% 120% 140%
F
100.0
90.0
E
F
F
P
Torque (ft-lb)
Efficiency (%) P.F. (%) Current (Amps)
P.F. (%)
Load 0% 25% 50% 75% 100% 115% 125% LR
Current (Amps)
Torque (ft-lb)
RPM
Efficiency (%)
1,267 1,261 1,584 565 0.00 1200
4.6 4.2 2.73 1.42 1.30 0.5
LR Pull-Up BD Rated Idle
0 600 1104 1144 1200
1200 1186 1173 1159 1144 1,137 1127 0
1.30 1.32 1.33 1.36 1.42 1.46 1.50 4.6
0.00 141 282 423 565 9,961 706 1,267
18.0 27.4 35.8 44.4 52.4 55.5 58.5 0.0
1/31/2018 110027.00
Motor Speed Data
LOAD
Torque Amps
32.9 49.5 57.8 61.7 63.1 64.4
Uncontrolled Copy
Speed -Torque Curve
Motor Load Data
RPM
1.3
0.0000 0.0000 0.0000 0.0000 0.0000
R1 R2 X1 X2 Xm
EQUIV CKT (OHMS / PHASE)
1.3
0
0
Additional Specifications:
1.4
VFD Rating
Outline Dwg 034944-550
Conn. Diag 005010.01
1.4
Ref Wdg
Sound Pressure @ 1M
Rotor/Shaft wk²
T63649 DR
1.5
A
M
P
S
Duty
Ambient
Elevation
1.5
1.6
HP
Sync. RPM
Frame
Enclosure
Voltage
Frequency
Design
LR Code letter
Service Factor
Temp Rise @ FL
Construction
Information Block
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
A
M
P
S
999 dBA
NONE
CONT
1,000
0.06
feet
Lb-Ft²
1.15
40
0
J
°
°
C
C
208-230/460
140
DP
NA
60
B
Hz
V
Data @
460
v
5 of 5
