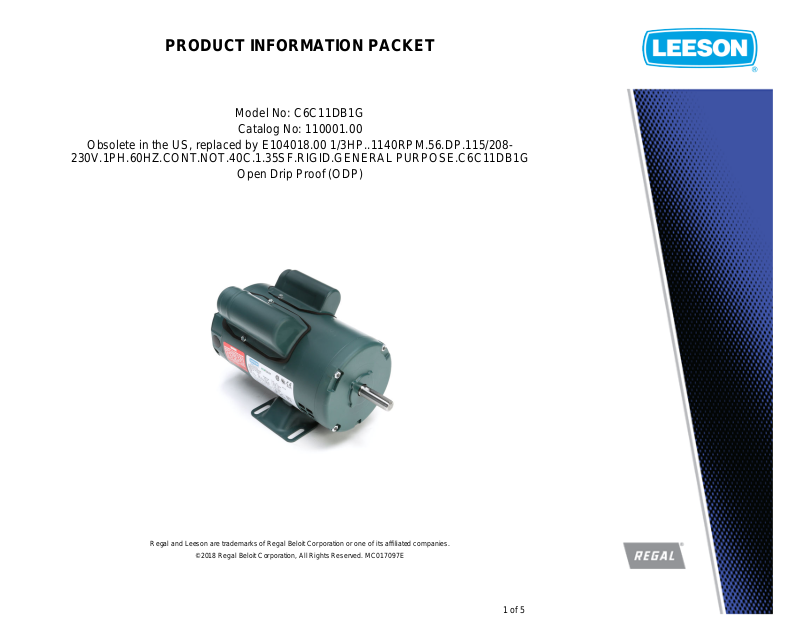

Leeson 110001.00 PRODUCT INFORMATION PACKET

PRODUCT INFORMATION PACKET

Model No: C6C11DB1G

Catalog No: 110001.00

Obsolete in the US, replaced by E104018.00 1/3HP..1140RPM.56.DP.115/208-

230V.1PH.60HZ.CONT.NOT.40C.1.35SF.RIGID.GENERAL PURPOSE.C6C11DB1G

Open Drip Proof (ODP)

Regal and Leeson are trademarks of Regal Beloit Corporation or one of its affiliated companies.

©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E

1 of 5

Product Information Packet: Model No: C6C11DB1G, Catalog No:110001.00 Obsolete in the US, replaced by
E104018.00 1/3HP..1140RPM.56.DP.115/208-230V.1PH.60HZ.CONT.NOT.40C.1.35SF.RIGID.GENERAL
PURPOSE.C6C11DB1G

Nameplate Specifications

Output HP
Frequency 60 Hz Voltage 115/208-230 V
Current
Service Factor
Efficiency 55 % Duty Continuous
Insulation Class
KVA Code M Frame 56
Enclosure Drip Proof Overload Protector No
Ambient Temperature
Opp Drive End Bearing Size 6203 UL Recognized
CSA
IP Code

0.33 Hp

7.6/3.5-3.8 A

1.35

B

40 °C

Y
22

Output KW

Speed
Phase

Design Code

Drive End Bearing Size

CE

0.25 kW

1140 rpm
1

L

6203

N

Technical Specifications

Electrical Type
Poles 6 Rotation Selective Counterclockwise

Capacitor Start Induction Run

Starting Method

Across The Line

Mounting
Drive End Bearing BALL Opp Drive End Bearing BALL
Frame Material Rolled Steel Shaft Type NEMA 56
Overall Length
Shaft Diameter 0.625 in Shaft Extension 1.88 in
Assembly/Box Mounting
Outline Drawing

Rigid base

10.84 in

F1 ONLY
028601-600A

Motor Orientation

Frame Length

Connection Diagram

HORIZONTAL

6.00 in

005005.01

This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 10/15/2018

2 of 5

Regal Beloit America, Inc.

TM

COPYRIGHT REGAL BELOIT AMERICA, INC. ALL RIGHTS RESERVED.

PROPRIETARY AND CONFIDENTIAL INFORMATION - THIS DOCUMENT IS THE PROPERTY OF

REGAL BELOIT AMERICA, INC. ("OWNER") AND CONTAINS OWNER'S PROPRIETARY

INFORMATION. ANY PERSON, CORPORATION OR OTHER FIRM RECEIVING I T IS DEEMED,
BY RECEIVING IT, TO AGREE THAT IT, AND/OR ANY PART OF IT, SHALL NOT BE DISCLOSED
TO ANY PERSON, CORPORATION OR OTHER ENTITY, DUPLICATED, A ND/ OR USED, EXCEPT

AS EXPRESSLY APPROVED IN WRITING IN ADVANCE BY OWNER. THIS DOCUMENT SHALL

BE RETURNED TO OWNER UPON REQUEST. IT MAY BE SUBJECT TO CERTAIN

RESTRICTIONS UNDER APPLICABLE EXPORT CONTROL LAWS AND REGULATIONS.

TOLERANCES UNLESS
OTHERWISE SPECIFIED:
DEC.

INCH mm ANGLE
.X 0.1 [ 2.5] 0.5
.XX 0.03 [ 0.76]
.XXX 0.005 [ 0.127]
.XXXX 0.0005 [ 0.0127]
REMOVE BURRS & BREAK SHARP
EDGES: .003/.015 [.076/.381] X 45
CORNER FILLETS: R.02 [.51]
MACHINED SURFACES:

125 3.2

INCH mm
mm SHOWN IN [BRACKETS]

12

43

A

B

2

43

1

A

B

ECO DESCRIPTION

DATEAPPROVED BY

DATEREVISION BY

ECO

DRAWING REVISION

REFERENCE

MATERIAL

SHEET

DRAWING NUMBERSIZE

DESCRIPTION

THIRD ANGLE
PROJECTION

DRAWN BY

DATE

DATE

APPROVED BY

PROCESS/FINISH

B

1 OF 1

028601

RDW

7/1/04

SW

7/1/04

C A.SUPPANNAVAR 12/21/2017

ECO-0143018 PK 04/10/2018

OUTLINE CONVERSION PROJECT

OUTLINE

028601

56-FRAME DRIP PROOF -RIGID

NAMEPLATE

CAP

DASH.

"XO"

A 1.48 [37.59]
B 1.94 [49.28]
C 2.19 [55.62]

DASH

NO.

"C" "AD"

500 9.87 [250.70] 4.38 [111.25]
550 10.37 [263.40] 4.88 [123.95]
600 10.87 [276.10] 5.38 [136.65]
650 11.37 [288.80] 5.88 [149.35]
700 11.87 [301.50] 6.38 [162.05]

2.75±.09

69.92±2.29

3.00

76.20

.34

8.64

3.75

95.25

1.95

49.43

1.41

35.81
FULL

DEPTH

1.875

47.625

.07

1.80

"AD"

"C" .06

[" 1.52]

6.52

165.70

.6250
.6245

15.8750

15.8623

(1) 1/2-14 NPT

(PLUGGED)

.19 [4.82] SQ
X 1.38 [35.05] KEY

4.88

123.95

6.50

165.10

1.22

30.99

2.44

61.98

6.74

171.26

3.50

3.44

88.90

87.38

.119

3.023

"XO"

DECAL
CONNECTION
UNDER COVER
(WHEN REQ'D)

Regal Beloit America, Inc.

TM

COPYRIGHT REGAL BELOIT AMERICA, INC. ALL RIGHTS RESERVED.

PROPRIETARY AND CONFIDENTIAL INFORMATION - THIS DOCUMENT IS THE PROPERTY OF

REGAL BELOIT AMERICA, INC. ("OWNER") AND CONTAINS OWNER'S PROPRIETARY

INFORMATION. ANY PERSON, CORPORATION OR OTHER FIRM RECEIVING I T IS DEEMED,
BY RECEIVING IT, TO AGREE THAT IT, AND/OR ANY PART OF IT, SHALL NOT BE DISCLOSED
TO ANY PERSON, CORPORATION OR OTHER ENTITY, DUPLICATED, A ND/ OR USED, EXCEPT

AS EXPRESSLY APPROVED IN WRITING IN ADVANCE BY OWNER. THIS DOCUMENT SHALL

BE RETURNED TO OWNER UPON REQUEST. IT MAY BE SUBJECT TO CERTAIN

RESTRICTIONS UNDER APPLICABLE EXPORT CONTROL LAWS AND REGULATIONS.

TOLERANCES UNLESS
OTHERWISE SPECIFIED:
DEC.

INCH mm ANGLE
.X 0.1 [ 2.5] 0.5
.XX 0.03 [ 0.76]
.XXX 0.005 [ 0.127]
.XXXX 0.0005 [ 0.0127]
REMOVE BURRS & BREAK SHARP
EDGES: .003/.015 [.076/.381] X 45
CORNER FILLETS: R.02 [.51]
MACHINED SURFACES:

125 3.2

INCH mm
mm SHOWN IN [BRACKETS]

12

43

A

B

2

43

1

A

B

ECO DESCRIPTION

DATEAPPROVED BY

DATEREVISION BY

ECO

DRAWING REVISION

REFERENCE

MATERIAL

SHEET

DRAWING NUMBERSIZE

DESCRIPTION

THIRD ANGLE
PROJECTION

DRAWN BY

DATE

DATE

APPROVED BY

PROCESS/FINISH

B

1 OF 1

028601

RDW

7/1/04

SW

7/1/04

C A.SUPPANNAVAR 12/21/2017

ECO-0143018 PK 04/10/2018

OUTLINE CONVERSION PROJECT

OUTLINE

028601

56-FRAME DRIP PROOF -RIGID

NAMEPLATE

CAP

DASH.

"XO"

A 1.48 [37.59]
B 1.94 [49.28]
C 2.19 [55.62]

DASH

NO.

"C" "AD"

500 9.87 [250.70] 4.38 [111.25]
550 10.37 [263.40] 4.88 [123.95]
600 10.87 [276.10] 5.38 [136.65]
650 11.37 [288.80] 5.88 [149.35]
700 11.87 [301.50] 6.38 [162.05]

Uncontrolled Copy

3 of 5

VIEW FROM OUTSIDE OF MOTOR AT SWITCH END.

ROTATION

LINE LEADS

T1

T6

T5

RBC PROPRIETARY AND CONFIDENTIAL INFORMATION
This document is the property of REGAL BELOIT CORPORATION ("RBC") including
its subsidiaries and divisions and contains proprietary information of RBC. This document
is loaned on the express condition that neither it nor the information contained therein shall
be disclosed to others without the express written consent of RBC, and that the information
shall be used by the recipient only as approved expressly by RBC. This document shall be
returned to RBC upon its request. This document may be subject to certain restrictions
under U.S. export control laws and regulations.

--

REDRAWN IN SOLIDWORKS

27

UPDATED TO CURRENT STANDARDS

26

ADDED PAGE 32 (114787) & PAGE 33 (114788)

25

ADDED PAGE 31

24

ADDED PAGES 29 & 30

23

ADDED PAGE 28

NO

THIRD ANGLE

PROJECTION

2/17/2011 9:21:36 AM

REVISION

T5

VJB
DBT
KAZ
KAZ
KMM
KMM

BY & DATE

02/16/11
05/27/97
12/20/95
04/19/95
03/30/95
01/27/95

T5
T1
T2
T3
T4
T8

TOLERANCES

UNLESS SPECIFIED

DEC

INCHES

.X
.XX
.XXX
.XXXX
ANG

±.1
±.01
±.005
±.0005
±1/2°

PG
DL
DL

CHK
RFP
NETWORK FILE NAME

TITLE

MAT'L
FINISH
PREV

00500501

M

M

S

LEAD END

HIGH

VOLT

LOW

VOLT

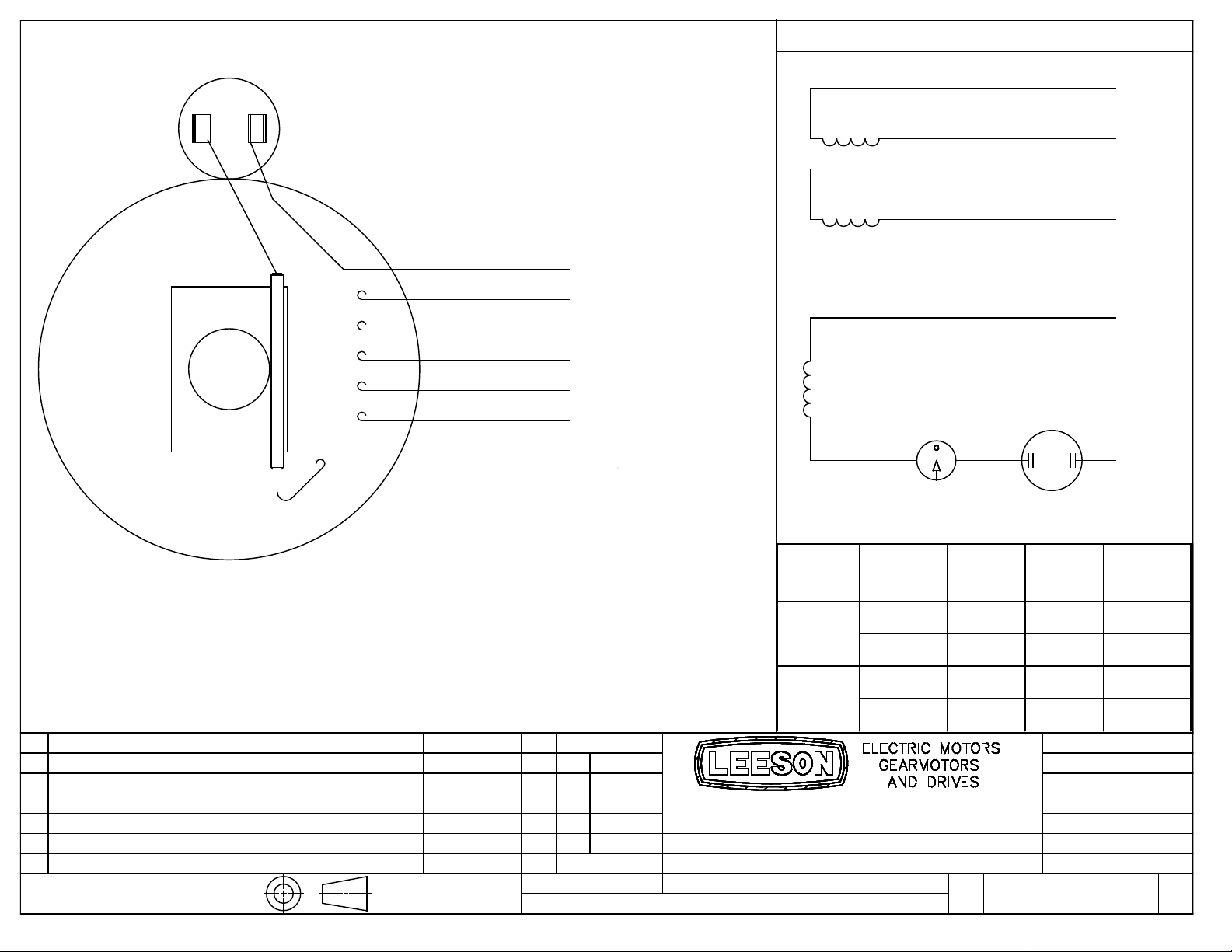

EXTERNAL WIRING DIAGRAM
TYPE "C" W/O PROTECTOR
DECAL - 004012

4 of 5

T2
T3

T4

T8

T5 T6

FACING

L1 L2 JOIN

T5

C.C.W. T1 T4,T5 T2,T3,T8

C.W. T1 T4,T8 T2,T3,T5

C.C.W. T1,T3,T8 T2,T4,T5

C.W. T1,T3,T5 T2,T4,T8

DRAWN
CHK
APPR
SCALE
REF
FMF
PAGE

DRAWING NOSIZE REV

A

005005-01

-----

-----

ADH 08/06/73

JCW 03/09/79

1:1

FIG 2-23 C4A
MGI-2.4B

OF

--

Curve at

Volts

HP

HZ

Model No

HP

VOLTS

Catalog No

110001.00

HZ 60RPM

1140

Torque in Oz.Ft

FL TORQUE

Oz.Ft

FL AMPS

BD TORQUE

Oz.Ft

PU TORQUE

Oz.Ft

LR TORQUE

58.4

Oz.Ft

LR AMPS

15.49

WINDING

C63631-3

Date

3/13/2018

Uncontrolled Copy

LEESON ELECTRIC CORPORATION

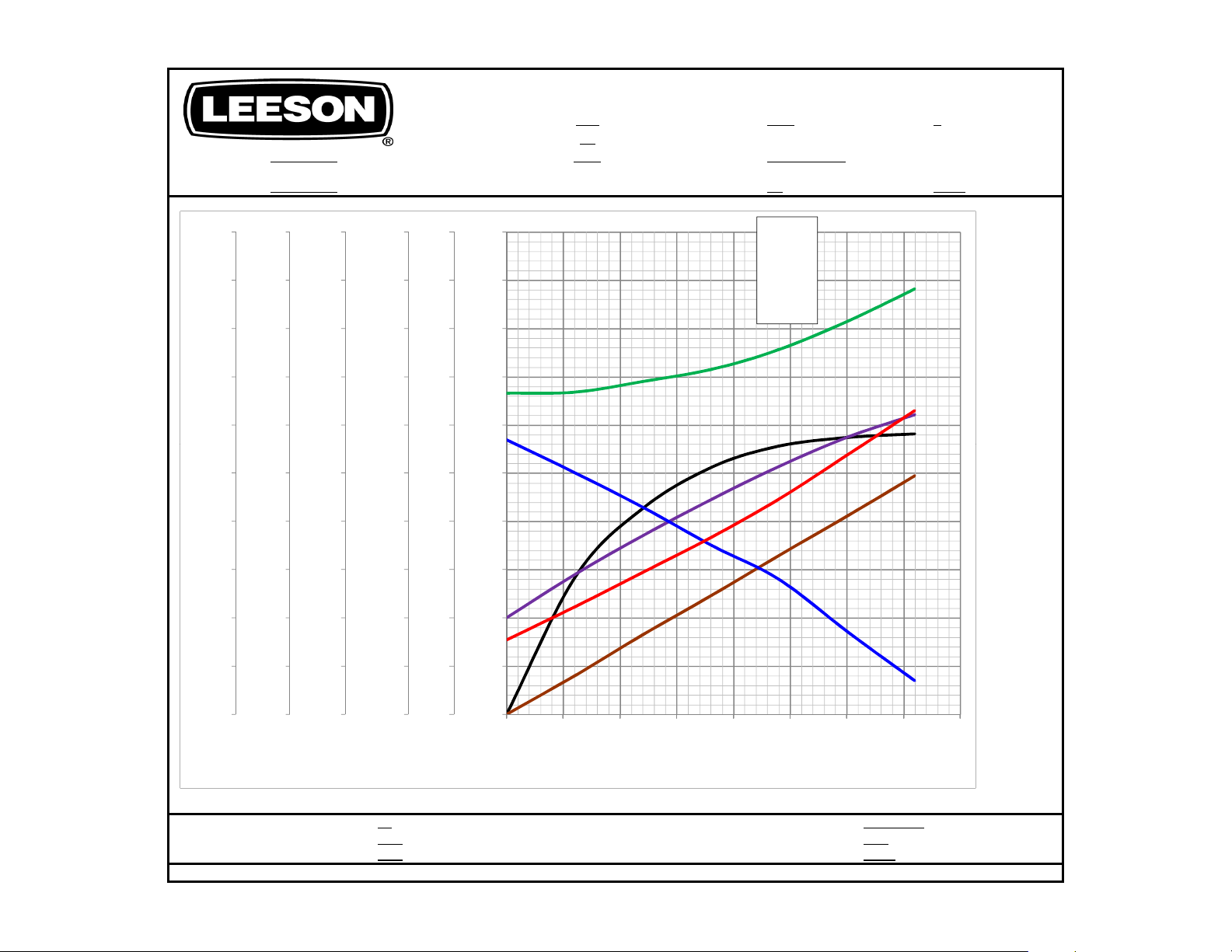

TYPICAL PERFORMANCE CURVE for AC MOTOR

230

60

110001.00 0.33

0.34

115/208-230

Eff −

−

−−

PF −

−

−−

HP −

−

−−

RPM −

−

−−

KW −

−

−−

Amps −

−

−−

1

60 70 80 90 100

EFF

0 10 20 30 40 50

60 70 80 90 100

PF

0 10 20 30 40 50

0 5 10 15 20 25 30 35 40

0.6 0.7 0.8 0.9 1

HP

RPM

0 0.1 0.2 0.3 0.4 0.5

0 5 10 15 20 25 30 35 40

0 5 10 15 20 25 30 35 40

24

56.8

0.6 0.7 0.8 0.9 1

1200 1210 1220 1230 1240

KW

0 0.1 0.2 0.3 0.4 0.5

1140 1150 1160 1170 1180 1190

0 5 10 15 20 25 30 35 40

Torque

60 70 80 90 10060 70 80 90 1000.6 0.7 0.8 0.9 11200 1210 1220 1230 12400.6 0.7 0.8 0.9 13 3.5 4 4.5 5

PF

HP

KW

EFF

RPM

AMPS

0 10 20 30 40 50

0 10 20 30 40 50

0 0.1 0.2 0.3 0.4 0.5

0 0.1 0.2 0.3 0.4 0.5

0 0.5 1 1.5 2 2.5

1140 1150 1160 1170 1180 1190

0 5 10 15 20 25 30 35 40

0 5 10 15 20 25 30 35 40

0 5 10 15 20 25 30 35 40

0 5 10 15 20 25 30 35 40

0 5 10 15 20 25 30 35 40

0 5 10 15 20 25 30 35 40

0 5 10 15 20 25 30 35 40

Torque

Torque

Torque

Torque

Torque

Torque

Torque

Torque

Torque

Torque

7.6/3.5-3.8

45.6

5 of 5
