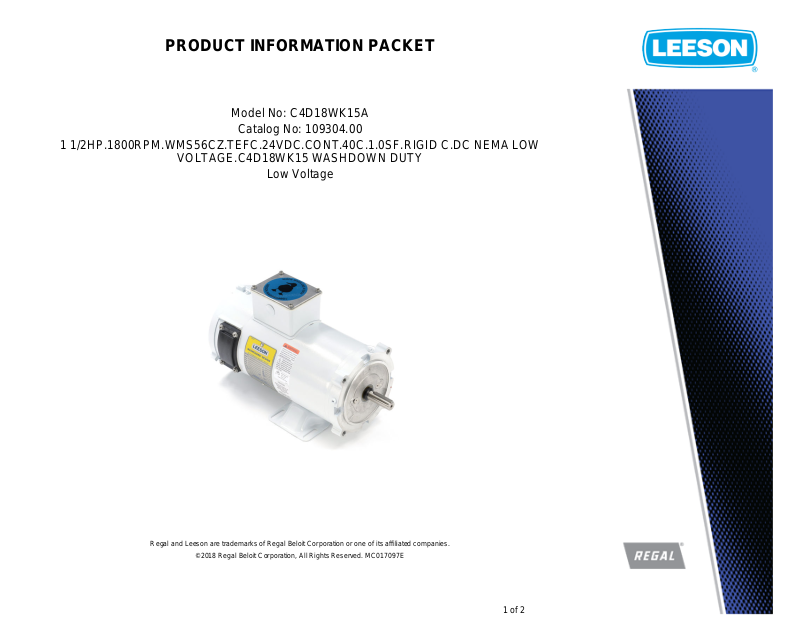

Leeson 109304.00 Product Information Packet

PRODUCT INFORMATION PACKET

Model No: C4D18WK15A

Catalog No: 109304.00

1 1/2HP.1800RPM.WMS56CZ.TEFC.24VDC.CONT.40C.1.0SF.RIGID C.DC NEMA LOW

VOLTAGE.C4D18WK15 WASHDOWN DUTY

Low Voltage

Regal and Leeson are trademarks of Regal Beloit Corporation or one of its affiliated companies.

©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E

1 of 2

Product Information Packet: Model No: C4D18WK15A, Catalog No:109304.00 1
1/2HP.1800RPM.WMS56CZ.TEFC.24VDC.CONT.40C.1.0SF.RIGID C.DC NEMA LOW VOLTAGE.C4D18WK15
WASHDOWN DUTY

Nameplate Specifications

Output HP
Voltage 24 V Current 60.0 A
Speed
Efficiency
Insulation Class H Frame S56CZ
Enclosure
Ambient Temperature 40 °C Drive End Bearing Size 6205
Opp Drive End Bearing Size 6203 UL Recognized
CSA

1.50 Hp

1800 rpm

77.5 %

Totally Enclosed Fan Cooled

Y

Output KW

Service Factor
Duty

Overload Protector

CE

1.1 kW

1
Continuous

No

N

Technical Specifications

Rotation
Overall Length 17.38 in Frame Length 12.00 in
Shaft Diameter
Outline Drawing

Reversible

0.875 in
612-0218

Mounting

Shaft Extension

Rigid C base

2.13 in

This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 10/15/2018
