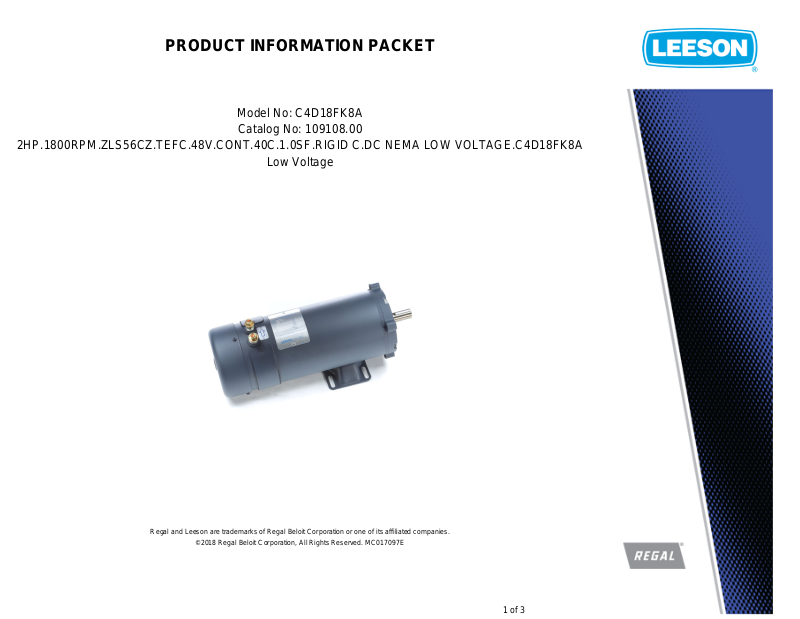

Leeson 109108.00 Product Information Packet
PRODUCT INFORMATION PACKET
Model No: C4D18FK8A
Catalog No: 109108.00
2HP.1800RPM.ZLS56CZ.TEFC.48V.CONT.40C.1.0SF.RIGID C.DC NEMA LOW VOLTAGE.C4D18FK8A
Low Voltage
Regal and Leeson are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 3
Product Information Packet: Model No: C4D18FK8A, Catalog No:109108.00 2HP.1800RPM.ZLS56CZ.TEFC.48V.CONT.40C.1.0SF.RIGID C.DC NEMA LOW VOLTAGE.C4D18FK8A
Nameplate Specifications
Output HP |
2 Hp |
Output KW |
1.5 kW |
Voltage |
48 V |
Current |
38.0 A |
Speed |
1800 rpm |
Service Factor |
1 |
Efficiency |
82.1 % |
Duty |
Continuous |
Insulation Class |
F |
Frame |
ZLS56CZ |
Enclosure |
Totally Enclosed Fan Cooled |
Overload Protector |
No |
Ambient Temperature |
40 °C |
Drive End Bearing Size |
6205 |
Opp Drive End Bearing Size |
6203 |
UL |
Recognized |
CSA |
Y |
CE |
N |
Technical Specifications
Rotation |
Reversible |
Mounting |
Rigid C base |
Overall Length |
16.74 in |
Frame Length |
11.50 in |
Shaft Diameter |
0.625 in |
Shaft Extension |
2.13 in |
Outline Drawing |
031819 |
|
|
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 10/15/2018
2 of 3
