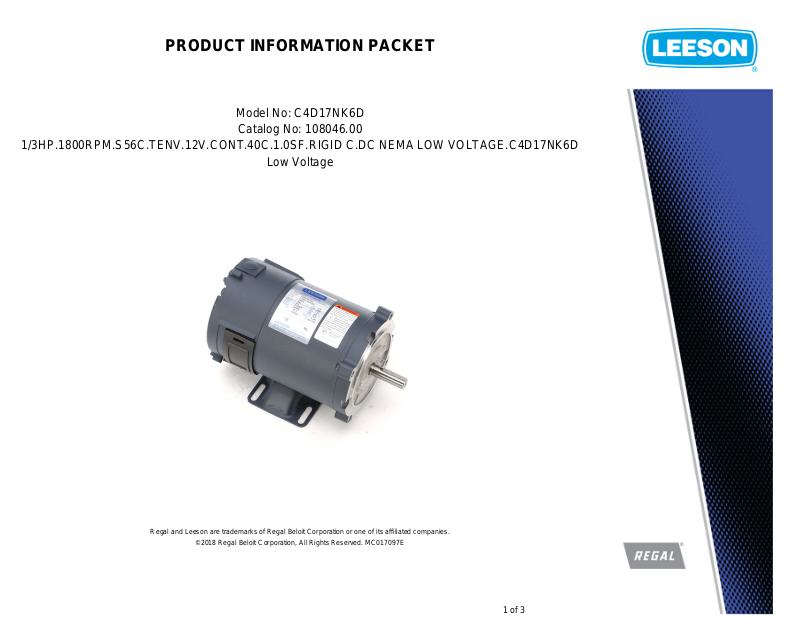

PRODUCT INFORMATION PACKET

Model No: C4D17NK6D

Catalog No: 108046.00

1/3HP.1800RPM.S56C.TENV.12V.CONT.40C.1.0SF.RIGID C.DC NEMA LOW VOLTAGE.C4D17NK6D

Low Voltage

Regal and Leeson are trademarks of Regal Beloit Corporation or one of its affiliated companies.

©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E

1 of 3

Product Information Packet: Model No: C4D17NK6D, Catalog No:108046.00
1/3HP.1800RPM.S56C.TENV.12V.CONT.40C.1.0SF.RIGID C.DC NEMA LOW VOLTAGE.C4D17NK6D

Nameplate Specifications

Output HP
Voltage 12 V Current 27.0 A
Speed
Efficiency
Insulation Class F Frame S56C
Enclosure
Ambient Temperature 40 °C Drive End Bearing Size 6203
Opp Drive End Bearing Size 6203 UL Recognized
CSA

0.33 Hp

1800 rpm

70.1 %

Totally Enclosed Non Ventilated

Y

Output KW

Service Factor
Duty

Overload Protector

CE

0.25 kW

1
Continuous

No

N

Technical Specifications

Rotation
Overall Length 10.77 in Frame Length 4.47 in
Shaft Diameter
Outline Drawing

Reversible

0.625 in
031880-108046

Mounting

Shaft Extension

Rigid C base

2.06 in

This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 10/15/2018
