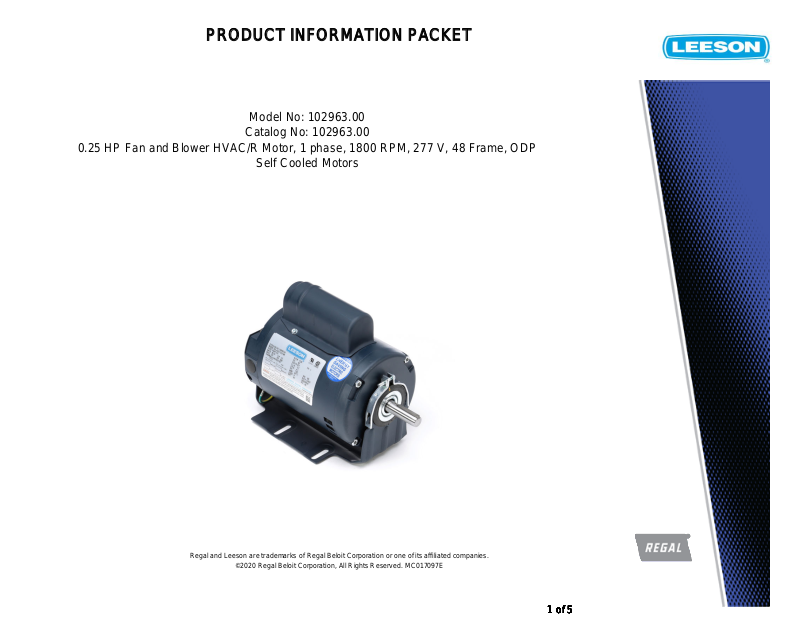

PRODUCT INFORMATION PACKET
Model No: 102963.00
Catalog No: 102963.00
0.25 HP Fan and Blower HVAC/R Motor, 1 phase, 1800 RPM, 277 V, 48 Frame, ODP
Self Cooled Motors
Regal and Leeson are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2020 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 51 of 5
Product Information Packet: Model No: 102963.00, Catalog No:102963.00 0.25 HP Fan and Blower HVAC/R Motor, 1 phase, 1800 RPM, 277 V, 48
Frame, ODP
Nameplate Specifications
Output HP 0.25 Hp Output KW 0.19 kW
Frequency 60 Hz Voltage 277 V
Current 2.2 A Speed 1725 rpm
Service Factor 1.35 Phase 1
Efficiency 59 % Power Factor 54
Duty Continuous Insulation Class B
Design Code N KVA Code M
Frame 48 Enclosure Drip Proof
Thermal Protection Automatic Ambient Temperature 40 °C
Drive End Bearing Size 6203 Opp Drive End Bearing Size 6203
UL Recognized CSA Y
CE N IP Code 22
Technical Specifications
Electrical Type Capacitor Start Induction Run Starting Method Across The Line
Poles 4 Rotation Selective Counterclockwise
Resistance Main 12.23 Ohms Mounting Resilient Base
Motor Orientation Horizontal Drive End Bearing Ball
Opp Drive End Bearing Ball Frame Material Rolled Steel
Shaft Type NEMA 48 Overall Length 9.89 in
Frame Length 5.50 in Shaft Diameter 0.500 in
Shaft Extension 1.5 in Assembly/Box Mounting F1 ONLY
Outline Drawing 031625-550 Connection Drawing 005028.21
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created:14/10/2020
2 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 52 of 5
Uncontrolled Copy
3 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 53 of 5
9/25/2008 4:35:53 PM
4 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 54 of 5
CONN. DIAGRAM:
005028.21
OUTLINE:
WINDING #:
E
THERMOSTATS PROTECTORS WDG RTDs BRG RTDs
NONE AUTOMATIC NONE NONE NONE FALSE
6203 6203
BALL BALL
DE ODE
STANDARD STANDARD
BEARINGS
BRACKET
TYPE
DE
SOUND PRESSURE
0 dBA 10 dBA -1 LB-FT^2 0 LB-FT^2 0 SEC. 0 LBS.
@ 3 FT.
F.L. TORQUE LOCKED ROTOR AMPS L.R. TORQUE B.D. TORQUE F.L. RISE°C
- OZ-FT - - OZ-FT - % - OZ-FT - % 55.3
FULL LOAD EFF: 59 3/4 LOAD EFF: - 1/2 LOAD EFF: -
FULL LOAD PF: 54 3/4 LOAD PF: - 1/2 LOAD PF: - 55 CAP START IND RUN
PH Hz VOLTS AMPS START TYPE DUTY INSL S.F. AMB°C
1 60 277 2.2 ACROSS THE LINE CONTINUOUS B3 1.35 40
1/4 0.19 1800 1725 48 DP M N
HP kW SYNC. RPM F.L. RPM FRAME ENCLOSURE KVA CODE DESIGN
*
N
O
T
MULTEMP SRL STANDARD 48 NONE NONE 1144 STRESSPROOF (C-223) ROLLED STEEL
GREASE SHAFT TYPE SPECIAL DE SPECIAL ODE
THERMO-PROTECTORS
BASE
BRACKET
TYPE
ODE
SOUND POWER ROTOR WK^2 MAX. WK^2 SAFE STALL TIME
RESILIENT
MOUNT
TYPE
*** SUPPLEMENTAL INFORMATION ***
ORIENTATION
HORIZONTAL FALSE NONE FALSE NONE
031625-550
CE484209 6 A
TYPICAL MOTOR PERFORMANCE DATA
CERTIFICATION DATA SHEET
Uncontrolled Copy
SEVERE
DUTY
HAZARDOUS
INVERTER TORQUE:
INV. HP SPEED RANGE:
BRAKE:
NONE NONE
NONE NONE
NONE NONE NONE
FT-LB V Hz
NONE NONE
P/N
ENCODER:
NONE NONE
NONE NONE
THERMISTORS CONTROL SPACE HEATERS
NONE
MATERIAL
SHAFT
PPR
NONE
NONE
LOCATION
COVER
DRIP
GTD. EFF ELEC. TYPE
SCREENS PAINT
STARTS /
HOUR
MOUNTING:
F1 ONLY
CATALOG #:
102963.00
1051 CHEYENNE AVE.
GRAFTON, WI 53024
PH. 262-377-8810
NONE VOLTS
BLUE - LEESON
(ENAMEL)
MATERIAL
FRAME
17
MOTOR WGT
APPROX.
5 of 55 of 55 of 55 of 55 of 55 of 55 of 55 of 55 of 55 of 55 of 55 of 55 of 55 of 55 of 55 of 55 of 55 of 55 of 55 of 55 of 55 of 55 of 55 of 55 of 5
