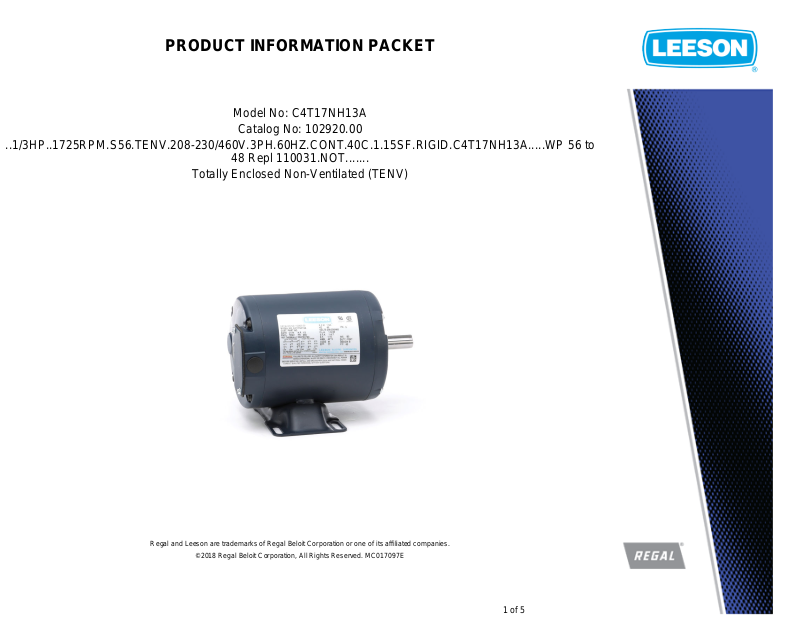

PRODUCT INFORMATION PACKET
Model No: C4T17NH13A
Catalog No: 102920.00
..1/3HP..1725RPM.S56.TENV.208-230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID.C4T17NH13A.....WP 56 to
48 Repl 110031.NOT.......
Totally Enclosed Non-Ventilated (TENV)
Regal and Leeson are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 5
Product Information Packet: Model No: C4T17NH13A, Catalog No:102920.00 ..1/3HP..1725RPM.S56.TENV.208-
230/460V.3PH.60HZ.CONT.40C.1.15SF.RIGID.C4T17NH13A.....WP 56 to 48 Repl 110031.NOT.......
Nameplate Specifications
Output HP
Frequency 60 Hz Voltage 208-230/460 V
Current
Service Factor
Efficiency 77 % Duty Continuous
Insulation Class
KVA Code M Frame S56
Enclosure Totally Enclosed Non Ventilated Overload Protector No
Ambient Temperature
Opp Drive End Bearing Size 6203 UL Recognized
CSA
IP Code
0.33 Hp
1.3/0.65 A
1.15
B
40 °C
Y
43
Output KW
Speed
Phase
Design Code
Drive End Bearing Size
CE
0.25 kW
1725 rpm
3
B
6203
N
Technical Specifications
Electrical Type
Poles 4 Rotation Reversible
Squirrel Cage Induction Run
Starting Method
Across The Line
Mounting
Drive End Bearing BALL Opp Drive End Bearing BALL
Frame Material Rolled Steel Shaft Type T
Overall Length
Shaft Diameter 0.625 in Shaft Extension 1.88 in
Assembly/Box Mounting
Outline Drawing
Rigid base
9.56 in
F1 ONLY
031653-550
Motor Orientation
Frame Length
Connection Diagram
HORIZONTAL
5.50 in
005010.01
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 10/15/2018
2 of 5
7/3/2007 4:35:54 AM -
3 of 5
Uncontrolled Copy
4 of 5
Model No 102920.00
HZ
6/4/2018
1800
1800
Uncontrolled Copy
LEESON ELECTRIC CORPORATION
TYPICAL PERFORMANCE CURVE for AC MOTOR
Curve at 460 Volts HP 0.33
60 HZ
0.33 HP VOLTS 208-230/460
3
Catalog No 102920.00
60 70 80 90 100
EFF
60 70 80 90 100
PF
HP
60 RPM 1725
Eff −
−
−−
PF −
−
−−
HP −
−
−−
RPM −
−
−−
KW −
−
−−
Amps −
−
−−
1810 1820 1830 1840
0.3 0.35 0.4 0.45 0.5
RPM
0.3 0.35 0.4 0.45 0.5
KW
1810 1820 1830 18400.3 0.35 0.4 0.45 0.50.6 0.7 0.8 0.9 1
60 70 80 90 10060 70 80 90 1000.3 0.35 0.4 0.45 0.5
PF
HP
KW
EFF
RPM
AMPS
0 10 20 30 40 50
0 10 20 30 40 50
0 2 4 6 8 10 12 14 16 18 20
FL TORQUE 16 Oz.Ft FL AMPS 1.3/.65
BD TORQUE 90.4 Oz.Ft PU TORQUE 76.3 Oz.Ft
LR TORQUE 78.6 Oz.Ft LR AMPS 4.62
WINDING TE48462-3 Date
0 0.05 0.1 0.15 0.2 0.25
0 2 4 6 8 10 12 14 16 18 20
0 2 4 6 8 10 12 14 16 18 20
0 0.05 0.1 0.15 0.2 0.25
1740 1750 1760 1770 1780 1790
0 2 4 6 8 10 12 14 16 18 20
Torque
0 10 20 30 40 50
0 10 20 30 40 50
0 0.05 0.1 0.15 0.2 0.25
0 0.05 0.1 0.15 0.2 0.25
0 0.1 0.2 0.3 0.4 0.5
1740 1750 1760 1770 1780 1790
0 2 4 6 8 10 12 14 16 18 20
0 2 4 6 8 10 12 14 16 18 20
0 2 4 6 8 10 12 14 16 18 20
0 2 4 6 8 10 12 14 16 18 20
0 2 4 6 8 10 12 14 16 18 20
0 2 4 6 8 10 12 14 16 18 20
0 2 4 6 8 10 12 14 16 18 20
Torque
Torque
Torque
Torque
Torque
Torque
Torque
Torque
Torque
Torque
Torque in Oz.Ft
5 of 5
