PRODUCT INFORMATION PACKET
Model No: C4T17DC39C
Catalog No: 102200.00
Obsolete in the US, replaced by E119352.00 - 1/2HP..1725/1425RPM.S56C.DP.230/460V.3PH.60/50HZ.CONT.40C.1.25/1.25SF.ROUND.C4T17DC39C.....
WATTSAVER.AUTOMATIC.....37&.37kW...
Open Drip Proof (ODP)
Regal and Leeson are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 5
Product Information Packet: Model No: C4T17DC39C, Catalog No:102200.00 Obsolete in the US, replaced by E119352.00 - 1/2HP..1725/1425RPM.S56C.DP.230/460V.3PH.60/50HZ.CONT.40C.1.25/1.25SF.ROUND.C4T17DC39C.....WATTSA VER.AUTOMATIC.....37&.37kW...
Nameplate Specifications
Output HP |
0.50 Hp |
Output KW |
0.37 kW |
Frequency |
60 Hz |
Voltage |
230/460 V |
Current |
1.8/0.90 A |
Speed |
1725 rpm |
Service Factor |
1.25 |
Phase |
3 |
Efficiency |
77 % |
Duty |
Continuous |
Insulation Class |
F |
Design Code |
NO DESIGN CODE |
KVA Code |
M |
Frame |
S56 C |
Enclosure |
Drip Proof |
Overload Protector |
Automatic |
Ambient Temperature |
40 °C |
Drive End Bearing Size |
6203 |
Opp Drive End Bearing Size |
6203 |
UL |
Recognized |
CSA |
Y |
CE |
Y |
IP Code |
22 |
|
|
Technical Specifications
Electrical Type |
Squirrel Cage Induction Run |
Starting Method |
Across The Line |
Poles |
4 |
Rotation |
Reversible |
Mounting |
Round |
Motor Orientation |
HORIZONTAL |
Drive End Bearing |
BALL |
Opp Drive End Bearing |
BALL |
Frame Material |
Rolled Steel |
Shaft Type |
NEMA 56 |
Overall Length |
10.74 in |
Frame Length |
6.75 in |
Shaft Diameter |
0.625 in |
Shaft Extension |
1.88 in |
Assembly/Box Mounting |
F1 ONLY |
|
|
Outline Drawing |
031630-675 |

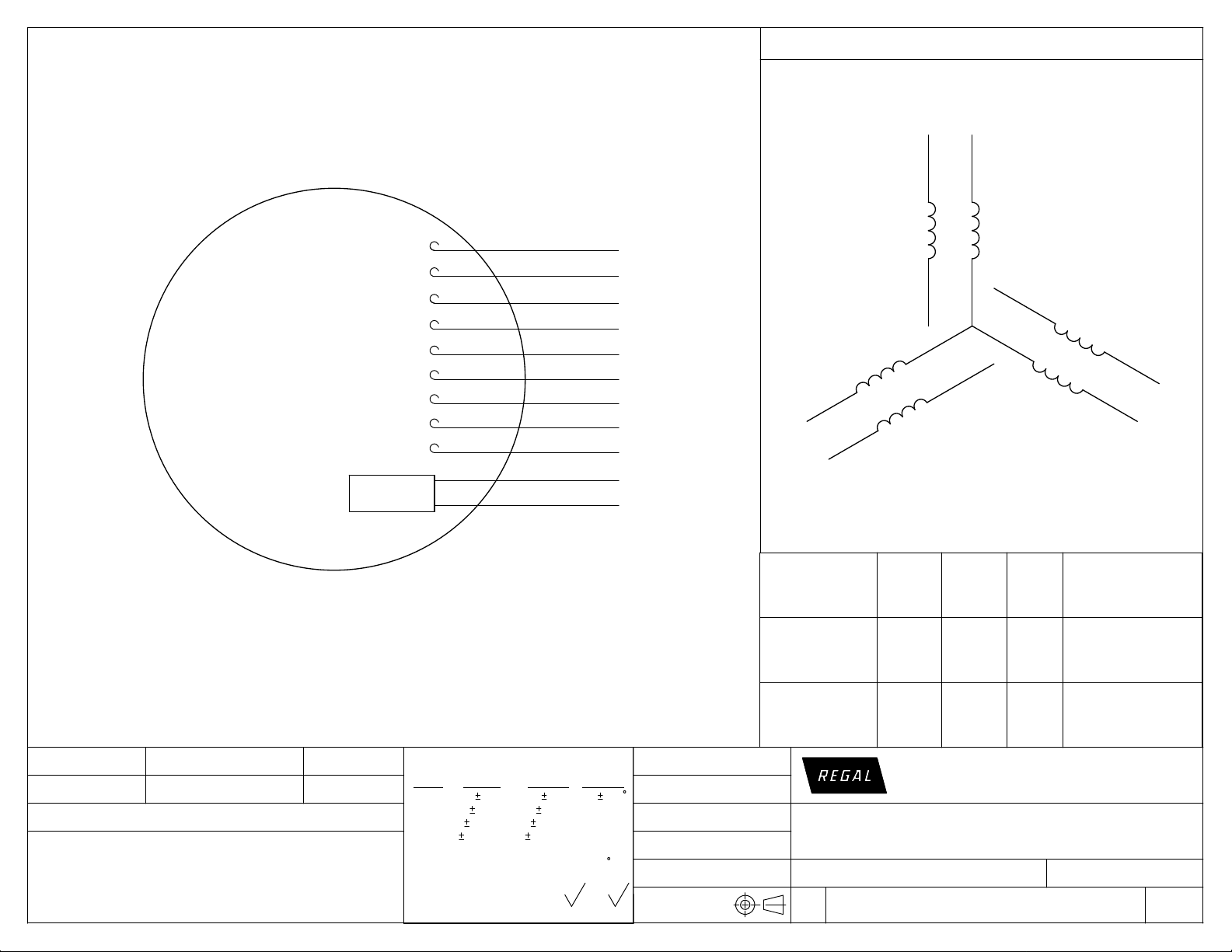

Connection Diagram |
005010.20 |
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 10/15/2018

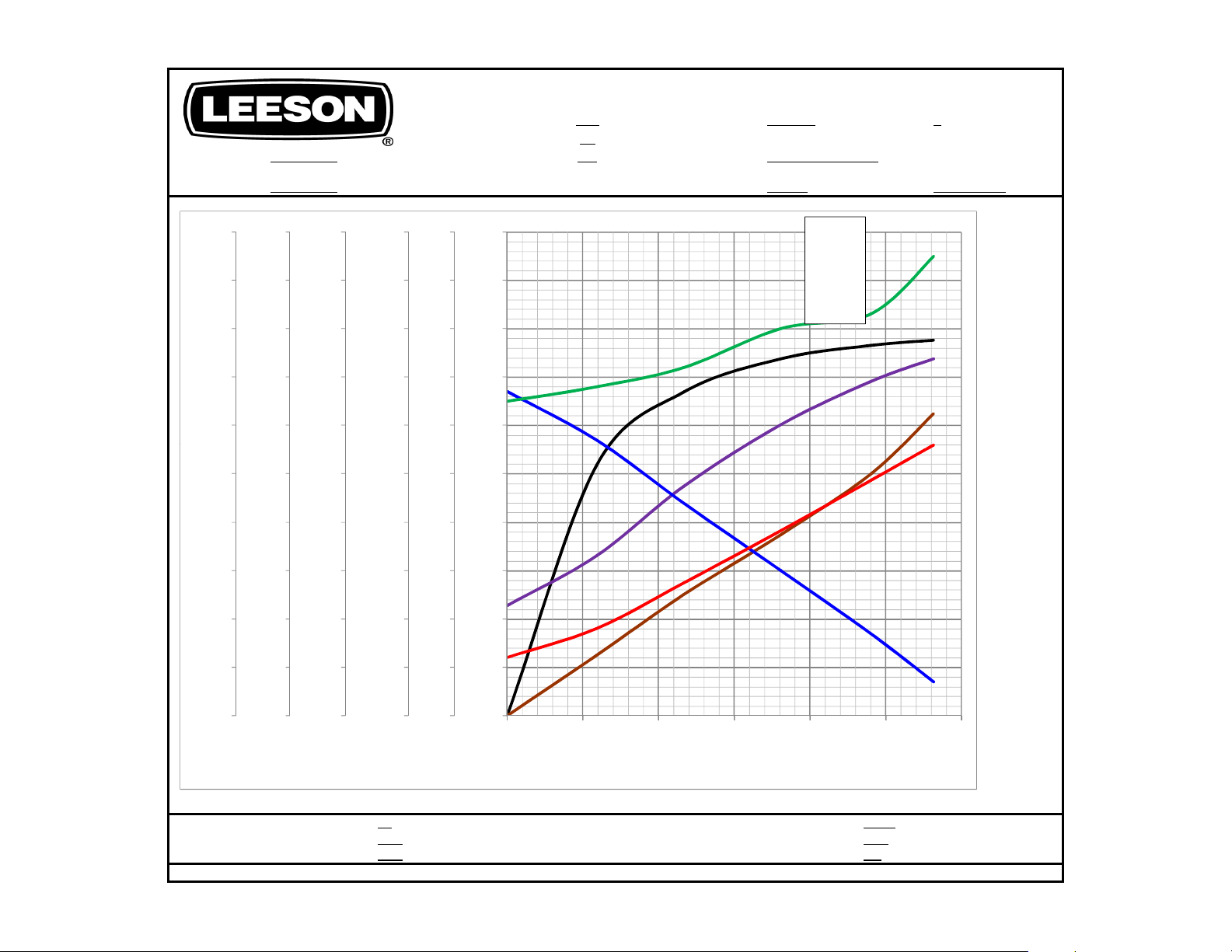

2 of 5
