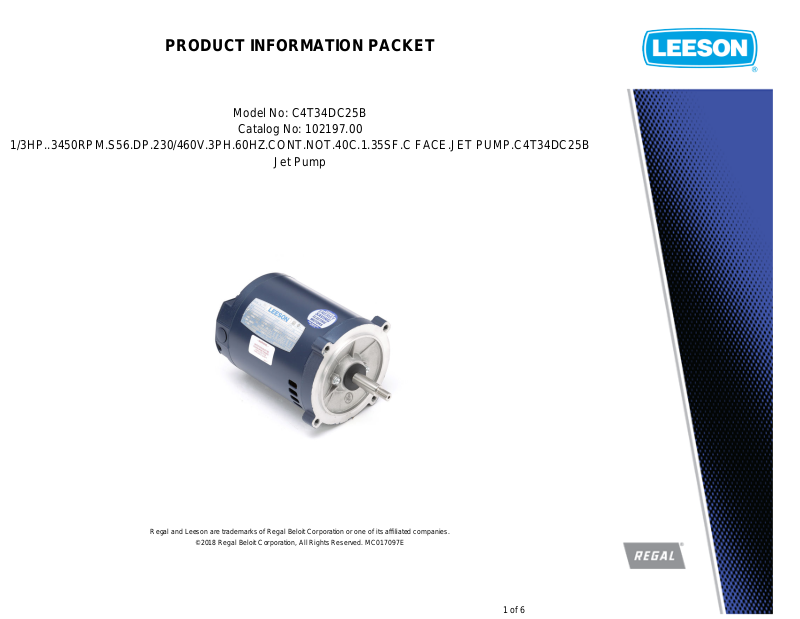

Page 1
PRODUCT INFORMATION PACKET
Model No: C4T34DC25B
Catalog No: 102197.00
1/3HP..3450RPM.S56.DP.230/460V.3PH.60HZ.CONT.NOT.40C.1.35SF.C FACE.JET PUMP.C4T34DC25B
Jet Pump
Regal and Leeson are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 6
Page 2
Product Information Packet: Model No: C4T34DC25B, Catalog No:102197.00
1/3HP..3450RPM.S56.DP.230/460V.3PH.60HZ.CONT.NOT.40C.1.35SF.C FACE.JET PUMP.C4T34DC25B
Nameplate Specifications
Output HP
Frequency 60 Hz Voltage 230/460 V
Current
Service Factor
Efficiency 68 % Duty Continuous
Insulation Class
KVA Code L Frame S56J
Enclosure Drip Proof Overload Protector No
Ambient Temperature
Opp Drive End Bearing Size 6203 UL Recognized
CSA
IP Code
0.33 Hp
1.4/0.70 A
1.35
B
40 °C
Y
22
Output KW
Speed
Phase
Design Code
Drive End Bearing Size
CE
0.25 kW
3450 rpm
3
NO DESIGN CODE
6203
N
Technical Specifications
Electrical Type
Poles 2 Rotation Reversible
Squirrel Cage Induction Run
Starting Method
Across The Line
Mounting
Drive End Bearing BALL Opp Drive End Bearing BALL
Frame Material Rolled Steel Shaft Type J
Overall Length
Shaft Diameter 0.625 in Shaft Extension 2.44 in
Assembly/Box Mounting
Outline Drawing
Round
9.69 in
F1/F2 CAPABLE
031799-500
Motor Orientation
Frame Length
Connection Diagram
HORIZONTAL
5.00 in
005010.01
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 10/15/2018
2 of 6
Page 3
7/3/2007 6:09:05 AM -
3 of 6
Page 4
ERROR: syntaxerror
OFFENDING COMMAND: --nostringval--
STACK:
/im
-savelevel-
4 of 6
Page 5
Uncontrolled Copy
5 of 6
Page 6
Curve at
Volts
HP
HZ
Model No
HP
VOLTS
Catalog No
102197.00
HZ 60RPM
3450
Torque in Oz.Ft
FL TORQUE
Oz.Ft
FL AMPS
BD TORQUE
Oz.Ft
PU TORQUE
Oz.Ft
LR TORQUE
26.4
Oz.Ft
LR AMPS
4.7
WINDING
T5526-3
Date
5/21/2018
Uncontrolled Copy
LEESON ELECTRIC CORPORATION
TYPICAL PERFORMANCE CURVE for AC MOTOR
460
60
102197.00 0.33
0.33
230/460
Eff −
−
−−
PF −
−
−−
HP −
−
−−
RPM −
−
−−
KW −
−
−−
Amps −
3
−
−−
60 70 80 90 100
EFF
0 10 20 30 40 50
60 70 80 90 100
PF
0 10 20 30 40 50
0 2 4 6 8 10 12 14
0.6 0.7 0.8 0.9 1
HP
RPM
0 0.1 0.2 0.3 0.4 0.5
0 2 4 6 8 10 12 14
0 2 4 6 8 10 12 14
8
34.8
0.6 0.7 0.8 0.9 1
3580 3600 3620 3640 3660
KW
0 0.1 0.2 0.3 0.4 0.5
3460 3480 3500 3520 3540 3560
0 2 4 6 8 10 12 14
Torque
60 70 80 90 10060 70 80 90 1000.6 0.7 0.8 0.9 13580 3600 3620 3640 36600.6 0.7 0.8 0.9 10.6 0.7 0.8 0.9 1
PF
HP
KW
EFF
RPM
AMPS
0 10 20 30 40 50
0 10 20 30 40 50
0 0.1 0.2 0.3 0.4 0.5
0 0.1 0.2 0.3 0.4 0.5
0 0.1 0.2 0.3 0.4 0.5
3460 3480 3500 3520 3540 3560
0 2 4 6 8 10 12 14
0 2 4 6 8 10 12 14
0 2 4 6 8 10 12 14
0 2 4 6 8 10 12 14
0 2 4 6 8 10 12 14
0 2 4 6 8 10 12 14
0 2 4 6 8 10 12 14
Torque
Torque
Torque
Torque
Torque
Torque
Torque
Torque
Torque
Torque
1.4/.7
23.1
6 of 6
