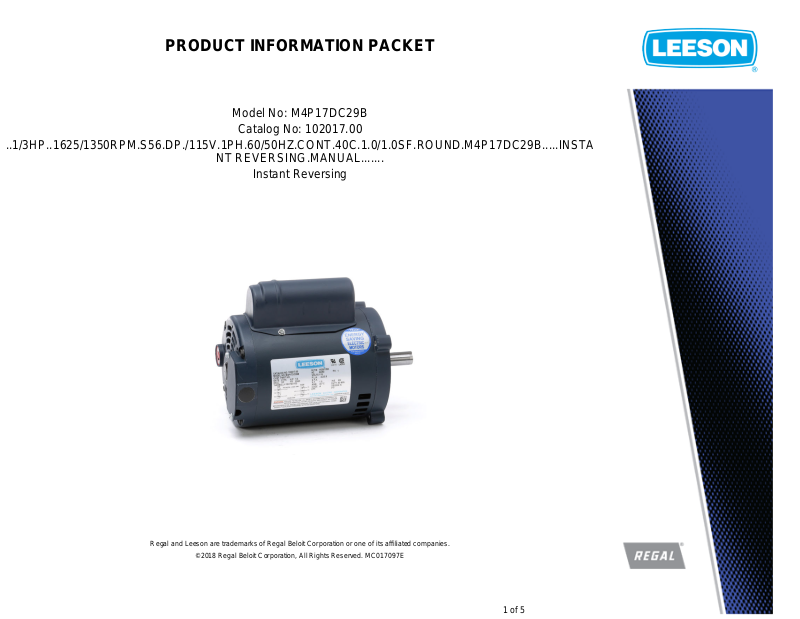

PRODUCT INFORMATION PACKET
Model No: M4P17DC29B
Catalog No: 102017.00
..1/3HP..1625/1350RPM.S56.DP./115V.1PH.60/50HZ.CONT.40C.1.0/1.0SF.ROUND.M4P17DC29B.....INSTA
NT REVERSING.MANUAL.......
Instant Reversing
Regal and Leeson are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 5
Product Information Packet: Model No: M4P17DC29B, Catalog No:102017.00
..1/3HP..1625/1350RPM.S56.DP./115V.1PH.60/50HZ.CONT.40C.1.0/1.0SF.ROUND.M4P17DC29B.....INSTANT
REVERSING.MANUAL.......
Nameplate Specifications
Output HP
Frequency 60 Hz Voltage 115 V
Current
Service Factor
Efficiency 53 % Duty 60 Minute
Insulation Class
KVA Code A Frame S56C
Enclosure Drip Proof Overload Protector Manual
Ambient Temperature
Opp Drive End Bearing Size 6203 UL Recognized
CSA
IP Code
0.33 Hp
4.2 A
1
B
40 °C
Y
22
Output KW
Speed
Phase
Design Code
Drive End Bearing Size
CE
0.25 kW
1625 rpm
1
N
6203
N
Technical Specifications
Electrical Type
Poles 4 Rotation Selective Counterclockwise
Permanent Split Capacitor
Starting Method
Across The Line
Mounting
Drive End Bearing BALL Opp Drive End Bearing BALL
Frame Material Rolled Steel Shaft Type NEMA 56
Overall Length
Shaft Diameter 0.625 in Shaft Extension 1.88 in
Assembly/Box Mounting
Outline Drawing
Round
9.99 in
F1 ONLY
031777-600
Motor Orientation
Frame Length

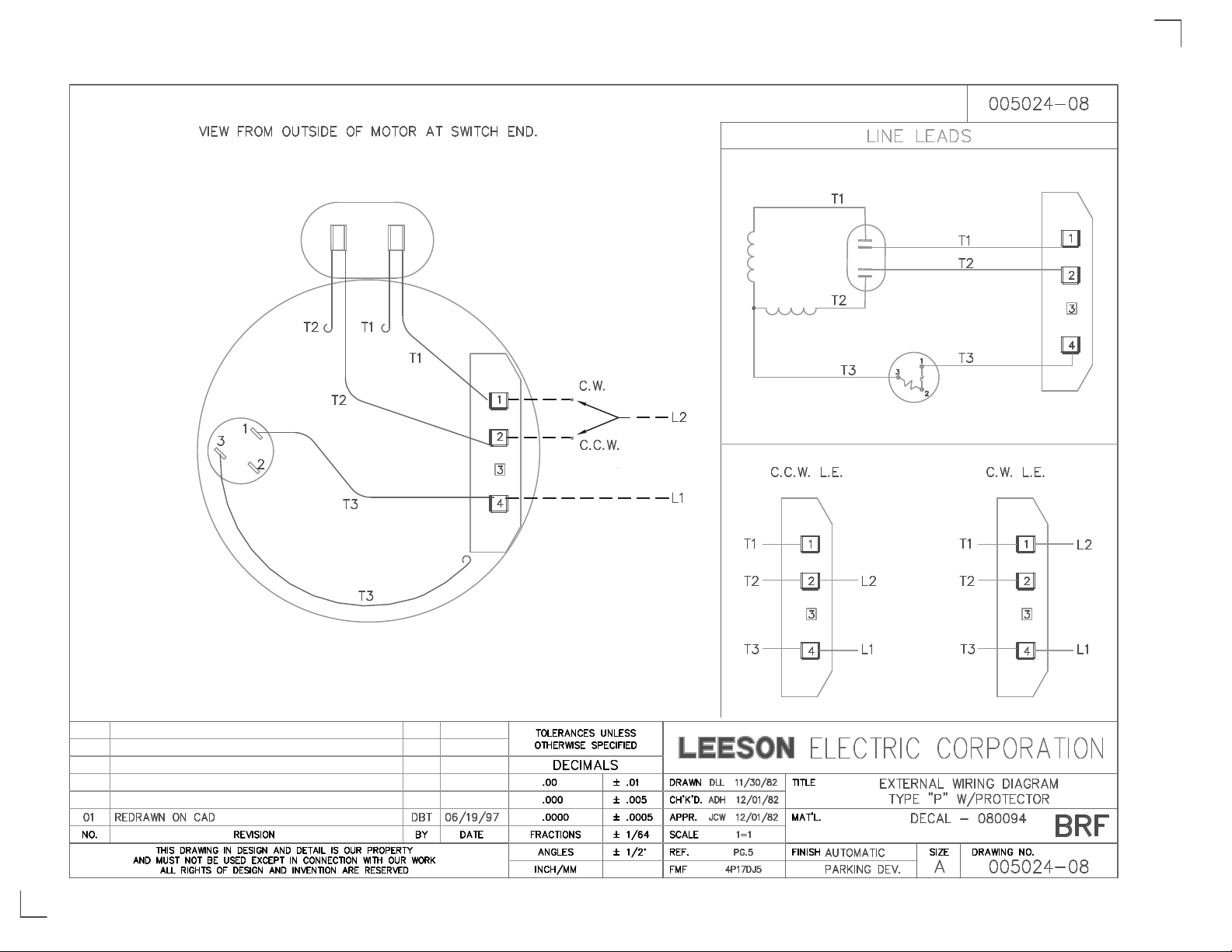

Connection Diagram
HORIZONTAL
6.00 in
005024.08
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 10/15/2018
2 of 5
Uncontrolled Copy
3 of 5
9/25/2008 4:32:07 PM
4 of 5
Curve at
Volts
HP
HZ
Model No
HP
VOLTS
Catalog No
102017.00
HZ 60RPM
1625
Torque in Oz.Ft
FL TORQUE
Oz.Ft
FL AMPS
BD TORQUE
Oz.Ft
PU TORQUE
Oz.Ft
LR TORQUE
28.6
Oz.Ft
LR AMPS
8.9
WINDING
PE484452-1
Date
3/22/2018
Uncontrolled Copy
LEESON ELECTRIC CORPORATION
TYPICAL PERFORMANCE CURVE for AC MOTOR
115
60
102017.00 0.33
0.34
115
Eff −
−
−−
PF −
−
−−
HP −
−
−−
RPM −
−
−−
KW −
−
−−
Amps −
1
−
−−
60 70 80 90 100
EFF
0 10 20 30 40 50
150 160 170 180 190
PF
90 100 110 120 130 140
0 2 4 6 8 10 12 14 16 18
0.3 0.35 0.4 0.45 0.5
HP
RPM
0 0.05 0.1 0.15 0.2 0.25
0 2 4 6 8 10 12 14 16 18
0 2 4 6 8 10 12 14 16 18
17
37.3
0.3 0.35 0.4 0.45 0.5
1760 1780 1800 1820 1840
KW
0 0.05 0.1 0.15 0.2 0.25
1640 1660 1680 1700 1720 1740
0 2 4 6 8 10 12 14 16 18
Torque
60 70 80 90 100150 160 170 180 1900.3 0.35 0.4 0.45 0.51760 1780 1800 1820 18400.3 0.35 0.4 0.45 0.53 3.5 4 4.5 5
PF
HP
KW
EFF
RPM
AMPS
0 10 20 30 40 50
0 0.05 0.1 0.15 0.2 0.25
0 0.05 0.1 0.15 0.2 0.25
0 0.5 1 1.5 2 2.5
90 100 110 120 130 140
1640 1660 1680 1700 1720 1740
0 2 4 6 8 10 12 14 16 18
0 2 4 6 8 10 12 14 16 18
0 2 4 6 8 10 12 14 16 18
0 2 4 6 8 10 12 14 16 18
0 2 4 6 8 10 12 14 16 18
0 2 4 6 8 10 12 14 16 18
0 2 4 6 8 10 12 14 16 18
Torque
Torque
Torque
Torque
Torque
Torque
Torque
Torque
Torque
Torque
4.2
27.8
5 of 5
