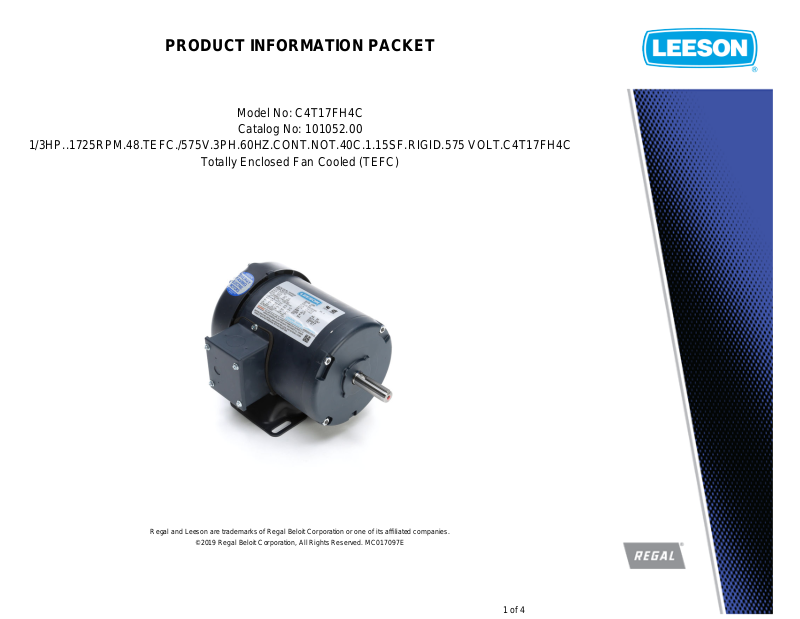

Leeson 101052.00 Product Information Packet

PRODUCT INFORMATION PACKET

Model No: C4T17FH4C

Catalog No: 101052.00

1/3HP..1725RPM.48.TEFC./575V.3PH.60HZ.CONT.NOT.40C.1.15SF.RIGID.575 VOLT.C4T17FH4C

Totally Enclosed Fan Cooled (TEFC)

Regal and Leeson are trademarks of Regal Beloit Corporation or one of its affiliated companies.

©2019 Regal Beloit Corporation, All Rights Reserved. MC017097E

1 of 4

Product Information Packet: Model No: C4T17FH4C, Catalog No:101052.00
1/3HP..1725RPM.48.TEFC./575V.3PH.60HZ.CONT.NOT.40C.1.15SF.RIGID.575 VOLT.C4T17FH4C

Nameplate Specifications

Output HP
Frequency 60 Hz Voltage 575 V
Current
Service Factor
Efficiency 64.3 % Duty Continuous
Insulation Class
KVA Code M Frame S56
Enclosure Totally Enclosed Fan Cooled Overload Protector No
Ambient Temperature
Opp Drive End Bearing Size 6203 UL Recognized
CSA
IP Code

0.33 Hp

0.64 A

1.15

B

40 °C

Y
43

Output KW

Speed
Phase

Design Code

Drive End Bearing Size

CE

0.25 kW

1725 rpm
3

B

6203

N

Technical Specifications

Electrical Type
Poles 4 Rotation Reversible

Squirrel Cage Induction Run

Starting Method

Across The Line

Mounting
Drive End Bearing Ball Opp Drive End Bearing Ball
Frame Material Rolled Steel Shaft Type NEMA 56
Overall Length
Shaft Extension 1.875 in Assembly/Box Mounting F1 ONLY
Outline Drawing

Rigid base

9.69 in

031632-500

Motor Orientation

Shaft Diameter

Connection Diagram

Horizontal

0.625 in

005102.01

This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 02/14/2019

2 of 4
