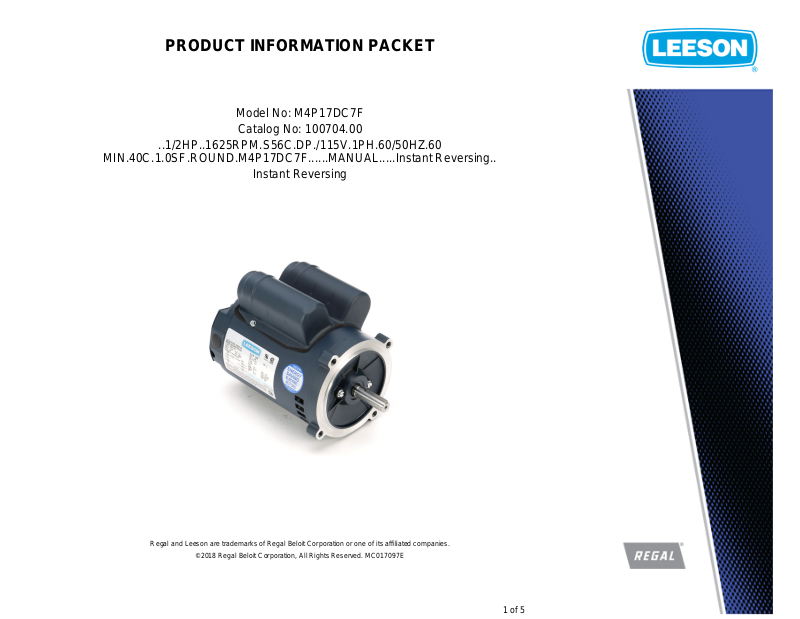

PRODUCT INFORMATION PACKET
Model No: M4P17DC7F
Catalog No: 100704.00
..1/2HP..1625RPM.S56C.DP./115V.1PH.60/50HZ.60
MIN.40C.1.0SF.ROUND.M4P17DC7F......MANUAL.....Instant Reversing..
Instant Reversing
Regal and Leeson are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 5
Page 2
Product Information Packet: Model No: M4P17DC7F, Catalog No:100704.00
..1/2HP..1625RPM.S56C.DP./115V.1PH.60/50HZ.60 MIN.40C.1.0SF.ROUND.M4P17DC7F......MANUAL.....Instant
Reversing..
Nameplate Specifications
Output HP
Frequency 60 Hz Voltage 115 V
Current
Service Factor
Efficiency 63.7 % Duty 60 Minute
Insulation Class
KVA Code A Frame 56C
Enclosure Drip Proof Overload Protector Manual
Ambient Temperature
Opp Drive End Bearing Size 6203 UL Recognized
CSA
IP Code
0.50 Hp
5.1 A
1
B
40 °C
Y
22
Output KW
Speed
Phase
Design Code
Drive End Bearing Size
CE
0.37 kW
1625 rpm
1
N
6203
N
Technical Specifications
Electrical Type
Poles 4 Rotation Selective Counterclockwise
Permanent Split Capacitor
Starting Method
Across The Line
Mounting
Drive End Bearing BALL Opp Drive End Bearing BALL
Frame Material Rolled Steel Shaft Type NEMA 56
Overall Length
Shaft Diameter 0.625 in Shaft Extension 1.88 in
Assembly/Box Mounting
Outline Drawing
Round
10.24 in
F1 ONLY
032130-625
Motor Orientation
Frame Length
Connection Diagram
HORIZONTAL
6.25 in
005024.08
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 10/15/2018
2 of 5
Page 3
Regal Beloit America, Inc.
TM
COPYRIGHT REGAL BELOIT AMERICA, INC. ALL RIGHTS RESERVED.
PROPRIETARY AND CONFIDENTIAL INFORMATION - THIS DOCUMENT IS THE PROPERTY OF
REGAL BELOIT AMERICA, INC. ("OWNER") AND CONTAINS OWNER'S PROPRIETARY
INFORMATION. ANY PERSON, CORPORATION OR OTHER FIRM RECEIVING I T IS DEEMED,
BY RECEIVING IT, TO AGREE THAT IT, AND/OR ANY PART OF IT, SHALL NOT BE DISCLOSED
TO ANY PERSON, CORPORATION OR OTHER ENTITY, DUPLICATED, A ND/ OR USED, EXCEPT
AS EXPRESSLY APPROVED IN WRITING IN ADVANCE BY OWNER. THIS DOCUMENT SHALL
BE RETURNED TO OWNER UPON REQUEST. IT MAY BE SUBJECT TO CERTAIN
RESTRICTIONS UNDER APPLICABLE EXPORT CONTROL LAWS AND REGULATIONS.
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
DEC.
INCH mm ANGLE
.X 0.1 [ 2.5] 0.5
.XX 0.03 [ 0.76]
.XXX 0.005 [ 0.127]
.XXXX 0.0005 [ 0.0127]
REMOVE BURRS & BREAK SHARP
EDGES: .003/.015 [.076/.381] X 45
CORNER FILLETS: R.02 [.51]
MACHINED SURFACES:
125 3.2
INCH mm
mm SHOWN IN [BRACKETS]
12
43
A
B
2
43
1
A
B
ECO DESCRIPTION
DATEAPPROVED BY
DATEREVISION BY
ECO
DRAWING REVISION
REFERENCE
MATERIAL
SHEET
DRAWING NUMBERSIZE
DESCRIPTION
THIRD ANGLE
PROJECTION
DRAWN BY
DATE
DATE
APPROVED BY
PROCESS/FINISH
B
1 OF 1
032130
A SUPPANNAVAR
08/31/2018
JD
09/19/2018
A
ECO-0152983
OUTLINE CONVERSION PROJECT
OUTLINE
031643
S56C FRAME "C" FACE MOUNT-DRIP PROOF
DASH NO "C" "AD"
625 10.24 [260.09] 7.50 [190.50]
2.06
52.34
1.94
49.29
1.875
47.625
1.41
35.81
FULL
DEPTH
4.500
4.497
114.300
114.224
.6250
.6245
15.8750
15.8623
"C" .06
[1.52]
"AD"
.12
3.05
.07
1.67
1/2-14 NPT
CONDUIT HOLE
(PLUGGED)
.19 [4.83] SQ
X 1.38 [35.05]
KEY.
.002 H
.004 H
.004 H
5.62
142.74
45° 45°
7.66
194.46
3/8-16 UNC 2B TAP X .56 [14.22] DEEP
(4) REQ'D ON A 5.875 [149.225] B.C
H
Regal Beloit America, Inc.
TM
COPYRIGHT REGAL BELOIT AMERICA, INC. ALL RIGHTS RESERVED.
PROPRIETARY AND CONFIDENTIAL INFORMATION - THIS DOCUMENT IS THE PROPERTY OF
REGAL BELOIT AMERICA, INC. ("OWNER") AND CONTAINS OWNER'S PROPRIETARY
INFORMATION. ANY PERSON, CORPORATION OR OTHER FIRM RECEIVING I T IS DEEMED,
BY RECEIVING IT, TO AGREE THAT IT, AND/OR ANY PART OF IT, SHALL NOT BE DISCLOSED
TO ANY PERSON, CORPORATION OR OTHER ENTITY, DUPLICATED, A ND/ OR USED, EXCEPT
AS EXPRESSLY APPROVED IN WRITING IN ADVANCE BY OWNER. THIS DOCUMENT SHALL
BE RETURNED TO OWNER UPON REQUEST. IT MAY BE SUBJECT TO CERTAIN
RESTRICTIONS UNDER APPLICABLE EXPORT CONTROL LAWS AND REGULATIONS.
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
DEC.
INCH mm ANGLE
.X 0.1 [ 2.5] 0.5
.XX 0.03 [ 0.76]
.XXX 0.005 [ 0.127]
.XXXX 0.0005 [ 0.0127]
REMOVE BURRS & BREAK SHARP
EDGES: .003/.015 [.076/.381] X 45
CORNER FILLETS: R.02 [.51]
MACHINED SURFACES:
125 3.2
INCH mm
mm SHOWN IN [BRACKETS]
12
43
A
B
2
43
1
A
B
ECO DESCRIPTION
DATEAPPROVED BY
DATEREVISION BY
ECO
DRAWING REVISION
REFERENCE
MATERIAL
SHEET
DRAWING NUMBERSIZE
DESCRIPTION
THIRD ANGLE
PROJECTION
DRAWN BY
DATE
DATE
APPROVED BY
PROCESS/FINISH
B
1 OF 1
032130
A SUPPANNAVAR
08/31/2018
JD
09/19/2018
A
ECO-0152983
OUTLINE CONVERSION PROJECT
OUTLINE
031643
S56C FRAME "C" FACE MOUNT-DRIP PROOF
DASH NO "C" "AD"
625 10.24 [260.09] 7.50 [190.50]
Uncontrolled Copy
3 of 5
Page 4
9/25/2008 4:32:07 PM
4 of 5
Page 5
Curve at
Volts
HP
HZ
Model No
HP
VOLTS
Catalog No
100704.00
HZ 60RPM
1625
Torque in Oz.Ft
FL TORQUE
Oz.Ft
FL AMPS
BD TORQUE
Oz.Ft
PU TORQUE
Oz.Ft
LR TORQUE
28.62
Oz.Ft
LR AMPS
8.86
WINDING
PE484452-1
Date
3/27/2018
Uncontrolled Copy
LEESON ELECTRIC CORPORATION
TYPICAL PERFORMANCE CURVE for AC MOTOR
115
60
100704.00 0.5
0.50
115
Eff −
−
−−
PF −
−
−−
HP −
−
−−
RPM −
−
−−
KW −
−
−−
Amps −
1
−
−−
60 70 80 90 100
EFF
0 10 20 30 40 50
140 150 160 170 180
PF
80 90 100 110 120 130
0 2 4 6 8 10 12 14 16 18
0.6 0.7 0.8 0.9 1
HP
RPM
0 0.1 0.2 0.3 0.4 0.5
0 2 4 6 8 10 12 14 16 18
0 2 4 6 8 10 12 14 16 18
16.98
37.3
0.3 0.35 0.4 0.45 0.5
1760 1780 1800 1820 1840
KW
0 0.05 0.1 0.15 0.2 0.25
1640 1660 1680 1700 1720 1740
0 2 4 6 8 10 12 14 16 18
Torque
60 70 80 90 100140 150 160 170 1800.6 0.7 0.8 0.9 11760 1780 1800 1820 18400.3 0.35 0.4 0.45 0.53 3.5 4 4.5 5
PF
HP
KW
EFF
RPM
AMPS
0 10 20 30 40 50
0 0.1 0.2 0.3 0.4 0.5
0 0.05 0.1 0.15 0.2 0.25
0 0.5 1 1.5 2 2.5
80 90 100 110 120 130
1640 1660 1680 1700 1720 1740
0 2 4 6 8 10 12 14 16 18
0 2 4 6 8 10 12 14 16 18
0 2 4 6 8 10 12 14 16 18
0 2 4 6 8 10 12 14 16 18
0 2 4 6 8 10 12 14 16 18
0 2 4 6 8 10 12 14 16 18
0 2 4 6 8 10 12 14 16 18
Torque
Torque
Torque
Torque
Torque
Torque
Torque
Torque
Torque
Torque
5.1
27.9
5 of 5
