PRODUCT INFORMATION PACKET
Model No: C4T34DK1E
Catalog No: 100600.00
Obsolete in the US, replaced by E100600.00 -
1/2HP..3450/2850RPM.S56C.DP.230/460V.3PH.60/50HZ.CONT.40C.1.25/1.25SF.RIGID
C.C4T34DK1E.....GENERAL PURPOSE.NOT.......
Open Drip Proof (ODP)
Regal and Leeson are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 5
Page 2
Product Information Packet: Model No: C4T34DK1E, Catalog No:100600.00 Obsolete in the US, replaced by
E100600.00 - 1/2HP..3450/2850RPM.S56C.DP.230/460V.3PH.60/50HZ.CONT.40C.1.25/1.25SF.RIGID
C.C4T34DK1E.....GENERAL PURPOSE.NOT.......
Nameplate Specifications
Output HP
Frequency 60 Hz Voltage 208-230/460 V
Current
Service Factor
Efficiency 73.4 % Duty Continuous
Insulation Class
KVA Code L Frame S56C
Enclosure Drip Proof Overload Protector No
Ambient Temperature
Opp Drive End Bearing Size 6203 UL Recognized
CSA
IP Code
0.50 Hp
1.7-1.8/0.90 A
1.25
B
40 °C
Y
22
Output KW
Speed
Phase
Design Code
Drive End Bearing Size
CE
0.37 kW
3450 rpm
3
NO DESIGN CODE
6203
N
Technical Specifications
Electrical Type
Poles 2 Rotation Reversible
Squirrel Cage Induction Run
Starting Method
Across The Line
Mounting
Drive End Bearing BALL Opp Drive End Bearing BALL
Frame Material Rolled Steel Shaft Type NEMA 56
Overall Length
Shaft Diameter 0.625 in Shaft Extension 1.88 in
Assembly/Box Mounting
Outline Drawing
Rigid base
9.24 in
F1 ONLY
031800-525
Motor Orientation
Frame Length
Connection Diagram
HORIZONTAL
5.25 in
005010.01
This is an uncontrolled document once printed or downloaded and is subject to change without notice. Date Created: 10/15/2018
2 of 5
Page 3
9/26/2008 1:28:49 PM
3 of 5
Page 4
Uncontrolled Copy
4 of 5
Page 5
Curve at
Volts
HP
HZ
Model No
HP
VOLTS
Catalog No
100600.00
HZ
60&50
RPM
3450&2850
Torque in Oz.Ft
FL TORQUE
Oz.Ft
FL AMPS
BD TORQUE
Oz.Ft
PU TORQUE
Oz.Ft
LR TORQUE
38.7
Oz.Ft
LR AMPS
6.41
WINDING
T55221-3
Date
5/29/2018
Uncontrolled Copy
LEESON ELECTRIC CORPORATION

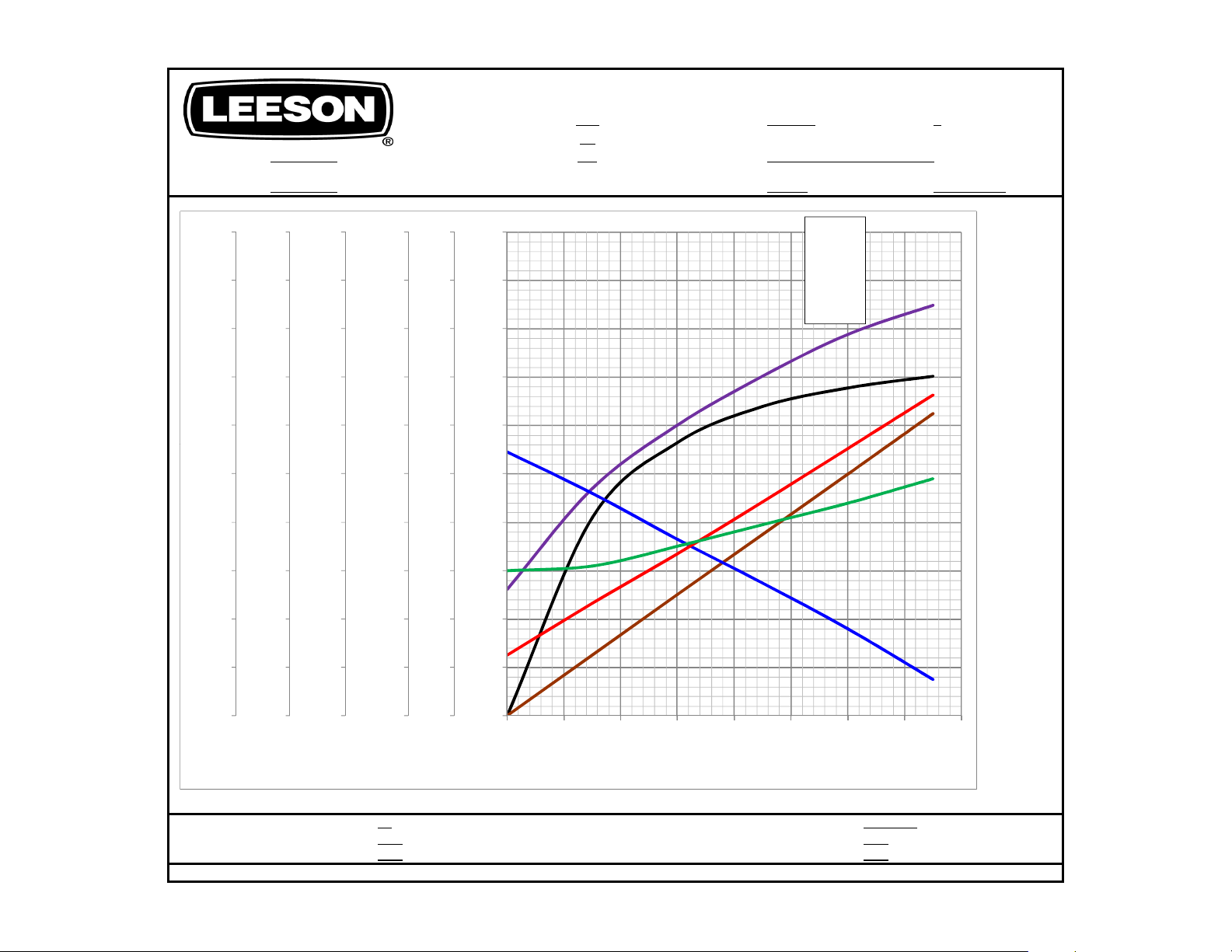

TYPICAL PERFORMANCE CURVE for AC MOTOR
460
60
100600.00 0.5
0.5&0.5
208-230/460&208-230/460
Eff −
−
−−
PF −
−
−−
HP −
−
−−
RPM −
−
−−
KW −
−
−−
Amps −
−
−−
3
60 70 80 90 100
EFF
0 10 20 30 40 50
60 70 80 90 100
PF
0 10 20 30 40 50
0 2 4 6 8 10 12 14 16
0.6 0.7 0.8 0.9 1
HP
RPM
0 0.1 0.2 0.3 0.4 0.5
0 2 4 6 8 10 12 14 16
0 2 4 6 8 10 12 14 16
12
62.7
0.6 0.7 0.8 0.9 1
3600 3620 3640 3660 3680
KW
0 0.1 0.2 0.3 0.4 0.5
3480 3500 3520 3540 3560 3580
0 2 4 6 8 10 12 14 16
Torque
60 70 80 90 10060 70 80 90 1000.6 0.7 0.8 0.9 13600 3620 3640 3660 36800.6 0.7 0.8 0.9 11.2 1.4 1.6 1.8 2
PF
HP
KW
EFF
RPM
AMPS
0 10 20 30 40 50
0 10 20 30 40 50
0 0.1 0.2 0.3 0.4 0.5
0 0.1 0.2 0.3 0.4 0.5
0 0.2 0.4 0.6 0.8 1
3480 3500 3520 3540 3560 3580
0 2 4 6 8 10 12 14 16
0 2 4 6 8 10 12 14 16
0 2 4 6 8 10 12 14 16
0 2 4 6 8 10 12 14 16
0 2 4 6 8 10 12 14 16
0 2 4 6 8 10 12 14 16
0 2 4 6 8 10 12 14 16
Torque
Torque
Torque
Torque
Torque
Torque
Torque
Torque
Torque
Torque
1.7-1.8/.9
36.0
5 of 5
