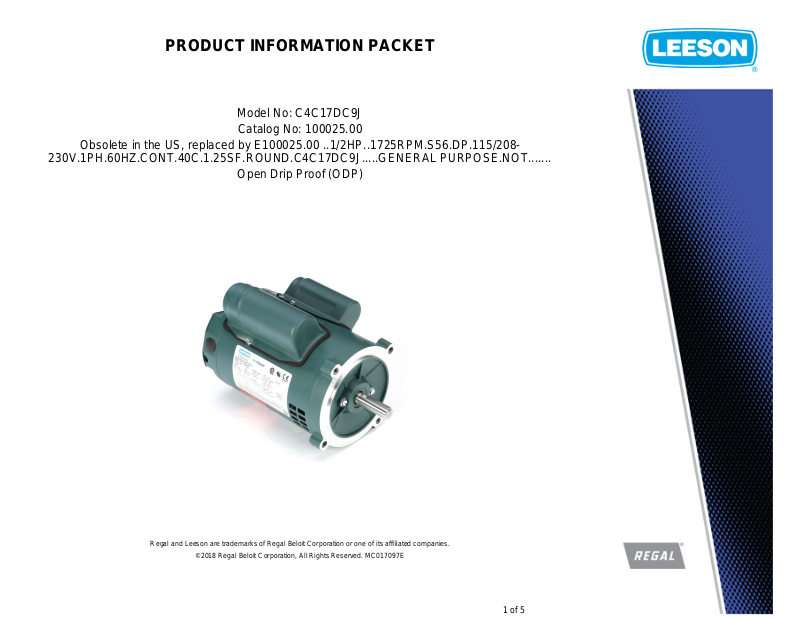

Leeson 100025.00 PRODUCT INFORMATION PACKET
PRODUCT INFORMATION PACKET
Model No: C4C17DC9J
Catalog No: 100025.00
Obsolete in the US, replaced by E100025.00 ..1/2HP..1725RPM.S56.DP.115/208-
230V.1PH.60HZ.CONT.40C.1.25SF.ROUND.C4C17DC9J.....GENERAL PURPOSE.NOT.......
Open Drip Proof (ODP)
Regal and Leeson are trademarks of Regal Beloit Corporation or one of its affiliated companies.
©2018 Regal Beloit Corporation, All Rights Reserved. MC017097E
1 of 5
Product Information Packet: Model No: C4C17DC9J, Catalog No:100025.00 Obsolete in the US, replaced by
E100025.00 ..1/2HP..1725RPM.S56.DP.115/208-
230V.1PH.60HZ.CONT.40C.1.25SF.ROUND.C4C17DC9J.....GENERAL PURPOSE.NOT.......
Nameplate Specifications
Output HP
Frequency 60 Hz Voltage 115/208-230 V
Current
Service Factor
Efficiency 62 % Duty Continuous
Insulation Class
KVA Code K Frame S56C
Enclosure Drip Proof Overload Protector No
Ambient Temperature
Opp Drive End Bearing Size 6203 UL Recognized
CSA
IP Code
0.50 Hp
8.8/4.0-4.4 A
1.25
B
40 °C
Y
22
Output KW
Speed
Phase
Design Code
Drive End Bearing Size
CE
0.37 kW
1725 rpm
1
N
6203
N
Technical Specifications
Electrical Type
Poles 4 Rotation Selective Counterclockwise
Capacitor Start Induction Run
Starting Method
Across The Line
Mounting
Drive End Bearing BALL Opp Drive End Bearing BALL
Frame Material Rolled Steel Shaft Type NEMA 56
Overall Length
Shaft Diameter 0.625 in Shaft Extension 1.88 in
Assembly/Box Mounting
Outline Drawing
Round
9.99 in
F1 ONLY
031628-600
Motor Orientation
Frame Length

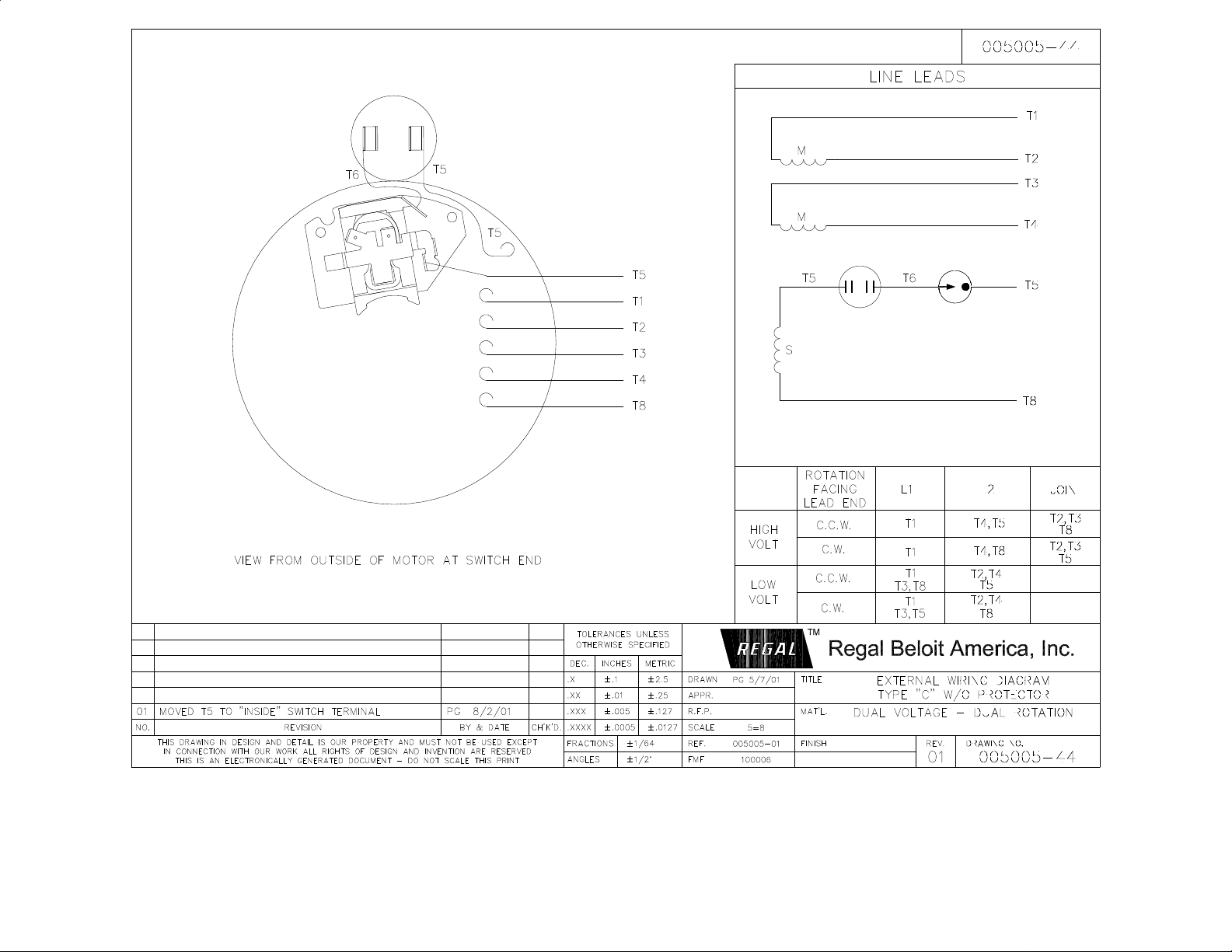

Connection Diagram
HORIZONTAL
6.00 in
005005.44
