Leer SR 250 User Manual

Page 1

WITH LEER’S EXCLUSIVE

INSTALLATION INSTRUCTIONS &

OWNER’S MANUAL

Thank you for purchasing the LEERR SR 250 soft rolling tonneau cover. At LEER, we looked at ways to make it better, front to back and inside out. We engineered components with new innovations at every

point including our CYNC™ latching system (patented). The result is a soft rolling cover that’s unlike any

cover on the road today.

NOTICE TO INSTALLER: It is recommended you take time to read these instructions before installing the cover even if already familiar with the product. Improvements are often made without prior notice. Always handle the cover and components with care to avoid damage. If you find a part missing or defective, or if you have trouble installing this product, please have the model number ready (located on a tag under the first panel) and call your dealer. When done, these instructions and warranty information must be given to the customer to keep.

NOTICE TO CUSTOMER: Before using this product, read the operating instructions, maintenance and

safety sections of this owner’s manual and save for future reference. Your new LEER tonneau must be

registered to make the warranty valid. Registration information can be found on the back page.

FOR YOUR RECORDS

Patented and Patent Pending see LEER.com

DATE PURCHASED:___________________________________ SERIAL NUMBER:_____________________________________ LEER RETAILER:______________________________________

Page 2

TABLE OF CONTENTS

Master Carton Components ...................................................................... 2

Hardware Box Contents .............................................................................. 2

Pre-Preparaon .......................................................................................... 3

Installing Rail System .................................................................................. 3

Installing Clamps ........................................................................................ 3

Installing Cover ........................................................................................... 4-5

Adjusng for Tautness (If Needed) ............................................................. 5

Replacement Parts ..................................................................................... 6-7

Warranty Policy…... .................................................................................... 8

Unpack components and inspect for missing or damaged components.

Open the truck’s tailgate and clean truck bed if dirty.

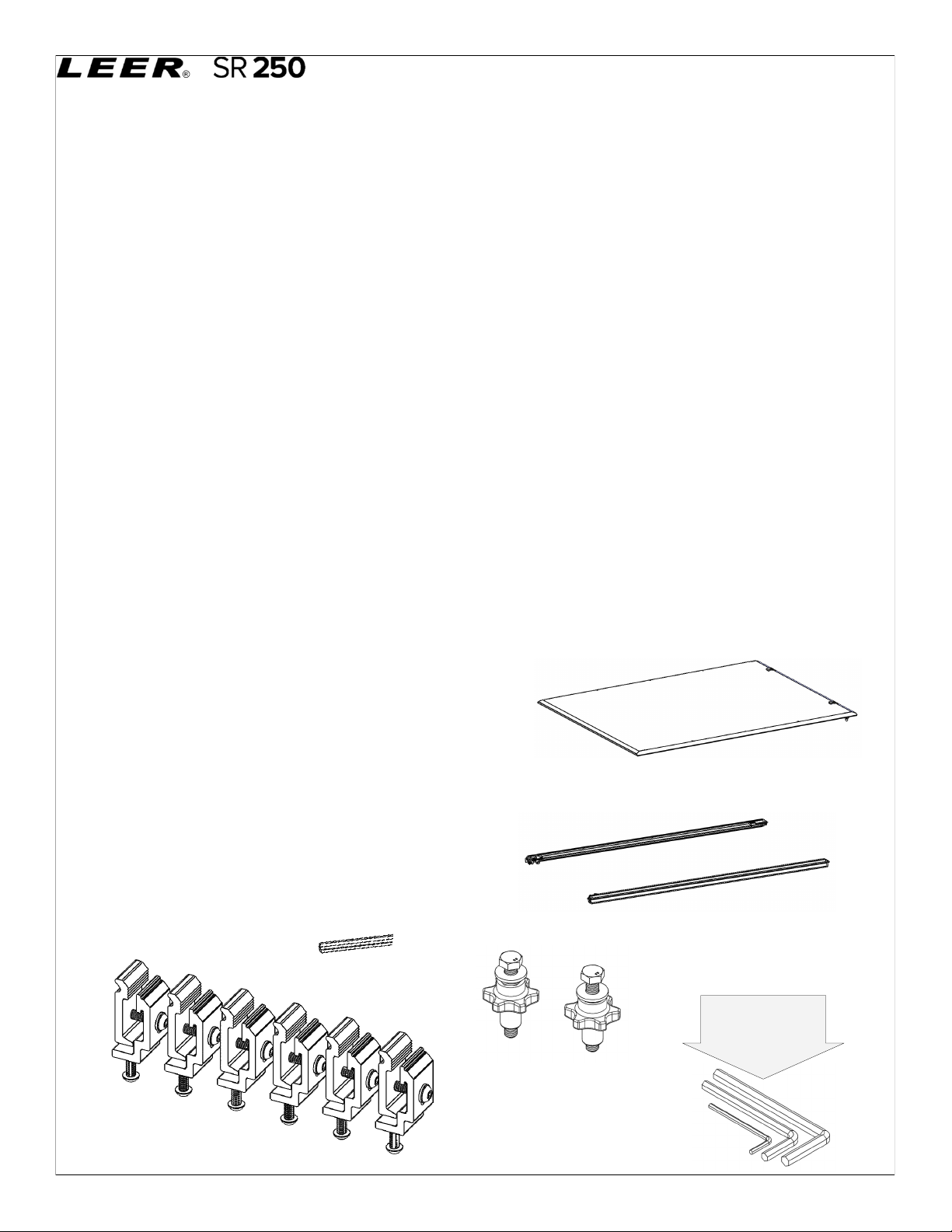

MASTER CARTON COMPONENTS

- 1 SOFT COVER ASSEMBLY

- 1 HARDWARE PACKAGE (See Details Below)

- 1 EACH LEFT HAND RAIL

- 1 EACH RIGHT HAND RAIL

- 1 EACH BULKHEAD SEAL

HARDWARE BOX CONTENTS

- 6 EACH CLAMP ASSEMBLY (STYLE VARIES PER CLAMP KIT)

- 2 EACH FRONT CROSSBAR HOLD DOWN

- 1 EACH 2.5MM ALLEN WRENCH

- 1 EACH 5MM ALLEN WRENCH

- 1 EACH 6MM ALLEN WRENCH

Patented and Patent Pending see LEER.com

TOOLS

INCLUDED

Page 3

INSTALLATION INSTRUCTIONS

PRE-PREPARATION INSTALLING RAIL SYSTEM

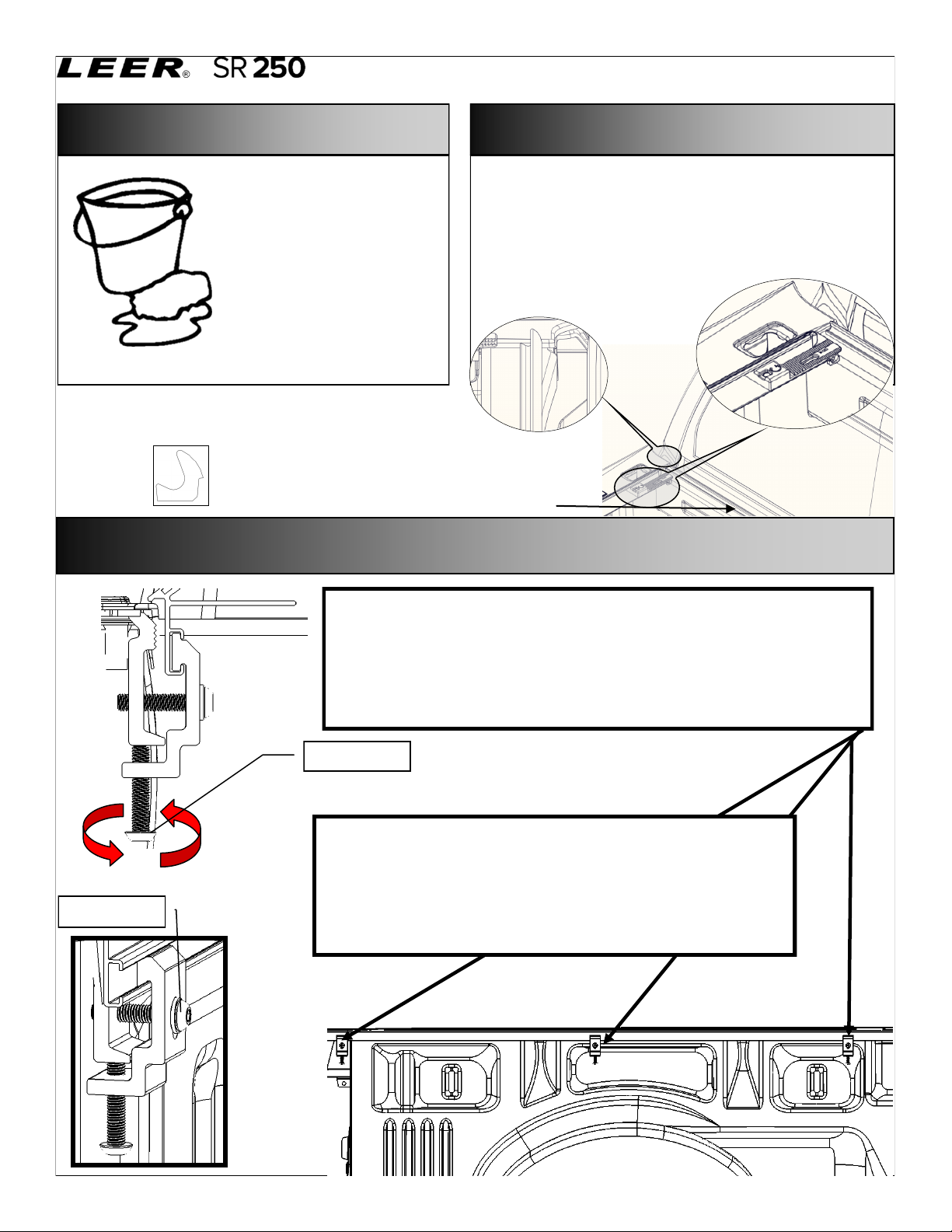

WASH TRUCK BOX

IF DIRTY

INSTALL BULKHEAD SEAL ON TRUCK

BULKHEAD IN LOCATION SHOWN

INSTALLING CLAMPS

STEP 1: USE THESE THREE LOCATIONS TO PLACE CLAMP IN-

SIDE BED CHANNEL RAIL AS SHOWN. TIGHTEN LOWER SCREW BY HAND UNTIL CONTACT IS MADE. (CLAMP KIT STYLES VARY)

PLACE LEFT HAND RAIL NOTCH FLUSH AS SHOWN. (INSTALL SAME ON RIGHT SIDE)

LOWER SCREW

STEP 2: TIGHTEN CLAMP SCREWS USING 5 MM ALLEN AS SHOWN. ONCE TIGHTENED YOU MAY REMOVE LOWER SCREWS, RETAIN

CLAMP SCREW

THEM IF LATER ADJUSTMENTS ARE NEEDED. (REPEAT STEPS FOR RIGHT HAND SIDE)

Patented and Patent Pending see LEER.com

Page 4

INSTALLATION INSTRUCTIONS

INSTALLING THE COVER

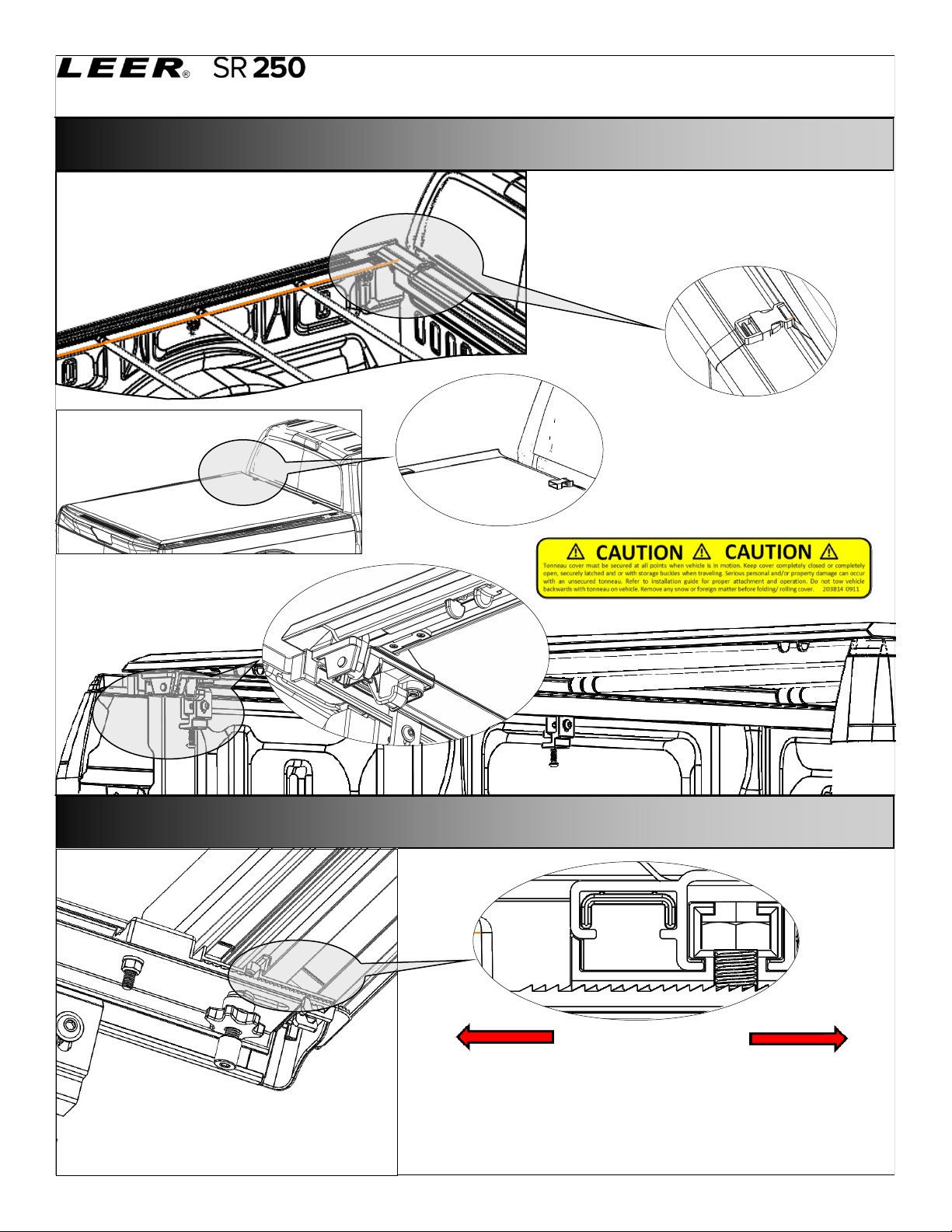

PLACE BOLTS IN FRONT OPEN SLOT AS SHOWN ABOVE.

PLACE FRONT CROSS BAR BOLTS INSIDE RAIL SLOTS AS SHOWN ABOVE. LINE UP COVER ASSEMBLY ON FOURTH TOOTH AS SHOWN BELOW. FRONT SHIELD SHOULD BE PULLED OUT. SEE ABOVE FOR FASTENER ASSEMBLY SEQUENCE.

* REPEAT FOR OPPOSITE SIDE

Patented and Patent Pending see LEER.com

Page 5

INSTALLATION INSTRUCTIONS

INSTALLING THE COVER

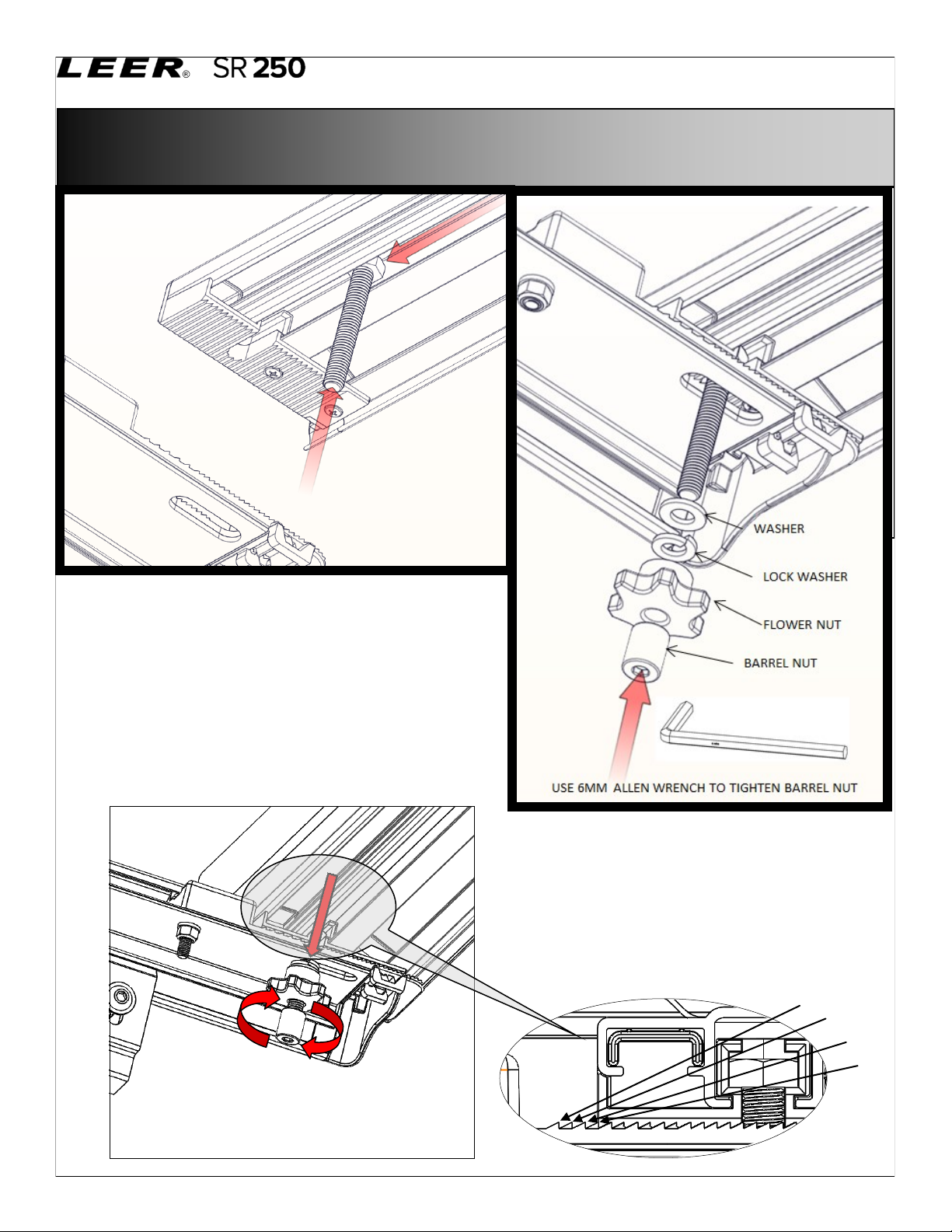

REMOVE CLIPS AND ROLL DOWN COVER AS SHOWN.

ADJUSTING FOR TAUTNESS OF COVER (IF NEEDED)

FOLD DOWN THE COVER AS

SHOWN FOR CYNC LATCH

ENGAGMENT.

Patented and Patent Pending see LEER.com

LOOSEN COVER

(MOVE OVER TEETH

TOWARD REAR TAIL GATE)

TIGHTEN COVER

(MOVE OVER TEETH

TOWARD FRONT OF BED)

Page 6

REPLACEMENT PARTS

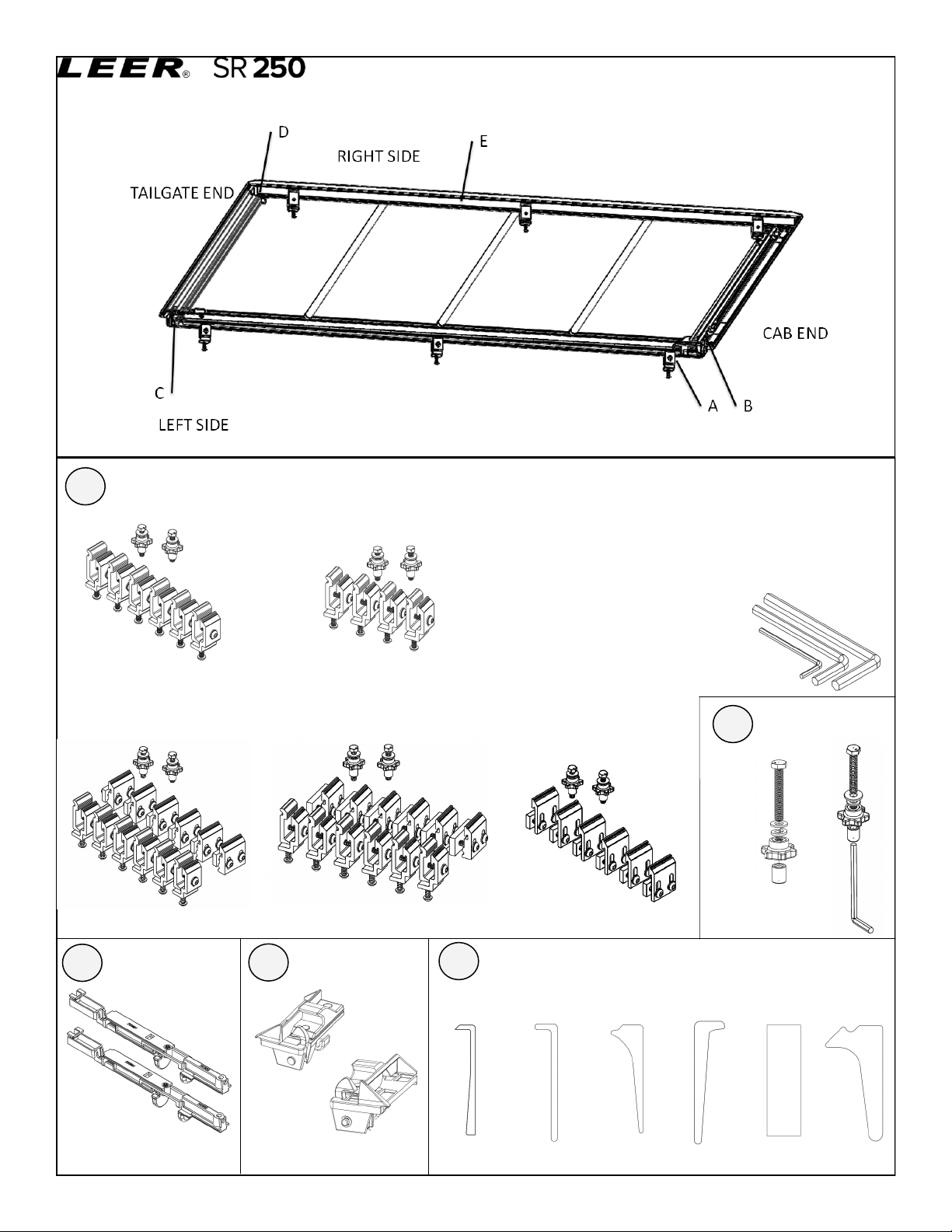

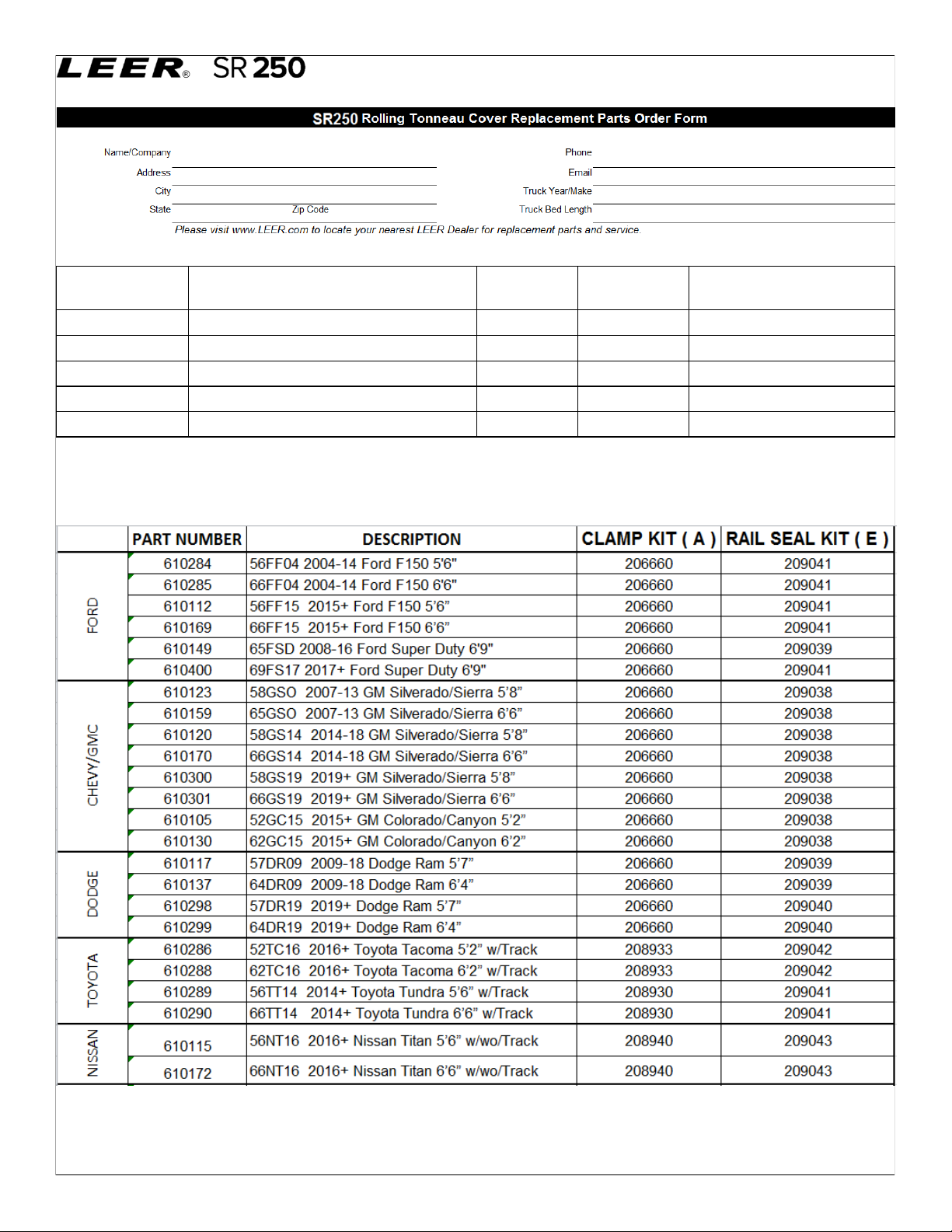

IDENTIFIER DESCRIPTION QUANTITY ITEM NUMBER QTY ORDERED

A LEER SR250 CLAMP KITS 1 EACH

B FRONT PART KIT 1 EACH 208388

C CYNC LATCH KIT 1 EACH 209037

D REAR LOCK KIT 1 EACH 208389

E RAIL SEAL KIT 1 EACH

Patented and Patent Pending see LEER.com

Page 7

REPLACEMENT PARTS

LEER SR250 CLAMP KITS

#206660

#208930

CYNC LATCH KIT REAR LOCK KIT

#206661

#208940

KITS A BOX CONTENTS

- 1 KIT CLAMP KIT ASSEMBLIES (STYLE VARIES PER CLAMP KIT)

- 1 EACH 2.5MM ALLEN WRENCH

- 1 EACH 5MM ALLEN WRENCH

- 1 EACH 6MM ALLEN WRENCH

- 1 EACH FRONT PART KIT

FRONT PART KIT

#208933

RAIL SEAL KITS (INCLUDES BULKHEAD SEAL)

#208388

#209037

Patented and Patent Pending see LEER.com

#208389

#209038 #209039 #209040 #209042 #209041

#209043

Page 8

WARRANTY AND MAINTENANCE

LIMITED LIFETIME WARRANTY POLICY

COVERAGE:

LEER®, a Division of Truck Accessories Group, LLC, warrants you, the original retail purchaser, that your LEERR SR 250 soft rolling tonneau

cover is free from defects in the material and workmanship. The warranty will void if the product has been damaged by accident, neglect,

abuse, inappropriate use, improper installation or acts of God. LEER may, at our sole discretion, either repair or replace products that prove

to be defective.

WARRANTY PERIOD:

This warranty shall apply for Limited Lifetime as long as the LEERR SR250 soft rolling tonneau is in the possession of the original purchaser

on original truck and a proof of purchase (original sales receipt) is submitted.

LIMITATIONS:

The above warranty shall apply only if ALL of the following conditions are met.

1. The original purchase only is covered and is not transferable.

2. The LEERR SR250 soft rolling tonneau cover is on the original owner’s truck.

3. The LEERR SR250 soft rolling tonneau cover is properly installed.

4. The LEERR SR250 soft rolling tonneau cover has not been modified.

5. Consequential damages, including damage to cargo or truck bed, are not covered.

NOT COVERED UNDER WARRANTY:

1. Blown Off Covers:

A. LEER will not warranty a LEERR SR250 soft rolling tonneau that comes off the truck while driving or by wind.

B. Consumer responsibility to check clamps before driving.

2. Paint damage to your truck.

3. Damage resulting from improper or careless unpackaging. Never open packaging with box cutter or any sharp instrument as it may

scratch or damage contents.

4. Damage caused by improper use, operation outside the products specifications, or use other than the cover’s intended application.

5. Failure to install and operate equipment according to the guidelines put forth in the installation manual.

6. Damage occurring during transit provided by 3rd party shipping, example UPS or FEDEX. Claims must be filed directly with 3rd party

shipper.

THIS EXPRESS LIMITED WARRANTY IS THE SOLE AND EXCLUSIVE WARRANTY PROVIDED BY TRUCK ACCESSORIES GROUP, LLC FOR THIS PROD-

UCT. LEER DOES NOT MAKE AND HEREBY DISCLAIMS ANY AND ALL OTHER EXPRESS OR IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO

THE IMPLIED WARRANTY OF MERCHANTABILITY AND THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.

REPLACEMENT PARTS:

Contact your LEER Authorized Retailer for a list of replacement parts and cost.

SAFETY & CARE TIPS:

1. Take care of your equipment.

2. Periodically check your clamps for proper tension and make sure they are clamped down before traveling.

3. When you are riding with the cover in the rolled open position, make sure the tie -down straps are fastened.

4. Periodic cleaning with mild soap and water only. Avoid use of abrasive pads or harsh cleaners as they can dull finish. Avoid use of chemi

cals and harsh fluids as they can damage vinyl and seals voiding the warranty.

CLAIMS:

If you have any warranty issues, please contact your dealer for assistance.

REGISTRATION:

Registering your LEERR SR250 is an important step to ensuring you get the best possible ownership experience. At the same time, we would

like to better understand how your truck fits into your life. Feedback from LEER owners helps us design products that better fit your needs.
