Page 1
Distributed By:
Commercial Refrigeration Service, Inc.
Toll Free: (866) 423-6253
http://www.IceCubes.NET
Quality
Quality
makes it a LEER!
OUTDOOR ICE MERCHANDISERS
OUTDOOR ICE MERCHANDISERS
Page 2
Leer Quality...
Unequaled in the Industry
All Leer outdoor merchandisers feature the finest cabinet construction assembled under the industry’s toughest quality control standards.
model 40
Distributed By:
Commercial Refrigeration Service, Inc.
Toll Free: (866) 423-6253
http://www.IceCubes.NET
model 60
model 75
model 40
model 30
Page 3
model 60

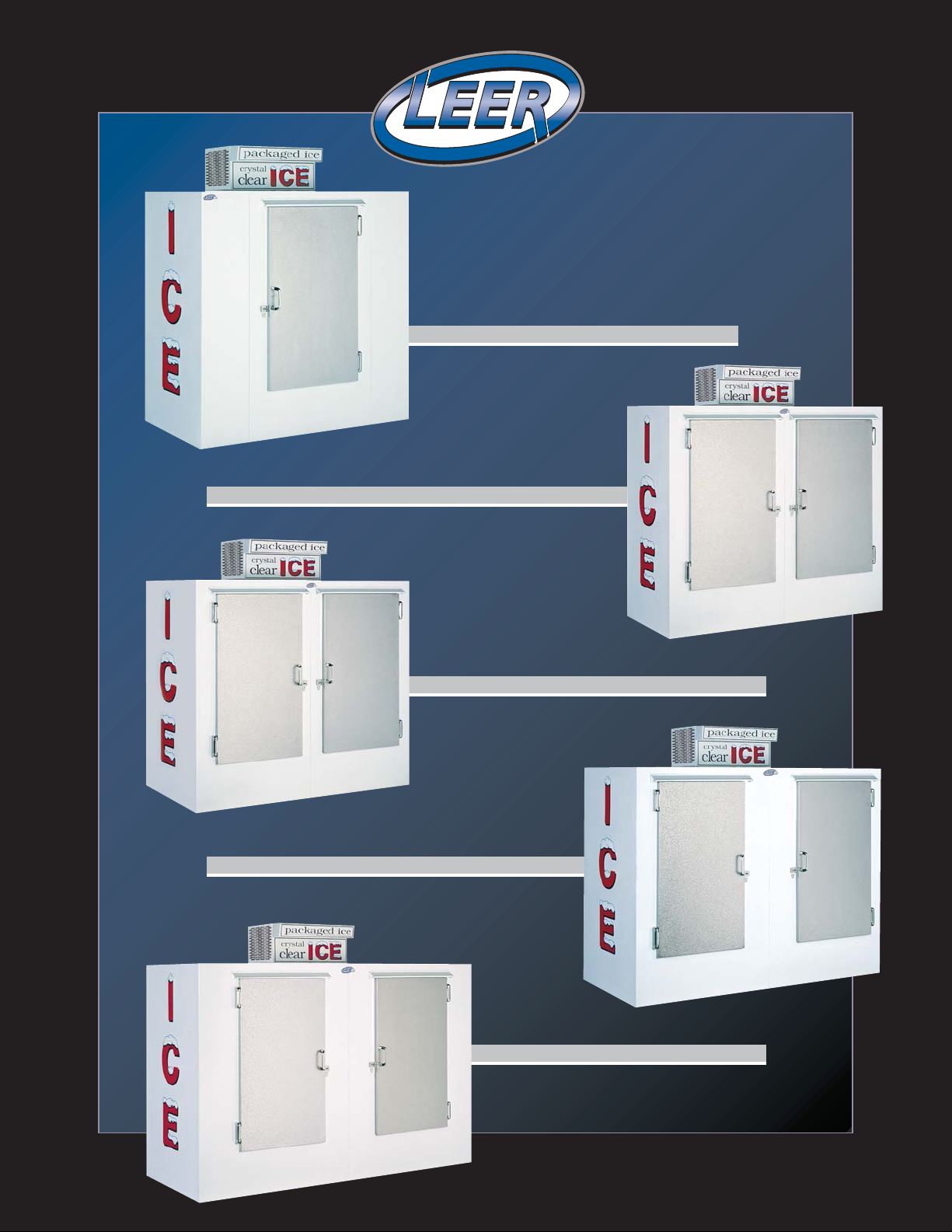

The Features that
Set the Standard
Leer outdoor merchandisers feature reinforced, embossed
stainless steel doors with welded PVC frame; total steel cabinet construction; optional custom finishes; and quick recovery,
low-temp, balanced refrigeration.
model 65
model 85
model 75
model 100
Distributed By:
Commercial Refrigeration Service, Inc.
Toll Free: (866) 423-6253
http://www.IceCubes.NET
Page 4
specifications
Ice Merchandiser Outside Dimensions Solid Door Approx.Wt. Refrigeration Amperage
Models
40C
40A
slant
60C
60A
slant
75C
75A
slant
30C
30A
40C
40A
65C
65A
60C
60A
75C
75A
85C
85A
100C
100A
Capacity
No.
Cu. Ft. Bags* Width Depth Height Width x Height Cold Auto Compressor Cold Auto
of
(approx.) (7 lb.)
Doors
1 40 50-1/2˝ 35-1/2˝ 68-1/2˝ 27˝ x 27˝ 320 345 1/4 hp 4.5 4.8
2 60 73˝ 35-1/2˝ 68-1/2˝ 27˝ x 27˝ 405 435 1/3 hp 6 6.7
2 75 96˝ 35-1/2˝ 68-1/2˝ 27˝ x 27˝ 515 555 1/2 hp 10 11.7
1 30 36˝ 30˝ 76-1/2˝ 27˝ x 46˝ 280 305 1/4 hp 4.5 4.8
1 40 50-1/2˝ 30˝ 76-1/2˝ 27˝ x 46˝ 330 350 1/4 hp 4.5 4.8
1 65 64˝ 35-1/2˝ 76-1/2˝ 27˝ x 46˝ 405 430 1/3 hp 6 6.7
2 60 73˝ 30˝ 76-1/2˝ 27˝ x 46˝ 425 455 1/3 hp 6 6.7
2 75 73˝ 35-1/2˝ 76-1/2˝ 27˝ x 46˝ 480 510 1/2 hp 10 11.7
2 85 84˝ 35-1/2˝ 76-1/2˝ 27˝ x 46˝ 525 560 1/2 hp
2 100 96˝ 35-1/2˝ 76-1/2˝ 27˝ x 46˝ 580 610 1/2 hp 10 11.7
150
130
240
215
325
290
80
75
175
165
270
220
275
270
300
280
350
330
410
385
Model Letter Suffixes:
②
① Shipping weight
①
Wall Defrost 115/1/60 Wall Defrost
“C” - Cold Wall
“A” - Automatic Defrost
or
② Add 3˝ for door and handle on upright
models
10 11.7
standard features
■
Total steel cabinet construction
■
Baked-on acrylic polyurethane, high solids, lead-free,
enamel finish exterior
■
Full 2-1/2˝-thick, CFC-free, foamed-in-place
polyurethane insulation in all walls and top with
3˝ bottom insulation
■
Interior air flow ducts on automatic defrost models
■
Reinforced, embossed stainless steel doors with
welded PVC frame and roll-in gaskets
■
R134a, low temperature, sealed condensing units
■
Cold wall or automatic defrost refrigeration systems
available on all models
■
Five-year compressor warranty
■
One-year parts warranty
■
Custom painted exterior
■
Custom silk screening
■
220 /1/50 voltage
■
Heavy-duty refrigeration (automatic defrost models only)
■
Reverse fan self-cleaning condensing unit
Material and product improvement is a constant commitment at Leer Limited Partnership.These specifications
are subject to change without notice
and without incurring responsibility for previously
sold merchandisers and comp
Distributed By:
Commercial Refrigeration Service, Inc.
options
Toll Free: (866) 423-6253
http://www.IceCubes.NET
* Merchandiser storage capacity may vary due to type of ice, ice bag size differences and methods of loading.
onents.
Printed In The USA
© LQA D03
Page 5
Distributed By:
Commercial Refrigeration Service, Inc.
Toll Free: (866) 423-6253
http://www.IceCubes.NET

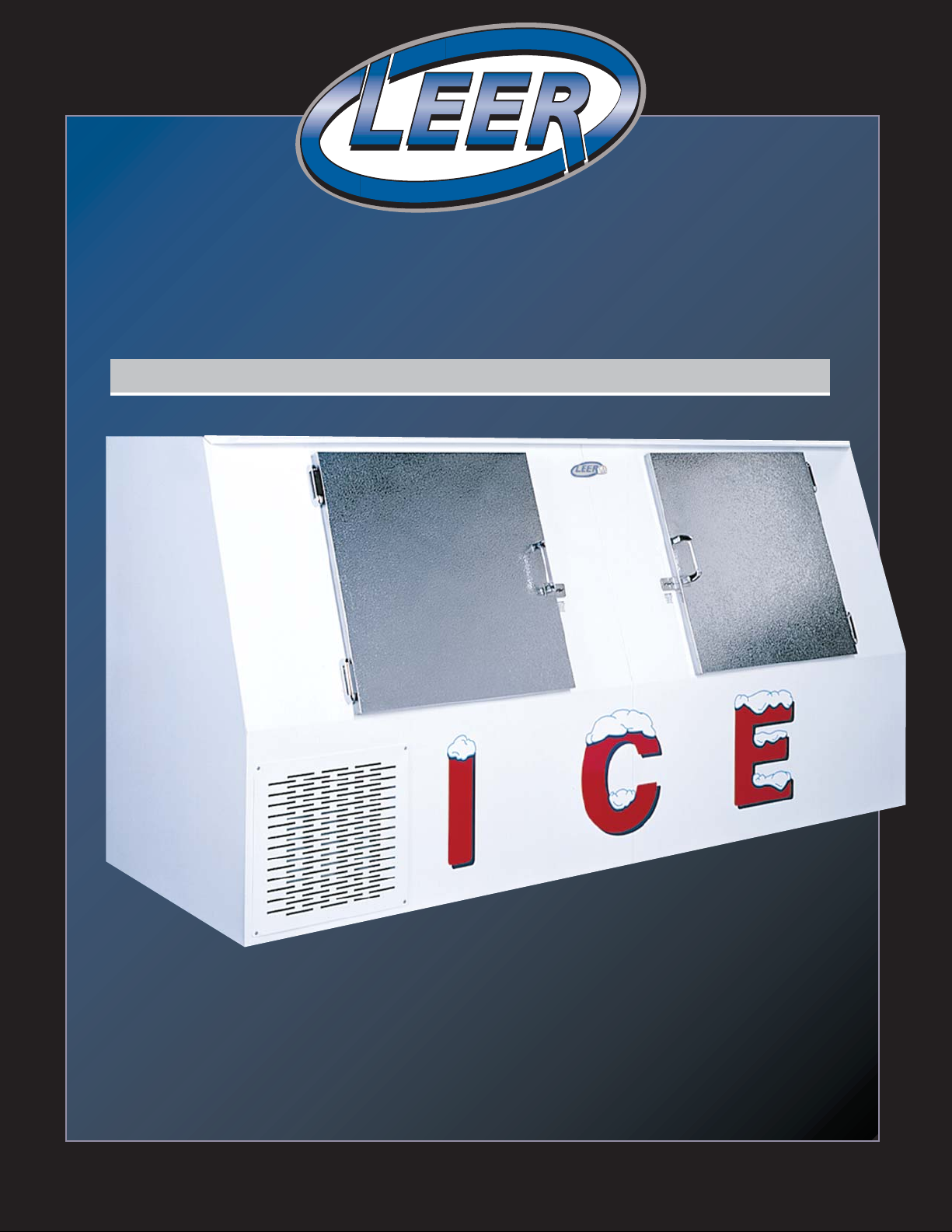

Low Profile
Low Profile
ICE MERCHANDISERS
ICE MERCHANDISERS
Designed specifically for locations with store window visibility
requirements, the Leer Low Profile ice merchandiser offers
large capacity, easy access and unobstructed window view for
today’s safety-conscious operation.
Page 6
specifications
Ice Merchandiser Outside Dimensions Solid Door Approx.Wt. Refrigeration Amperage
Models
LP462C
LP462A
LP612C
LP612A
Capacity
No.
Cu. Ft.
of
Doors
2 46 73˝ 35-1/2˝ 49-1/2˝ 27˝ x 27˝ 400 425 1/3 hp 6.5 6.8
2 61 96˝ 35-1/2˝ 49-1/2˝ 27˝ x 27˝ 480 515 1/3 hp 6.5 6.8
Bags* Width Depth Height Width x Height Cold Auto Compressor Cold Auto
(approx.) (7 lb.)
170
160
240
220
②
Model Letter Suffixes:
“C” - Cold Wall
or
“A” - Automatic Defrost
①
Wall Defrost 115/1/60 Wall Defrost
① Shipping weight
② Add 3˝ for raceway/
stand off
standard features
■
Total steel cabinet construction
■
Baked-on acrylic polyurethane, high solids, lead-free,
enamel finish exterior
■
Full 2-1/2˝-thick, CFC-free, foamed-in-place
model LP462
polyurethane insulation in all walls and top with 3˝
bottom insulation
■
Interior air flow ducts on automatic defrost models
■
Reinforced, embossed stainless steel doors with
welded PVC frame and roll-in gaskets
■
Slide-out R134a, low temperature, sealed
condensing units
■
Cold wall or automatic defrost refrigeration systems
available on all models
■
Five-year compressor warranty
■
One-year parts warranty
model LP612
Distributed By:
Commercial Refrigeration Service, Inc.
Toll Free: (866) 423-6253
http://www.IceCubes.NET
options
■
Custom painted exterior
■
Custom silk screening
■
220 /1/50 voltage
■
Reverse fan self-cleaning condensing unit
Printed In The USA
© LQA D03
