leema-acoustics Monoblock Power Amp, Elements Handbook

Preliminary Handbook

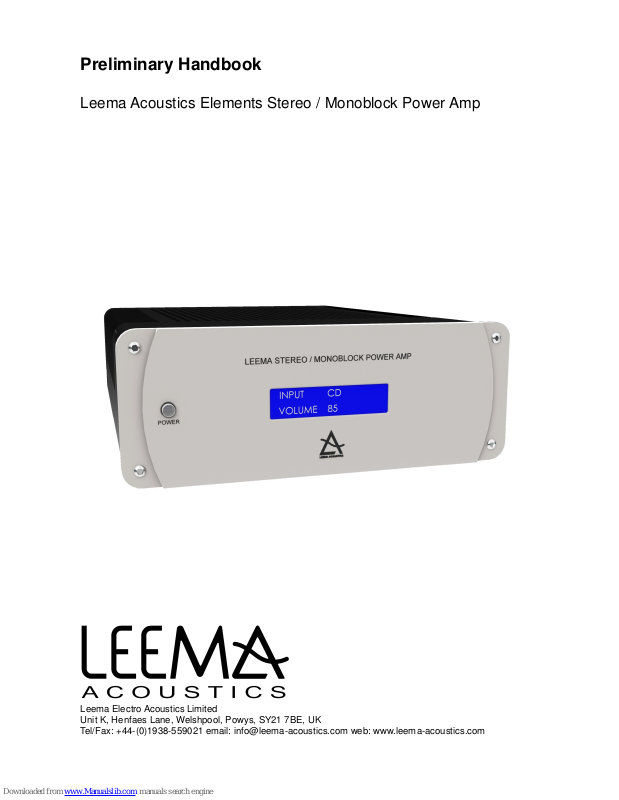

Leema Acoustics Elements Stereo / Monoblock Power Amp

Leema Electro Acoustics Limited
Unit K, Henfaes Lane, Welshpool, Powys, SY21 7BE, UK
Tel/Fax: [phone] email: [e-mail] web: www.leema-acoustics.com

Index

EC Declaration of Conformity ................................................. 3

Introduction ................................................................. 4

Safety Advice ................................................................ 5

Elements Power Amplifier overview ............................................ 5

Environmental, Made in the UK, Contact Us .................................... 5

Rear Panel Connections & Switches ............................................ 6

Channel Switch, Mode Switch, LIPS ............................................ 6

RCA/XLR, NORM/MONO ........................................................... 6

Loudspeaker Outputs .......................................................... 6

Preamp Output ................................................................ 7

LIPS Connection .............................................................. 7

Loudspeaker Terminals ........................................................ 7

Cables ....................................................................... 7

Power Switch ................................................................. 7

LIPS Volume Control .......................................................... 7

What is LIPS? ................................................................ 8

LIPS Specifics ............................................................... 8

LIPS Packets ................................................................. 8

LIPS Codes ................................................................... 8

Audio Specifications ......................................................... 8

WEEE Scheme .................................................................. 8

2

EC Declaration of Conformity

In accordance with EN ISO 17070-1:2004

We Leema Electro Acoustics Limited

of Welshpool

Powys
UK

in accordance with the following Directive(s):

2006/95/EC The Low Voltage Directive

2004/108/EC The Electromagnetic Compatibility Directive

hereby declare that: Equipment Hi-Fi Power Amplifier Model Name:

ELEMENTS STEREO / MONOBLOCK Power Amp

is in conformity with the applicable requirements of the following standards:

Standard. No. Name International Equivalents

BS EN60065; 2002 Electrical Safety Requirements EN60065; 2002 / IEC60065; 2001
BS EN 55020; 2002 EMC Immunity EN55020; 2002 / CISPR 20; 2002
BS EN 55013; 2001 EMC Emissions EN55013; 2001 / CISPR 12; 2001
BS EN 61000-3-2; 2001 EMC Limits for Harmonic Emissions EN61000-3-2; 2000 / IEC61000-3-2; 2000
BS EN 61000-3-3; 1995 EMC Limits for Voltage Fluctuations EN61000-3-3; 1995 / IEC61000-3-3; 1994

I hereby declare that the equipment named above has been designed to comply with the relevant sections of
the above referenced specifications. The unit complies with all applicable Essential Requirements of the
Directives and Standards.

Signed by: .................................................................................................................................................

Name: Mallory Nicholls
Position: Technical Director
Done at: Leema Electro Acoustics Ltd.

On: 26/4/2013

3
