Leem KT, KT-700, KT-350, KT-1400 User Manual

Download

Page 1

RESET

CH 2

CH 2 CH 2

OUTPUT

LOCK

USER MANUAL

KT series

Power amplier

INPUT

CH 1

CH 1CH 1

LOCK

CH 1

SENSITIVITY

0.775V

1.4V

MODE

BRIDGE

STEREO

220V~50/60Hz 150W

CH 2 CH 1

BRIDGE

INPUT

CH2

Page 2

IMPORTANT SAFETY INSTRUCTIONS

The symbol is used to indicate that some hazardous live terminals are involved within this apparatus, even under the normal operating conditions, which may be sufcient to constitute the risk of electric shock or death.

WARNING

Describes precautions that should be observed to prevent the danger of injury or death to the operator.

CAUTION

Describes precautions that should be observed to prevent danger of the apparatus.

◊

Ventilation : Do not block areas of ventilation opening. Failure to do could result in fire. Always install accordance with the manufacturer’s instructions.

◊

Object and Liquid Entry : Objects do not fall into and

liquids are not spilled into the inside of the apparatus for safety.

◊

Power Cord and Plug : Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, refer to elec-trician for replacement.

◊

Power Supply : The apparatus should be connected to the power supply only of the type as marked on the apparatus or described in the manual. Failure to do could result in damage to the product and possibly the user. Unplug this apparatus during lightning storms or when unused for long periods of time.

◊ Read these instructions.

◊ Keep these instructions.

◊ Heed all warning.

◊ Follow all instructions.

◊ Water & Moisture

◊ The apparatus should be protected from moisture

and rain, can not used near water, for example: near bathtub, kitchen sink or a swimming pool, etc.

◊ Heat

◊ The apparatus should be located away from the

heat source such as radiators, stoves or other appliances that produce heat.

◊ Fuse

◊ To prevent the risk of re and damaging the unit,

please use only of the recommended fuse type as described in the manual. Before replacing the fuse, make sure the unit turned off and disconnected from the AC outlet.

◊ Electrical Connection

Improper electrical wiring may invalidate the product warranty.

◊ Cleaning

Clean only with a dry cloth. Do not use any solvents such as benzol or alcohol.

◊ Servicing

Do not implement any servicing other than those means described in the manual. Refer all servicing to qualied service personnel only.

◊ Only use accessories/attachments or parts

recommended by the manufacturer.

Page 3

IMPORTANT SAFETY INSTRUCTIONS

► This amplier only can plug in the AC power socket

which the user's manual instructs or the specication is shown on this adapter. Or else it may damage the amplier and cause a re or electric shock.

► Do not place heavy objects (including this amplier)

on the power cord, or else it may damage the power cord and then cause an electric shock or re.

► Do not expose the amplier in the fume, high

humidity, high temperature and dust accumulation place and use.

► Do not put this amplier sidelong or upside down,

use it in a good air ow environment.

► When abnormity happen in the operation process,

such as smoke, odor, noise, or foreign bodies, liquid entering into the amplier, please turn off the ampli

er immediately, and unplug the socket from the AC power socket

► The device shall not be exposed to dripping or

splashing, shall not be placed the item which is lled with liquids on the device, such as vase and so on.

► When the device is connected to the power supply

socket, it needs the ground protection.

1. When the speaker is connected to the amplier

output socket, it only can use the speaker special cable and connect it in accordance with the provisions.

2. When connect the amplier, please close

all the instruments, audio equipments and speakers.

3. Before turning on the amplier, please turn

down the volume to a minimum.

4. If you do not use this amplier for a long time,

please unplug the power cord from the AC mains socket.

5. When unplug the power plug from the AC

power socket, please grasp the plug. Do not directly pull the cable. Otherwise it can damage power cord and then lead to a re or electric shock.

► The socket of the power cord needs to keep in the

normal operational condition.

► If need to completely disconnect this device from

the AC main line, please unplug from the AC power outlet, when you need to power on, please plug in the AC power outlet again.

► When abnormity happen, please don't open the

chassis and rebuilt or repair the amplier by yourself, if the internal is sure to need repair and maintenance, please contact the dealers to deal with it.

Page 4

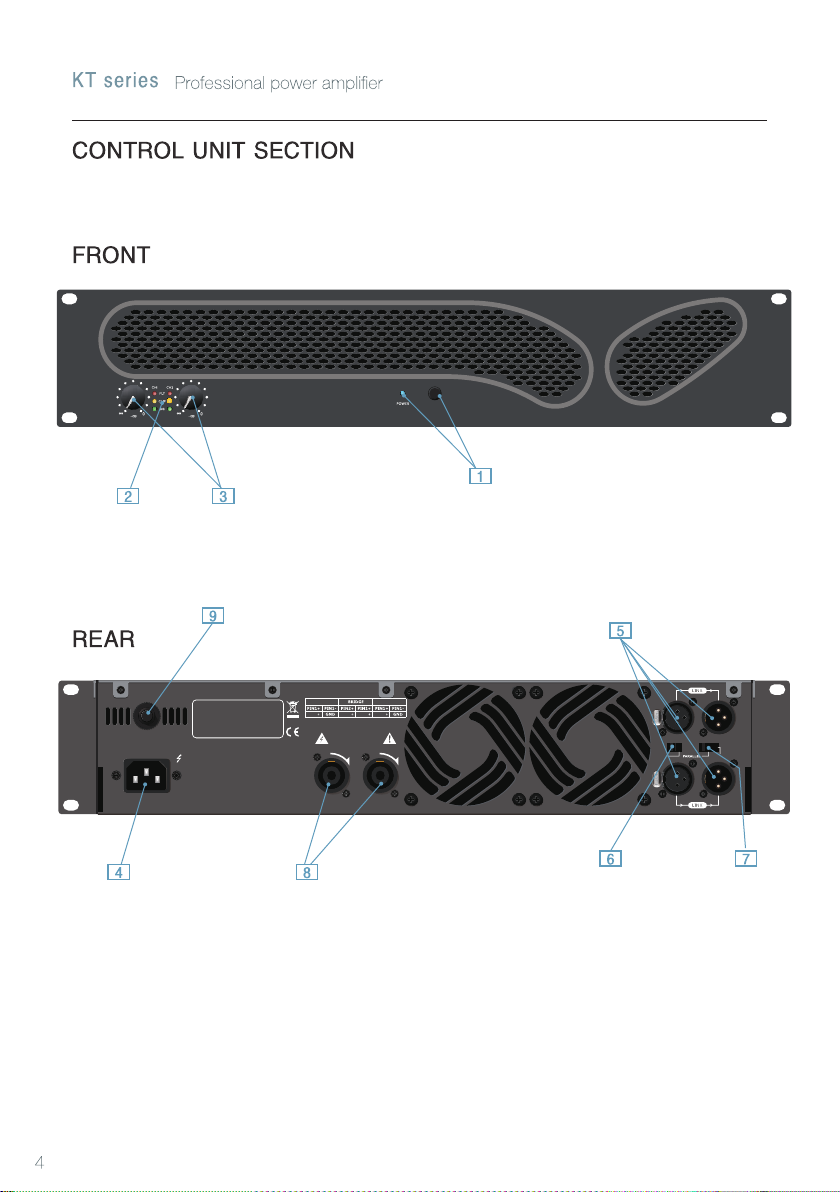

RESET

CH 2

CH 2 CH 2

OUTPUT

INPUT

CH 1

CH 1CH 1

LOCK

CH 1

SENSITIVITY

0.775V

1.4V

MODE

BRIDGE

STEREO

220V~50/60Hz 150W

CH 2 CH 1

BRIDGE

INPUT

CH2

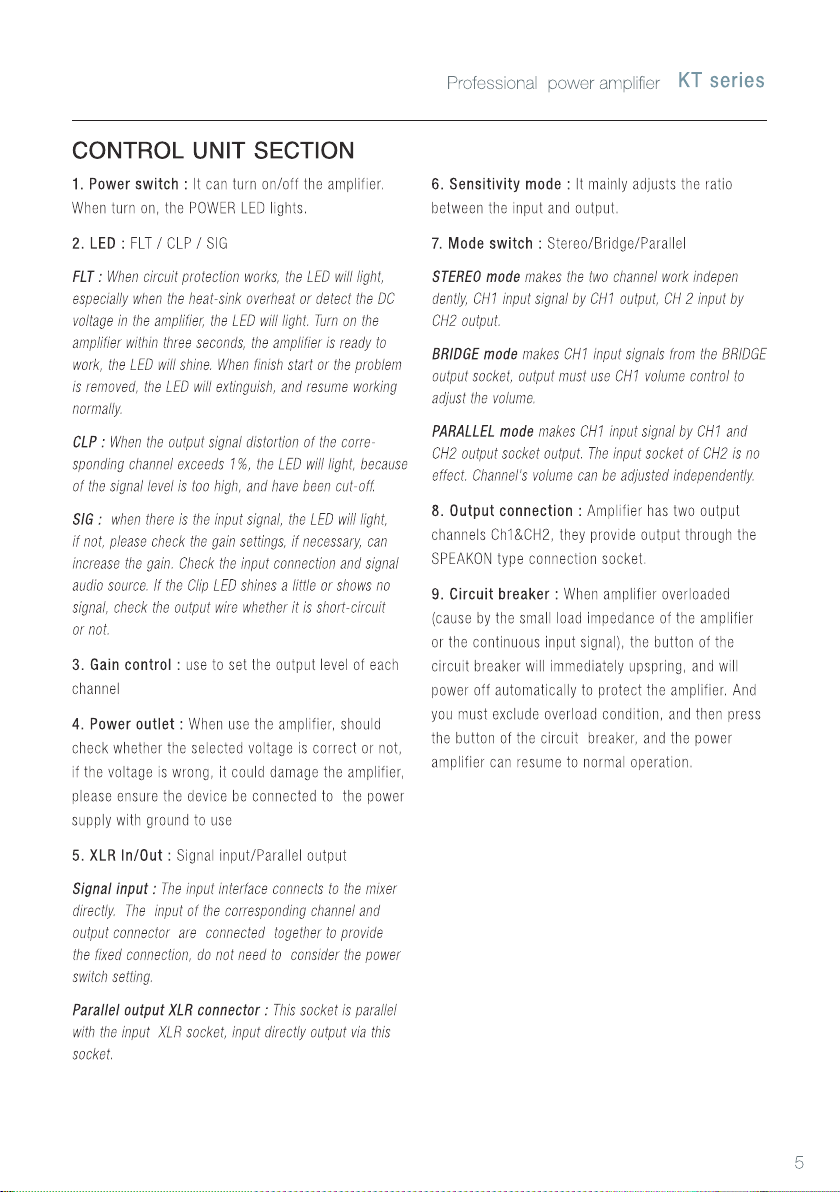

Page 5

Page 6

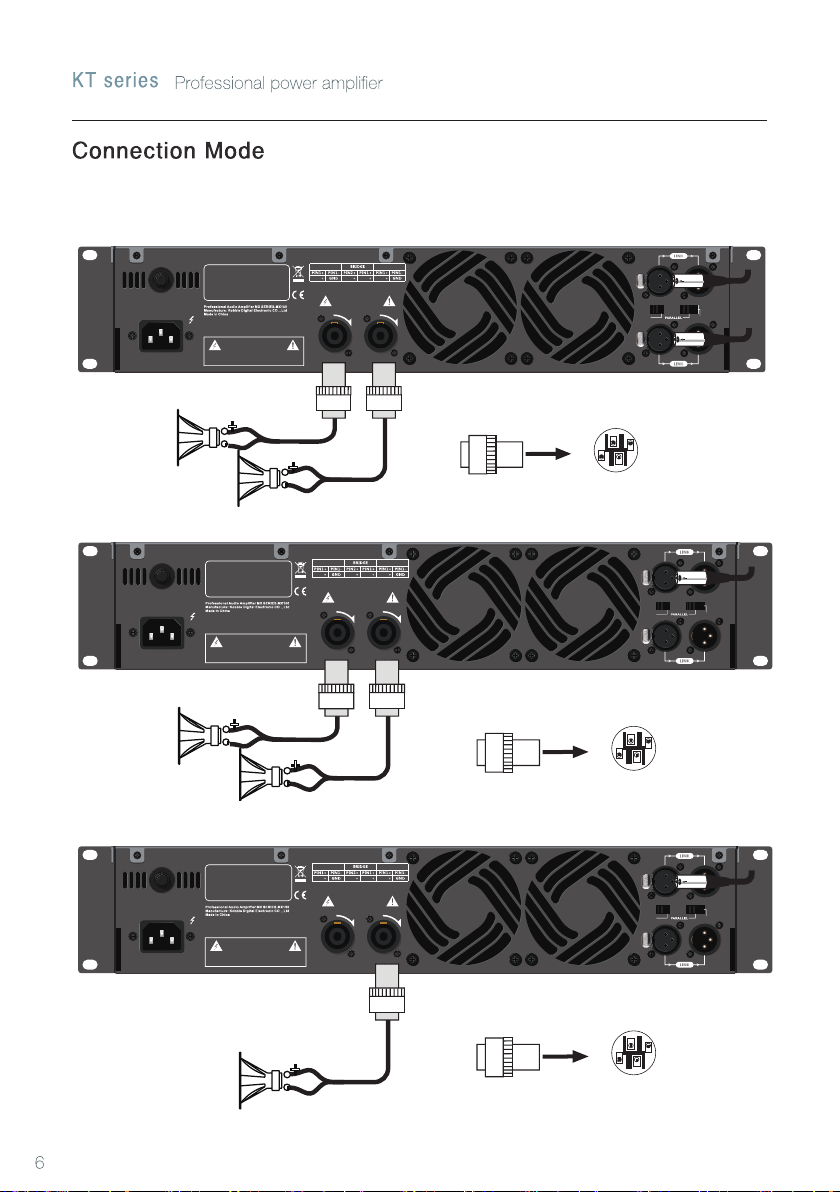

Stereo connection

RESET

CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK, GROUNDING OF THE CENTER PIN OF THE PLUG MUST BE MAINTAINED.

CAUTION

220V~50/60Hz 150W

RISK OF ELECTRIC SHOCK

Parallel connection

RESET

CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK, GROUNDING OF THE CENTER PIN OF THE PLUG MUST BE MAINTAINED.

CAUTION

220V~50/60Hz 150W

RISK OF ELECTRIC SHOCK

DO NOT OPEN

INPUT

CH 2

CH 2 CH 2

OUTPUT

LOCK

CH 1

CH 1CH 1

LOCK

CH 1

SENSITIVITY

0.775V

1.4V

MODE

BRIDGE

STEREO

CH 2 CH 1

BRIDGE

Horn:

+to PIN 1+

Horn:

- to PIN 1-

CH 2

CH 2 CH 2

OUTPUT

CH 2 CH 1

CH 1

CH 1CH 1

LOCK

BRIDGE

Horn:

+to PIN 1+

Horn:

- to PIN 1-

INPUT

CH2

INPUT

CH 1

MODE

SENSITIVITY

0.775V BRIDGE

1.4V STEREO

INPUT

CH2

Bridge connection

RESET

CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK, GROUNDING OF THE CENTER PIN OF THE PLUG MUST BE MAINTAINED.

220V~50/60Hz 150W

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

INPUT

CH 2

CH 2 CH 2

OUTPUT

CH 2 CH 1

CH 1

CH 1CH 1

LOCK

BRIDGE

Horn:

+to PIN 1+

Horn:

- to PIN 2+

CH 1

SENSITIVITY

0.775V

1.4V

INPUT

CH2

MODE

BRIDGE

STEREO

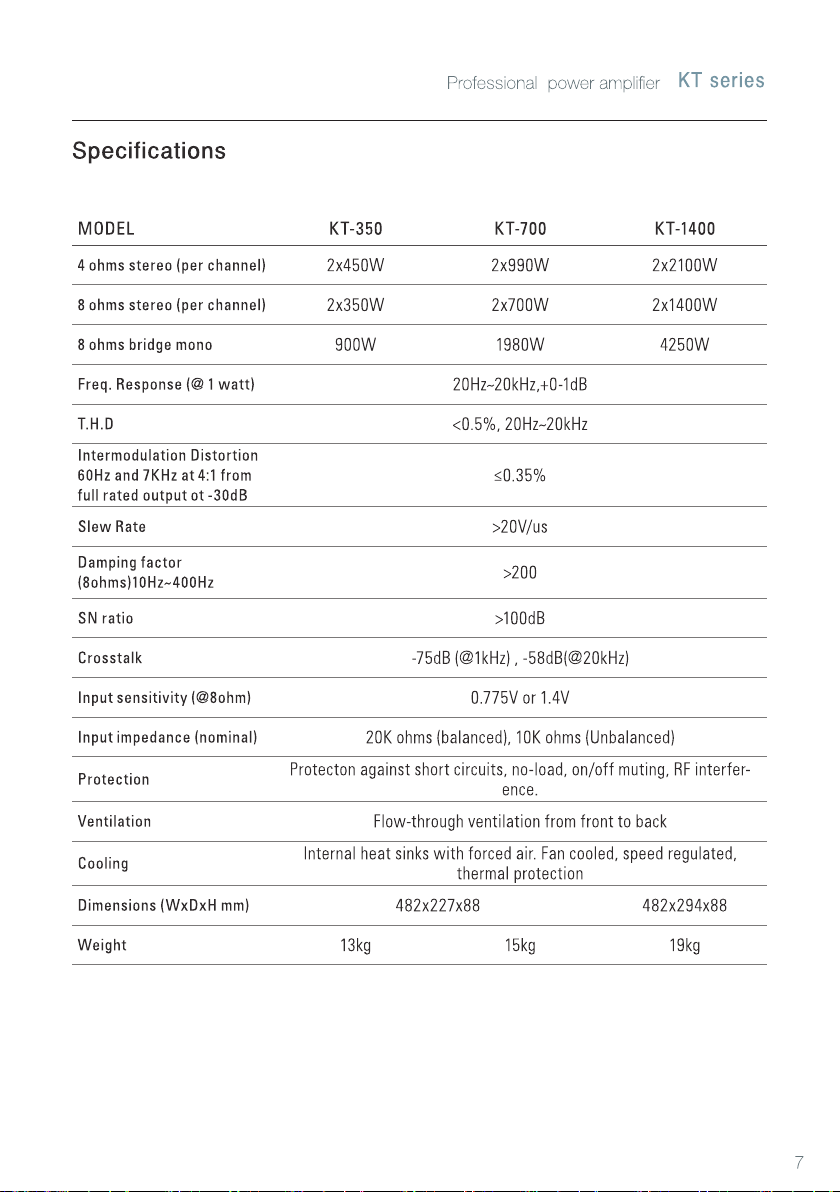

Page 7

Page 8

WARRANTY CERTIFICATE

LEEM products are warranted free from defects in materials and workmanship for a period of 1 year from date of purchase if used under normal operating conditions. Products will not be warranted if the serial number is removed or defaced. LEEM , through the applicable authorized distributor, will repair or replace defects covered by this limited warranty with parts or products of original or improved design, at its option, for products purchased. If your LEEM product ever needs service, write or telephone us at Technical Service Department (TEL: +82-32-815-1793) between normal business hours, excluding weekend. Then you will be directed to send the product to LEEM or an authorized agency you purchased at your expense. This warranty contemplates the owner will reasonably maintain this instrument or product without alteration, negligent use, misuse, or abuse. Normal wear and tear of this product will not be covered by this or any implied warranty.

• The repairing during the warranty period will not be charged whenever the buyer shows that they are the original ones, by presenting the original invoice duly made by the retailer together with the warranty certiﬁcate including all the required details.

• We establish that this warranty loses validity in the following cases:

»In case that the unit is not used at the proper voltage (higher or lower than usual) »If the product has been damaged due to wrong usage or handling »If the product shows signs that a non-ofﬁcial technician has repaired it or if the original parts have

been replaced.

• This warranty will automatically be ﬁnished in the following cases :

»Damages caused by strokes during the

transportation after loading.

»Damages due to robberies or accidents

(Fire, Flood, etc)

• The user must have this warranty card together with the invoice (he must not send or give them to anybody) in order to show them to any of our Authorized Technical Service ofﬁces, whenever the product needs to be repaired during the warranty period.

• This certiﬁcate has only validity in the conutry where the product has been purchased.

• Our authorized Technical Service will evaluate if the conditions of the warranty have been fulﬁlled.

Seller.

Model No.

Sales date.

LEEM PRODUCT CO.,LTD.

118B-6L, 148(Kojan-Dong) Neungheodae-ro 595beon-gil Namdong-gu, Incheon, KOREA 21698 TEL : +82-32-816-7100~6 FAX : +82-32-816-7108 WEB : www.leem.co.kr E-mail : [email protected]
