Use and Care Guide
Mini Gateway
7B-GW-ZWA-H0-01
Status
Behavior
RESET KEY:
Press reset key to clean up all settingparameter. After reset, you need
connect gateway to router and launch searching to add devices to
gateway.
WPS KEY:
Connecting to the network
POWER LED:
Power indicator, blinking during the gateway searching time.
LAN LED:
LAN indicator, turn on upon connecting to router successfully.
WAN LED:
WAN indicator, turn on upon connecting to cloud service.
Power Adapter Port:
Connect to the power adapter
1. Introduce
• Designed to control a variety of devices using standard Zigbee 3.0/ BLE SIGMESH
protocol.
• Compact size, it takes up minimal space.
• Support up to 50 accessories and lights.
• Works with Amazon Alexa and Google Assistant for voice control.
• Ease of installation: can be mounted on the wall or place on the table.
•
2. Package Contents
Mini Gateway *1
Quick start guide*1
3. Product description
LED Indicator: Under normal working state. LED indicator is solid green— turn on,
LED indicator is off —Turn off.
4. Specification
Power Source
5VDC /1A
Operating Temperature
0℃- 40℃
Network Wireless Type
2.4GHz, IEEE 802.11b/g/n
Type of protection
IP20
Frequency range
2400-2483.5MHz
Max RF power
wifi less than 52mw
Zigbee less than 10mw
Networked Standby
Mode power
< 2W
5. Installation and Operation
1. Get the Arnoo app for Android or iOS from Google Play or Apple Store.
OR Scan QR Code to download App。
https://www.pgyer.com/MwmZ APPLE
https://www.pgyer.com/zsBh Android
2. Open the app, and it will walk you through creating an account and login to the
home screen.
3. Add the Gateway
A Run the APP and press “+” to add a device.
B Press the manual on the top left corner, click “HUB”.

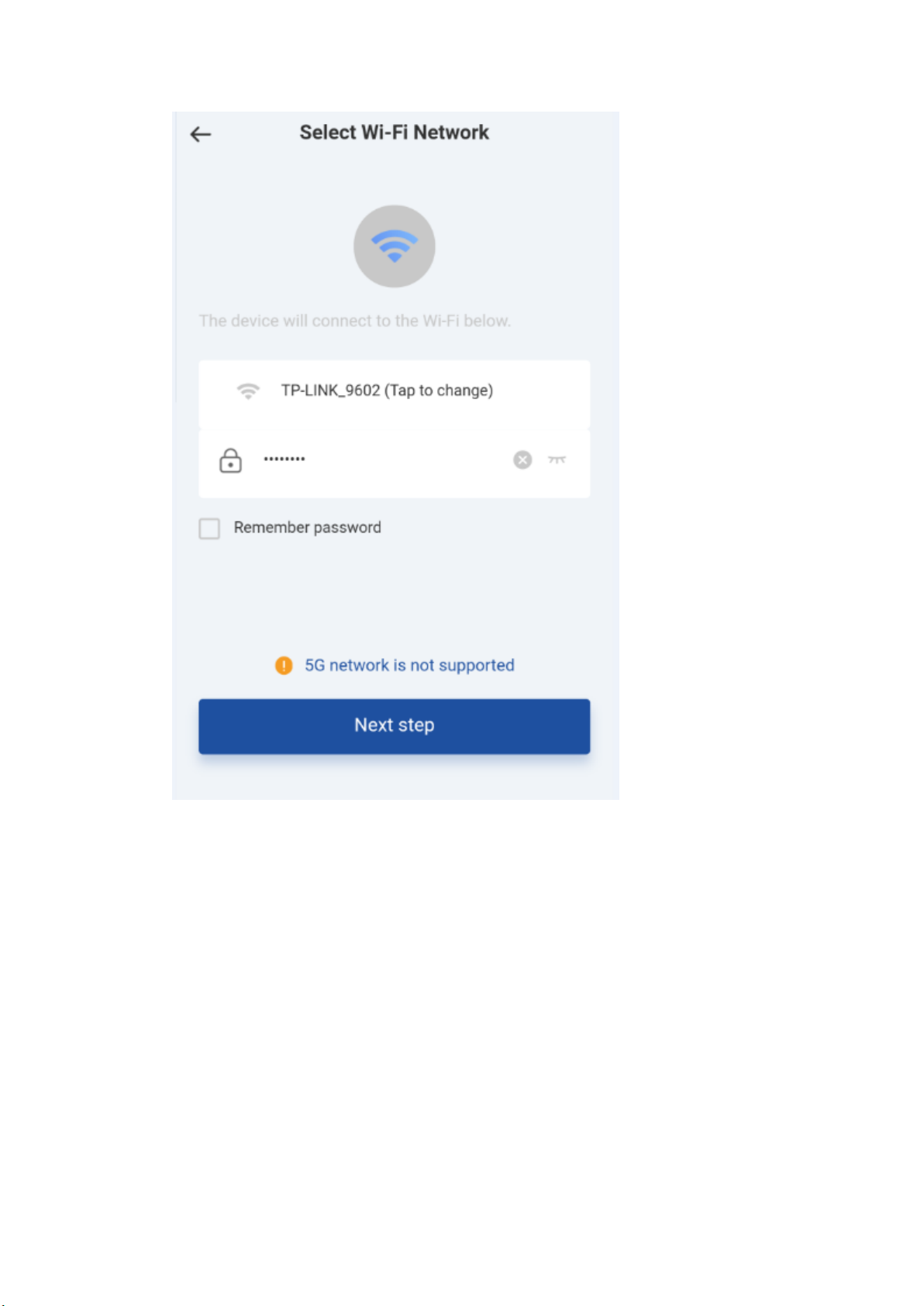

C Follow the guide in app to connect the Gateway to Wi-Fi router. ( Go to your
smartphone Setting→WLAN, find SmartPlug-xxxx to start plug network setting.)
D Once Gateway connected to network successfully, the LED indicator change to
solid green.
4. Add the device to gateway
A Click “+” and “Add Device”
B Chose add smart lighting to search smart lamps. Select Zigbee or BLE light if you
Have to add
C Add the lamps successfully, presse and hold the lighting icon to set the lighting.
5. Network MAP:
6 ATTENTION
1. If the Gateway needs to be cleaned, remove power and use a soft cloth with
a little alcohol and wipe down the device.
2. This product is just for indoor use only.
3. Conncect case:
• Confirm that the gateway, smartphone and router are close to each other.
• Confirm your router is turned on and is receiving data.
• Confirm you are not connecting to a 5G network (only 2.4G is supported).
• Confirm you are not using a network that requires a web browser login. (i.e. Public
Wi-Fi)
• Confirm you have entered your Wi-Fi password correctly.
• Check if the number of Wi-Fi devices that are connecting to your router has reached
its limit. If so, please remove some devices from this Wi-Fi network and restart the
router.
4. Q: How to factory reset the smart gateway.
A: Press and hold the power key 5s until the power/LAN/WAN Led indicator blinking.
Once Reset is finished LED indicator will blinking green slowly.
Correct Disposal of this product. This marking indicates that this product should
not be disposed with other household wastes throughout the EU. To prevent possible
harm to the environment or human health from uncontrolled waste disposal, recycle it
responsibly to promote the sustainable reuse of material resources. To return your used
device, please use the return and collection systems or contact the retailer where the
product was purchased. They can take this product for environmental safe recycling.
means for applicable power supplies see user instructions
Adapter model(s): DSA-5PF07-05 FEU 050100, Made By: Dee Van Enterprise Co., Ltd.
FCC Statement
Model Name: 7B-GW-ZWA-H0-01;
FCC ID: 2AB2Q-7BGWZWAH0
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may
cause undesired operation.
Note: The grantee is not responsible for any changes or modifications not expressly
approved by the party responsible for compliance. Such modifications could void the
user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help
RF Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
of 20 cm between the radiator and your body.
IC Statement
IC: 10256A-7BGWZWAH0
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
IC 20cm RF
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
of 20 cm between the radiator and your body.
Cet équipement est conforme aux limites d’exposition aux rayonnements de la IC é
tablies pour un environnement non contrôé. Cet équipement doit être installé et
fonctionner à au moins 20 cm de distance d’un radiateur ou de votre corps.
