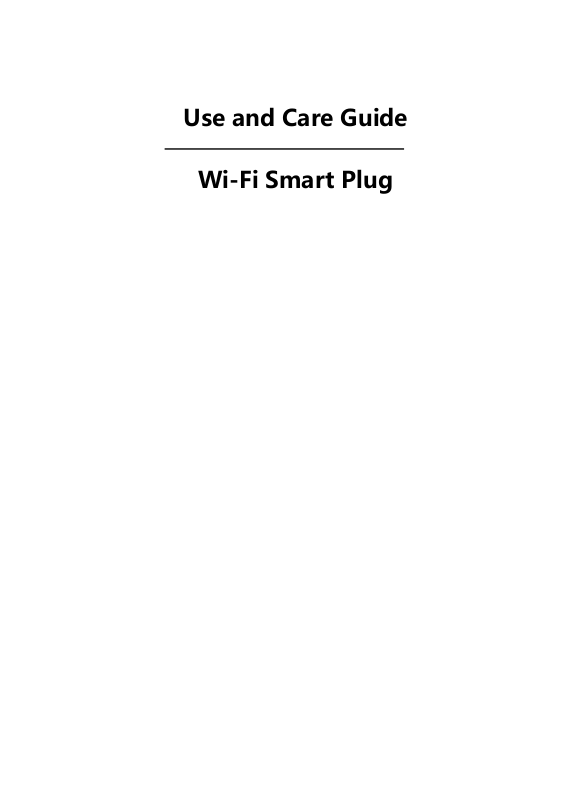

Use and Care Guide
Wi-Fi Smart Plug
1. Safety information
Status
Behavior
Slow Blinking Green
Powering on plug, is ready to start plug network configuration
Quick Blinking Green
Connecting to the network
Solid Green
Connected to the network, and then plug is turned on.
LED indicator keeps in green status for 10s and then turns off. If Plug
is not turned on.
Slow Blinking Orange
Factory reset or firmware OTA
Off
The Smart plug is turned off
Red
The Smart plug has issue, automatically turned off.
WARNING:
• For indoor use only.
• Do not immerse in water or use the device in wet locations, e.g. bathrooms or
outdoors.
• The devices are not intended for use in locations where the temperature may be
less than actual room conditions, such as unheated warehouses or garages.
• The total current limit of the device is 15A. Do not exceed this value!
• If a direct short is created on the output, the Smart Plug will be damaged and no
longer function.
• Do not disassemble the product, or make repairs yourself. You run the risk of electric
shock and voiding the limited warranty. If you need service, please contact us.
• Do not connect after each other.
2. Package Contents
Wi-Fi Smart Plug *1
Quick start guide*1
3. Product description
LED Indicator: Under normal working state. LED indicator is solid green— turn on,
LED indicator is off —Turn off.
4. Specification
Input:
120V~±10%, 60Hz
Max load:
15A MAX. for general use, 5A MAX. for tungsten lamp
Operating Temperature
0℃~40℃
Network Wireless Type
2.4GHz, IEEE 802.11b/g/n
Type of protection
IP20
5. Installation and Operation
1. Get the Arnoo app for Android or iOS from Google Play or Apple Store.
OR Scan QR Code to download App。
2. Open the app, and it will walk you through creating an account and login to the
home screen.
3. Add the Plug
A Connect your smartphone to a 2.4GHz Wi-Fi network.
B Connect the smart plug to a grounded wall socket，the LED indicator will be
slowly blinking green， if not please Press and hold the power key for 5S to reset.
C Follow the guide in app to connect the smart plug to Wi-Fi router. ( Go to your
smartphone Setting→WLAN, find SmartPlug-xxxx to start plug network setting.)
D Once plug connected to network successfully, the LED indicator change to solid
green.
6. Function
5.1 Remote Control: Turn your electronic device on and off from anywhere using the
mobile app.
5.2 Schedule: Set specific times for your device to turn on/off as setting connected
lighting turn on at 19:00 every Monday. Or like setting lights to come on at dusk or turn
off at sunrise.
5.3 Timer: set a countdown timer to have plug turn off automatically. As setting after
30 minutes turn off automatically.
6 Trouble shooting
1. Q: What devices can I control with the Smart Plug?
A: This Smart Plug is rated for a maximum of 1800 watts (15 amps at 120 volts) so you
can control lights, fans, humidifiers and any small appliances that the maximum wattage
is less than 1800 watts.
2. Q: What can i do, if the smart plug network configuration process has failed, LED
indicator always is blinking Green.
A:
• Confirm that the plug, smartphone and router are close to each other.
• Confirm your router is turned on and is receiving data.
• Confirm you are not connecting to a 5G network (only 2.4G is supported).
• Confirm you are not using a network that requires a web browser login. (i.e. Public
Wi-Fi)
• Confirm you have entered your Wi-Fi password correctly.
• Check if the number of Wi-Fi devices that are connecting to your router has reached
its limit. If so, please remove some devices from this Wi-Fi network and restart the
router.
• Unplug your Smart Plug and plug it back in. Confirm the Smart Plug is powered on.
Press and hold the power button on the Smart Plug for 5 to reset.
3. Q: How to factory reset the smart plug.
A: Press and hold the power key 5s until the Led indicator blinking Orange. Once
Reset is finished LED indicator will blinking green slowly.
FCC Statement
FCC ID: 2AB2Q-7APLWA1
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may
cause undesired operation.
Note: The grantee is not responsible for any changes or modifications not expressly
approved by the party responsible for compliance. Such modifications could void the
user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help
RF Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
of 20 cm between the radiator and your body.
IC Statement
IC: 10256A-7APLWA1
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
IC 20cm RF
This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
of 20 cm between the radiator and your body.
Cet équipement est conforme aux limites d’exposition aux rayonnements de la IC é
tablies pour un environnement non contrôé. Cet équipement doit être installé et
fonctionner à au moins 20 cm de distance d’un radiateur ou de votre corps.
-----------------------------------------------------------------------------------------Manufacturer: LEEDARSON LIGHTING CO., LTD.
XINGDA RD, XINGTAI INDUSTRIAL ZONE, CHANGTAI COUNTY, ZHANGZHOU,FUJIAN,
363900, CHINA
