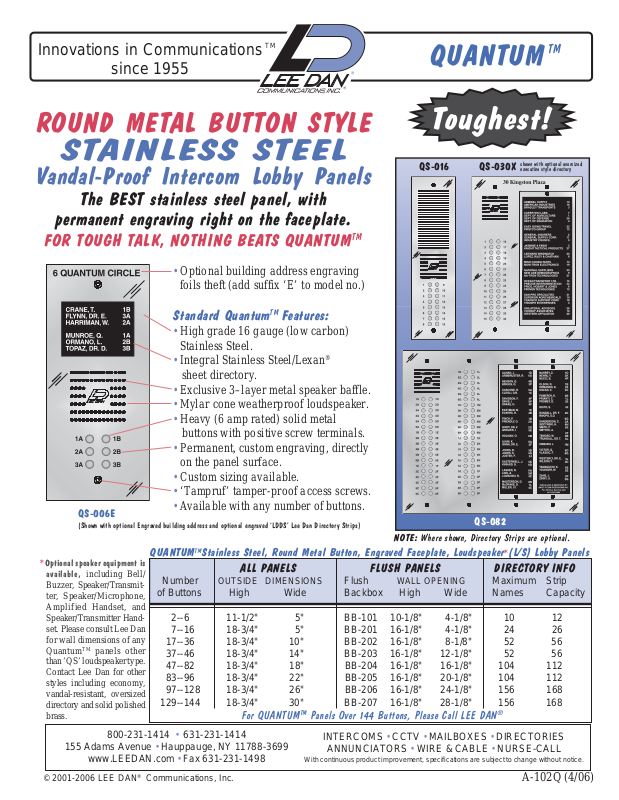

QUANTUM
ROUND METAL BUTTON STYLE
STAINLESS STEEL
Vandal-Proof Intercom Lobby Panels
The BEST stainless steel panel, with
permanent engraving right on the faceplate.
FOR TOUGH TALK, NOTHING BEATS QUANTUM
• Optional building address engraving
foils theft (add suffix ‘E’ to model no.)
TM
Features:
For QUANTUMTM Panels Over 144 Buttons, Please Call LEE DAN
QS-006E
(Shown with optional Engraved building address and optional engraved ‘LDDS’ Lee Dan Directory Strips)
*Optional speaker equipment is
available, including Bell/
Buzzer, Speaker/Transmitter, Speaker/Microphone,
Amplified Handset, and
Speaker/Transmitter Handset. Please consult Lee Dan
for wall dimensions of any
QuantumTM panels other
than ‘QS’ loudspeaker type.
Contact Lee Dan for other
styles including economy,
vandal-resistant, oversized
directory and solid polished
brass.
Standard Quantum
• High grade 16 gauge (low carbon)
Stainless Steel.
• Integral Stainless Steel/Lexan
sheet directory.
• Exclusive 3–layer metal speaker baffle.
• Mylar cone weatherproof loudspeaker.
• Heavy (6 amp rated) solid metal
buttons with positive screw terminals.
• Permanent, custom engraving, directly
on the panel surface.
• Custom sizing available.
• ‘Tampruf’ tamper-proof access screws.
• Available with any number of buttons.
QUANTUMTMStainless Steel, Round Metal Button, Engraved Faceplate, Loudspeaker*(L/S) Lobby Panels
ALL PANELS FLUSH PANELS DIRECTORY INFO
Number OUTSIDE DIMENSIONS Flush WALL OPENING Maximum Strip
of Buttons High Wide Backbox High Wide Names Capacity
2--6 11-1/2" 5" BB-101 10-1/8" 4-1/8" 10 12
7--16 18-3/4" 5" BB-201 16-1/8" 4-1/8" 24 26
17--36 18-3/4" 10" BB-202 16-1/8" 8-1/8" 52 56
37--46 18-3/4" 14" BB-203 16-1/8" 12-1/8" 52 56
47--82 18-3/4" 18" BB-204 16-1/8" 16-1/8" 104 112
83--96 18-3/4" 22" BB-205 16-1/8" 20-1/8" 104 112
97--128 18-3/4" 26" BB-206 16-1/8" 24-1/8" 156 168
129--144 18-3/4" 30" BB-207 16-1/8" 28-1/8" 156 168
TM
®
Toughest!
QS-016 QS-030X
QS-082
NOTE: Where shown, Directory Strips are optional.
shown with optional oversized
executive style directory
®
800-231-1414 • 631-231-1414
155 Adams Avenue • Hauppauge, NY 11788-3699
www.LEEDAN.com • Fax 631-231-1498
© 2001-2006 LEE DAN® Communications, Inc. A-102Q (4/06)
INTERCOMS • CCTV • MAILBOXES • DIRECTORIES
ANNUNCIATORS • WIRE & CABLE • NURSE-CALL
With continuous product improvement, specifications are subject to change without notice.

Innovations in Communications
TM
QUANTUM
TM
PANEL
since 1955
®
®
ARCHITECTS' & ENGINEERS' SPECIFICATIONS
“Quantum
or approved equal. Panel shall be constructed of 16 gauge low-carbon Stainless Steel.
Pushbuttons shall be heavy 6 amp rated, chrome plated, solid brass, round metal buttons.
Pushbutton connections must be made by positive screw terminals by circuit board. Pigtail
connections will not be acceptable. Apartment numbers shall be permanently engraved directly
on the surface of the panel. Building address shall be permanently engraved at the top of the
lobby panel.
Speaker shall be 3.5", 1 Watt, 45 Ohm with mylar cone. Paper cone speakers are not acceptable.
Speaker shall be protected by a three (3) layer metal speaker baffle. Intercom panel shall include
an integral alphabetical directory protected by Lexan
components shall all be field replaceable. Glued in place components are not acceptable. Mounting
screws shall be tamper resistant Tampruf type. A Lee Dan model SC-T Tampruf type screw driver
shall be provided with each lobby panel for directory maintenance.
Lexan® is a registered trademark of General Electric.
IR-204E Apartment Stations (option 1 of 3*): Suite stations shall be Lee Dan model IR-204E or
approved equal. Stations shall be molded in white, high impact ABS plastic. Individual
pushbutton controls shall be provided for Talk, Listen, and Door release functions. Button
identification shall be provided in English, braille, and by symbols. Pushbuttons shall be selfwiping type with positive screw terminals. Pigtail connections are not acceptable. Speaker shall
be 2.5", .3 Watt, 45 Ohm. Pushbuttons and speakers shall be field replaceable. Glued in place
components are not acceptable. Mounting screws shall be tamper resistant Scrulox type.
IR-107C Apartment Stations (option 2 of 3*): Suite stations shall be Lee Dan model IR-107C or
approved equal. Stations shall be constructed of anodized extruded aluminum with ABS plastic
speaker grille. Individual pushbutton controls shall be provided for Talk, Listen, and Door
release functions. Button identification shall be provided in English, and by symbols.
Pushbuttons shall be self-wiping type with positive screw terminals. Pigtail connections are not
acceptable. Speaker shall be 3.5", 1 Watt, 45 Ohm with mylar cone. Paper cone speakers are
not acceptable. Pushbuttons and speakers shall be field replaceable. Glued in place components
are not acceptable. Mounting screws shall be tamper resistant Scrulox type.
TM
” Lobby Panel: Intercom panel shall be a Lee Dan vandal-proof QuantumTM series
®
sheet. Speaker, pushbuttons and directory
SPECIFICATIONS
Other LEE DAN® Panel Styles
TM
Bravo
Solid Polished Brass
• 3 Versions
Style “E”
Economy Style
®
Millennium
Stainless Steel
Black Buttons
TM
Van-Guard
Extruded Alum.
Engraved Plungers
TM
Centurion
St. Steel
Metal
Numberstrips
TM
IR-444 Apartment Stations (option 3 of 3*): Suite stations shall be Lee Dan model IR-444 or
approved equal. Momentary action, self-wiping pushbuttons shall be provided for TALK,
LISTEN, and DOOR operations, with 5/16" thick solid aluminum plungers. Stations shall be
permanently stamped with DOOR/LSTN/TALK legends for tenant operation. The speaker/
microphone shall be a mylar cone high sensitivity type with voice-frequency response. Paper
cone speakers are not acceptable. Speaker shall be protected by a double metal speaker baffle.
Station shall be constructed of 20 gauge stainless steel. Connections shall be made by positive
screw terminals. Pigtail connections shall not be acceptable. Mounting screws shall be tamper
resistant Scrulox type.
*Choose from more than 70 different stations. Request brochure A-101.
Amplifier: Intercom amplifier shall be Lee Dan model PK-543A or approved equal. Amplifier shall
be powered by a Lee Dan model PS-30A pigtail transformer (16VAC/30VA), or approved equal,
which shall be UL listed.
Other Accessories
Engraving
JB-200
Rain-Guard
Rain-Guard
Side View
800-231-1414 • 631-231-1414
155 Adams Avenue • Hauppauge, NY 11788-3699
Fax 631-231-1498 • www.LEEDAN.com
©2001-2006 LEE DAN
SC-T
Ask for engraving brochure A-107.
Amplifier Junction Box.
Weather Hood. Ask for brochure IN-004.
‘Tampruf’ type tamper screwdriver.
Distributed By:
®
Communications, Inc. A-102Q (4/06)
TM
Regency
Extruded
Aluminum
Oversized
Directory
Popular Apartment Stations
IR-204E IR-107C IR-444
Plastic Aluminum St. Steel
Surface Mount Requires Housing Surface
