Thank you for purchasing our product. This RGB LED
controller is designed to drive constant voltage LED products
with common anode connection in voltage range of DC5V-24V.
It contains a main control unit and a remote controller. User can
setup dozens of dynamic program and static color via the
remote.
10. Power Supply
The controller unit can work from DC 5V to 24V. The red
power cable should be connected to power positive and black
to negative. Please make sure the power supply voltage is
same as the LED load and the power is capable for the load
wattage.

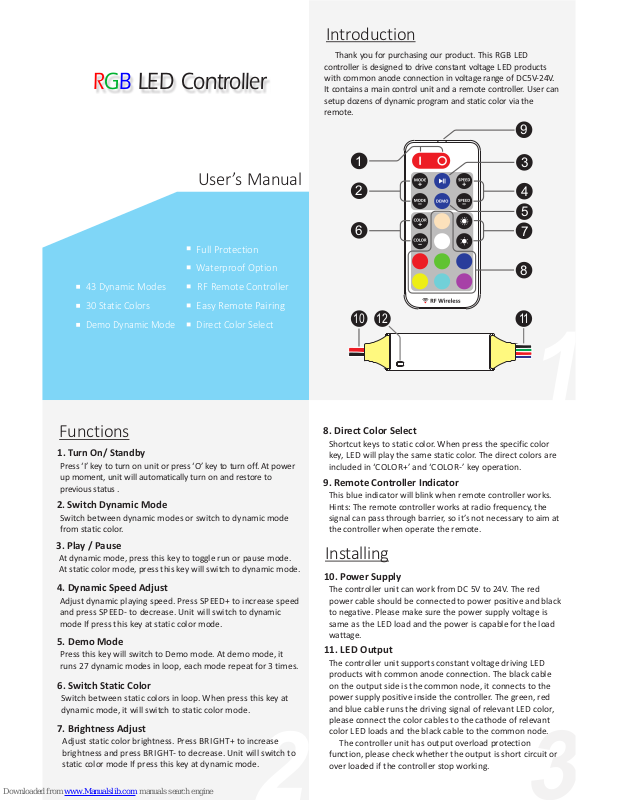

RGB LED Controller
User’s Manual
43 Dynamic Modes
30 Static Colors
Full Protection
RF Remote Controller
Waterproof Option
Easy Remote Pairing
Direct Color Select
Demo Dynamic Mode
Introduction
Installing
11. LED Output
The controller unit supports constant voltage driving LED
products with common anode connection. The black cable
on the output side is the common node, it connects to the
power supply positive inside the controller. The green, red
and blue cable runs the driving signal of relevant LED color,
please connect the color cables to the cathode of relevant
color LED loads and the black cable to the common node.
The controller unit has output overload protection
function, please check whether the output is short circuit or
over loaded if the controller stop working.
1
2
6
3
4
5
7
8
9
12
Functions
1. Turn On/ Standby
Press ‘I’ key to turn on unit or press ‘O’ key to turn off. At power
up moment, unit will automatically turn on and restore to
previous status .
2. Switch Dynamic Mode
Switch between dynamic modes or switch to dynamic mode
from static color.
3. Play / Pause
At dynamic mode, press this key to toggle run or pause mode.
At static color mode, press this key will switch to dynamic mode.
4. Dynamic Speed Adjust
Adjust dynamic playing speed. Press SPEED+ to increase speed
and press SPEED- to decrease. Unit will switch to dynamic
mode If press this key at static color mode.
5. Demo Mode
Press this key will switch to Demo mode. At demo mode, it
runs 27 dynamic modes in loop, each mode repeat for 3 times.
6. Switch Static Color
Switch between static colors in loop. When press this key at
dynamic mode, it will switch to static color mode.
7. Brightness Adjust
Adjust static color brightness. Press BR IGHT+ to increase
brightness and press BRIGHT- to decrease. Unit will switch to
static color mode If press this key at dynamic mode.
8. Direct Color Select
Shortcut keys to static color. When press the specific color
key, LED will play the same static color. The direct colors are
included in ‘COLOR+’ and ‘COLOR-’ key operation.
9. Remote Controller Indicator
This blue indicator will blink when remote controller works.
Hints: The remote controller works at radio frequency, the
signal can pass through barrier, so it’s not necessary to aim at
the controller when operate the remote.
10
11
5
12. Status Indicator
This is a full color status indicator. It displays all working status
of the controller. It indicates different events as following:
Blue: normal working.
Short single white flash: new command.
Long single white flash: reach mode or color cycle edge.
Long single yellow flash: reach speed or brightness limit.
Blue flash: dynamic mode paused.
Red flash: overload protected.
Yellow flash: overheat protected.
Operation
13. Using Remote
Please pull out the battery insulate tape before using. The RF
wireless remote signal can pass through barrier. For proper
receiving remote signal, please do not install the controller in
closed metal parts.
14. Pairing New Remote
The remote and main unit is 1 to 1 paired as default. Further
more, one main unit can be paired to 3 remote controllers
and every remote can be paired to any main unit.
Please do following steps to pair new remote:
1). Plug off the power of main unit and plug in again after 5
seconds.
2). Press remote ‘MODE-’ and ‘SPEED-’ key together in 5
seconds after main unit power on.
After this operation, the indicator will flash white for 3 times
to display the command is accepted, the main unit now will
recognize the new remote. Only the latest paired 3 remote
controllers can be recognized.
15. Free Remote Pairing Mode
In some specific cases, the controller unit may need to be
controlled with any remote. Please do following steps for this
free remote pairing mode:
1). Plug off the power of main unit and plug in again after 5
seconds.
2). Press ‘ON’ and ‘PAUSE’ key together in 5 seconds after
main unit power on.
After this operation, the indicator will flash yellow for 3
times to display the command is accepted, the main unit now
will recognize any remote. To pair the main unit back to
specific remote, please repeat the ‘Pairing New Remote’
operation.
6
Specification
Advanced Features
16. Waterproof
There’s waterproof option for this LED controller, please
check with your dealer if your controller is waterproofed. The
waterproofed controller can be used under water within
depth of 30 meters.
Note: The remote receiving sensitivity will decrease when
controller installed under water, please setup the controller
before installing under water.
17. Flicker Free
The standard models work at 1KHz switching frequency which
is already non-flicker at most application. For more strict
requirements, the advanced model works at 8KHz frequency
and is fully flicker free even at fast moving application or slow
motion video. Please check with your dealer if you’re using
the fully flicker free model.
The controller can absorb most unwanted switching
interference, for better performance please avoid to drive
strong inductive effect loads. Especially for fully flicker free
model, please avoid to wire the output in multi turn coil
shape or drive inductive load.
Base on the PWM working mode, This series controllers
switch LED on and off at high speed to achieve displaying
different color and brightness. At some moving application or
video at slow motion, the on-off flicker might be visible.
Dynamic Mode
Mode Pattern
Multi color fade
Single color fade
Dual color fade
Multi color blink
Single color blink
Single color strobe
Dynamic Modes
18. Protection
This controller has full protection function for output short
circuit, overload, and overheat. The indicator will flash red at
overload or short circuit protection and flash yellow at over
heat. The controller will automatically recover from protection
when working status is good.
Please ensure the LED loads are in rated range, not shorted
and the controller unit is in a good heat dissipation
environment to avoid protection.
Model
Basic
Basic /
Waterproof
Flick free /
Waterproof
Dynamic mode
43 modes
Static Color
30 colors
PWM Grade
256 levels
Brightness Grade
5 levels
Speed Grade
10 levels
Overload protection
Yes
Overheat protection
Yes
Working Voltage
DC 5-24V
Remote frequency
433.92MHz
Remote distance
>15 meters at open area
Working Temperature
-30℃ to +80℃
Rated Output Current
3 x 3.5A
3 x 5A
PWM Frequency
1KHz
8KHz
IP Grade
IP-63
IP-68
