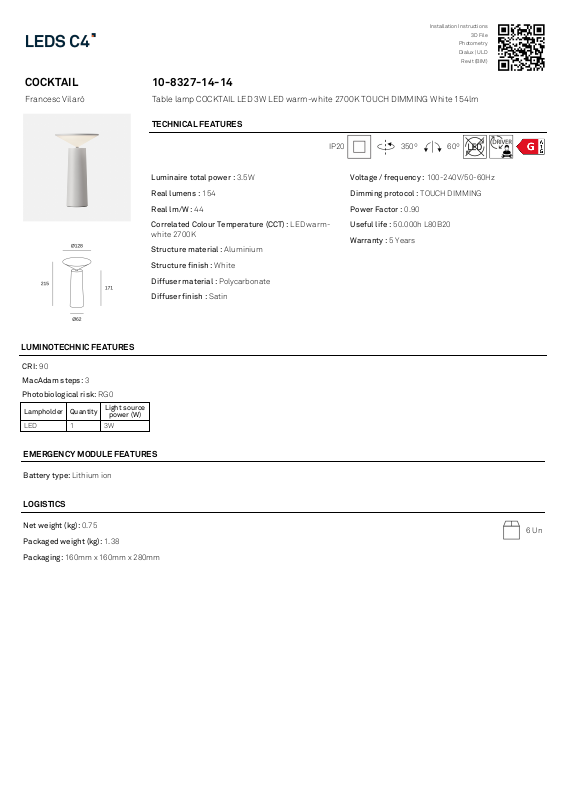

COCKTAIL 10-8327-14-14
Francesc Vilaró Table lamp COCKTAIL LED 3W LED warm-white 2700K TOUCH DIMMING White 154lm
TECHNICAL FEATURES
IP20 350º 60º
LUMINOTECHNIC FEATURES
CRI: 90
MacAdam steps: 3
Photobiological risk: RG0
Lampholder Quantity
LED 1 3W
Light source
power (W)
Luminaire total power : 3.5W
Real lumens : 154
Real lm/W : 44
Correlated Colour Temperature (CCT) : LED warm-
white 2700K
Structure material : Aluminium
Structure finish : White
Diffuser material : Polycarbonate
Diffuser finish : Satin
Voltage / frequency : 100-240V/50-60Hz
Dimming protocol : TOUCH DIMMING
Power Factor : 0.90
Useful life : 50.000h L80B20
Warranty : 5 Years
EMERGENCY MODULE FEATURES
Battery type: Lithium ion
LOGISTICS
Net weight (kg): 0.75
Packaged weight (kg): 1.38
Packaging: 160mm x 160mm x 280mm
6 Un
Page 2

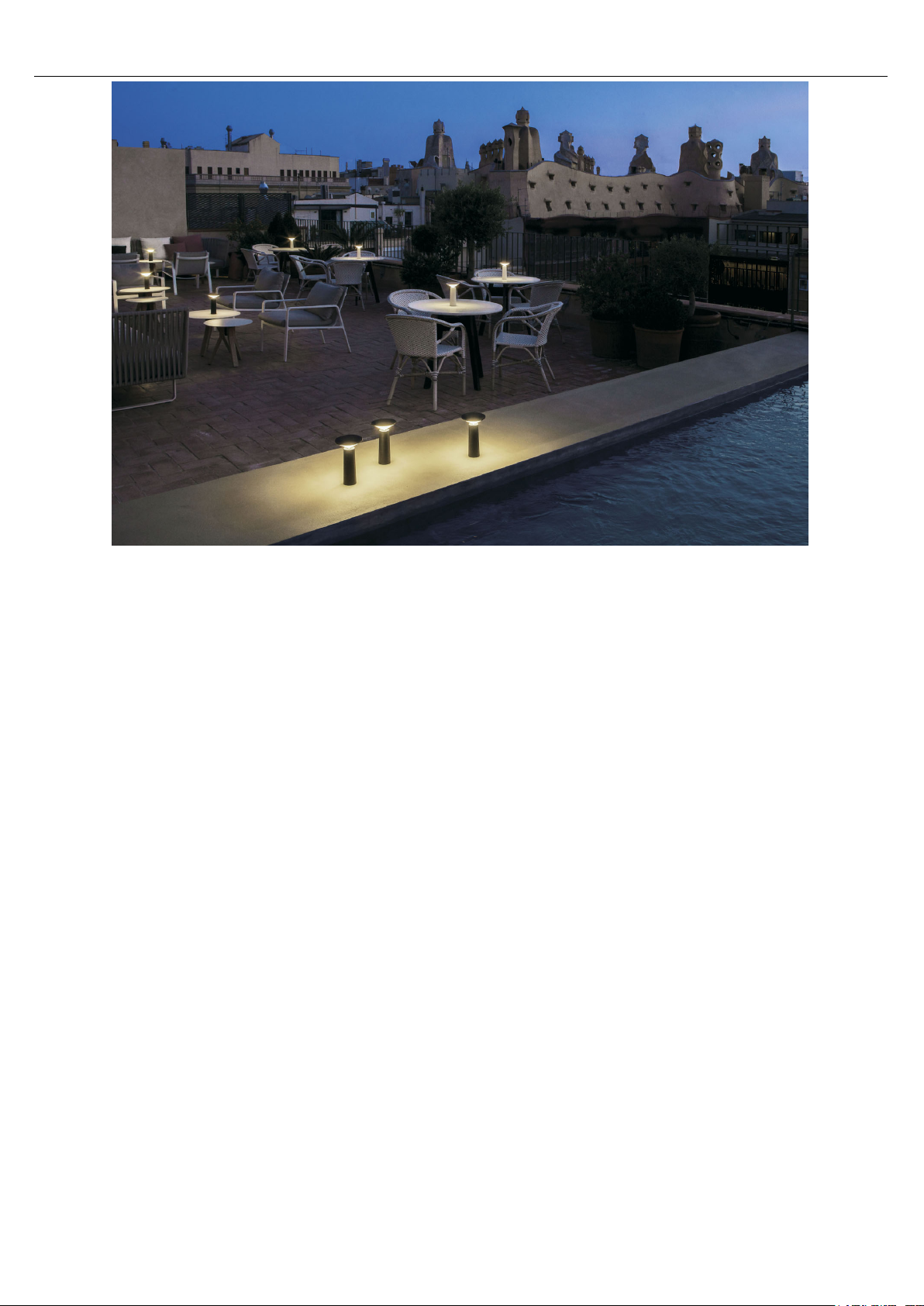

LIGHT APPLICATION
Image may not match reference. LEDS C4 reserves the right to amend any of the product’s components. The data related to flux, power and colour temperature are subject to a
tolerance of ±10%.
LEDS-C4 Afores s/n 25750 Torà (Lleida) Spain +973 468 100 [email protected]
28/09/2022 COCKTAIL
10-8327-14-14 V0
