led pro LEDJ231 User Manual

www.prolight.co.uk

(Order code: LEDJ231)

USER MANUAL

WARNING

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

CAUTION!

Keep this equipment away from rain,

moisture and liquids.

SAFETY INSTRUCTIONS

Every person involved with the installation, operation & maintenance of this
equipment should:

- Be competent

- Follow the instructions of this manual

CAUTION! TAKE CARE USING THIS EQUIPMENT!

HIGH VOLTAGE-RISK OF ELECTRIC SHOCK!!

Before your initial start-up, please make sure that there is no damage caused during
transportation. Should there be any, consult your dealer and do not use the
equipment.

To maintain the equipment in good working condition and to ensure safe operation, it is necessary
for the user to follow the safety instructions and warning notes written in this manual.

Please note that damages caused by user modications to this equipment are not

subject to warranty.

Pro White LED Matrix Block Safety

1.

Pro White LED Matrix Block Safety

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused

by the non-observance of this manual or any unauthorised modication to the

equipment.

• Never let the power-cable come into contact with other cables. Handle the power-cable

and all mains voltage connections with particular caution!

• Never remove warning or informative labels from the equipment.

• Do not open the equipment and do not modify the equipment.

• Do not connect this equipment to a dimmer-pack.

• Do not switch the equipment on and off in short intervals, as this will reduce the

system’s life.

• Only use the equipment indoors.

• Do not expose to ammable sources, liquids or gases.

• Always disconnect the power from the mains when equipment is not in use or before
cleaning! Only handle the power-cable by the plug. Never pull out the plug by pulling the

power-cable.

• Make sure that the available voltage is between 220v/240v.

• Make sure that the power-cable is never crimped or damaged. Check the equipment and

the power-cable periodically.

• If the equipment is dropped or damaged, disconnect the mains power supply immediately.
Have a qualied engineer inspect the equipment before operating again.

• If the equipment has been exposed to drastic temperature uctuation (e.g. after

transportation), do not switch it on immediately. The arising condensation might damage
the equipment. Leave the equipment switched off until it has reached room temperature.

• If your product fails to function correctly, discontinue use immediately. Pack the unit

securely (preferably in the original packing material), and return it to your Prolight dealer
for service.

• Only use fuses of same type and rating.

• Repairs, servicing and power connection must only be carried out by a qualied
technician. THIS UNIT CONTAINS NO USER SERVICEABLE PARTS.

• WARRANTY; One year from date of purchase.

OPERATING DETERMINATIONS

If this equipment is operated in any other way, than those described in this manual,

the product may suffer damage and the warranty becomes void.

Incorrect operation may lead to danger e.g.: short-circuit, burns, electric shocks,

lamp failure etc.

Do not endanger your own safety and the safety of others!

Incorrect installation or use can cause serious damage to people and property.

2.

Setup

Operating Instructions

The Pro White LED Matrix Block is a DMX-512 controllable unit made up of high efciency RGB
LEDs and will operate in auto run, master/slave, sound activated or DMX control modes.

Pro White LED Matrix Block Introduction

Introduction

Features

• DMX channels: 3/16 or 19 selectable

• 16 x 20W White LEDs (3200K)

• Sound active, auto, master/slave and DMX modes

• Individually addressable LEDs

• 400Hz refresh rate

• Powercon in/out sockets

• 3-Pin XLR in/out sockets

• 5-Pin XLR in/out sockets

• 4 push button menu with LCD display

• 0-100% dimming and variable strobe

• Beam angle: 80 degrees

• Power consumption: 348W

• Power supply: 100-240V~50/60Hz

• Dimensions: 180 x 425 x 400mm

• Weight: 10.2Kgs

3.

FUSE:

F3A 250V

DMX OUT

DMX OUT

DMX IN

DMX IN

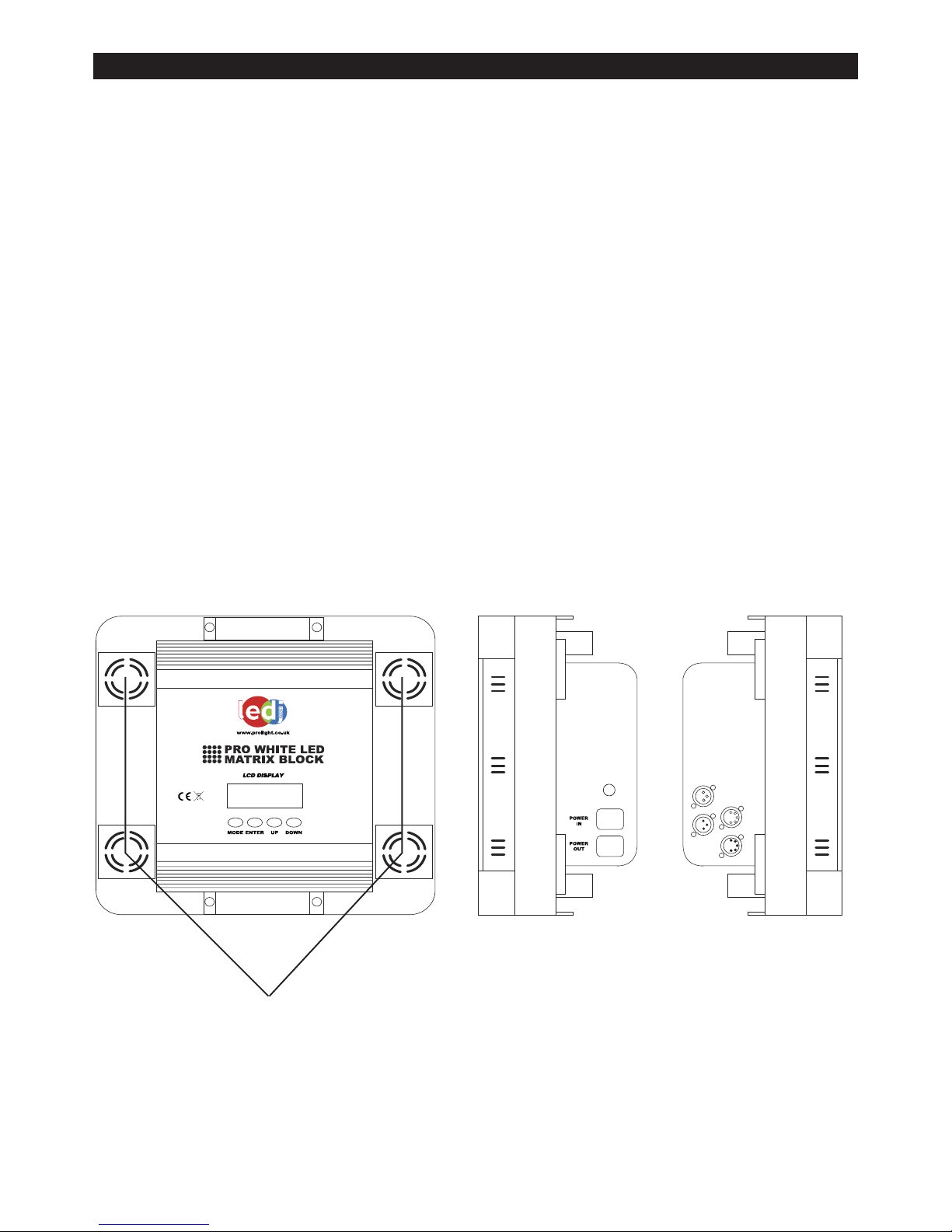

COOLING FANS

Overview

Pro White LED Matrix Block Operation Modes

Operation modes

Sound Active mode:
To activate the unit in sound active mode, press the “MODE” button to show “SOUND MODE”

on the LCD screen. Now press the “SET UP” button to select the desired sensitivity level by using
the “UP” and “DOWN” buttons. Press the “SET UP” button again to select the frequency level
and adjust by using the “UP” and “DOWN” buttons.

“SENS” 00 - 31 (00 = low, 31 = high)
“FQN” 01-99 (01 = low, 99 = high)

Auto run mode:
To activate the unit in auto run mode, press the “MODE” button to show “AUTO RUN” on the
LCD screen. Now press the “SET UP” button to select the desired frequency level by using the
“UP” and “DOWN” buttons.

“FQN” 01-99 (01 = low, 99 = high)

Note: In this mode, it will run 14 built-in programmes in a continious loop.

Slave mode:
To activate the unit in slave mode, rst you must link multiple units together and press the
“MODE” button to show “SLAVE MODE” on the LCD screen. Now on the master unit press the
“MODE” button to select the desired mode and the slave units will now run in sequence with the

master unit.

Built-in programmes:
To activate the units built-in programmes, press the “MODE” button to show “01.STATIC” on the
LCD screen. Press the “SET UP” button to choose between the 14 built-in programmes by

using the “UP” and “DOWN” buttons. Now press the “SET UP” button to select the desired
speed and adjust by using the “UP” and “DOWN” buttons. Press the “SET UP” button once

more to select the desired ash value and adjust by using the “UP” and “DOWN” buttons.

Speed values: 00 - 99 (00 = slow, 99 = fast)
Flash values: 00 - 99 (00 = slow, 99 = fast)

For the 14 built-in programmes please see page 5.

DMX mode:

To activate the unit in DMX mode, press the “MODE” button to show “DMX MODE” on the LCD
screen. Press the “SET UP” button and select the desired DMX address setting by using the
“UP” and “DOWN” buttons. Then to select one of the 3 DMX modes 3, 16 or 19 channel,
press the “SET UP” button again to choose the desired DMX mode by using the “UP” and
“DOWN” buttons.

For the 3, 16 or 19 channel DMX address information please see pages 6 & 7.

NOTE: Once the desired settings have been selected in each of the above modes, ALWAYS
conrm the settings by pressing the “SET UP” button.

4.

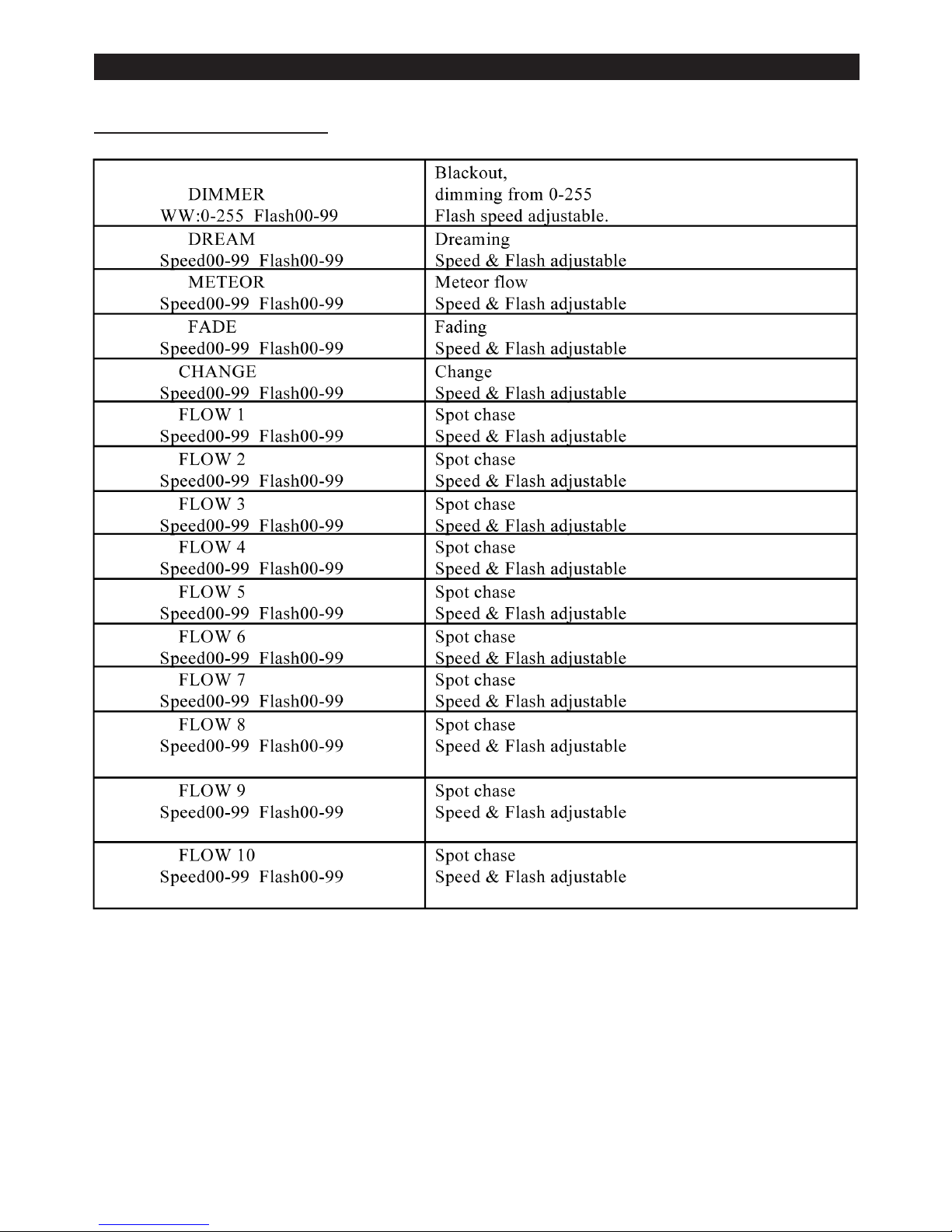

Pro White LED Matrix Block Built-in Programme Chart

15 Built-in programme chart

5.

Pro White LED Matrix Block DMX Programme Charts

3 channel mode DMX chart

6.

0-7

8-15 Spot 1

16-23 Spot 2

24-31 Spot 3

32-39 Spot 4

40-47 Spot 5

48-55 Spot 6

56-63 Spot 7

64-71 Spot 8

72-79 Spot 9

80-87 Spot 10

88-95 Spot 11

96-103 Spot 12

104-111 Spot 13

112-119 Spot 14

120-127 Spot 15

128-135 Spot 16

136-143 Dream

144-151 Meteor

152-159 Fade

160-167 Change

168-175 Flow1

176-183 Flow2

184-191 Flow3

192-199 Flow4

200-207 Flow5

208-215 Flow6

216-223 Flow7

224-231 Flow8

232-239 Flow9

240-247 Flow10

248-255

Sound control

Master

Dimmer

0-100%

Dimmer

0-255

Speed

0-255

Sensitivity

0-255

Flash

0-255

CH1 CH2 CH3

All 16 spots

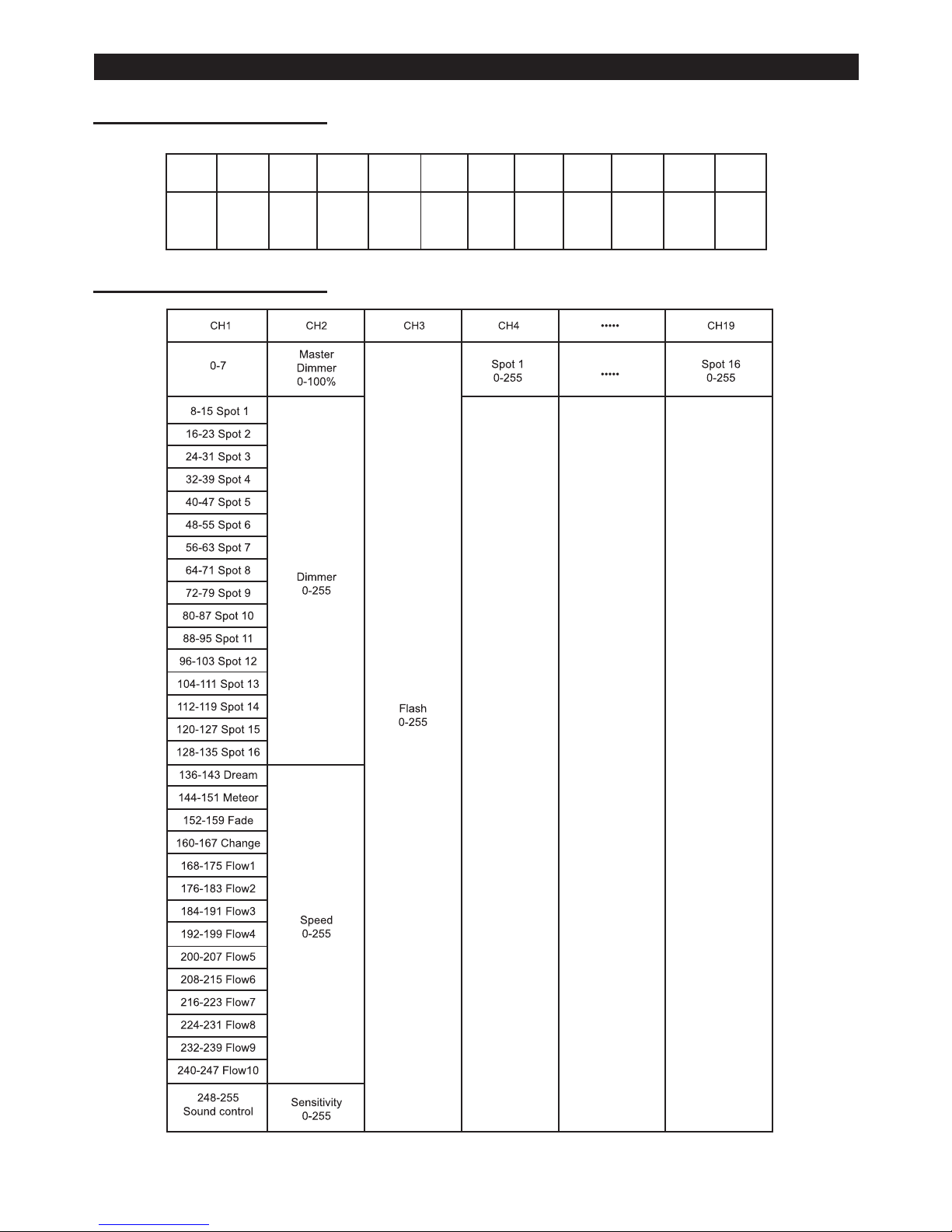

16 channel mode DMX chart

19 channel mode DMX chart

Pro White LED Matrix Block DMX Programme Charts

CH1

Spot 1

CH2

Spot 2

CH3

Spot 3

CH4

Spot 4

CH5

Spot 5

CH6

Spot 6

CH7

Spot 7

CH8

Spot 8

CH9

Spot 9

CH10

`Spot 10

•••••

•••••

CH16

Spot 16

7.

Pro White LED Matrix Block DMX Set up

DMX-512:

• DMX (Digital Multiplex) is a universal protocol used as a form of communication between
intelligent xtures and controllers. A DMX controller sends DMX data instructions form the
controller to the xture. DMX data is sent as serial data that travels from xture to xture via the
DATA “IN” and DATA “OUT” XLR terminals located on all DMX xtures (most controllers only
have a data “out” terminal).

DMX Linking:

• DMX is a language allowing all makes and models of different manufactures to be linked together
and operate from a single controller, as long as all xtures and the controller are DMX compliant.
To ensure proper DMX data transmission, when using several DMX xtures try to use the
shortest cable path possible. The order in which xtures are connected in a DMX line does not
inuence the DMX addressing. For example; a xture assigned to a DMX address of 1 may be

placed anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a

xture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to

address 1 to that unit, no matter where it is located in the DMX chain.

DATA Cable (DMX cable) requirements (for DMX operation):

• The Pro White LED Matrix Block can be controlled via DMX-512 protocol. The DMX address is
set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR
connector for data input/output (gure 1).

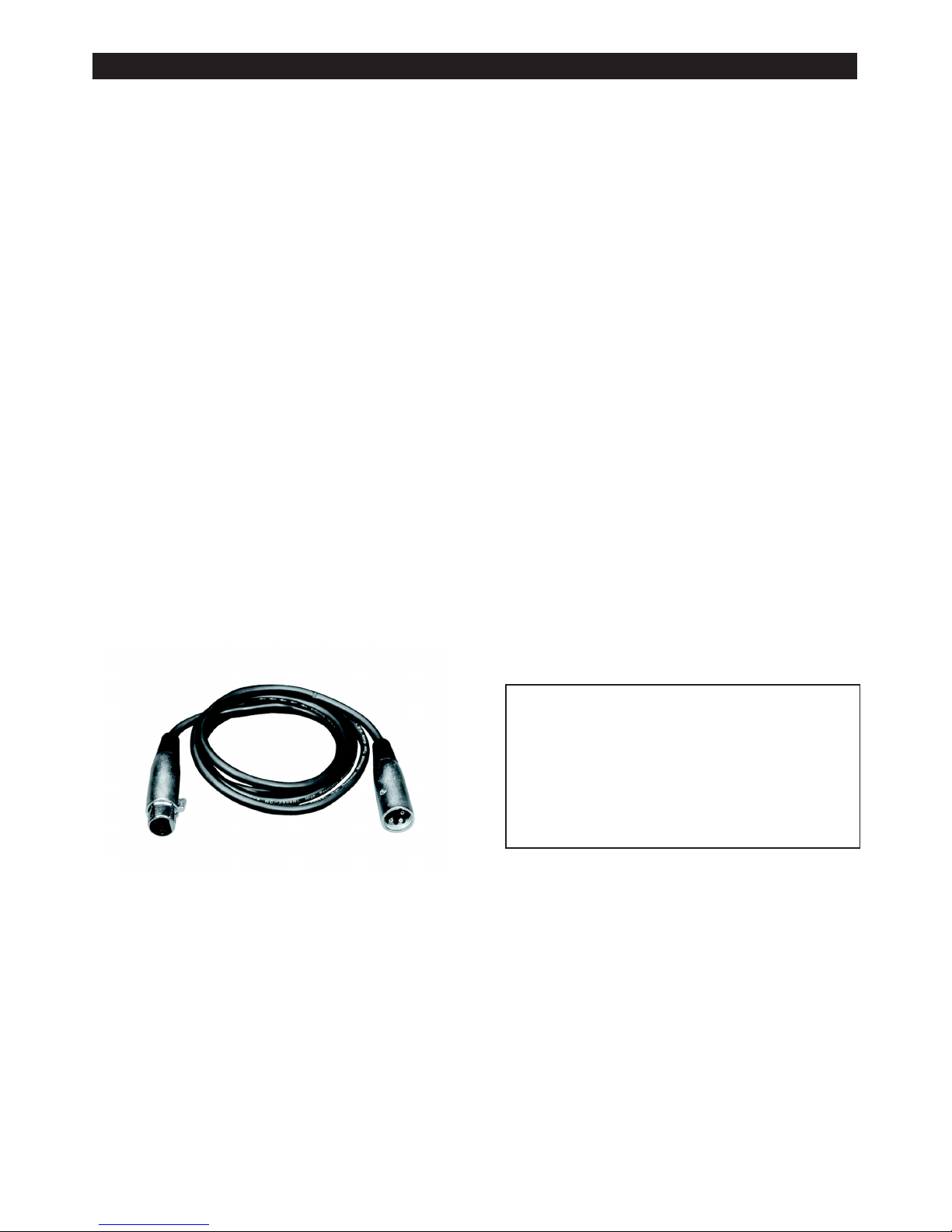

Figure 1

Also remember that DMX cable must be daisy chained and cannot be split.

Further DMX cables can be purchased
from all good sound and lighting suppliers
or Prolight dealers.
Please quote:

CABL10 – 2M
CABL11 – 5M
CABL12 – 10M

8.

Notice:

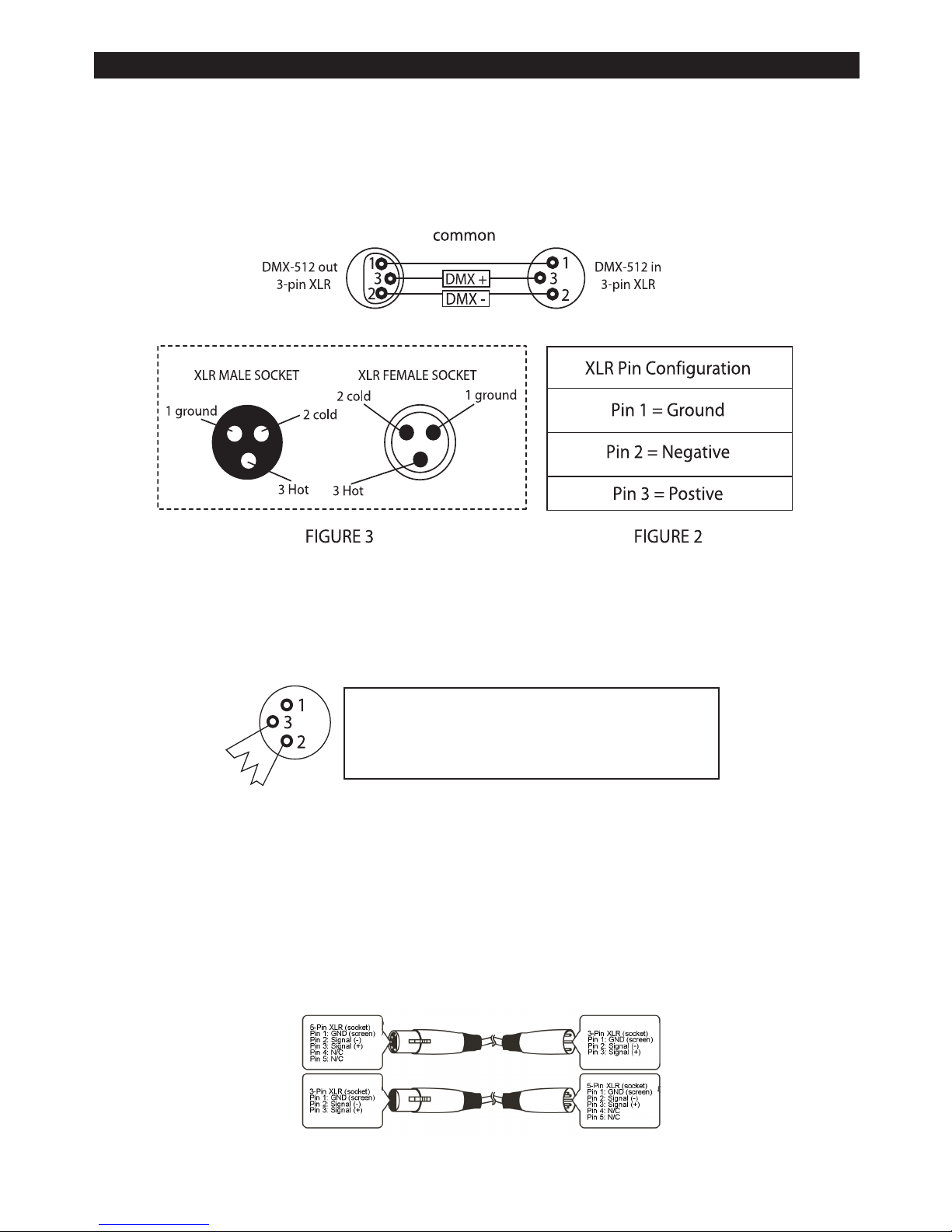

• Be sure to follow gures 2 & 3 when making your own cables. Do not connect the cable’s shield
conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer
casing. Grounding the shield could cause a short circuit and erratic behaviour.

Special Note: Line termination:

• When longer runs of cable are used, you may need to use a terminator on the last unit to

avoid erratic behaviour.

Using a cable terminator (part number CABL90) will decrease the possibilities of erratic
behaviour.

5-Pin XLR DMX Connectors:

• Some manufactures use 5-pin XLR connectors for data transmission in place of 3-pin. 5-Pin
XLR xtures may be implemented in a 3-pin XLR DMX line. When inserting standard 5-pin
XLR connectors in to a 3-pin line a cable adaptor must be used. The chart below details the

correct cable conversion.

Termination reduces signal transmission problems
and interferance. it is always advisable to connect a
DMX terminal, (resistance 120 Ohm 1/4 W) between
pin 2 (DMX-) and pin 3 (DMX+) of the last fixture.

Pro White LED Matrix Block DMX Set up

9.
