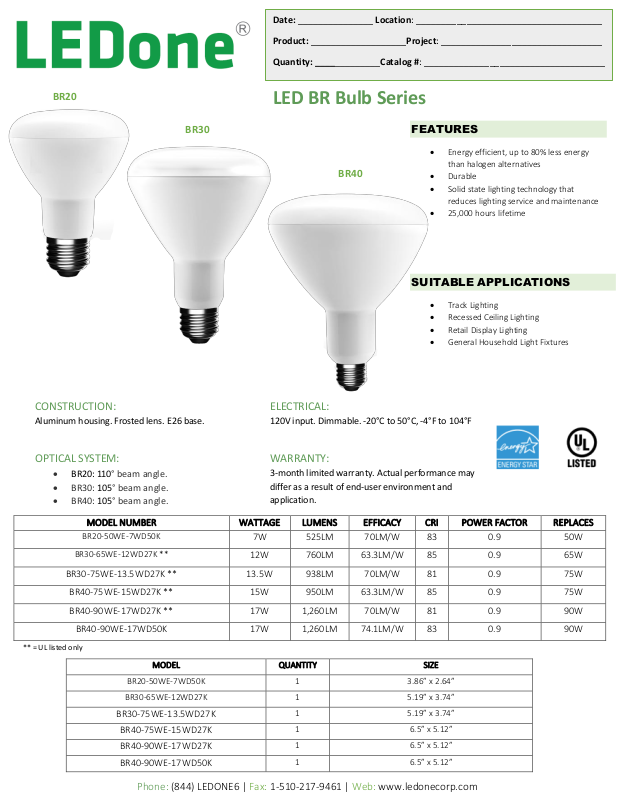

Page 1
Phone: (844) LEDONE6 | Fax: 1-510-217-9461 | Web: www.ledonecorp.com
Date: _______________ Location: _____________________________________
Product: ___________________Project: ________________________________
Quantity: _____________Catalog #: ____________________________________
FEATURES
• Energy efficient, up to 80% less energy
than halogen alternatives
• Durable
• Solid state lighting technology that
reduces lighting service and maintenance
• 25,000 hours lifetime
SUITABLE APPLICATIONS
• Track Lighting
• Recessed Ceiling Lighting
• Retail Display Lighting
• General Household Light Fixtures
CONSTRUCTION:
Aluminum housing. Frosted lens. E26 base.
OPTICAL SYSTEM:
• BR20: 110° beam angle.
• BR30: 105° beam angle.
• BR40: 105° beam angle.
ELECTRICAL:
120V input. Dimmable. -20°C to 50°C, -4°F to 104°F
WARRANTY:
3-month limited warranty. Actual performance may
differ as a result of end-user environment and
application.
BR20
MODEL
QUANTITY
SIZE
BR20-50WE-7WD50K
1
3.86” x 2.64”
BR30-65WE-12WD27K
1
5.19” x 3.74”
BR30-75WE-13.5WD27K
1
5.19” x 3.74”
BR40-75WE-15WD27K
1
6.5” x 5.12”
BR40-90WE-17WD27K
1
6.5” x 5.12”
BR40-90WE-17WD50K
1
6.5” x 5.12”
MODEL NUMBER
WATTAGE
LUMENS
EFFICACY
CRI
POWER FACTOR
REPLACES
BR20-50WE-7WD50K
7W
525LM
70LM/W
83
0.9
50W
BR30-65WE-12WD27K **
12W
760LM
63.3LM/W
85
0.9
65W BR30-75WE-13.5WD27K **
13.5W
938LM
70LM/W
81
0.9
75W
BR40-75WE-15WD27K **
15W
950LM
63.3LM/W
85
0.9
75W
BR40-90WE-17WD27K **
17W
1,260LM
70LM/W
81
0.9
90W
BR40-90WE-17WD50K
17W
1,260LM
74.1LM/W
83
0.9
90W
BR30
** = UL listed only
BR40
LED BR Bulb Series
