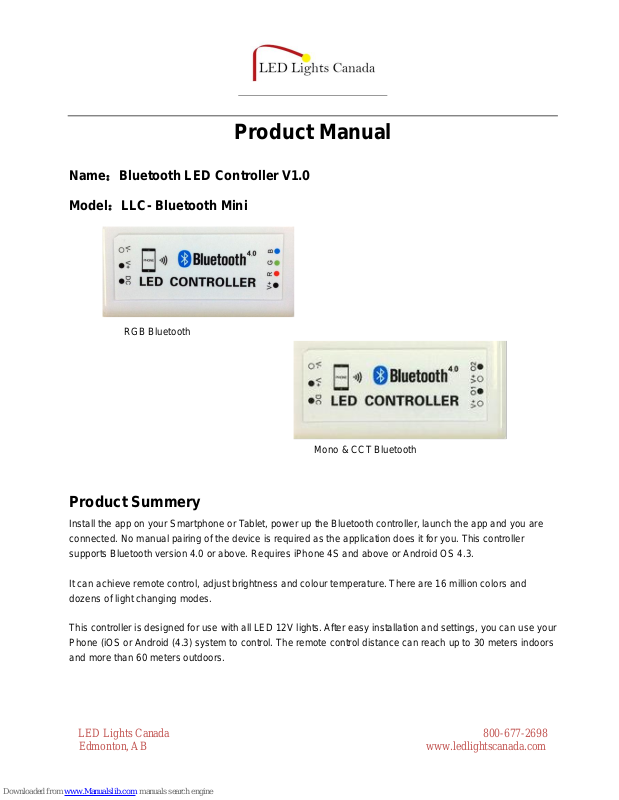

Product Manual
Name：Bluetooth LED Controller V1.0
Model：LLC- Bluetooth Mini
RGB Bluetooth
Mono & CCT Bluetooth
Product Summery
Install the app on your Smartphone or Tablet, power up the Bluetooth controller, launch the app and you are
connected. No manual pairing of the device is required as the application does it for you. This controller
supports Bluetooth version 4.0 or above. Requires iPhone 4S and above or Android OS 4.3.
It can achieve remote control, adjust brightness and colour temperature. There are 16 million colors and
dozens of light changing modes.
This controller is designed for use with all LED 12V lights. After easy installation and settings, you can use your
Phone (iOS or Android (4.3) system to control. The remote control distance can reach up to 30 meters indoors
and more than 60 meters outdoors.
LED Lights Canada 800-677-2698
Edmonton, AB www.ledlightscanada.com
Tech Specs
Connection Methods
Bluetooth Version 4.0
Suitable Phone OS
Any OS support Bluetooth version 4.0 or above
Apple- Model 4S and up, Android OS V4.3
Software language
English
Channels
Model 310:4A/CH,2CH, Mono Colour
Model 320:4A/CH,Warm W :1CH,Cool W:1CH, CCT
Model 370:4A/CH,R:1CH,G:1CH,B:1CH, RGB
Working Voltage
310/320/370:DC12V-DC24V
Working Temperature
-20C – 60C
Effective Remote Distance
No barrier,60m ;Indoor, 30m
N.W
≤61g
G.W
≤101g
Waterproof
IP 25
Size
86*45*23mm
Magic Light App V1.0 Instruction
1. Install Magic LED Light V1.0
A .Search “Magic LED Light “in App store by iPhone, download for free and install the newest version..
B. Download it by scanning QR code：
C. Download directly from the iTunes Store
https://itunes.apple.com/us/app/magic-led-light/id667339109?ls=1&mt=8
LED Lights Canada 800-677-2698
Edmonton, AB www.ledlightscanada.com
The following pages show you how to install and use the Magic LED Light app
2. Connect Bluetooth LED Controller
Connect the controller to a properly sized 12V DC power supply. Then turn on Bluetooth service on your
phone. If your Bluetooth service is off your phone will automatic pop-up a dialog asking to “Turn On Bluetooth to
Allow Magic Light to Connect to Accessories. Choose “Settings” first, then Bluetooth “on “.
LED Lights Canada 800-677-2698
Edmonton, AB www.ledlightscanada.com
3. Software Operating
A. Preview：
If your controller is not connected you can still open operation interface by choosing the preview mode.
B. Reset：
Rescan controller.
LED Lights Canada 800-677-2698
Edmonton, AB www.ledlightscanada.com
C. Mono Version (single colour)
1. White ring: Press the white ring, choose any brightness you like. The brightness state will show
your choice.
2. All off：darkest
3. All on：brightest
4. Speed bar:
For “Strobe” or “Gradual” mode, speed can be adjusted. Total 31 grades of each mode: "1" is
the slowest grade; "31" is the fastest grade.
5. Modes:
1) Strobe mode
2) Gradual mode
6. Run: Invalid in static color, valid for dynamic modes.
7. Open: ON/OFF.
LED Lights Canada 800-677-2698
Edmonton, AB www.ledlightscanada.com
CCT Warm White to Cool White Vision
1. Slide your finger around the Colour temperature ring to choose any colour temperature you like.
The color temperature state will show your colour temperature choice.
2. All off：darkest
3. All on：brightest
4. Speed bar:
5. In the “Strobe” or “Gradual” mode the speed can be adjusted. There are 31 grades of each mode.
"1" is the slowest grade and “31" is the fastest grade.
6. Brightness is adjustable from 0-100%.
LED Lights Canada 800-677-2698
Edmonton, AB www.ledlightscanada.com
7. Modes:
1) Warm gradual
2) Cool gradual
3) Warm flash
4) Cool flash
8. Run: Invalid in static color, valid for dynamic modes.
9. Open: ON/OFF.
RGB Version
1. Colour ring: Slide your finger around the colour ring to choose any color you like. The lights will
change to the colour you choose.
2. All off：darkest of three channels(R,G,B)
3. All on：brightest of three channels(R,G,B)
4. Brightness bar: This will dim your lights from 0-100%
5. Open: Slide this to turn your lights on and off.
6. 20 built-in modes:
1) Press M-/M+ to choose modes, you can adjust the speed at the same time.
2) Total 31 grades of each mode:"1" is the slowest grade;"31" is the fastest grade.
3) Following are 20 built-in modes of RGB Control:
LED Lights Canada 800-677-2698
Edmonton, AB www.ledlightscanada.com
20 Built-in Modes
Number
Mode
Remarks
1
Seven color cross fade
Run: Invalid in static color,
Valid for dynamic modes.
2
Red gradual changing
3
Green gradual changing
4
Blue gradual changing
5
Yellow gradual changing
6
Cyan gradual changing
7
Purple gradual changing
8
White gradual changing
9
Red/Green gradual changing
10
Red/Blue gradual changing
11
Green/Blue gradual changing
12
Seven color strobe flash
13
Red strobe flash
14
Green strobe flash
15
Blue strobe flash
16
Yellow strobe flash
17
Cyan strobe flash
18
Purple strobe flash
19
White strobe flash
20
Seven color jumping changing
LED Lights Canada 800-677-2698
Edmonton, AB www.ledlightscanada.com
7. How to edit mode:
*****************************************************************************************************************************
Warranty
LED Lights Canada will replace any defective Bluetooth controllers within 2 years of purchase.
Notes:
1. Please don’t use it in areas which are full of metal and strong electromagnetic fields as effective remote
distance will be shortened significantly.
2. 12V DC power can be supplied using the V+ or V- terminals on the input side of the controller or by
connecting a power adapter using the barrel connector. DO NOT RUN POWER TO BOTH
3. The manufacturer reserves the right to change or modify apps as required. Please check to be sure you
are using the current version of the app on your phone or tablet.
LED Lights Canada 800-677-2698
Edmonton, AB www.ledlightscanada.com
Wiring Diagrams
RGB
12V Out
120V AC 12V DC
Input Output
LED Driver
